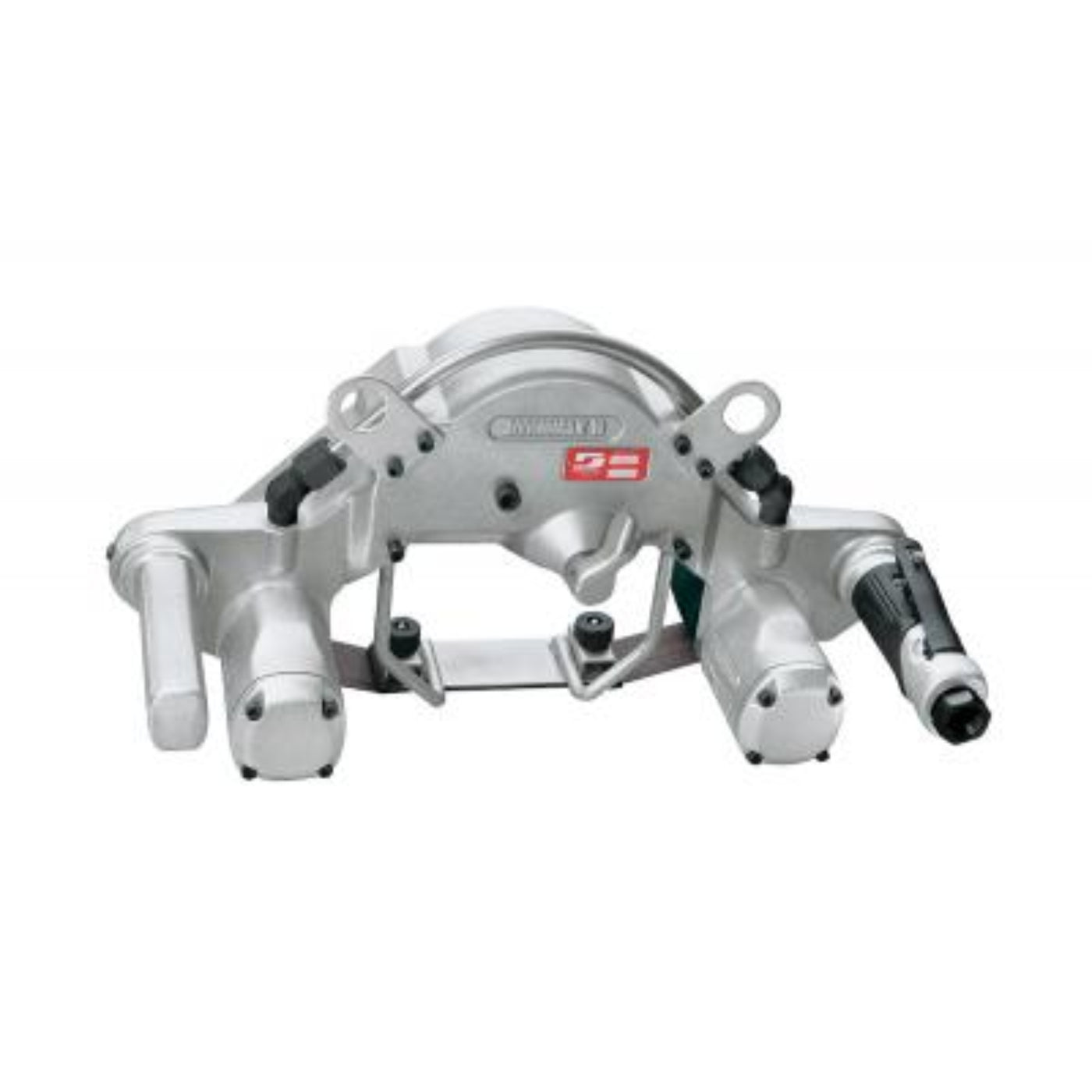

DYNABRADE Dynangle II Abrasive Belt Tool, Dual Motor w/ Platen - 14303
- 2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts.
- Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
-
Heavy-Duty 'Dual Motor' with Platen offers extra power. Uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
-
Includes 2" wide x 6" long platen which is easily removed for strap polishing.
Specifications
| Air Consumption (SCFM) |
106.0 |
| Power (hp) |
2.0 |
| Max. RPM |
13,000 |
| Max. SFPM |
8,500 |
| Air Inlet Thread |
1/2" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
9.5625 |
| Length in. (mm) |
18.875 |
| Weight lb. (kg) |
19.62 |
| Width in. (mm) |
12.5 |
| Pkg. Height in. (mm) |
13.75 |
| Pkg. Length in. (mm) |
20.25 |
| Pkg. Weight lb. (kg) |
22.93 |
| Pkg. Width in. (mm) |
12.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026143036 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
Q&A
Q: What is the DYNABRADE Dynangle II Abrasive Belt Tool 14303 used for?
A: It is designed for grinding, deburring, blending, weld removal, and surface finishing in hard-to-reach areas using abrasive belts.
Q: What are the key benefits of the Dual Motor with Platen design?
A: The dual motor design delivers consistent power, while the platen provides improved belt support for controlled flat sanding, precision finishing, and longer abrasive belt life.
Q: Which applications is this tool best suited for?
A: It is ideal for metal fabrication, stainless steel finishing, weld seam blending, edge deburring, and industrial maintenance where accuracy and productivity are essential.
