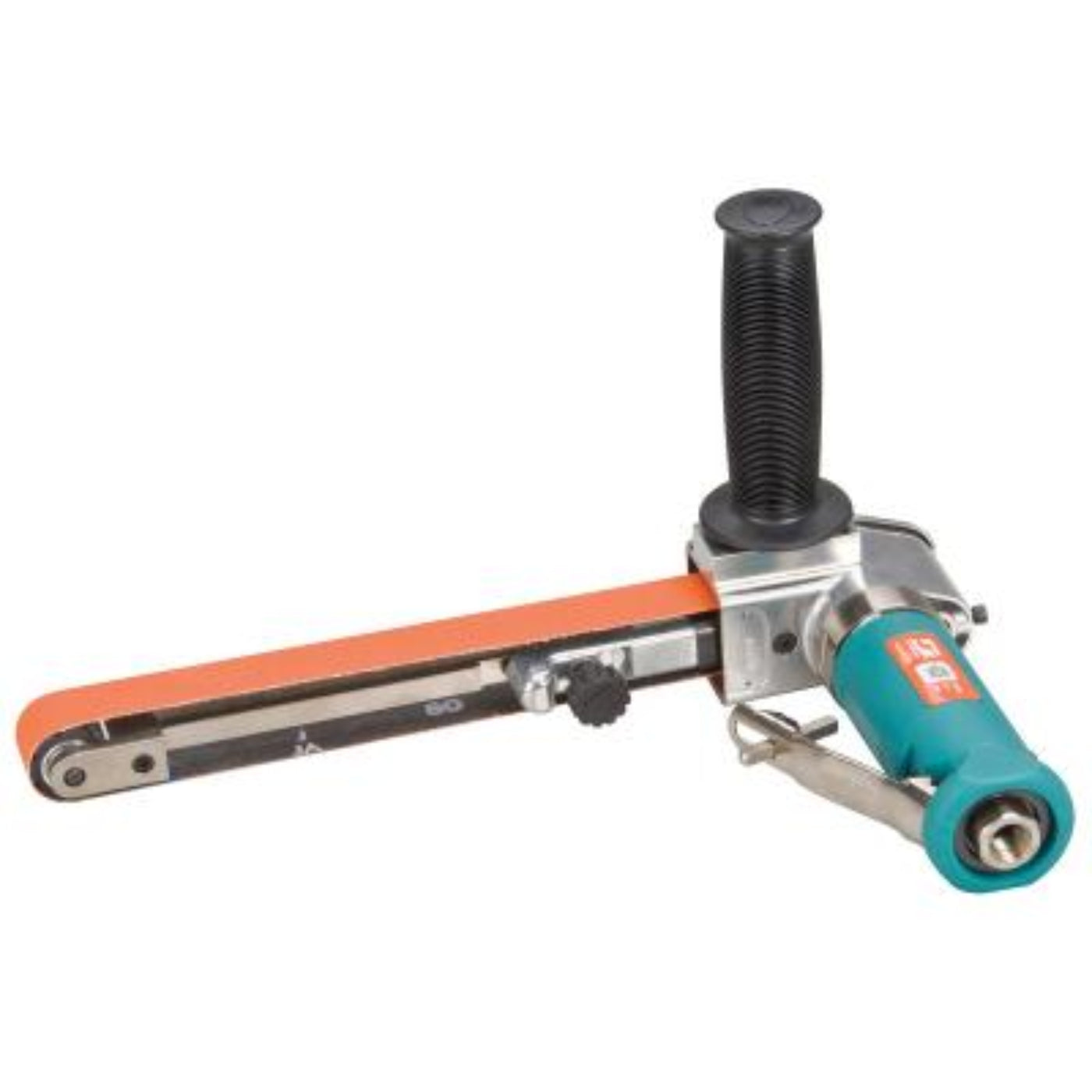

DYNABRADE Dynafile III Abrasive Belt Machine - 15360
- .7 hp, Right Angle, 23,000 RPM, Front Exhaust, for 1/4" - 1" (6-25 mm) W x 24" (610 mm) L Belts.
- Excellent for grinding welds, blending and deburring. Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (Straight-Line, .7 hp / 522 W) for faster material removal.
-
Tool includes high-efficiency Rubber Drive Wheel, ideal for use with all abrasive belts.
-
Includes 15368 Contact Arm for 1/4" - 1" (6-25 mm) wide x 24" (610 mm) long abrasive belts. Tool grinding head pivots 360 degrees.
-
Soft grip handle assembly allows operator to apply additional force to contact wheel. Handle also offers enhanced control and maneuverability.
-
Optional safety-lock throttle lever is available.
Specifications
| Air Consumption (SCFM) |
32.0 |
| Power (hp) |
0.7 |
| Max. RPM |
23,000 |
| Max. SFPM |
4,550 |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Front |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
7.125 |
| Length in. (mm) |
12.75 |
| Weight lb. (kg) |
3.51 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
11 |
| Pkg. Weight lb. (kg) |
4.35 |
| Pkg. Width in. (mm) |
6.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026153608 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
Q&A
Q: What is the DYNABRADE Dynafile III Abrasive Belt Machine 15360 used for?
A: It is designed for grinding, deburring, blending, polishing, and precision finishing in tight, hard-to-reach areas using abrasive belts.
Q: What are the key benefits of the Dynafile III 15360?
A: Its powerful yet lightweight design delivers excellent control, efficient material removal, and consistent finishing for professional industrial applications.
Q: Which applications is this tool best suited for?
A: It is ideal for weld blending, edge deburring, stainless steel finishing, metal fabrication, automotive repair, aerospace work, and general maintenance.
