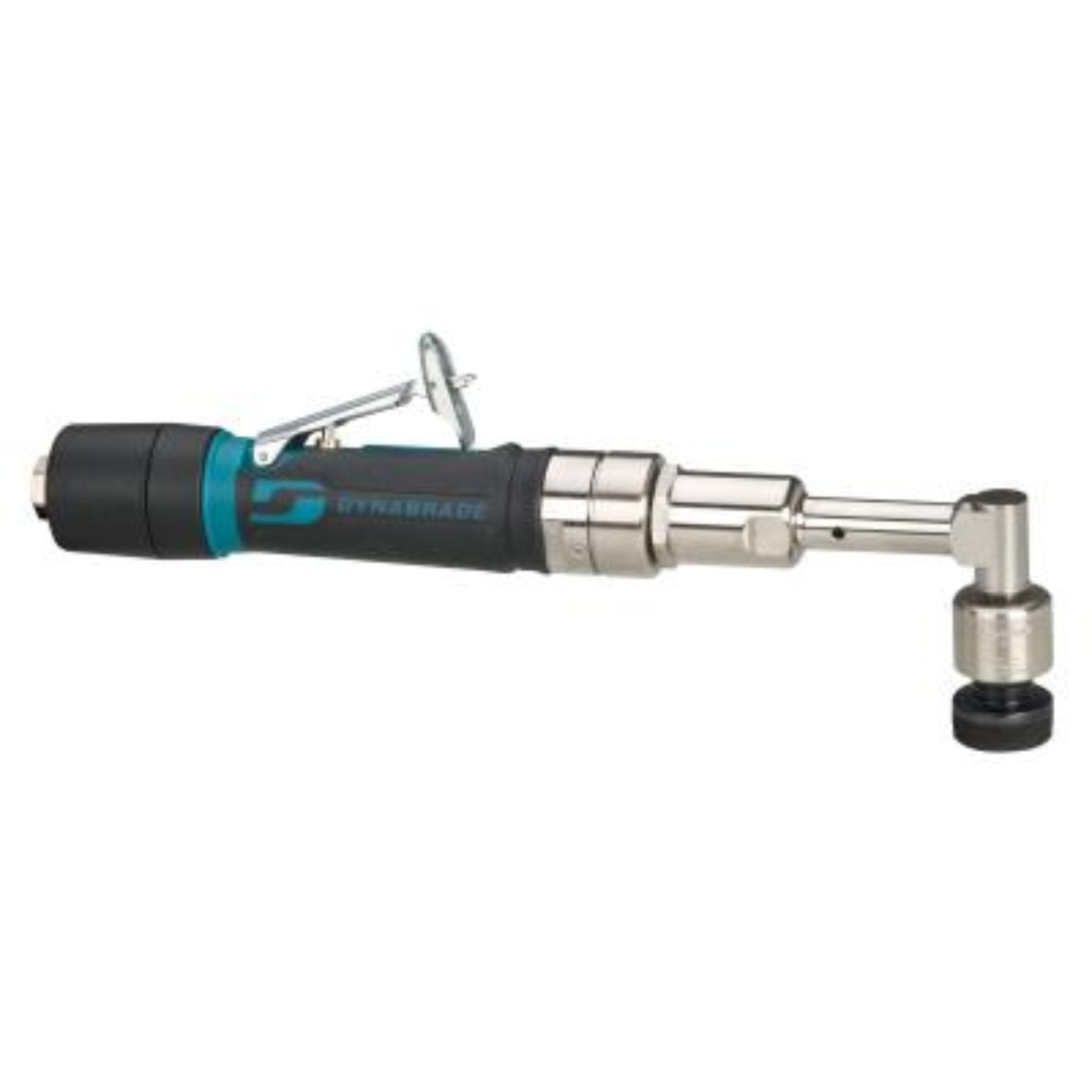

DYNABRADE Angle-Head Mini-Dynorbital Random Orbital Sander Versatility Kit - 49402
-
.4 HP, 3,200 rpm.
- Built-in speed regulator, extended rear exhaust muffler, safety-lock lever included. Governor-controlled motor maintains speed under load.
-
Sample 9-micron micro-finishing film discs are included. Optional 54585 Side Handle Assembly available.
-
Includes: 3,200 RPM Air Tool (see 49401), 54028 Random Orbital Sanding Head, 54018 Sanding Pad, 54029 Random Orbital Sanding Head, 54031 Sanding Pad, 50107 Sanding Pad, 54021 Adapter, Sample 2" Dia. Sanding Discs, 54030 Locking-Type Rotary Sanding Head, 50055 Collet Assembly (1/4" Capacity). Abrasives ? 3/4" and 1-1/4" Dia. 9-micron (1000-grit) micro-finishing film discs; assorted wrenches.
-
Tool also accepts 1/4"-28 threaded drill bits (not included).
Specifications
| Air Consumption (SCFM) |
26.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Pad Face |
Vinyl |
| Sanding Head Spindle Thread |
Male Locking-Type |
| Tool Spindle Thread |
1/4"-28 Female For Sanding-Head Spindle |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
2.9 |
| Length in. (mm) |
12.4 |
| Weight lb. (kg) |
3.55 |
| Width in. (mm) |
5.5 |
| Pkg. Height in. (mm) |
2.25 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
4.55 |
| Pkg. Width in. (mm) |
5.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026494022 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
- The Dynabrade 49402 Angle-Head Mini-Dynorbital Random Orbital Sander Versatility Kit is a high-end professional pneumatic finishing system built for ultra-precise surface refinement in tight or contoured areas.
- Powered by a 0.4 HP governor-controlled air motor with ~3,200 RPM free speed, it maintains consistent sanding performance even under load for uniform finishing results.
- Uses a 3/16" (5 mm) random orbital stroke, optimized for fine finishing, paint correction, and defect removal rather than heavy material removal.
- The angle-head design significantly improves access to recessed panels, curves, edges, and confined spaces where standard sanders cannot operate effectively.
- Includes a versatility kit of multiple sanding heads, pads, adapters, and micro-finishing abrasives, allowing quick configuration changes for different precision tasks.
- Built-in features like a speed regulator, safety-lock throttle, and rear exhaust system improve operator control, comfort, and dust management during long sessions.
- Designed for 3" and smaller sanding formats, making it ideal for micro-finishing films, detailing work, and high-precision surface leveling.
- Best suited for professionals in automotive refinishing, aerospace prep, composite finishing, and tool-and-die work, where finish quality matters more than material removal speed.
Q&A
Q: What is the Dynabrade 49402 Angle-Head Mini-Dynorbital Random Orbital Sander Versatility Kit used for?
A: It is a professional pneumatic multi-function sanding kit designed for precision sanding, paint correction, finishing, and surface refinement in tight or detailed areas.
Q: What makes the 49402 Versatility Kit different?
A: It includes interchangeable heads and accessories that allow orbital sanding, rotary finishing, and micro-finishing in one compact system.
Q: What are the key specs?
A: 0.4 HP air motor, 3,200 RPM, 3/16" (5 mm) orbit, non-vacuum, angle-head design for improved access.
Q: What does the kit include?
A: Angle-head sander, multiple sanding heads, pads, adapters, and micro-finishing accessories for precision work.
Q: What materials can it be used on?
A: Automotive paint, clear coats, fiberglass, composites, and metal surfaces requiring fine finishing or defect removal.
Q: Who is it best for?
A: Auto body professionals, aerospace technicians, and industrial finishers needing high-precision surface finishing tools.
