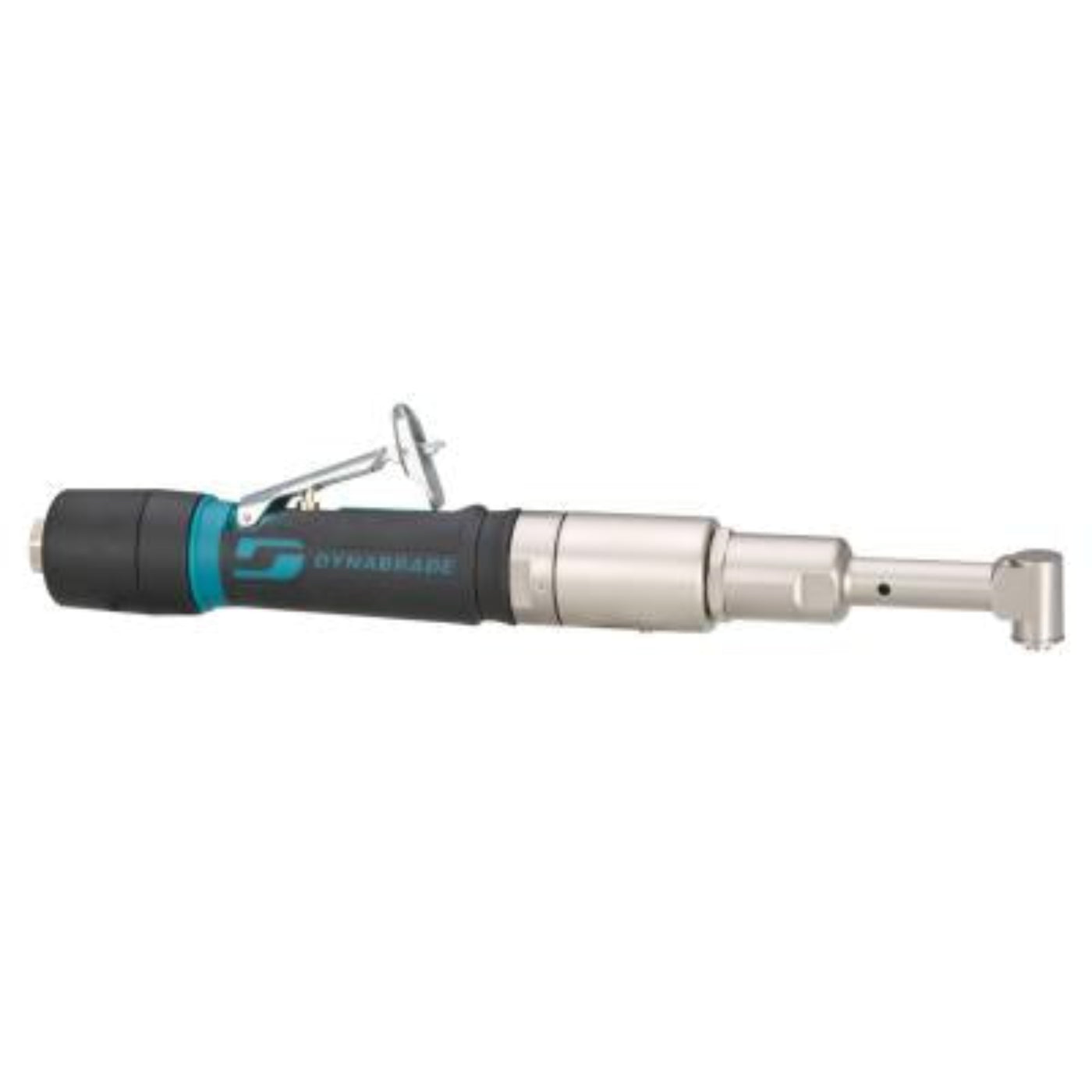

DYNABRADE Right Angle Drill - 49455
- .4 hp, 950 RPM, Mini-Angle Head, Planetary-Geared, Rear Exhaust, 1/4"-28 Female Thread.
- Accepts 1/4"-28 threaded drill bits, sold separately.
-
Angle height of only 1.2" (30).
-
Governor-controlled motor maintains speed under load.
-
Extended rear muffler design; safety-lock lever included. USA Government National Stock Number 5130015498848.
Specifications
| Air Consumption (SCFM) |
23.0 |
| Power (hp) |
0.4 |
| Max. RPM |
950 |
| Tool Spindle Thread |
1/4" - 28 Female |
| Air Inlet Thread |
1/4" NPT |
| Chuck Size |
1/4" |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.2 |
| Length in. (mm) |
13.0 |
| Weight lb. (kg) |
2.1 |
| Width in. (mm) |
5.5 |
| Pkg. Height in. (mm) |
2.5 |
| Pkg. Length in. (mm) |
16 |
| Pkg. Weight lb. (kg) |
3.1 |
| Pkg. Width in. (mm) |
5.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026494558 |
| EAC Certified |
Yes |
| Tool Style |
Mini-Angle Head |
What our Experts Think
-
Built for Tight-Space Performance โ The right-angle design makes the Dynabrade 49455 ideal for drilling in confined areas where conventional drills cannot easily reach.
-
Precision & Control โ Offers excellent maneuverability and accuracy, making it well-suited for detailed drilling and assembly applications.
-
Compact, Operator-Friendly Design โ Lightweight construction helps reduce fatigue and improves comfort during prolonged use.
-
Industrial-Grade Durability โ Engineered for demanding manufacturing, fabrication, and maintenance environments where reliability is essential.
-
Smooth Pneumatic Power โ Air-powered operation delivers consistent torque, dependable performance, and low maintenance requirements.
-
Improved Accessibility โ The compact head design allows easier access around obstructions, corners, and equipment components.
-
Best For: Aerospace assembly, automotive repair, sheet metal fabrication, maintenance operations, equipment installation, and confined-space drilling.
Q&A
Q: What is the DYNABRADE 49455 Right Angle Drill designed for?
A: It is designed for precision drilling in tight, confined, and hard-to-reach work areas where standard drills have limited access.
Q: What are the advantages of a right angle drill?
A: The right-angle head improves accessibility, maneuverability, and control, making it easier to work in restricted spaces.
Q: Is this drill suitable for industrial applications?
A: Yes, it is ideal for aerospace, automotive, manufacturing, assembly, and maintenance environments.
Q: Can it handle repetitive production tasks?
A: Yes, its durable pneumatic construction is engineered for continuous, high-volume industrial use.
Q: How can I maintain optimal performance?
A: Use clean, dry compressed air, maintain proper air pressure, lubricate regularly, and inspect the tool routinely to maximize reliability and service life.
