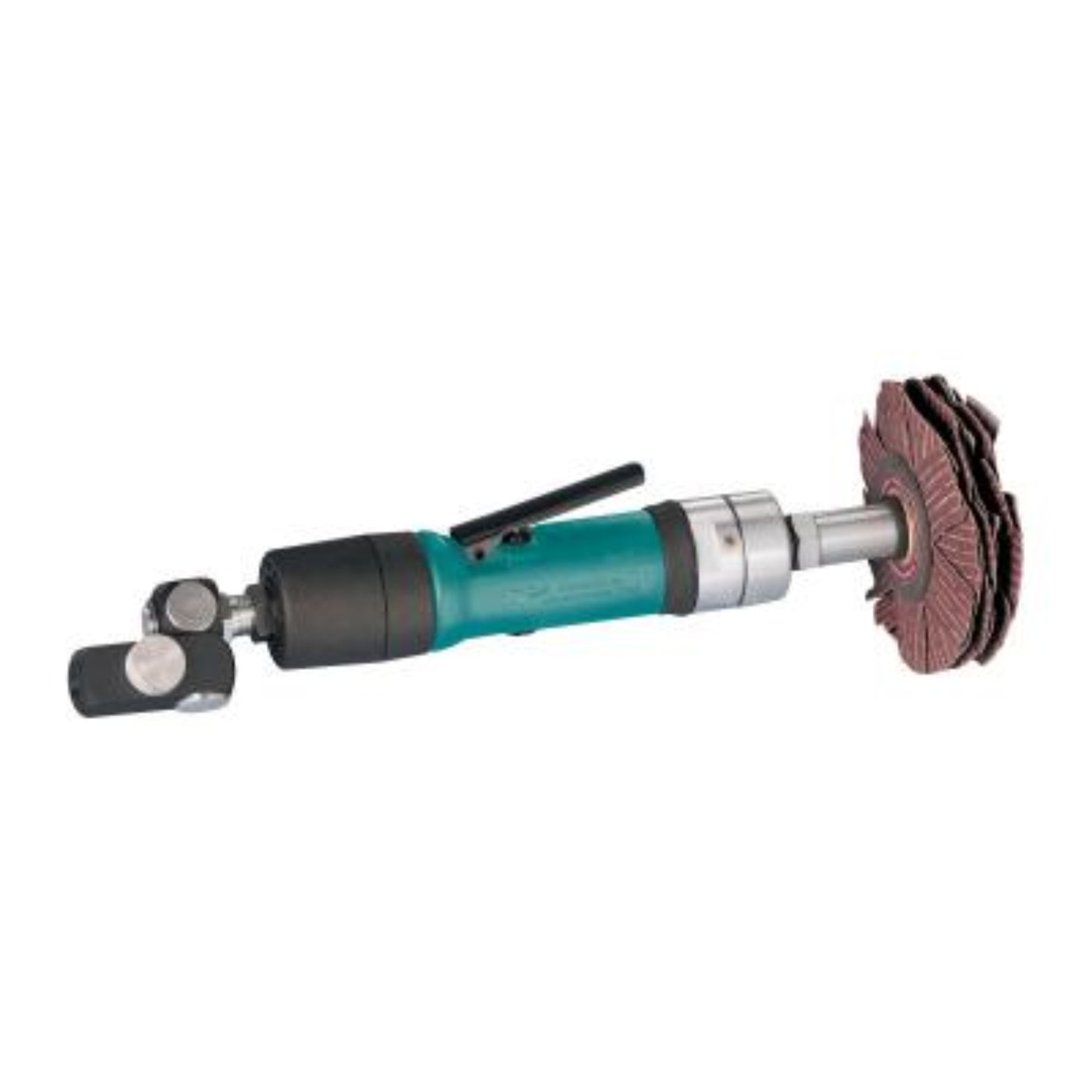

DYNABRADE Lightweight Dyninger Finishing Tool - 52052
-
.4 hp, Straight-Line, 0-3,200 RPM, Rear Exhaust, 1/2" (13 mm) Dia. Arbor.
- Lightweight Dyninger Air-Powered Abrasive Finishing Tool, for use with Spindle-Mount, Arbor-Mount and Eyelet Sanding Stars.
-
0-3,200 RPM, .4 hp. For running arbor-mount abrasive stars or Dynacushion wheel. Includes 12980 Arbor (1/2" diameter) for mounting up to five 4" diameter arbor-mount sanding stars (1/2" center hole). Arbor includes spacers to be used between the stars for added flexibility. (Stars sold separately.)
-
For whitewood/sealer sanding, light deburring of metal, or fabrication and finishing of composite surfaces.
-
Excellent for use on wooden parts, moldings, raised panels and intricate profiles. Eliminates raised grain and removes loose fibers when whitewood sanding as well as scuffing sealer coats.
-
Tool includes 94407 Air-Flow Control Dynaswivel fitting for maximum tool maneuverability and control.
Specifications
| Arbor Hole |
1/2" |
| Air Consumption (SCFM) |
22.0 |
| Power (hp) |
0.4 |
| Max. RPM |
3,200 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Planetary-Geared |
| Height in. (mm) |
1.625 |
| Length in. (mm) |
8.75 |
| Weight lb. (kg) |
1.95 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
2.72 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026520523 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Lightweight Dyninger design delivers precise control for detailed finishing and surface refinement
- Ideal for fine blending, light deburring, and controlled material removal
-
Compact ergonomic body improves maneuverability in tight or complex work areas
- Provides smooth, consistent finishing performance for professional results
-
Low-vibration operation enhances comfort and reduces operator fatigue
- Suitable for metal fabrication, maintenance, and precision touch-up work
- Designed for use in confined or hard-to-reach spaces where accuracy is critical
- Built for reliable performance in industrial and workshop environments
- Supports delicate finishing tasks requiring high control over aggressive cutting
- A dependable choice for professionals needing a lightweight, precision Dyninger finishing tool
Q&A
Q: What is the DYNABRADE 52052 used for?
A: A pneumatic lightweight Dyninger finishing tool designed for controlled surface finishing, blending, scuff sanding, light deburring, and whitewood preparation on wood, metal, and composites.
Q: What makes the Dyninger system unique?
A: It uses flexible abrasive “star” wheels mounted on an arbor system, allowing the abrasives to conform to curves, moldings, and intricate profiles instead of rigid sanding discs.
Q: What materials is it best for?
A: Ideal for woodworking (moldings, panels, turnings), composite finishing, and light metal fabrication cleanup and deburring.
Q: What is the power and operating speed?
A: It uses a 0.4 HP pneumatic motor and runs at up to 3,200 RPM, providing controlled finishing rather than aggressive stock removal.
Q: What size abrasives does it support?
A: It accommodates spindle- and arbor-mounted sanding stars from roughly 3/4" to 4" diameter, depending on configuration.
Q: Does it have dust collection (vacuum)?
A: No, this is a non-vacuum finishing tool, so dust must be handled externally.
Q: What is it best used for in woodworking?
A: Whitewood sanding, removing raised grain, scuffing sealer coats, and finishing detailed or contoured wood surfaces.
Maintenance Tips
-
Use clean, dry compressed air only: Prevents vane wear and keeps low-speed control stable for consistent finishing results.
-
Lubricate daily: Add a few drops of pneumatic tool oil before use to maintain smooth planetary gear operation and reduce internal wear.
-
Maintain correct pressure (~90 PSI): Ensures stable 0–3,200 RPM operation without bogging under light finishing load.
-
Keep abrasive “stars” in good condition: Worn or uneven sanding stars cause chatter, inconsistent texture, and visible surface defects.
-
Use correct arbor mounting (1/2") and spacers: Ensure stars are evenly spaced and tightened to avoid imbalance during rotation.
-
Avoid excessive pressure on work surface: Let the abrasive stars do the work—too much force shortens abrasive life and reduces finish quality.
-
Inspect spindle and 3/8"-24 thread tightness: Loose mounting leads to vibration and poor surface consistency.
-
Check air hose and fittings for leaks: Even small leaks reduce speed stability at low RPM ranges.
-
Keep exhaust path clear: Prevents heat buildup and maintains smooth airflow through the motor.
-
Clean after each use: Remove resin, dust, and fibers from arbor and housing to preserve balance and tool life.
