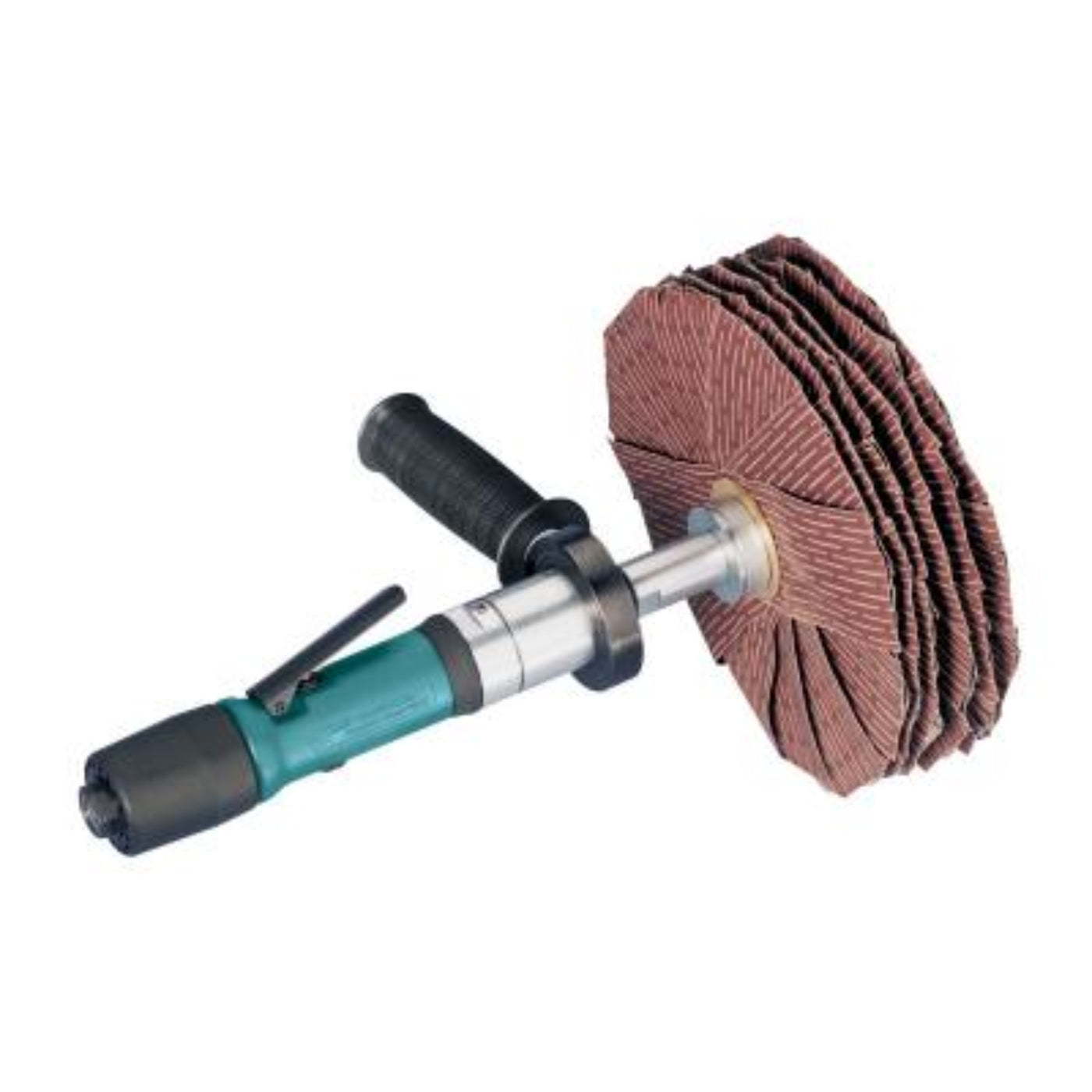

DYNABRADE Dyninger Finishing Tool - 52060
-
.4 hp, Straight-Line, 200-950 RPM, Rear Exhaust, 5/8" (16 mm) or 1" (25 mm) Dia. Arbor.
- Dyninger Air-Powered Abrasive Finishing Tool for sanding, defuzzing, blending, scuffing, denibbing.
-
950 RPM, .4 hp. High torque air motor includes arbor (1" dia.) for mounting up to six coated abrasive stars, 8" diameter with 1" center hole. (Stars sold separately.)
-
Excellent for blending and scuffing sealer coatings on contours and flat surfaces. Whitewood sand raised panels, turnings, moldings and hard-to-reach areas.
-
Defuzz wooden grid pattern panels and denibbing raised grain. Great for light deburring of metal.
Specifications
| Arbor Hole |
1.0" |
| Air Consumption (SCFM) |
22.0 |
| Power (hp) |
0.4 |
| Max. RPM |
950 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Planetary-Geared |
| Height in. (mm) |
2.75 |
| Length in. (mm) |
11.125 |
| Weight lb. (kg) |
3.7 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
4.43 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026520608 |
| EAC Certified |
Yes |
What our Experts Think
- The Dynabrade 52060 Dyninger Finishing Tool is a specialized low-speed pneumatic abrasive finishing system designed for precision surface conditioning, blending, and light deburring on complex shapes and flat panels.
- Powered by a 0.4 HP high-torque air motor, it delivers controlled performance in a variable low-speed range of ~200–950 RPM, making it ideal for finishing rather than aggressive removal.
- Uses an 8" arbor-mounted abrasive “star” system (up to 6 coated stars) that creates a uniform, conformable sanding action, especially effective on contours, profiles, moldings, and raised surfaces.
- Designed for multi-surface finishing tasks, including:
- Scuffing and blending coatings
- Defuzzing wood and raised grain
- Denibbing painted or sealed surfaces
- Light deburring on metal components
- The straight-line planetary-geared design ensures stable, repeatable contact pressure, improving consistency across irregular or decorative workpieces.
- Built for production finishing environments, where operators need predictable results on wood, composites, and light metal without overcutting or surface damage.
- Non-vacuum configuration keeps the tool simpler, lighter, and easier to maintain, suitable for bench or controlled-shop use.
-
Best suited for: woodworking shops, cabinetry, moldings, composite finishing, and light metal deburring where uniform surface conditioning matters more than speed or aggression.
-
Key takeaway: a precision abrasive star finishing tool optimized for controlled, repeatable surface
Q&A
: It is a pneumatic abrasive finishing tool designed for light surface finishing, blending, scuffing, denibbing, and defuzzing on wood, metal, and composite materials.
Q: What makes the Dyninger system unique?
A: It uses an 8-inch star-wheel abrasive system mounted on a planetary-geared air motor, creating a controlled, non-aggressive finishing action instead of traditional sanding discs.
Q: What are its key specifications?
A: It features a 0.4 HP air motor, variable speed (about 200–950 RPM), rear exhaust, and support for up to six abrasive star wheels (8" diameter).
Q: What materials is it used on?
A: It is commonly used on wood (especially raised panels and moldings), fiberglass, composites, coated surfaces, and light metal deburring.
Q: What types of work is it best for?
A: It is ideal for surface blending, sealer scuffing, grain leveling, and finishing contoured or detailed surfaces.
Q: Is it aggressive like a grinder?
A: No, it is a low-pressure finishing tool designed to avoid gouging while still improving surface consistency.
Q: What industries use it most?
A: It is used in woodworking, cabinetry, automotive refinishing, marine finishing, and light fabrication.
