DYNABRADE Dyninger Finishing Tool Basic Versatility Kit - 52061

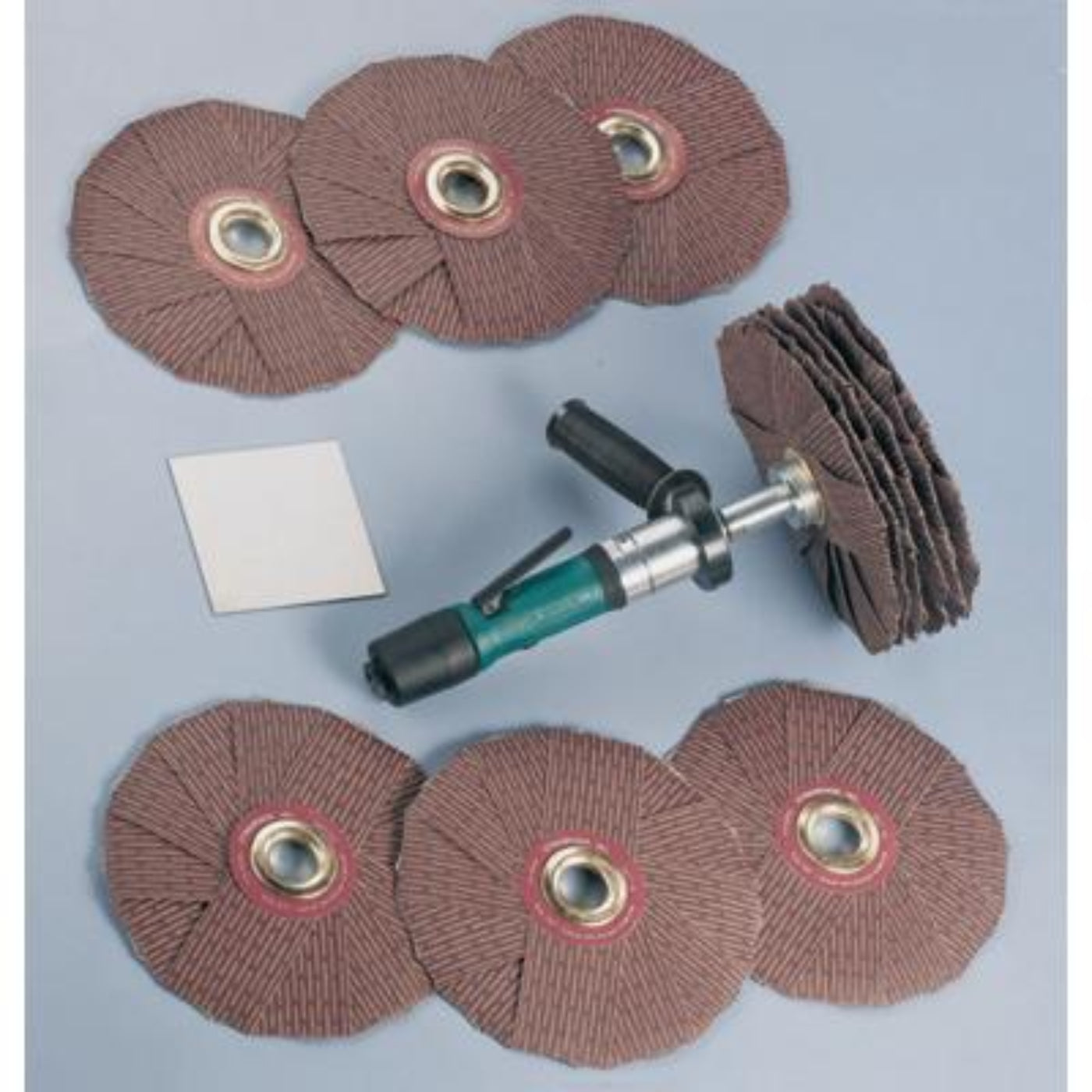

- Dyninger Abrasive Finishing Tool Versatility Kit for sanding, defuzzing, blending, scuffing, denibbing.
-
Includes 52060 tool, 950 RPM, .4 hp. High torque air motor includes arbor (1" dia.) for mounting up to six coated abrasive stars, 8" diameter with 1" center hole. (Stars sold separately.)
-
Includes six 93245 Coated Abrasive Stars (120 grit), and six 93251 Coated Abrasive Stars (320 grit).
-
Also Includes 52031 Abrasive Dressing Plate.
Specifications
| Arbor Hole |
1.0" |
| Air Consumption (SCFM) |
22.0 |
| Power (hp) |
0.4 |
| Max. RPM |
950 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Planetary-Geared |
| Height in. (mm) |
2.75 |
| Length in. (mm) |
11.125 |
| Weight lb. (kg) |
6.17 |
| Width in. (mm) |
9.0 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
7.72 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026520615 |
| EAC Certified |
Yes |
What our Experts Think
Q&A
Q: What is the DYNABRADE 52061 used for?
A: A pneumatic Dyninger finishing system designed for sanding, blending, scuffing, defuzzing wood, and light deburring of metal and composites.
Q: What is included in the 52061 kit?
A: It includes the Dyninger air-powered finishing tool, abrasive stars in multiple grits, and a dressing plate for maintaining abrasive performance.
Q: What makes the Dyninger system unique?
A: It uses rotating abrasive “star” wheels mounted on an arbor, allowing flexible contact that conforms to contoured, carved, or irregular surfaces.
Q: What materials can it be used on?
A: Ideal for wood (whitewood, moldings, panels), composites, and light metal finishing applications.
Q: What type of motion does it use?
A: It uses a straight-line, low-speed (approx. 200–950 RPM) high-torque motor for controlled finishing rather than aggressive material removal.
Q: What is it best suited for?
A: Defuzzing wood grain, scuff sanding sealer coats, blending finishes, denibbing raised grain, and light surface prep before coating.
Q: Does it require special consumables?
A: Yes, it uses Dynabrade abrasive star wheels (different grits) that are designed to flex and conform to surfaces.
Maintenance Tips
-
Use clean, dry compressed air only: Prevents internal wear and keeps low-speed torque stable under load.
-
Lubricate daily: Add a few drops of pneumatic tool oil before use to maintain smooth planetary gear operation and prevent vane wear.
-
Maintain correct air pressure (~90 PSI): Keeps consistent 200–950 RPM performance without stalling or speed fluctuation.
-
Condition abrasive stars (“dress” before use): Lightly break in new abrasive stars on a dressing plate or hardwood to reduce harsh scratching and improve finish consistency.
-
Inspect abrasive stars regularly: Replace when frayed or uneven to avoid chatter marks and inconsistent surface texture.
-
Check arbor and spindle tightness (3/8"-24): Loose mounting causes vibration and poor finishing uniformity.
-
Avoid excessive pressure: Let the abrasive stars do the work—too much force causes premature wear and uneven finish.
-
Keep rear exhaust clear: Ensures cooling airflow and stable motor performance during continuous finishing work.
-
Inspect air lines and fittings: Air leaks reduce torque and cause inconsistent RPM at low speeds.
-
Clean after use: Remove dust, resin, and debris from arbor and housing to maintain balance and smooth operation.
