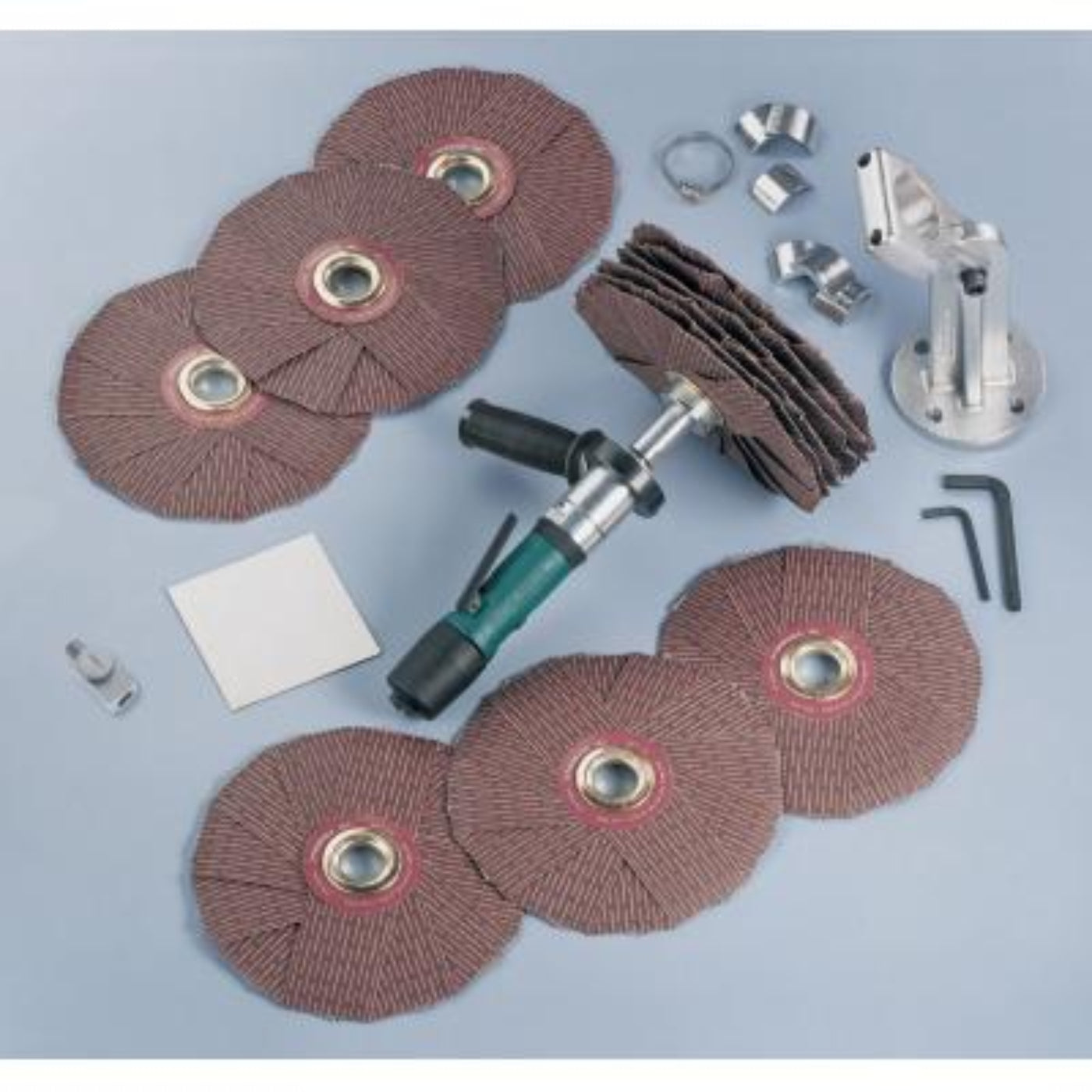

DYNABRADE Dyninger Finishing Tool Deluxe Versatility Kit - 52062
-
.4 hp, Straight-Line, 200-950 RPM, Rear Exhaust, 5/8" (16 mm) or 1" (25 mm) Dia. Arbor.
- Dyninger Abrasive Finishing Tool Versatility Kit for sanding, defuzzing, blending, scuffing, denibbing.
-
Includes 52060 tool, 950 RPM, .4 hp. High torque air motor includes arbor (1" dia.) for mounting up to six coated abrasive stars, 8" diameter with 1" center hole. (Stars sold separately.)
-
Includes six 93245 Coated Abrasive Stars (120 grit), and six 93251 Coated Abrasive Stars (320 grit).
-
Also includes 52031 Abrasive Dressing Plate.
-
Also includes 80020 Dynamount Tool Bench Mount.
Specifications
| Arbor Hole |
1.0" |
| Air Consumption (SCFM) |
22.0 |
| Power (hp) |
0.4 |
| Max. RPM |
950 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
1/4" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/4" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Planetary-Geared |
| Height in. (mm) |
2.75 |
| Length in. (mm) |
11.125 |
| Weight lb. (kg) |
8.38 |
| Width in. (mm) |
9.0 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
10.36 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026520622 |
What our Experts Think
- The Dynabrade 52062 Dyninger Finishing Tool Deluxe Versatility Kit is a specialized industrial abrasive finishing system designed for sanding, blending, scuffing, defuzzing, and denibbing on complex surfaces.
- Powered by a 0.4 HP high-torque pneumatic motor, it delivers controlled performance in a low-speed range of ~200–950 RPM, optimized for precision surface finishing rather than aggressive material removal.
- Uses an 8" arbor-mounted “abrasive star” system, allowing up to six coated abrasive stars to work simultaneously for uniform, conformable surface finishing on contours, profiles, and flat panels.
- The deluxe kit configuration includes:
- Dyninger tool (52060 base unit)
- Abrasive stars (120 & 320 grit)
- Abrasive dressing plate
- Bench mount system for stability during operation
- Designed for controlled, low-speed finishing action, making it ideal for wood, metal, composites, moldings, and raised-profile components where conventional sanders are too aggressive.
- The planetary-geared straight-line design ensures consistent contact pressure and smooth, repeatable finishing results across irregular surfaces.
- Built for production environments, especially where operators need repeatable finishing quality on intricate or decorative parts.
Q&A
A: It is a pneumatic straight-line finishing system designed for sanding, blending, scuffing, denibbing, and surface finishing on wood, metal, composites, and coated surfaces.
Q: What makes the Dyninger system unique?
A: It uses a planetary-geared air motor with abrasive “star” wheels, allowing controlled, consistent finishing instead of traditional disc sanding.
Q: What are the key specifications?
A: It features a 0.4 HP motor, 200–950 RPM variable speed, 8" abrasive star capacity, and non-vacuum design, built for precision finishing work.
Q: What comes in the Deluxe Versatility Kit?
A: The kit typically includes the 52060 Dyninger tool, abrasive star wheels (120 & 320 grit), abrasive dressing plate, bench mount, and speed control accessories.
Q: What materials can it be used on?
A: It is used on wood, metal, fiberglass, composites, and painted or coated surfaces for light finishing and surface refinement.
Q: Is it for heavy grinding or finishing?
A: It is strictly a finishing tool, not for heavy material removal or cutting.
Q: What industries use it most?
A: It is commonly used in woodworking, automotive refinishing, aerospace composite work, and industrial finishing shops.
Maintenance Tips
- Lubricate air motor daily with pneumatic tool oil to maintain smooth, consistent low-RPM performance (200–950 RPM).
- Use clean, dry compressed air at recommended pressure (around 90 PSI) to prevent internal wear and corrosion.
- Inspect arbor and abrasive star mounts regularly for tightness, alignment, and secure seating.
- “Dress” abrasive stars periodically using the dressing plate to maintain cutting consistency and reduce chatter.
- Replace worn or clogged abrasive stars promptly to maintain uniform finishing quality.
- Keep air inlet and exhaust ports clear of dust and abrasive debris for proper airflow and cooling.
- Check air hoses and fittings for leaks to ensure stable torque and speed control.
- Clean tool and abrasive area after use to remove resin, dust, and finishing residue buildup.
- Monitor vibration or irregular motion, which may indicate uneven abrasive wear or imbalance.
- Store in a dry environment to protect air motor and accessories from moisture and corrosion
