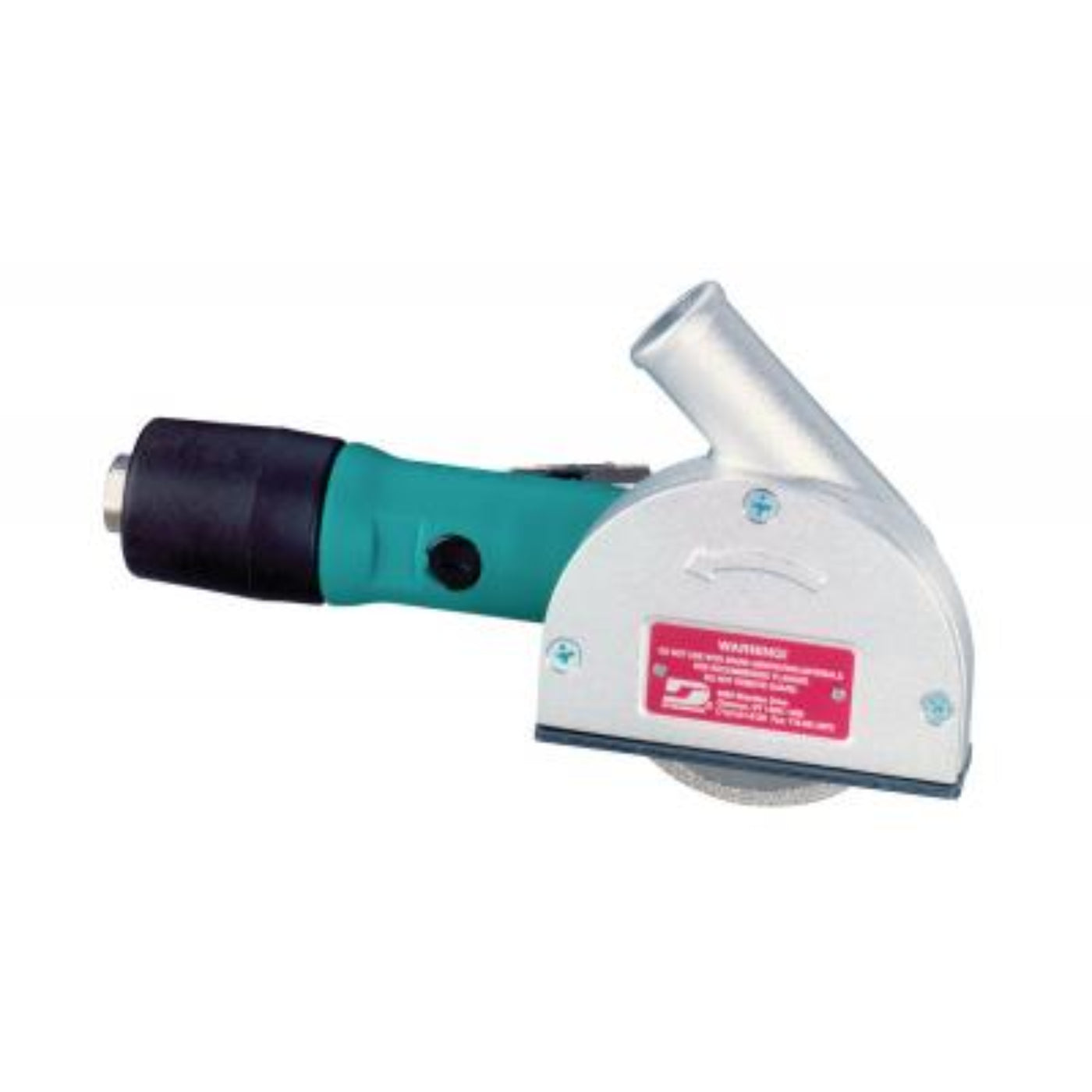

DYNABRADE 3" (76 mm) Dia. Right Angle Vacuum Cut-Off Wheel Tool - 52538
-
.4 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
-
3" Diameter, Right Angle, .4 hp, 12,000 RPM, Rear Exhaust. Ideal for use with optional 3" diameter Diamond Cut-Off Wheels.
-
Adjustable wheel guard has vacuum port (1" outside diameter) that diverts airborne dust and debris to optional vacuum source.
-
Non-marring composite base is removable to utilize maximum blade depth of 11/16". Optional 52646 composite base is available for gel coat notching.
-
Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime. Safety-lock lever is included.
Specifications
| Air Consumption (SCFM) |
21.0 |
| Power (hp) |
0.4 |
| Max. RPM |
12,000 |
| Tool Spindle Thread |
3/8-24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
4.375 |
| Length in. (mm) |
8.625 |
| Weight lb. (kg) |
2.4 |
| Width in. (mm) |
6.25 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
3.14 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026525382 |
| EAC Certified |
Yes |
| Tool Style |
Right Angle |
What our Experts Think
-
3" (76 mm) right-angle compact design delivers precise cutting control in tight or hard-to-reach areas
- Designed for use with cut-off wheels for fast, accurate material separation
-
Integrated vacuum capability helps reduce airborne dust and improves visibility during cutting
-
High-speed pneumatic performance ensures efficient cutting through tough materials
- Ideal for metal cutting, trimming, and precision fabrication tasks
-
Ergonomic right-angle head improves access and operator control in confined spaces
-
Lightweight, balanced construction reduces fatigue during extended use
- Built for industrial-grade durability in fabrication and maintenance environments
- Suitable for cutting steel, sheet metal, and other application-dependent materials
- A strong choice for professionals needing a cleaner, controlled, and precise vacuum-assisted cut-off solution
Q&A
Q: What is the DYNABRADE 52538 used for?
A: A pneumatic right-angle cut-off tool designed for precise cutting of metal, fiberglass, composites, bolts, and body panels, while actively reducing airborne dust during operation.
Q: What does “vacuum cut-off” mean?
A: The tool includes a built-in vacuum port that connects to a central or external vacuum system to capture dust and debris at the cutting point, improving visibility and cleanliness.
Q: What type of cutting wheels does it use?
A: It is designed for 3" (76 mm) diamond or reinforced cut-off wheels for controlled, high-precision cutting in tight or detailed areas.
Q: What is the power and speed?
A: It uses a 0.4 HP pneumatic motor and operates at up to 12,000 RPM for fast, accurate cutting performance.
Q: What materials can it cut?
A: Suitable for sheet metal, stainless steel, fiberglass, composites, bolts, fasteners, and coated materials.
Q: What is the advantage of the right-angle design?
A: The 90° head improves control, access, and visibility when making flush or confined-space cuts.
Q: How does dust control work?
A: An adjustable wheel guard with a vacuum port redirects dust and debris into a connected vacuum system, reducing airborne particles at the source.
Maintenance Tips
-
Use clean, dry compressed air only: Moisture or contamination reduces vane motor life and causes unstable RPM.
-
Lubricate daily: Add a few drops of pneumatic oil before use to protect internal vanes and maintain smooth power delivery.
-
Maintain correct pressure (~90 PSI): Prevents overspeed beyond rated 12,000 RPM and protects both tool and cut-off wheel.
-
Keep vacuum port (1") clear: The guard-mounted vacuum channel must remain unobstructed to effectively remove dust and debris.
-
Inspect cut-off wheels before every use: Only use reinforced 3" wheels rated for ≥12,000 RPM—never use cracked, chipped, or dropped wheels.
-
Check spindle and guard alignment: Ensure the 3/8"-24 spindle and wheel are tight and centered to avoid vibration or wobble.
-
Watch for vibration at startup: Any imbalance is a stop signal—high RPM makes instability dangerous.
-
Keep rear exhaust clear: Ensures cooling airflow and prevents overheating during continuous cutting.
-
Clean after each use: Remove metal dust and debris from guard, spindle, and vacuum passages to maintain airflow efficiency.
-
Inspect hoses and fittings: Air leaks reduce cutting power and can cause inconsistent RPM under load
