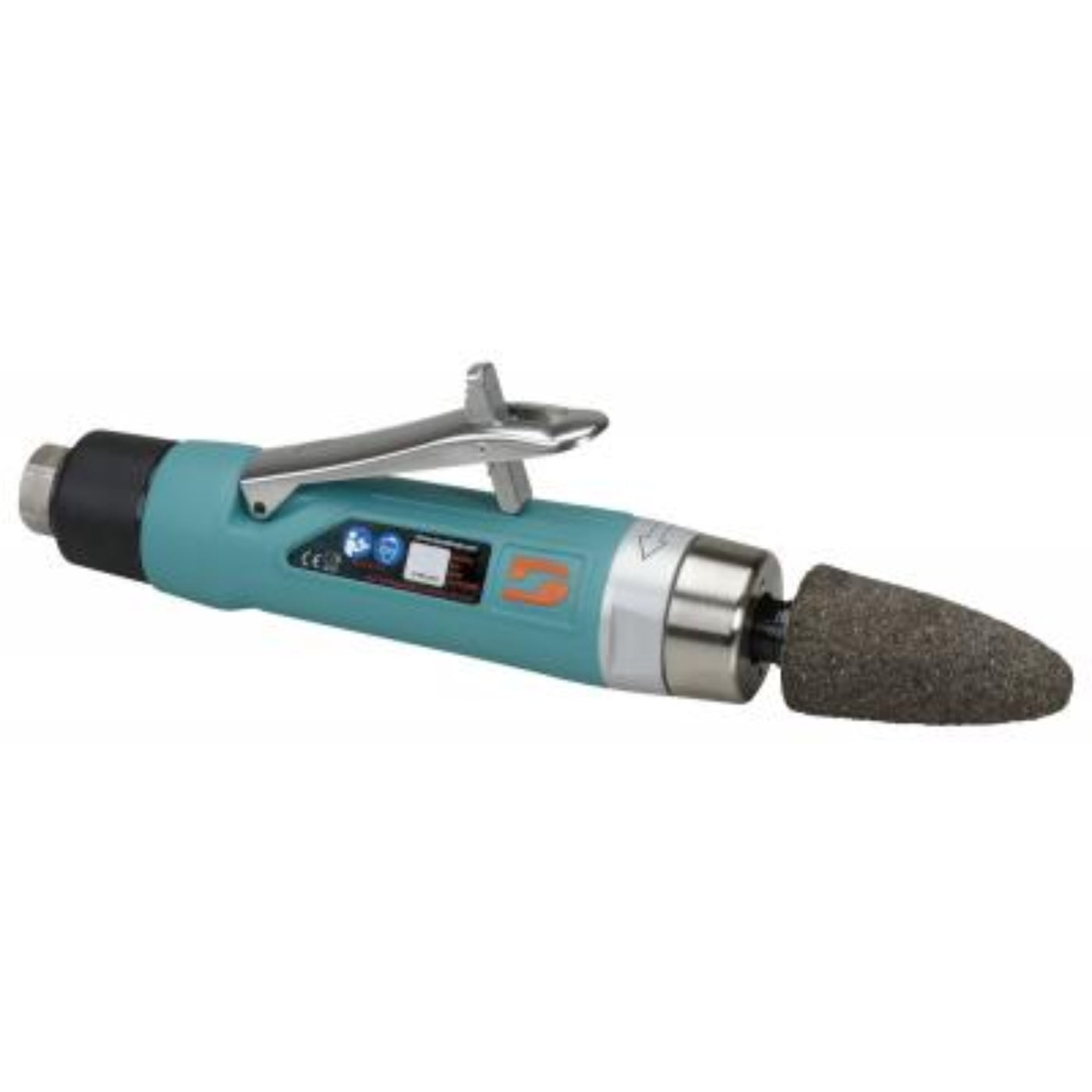

DYNABRADE Cone Or Plug Wheel Grinder - 52715
- 1 hp, Straight-Line, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Straight Line, 1 hp, Rear Exhaust, 12,000 RPM.
-
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
-
Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
-
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
| Air Consumption (SCFM) |
38.0 |
| Power (hp) |
1.0 |
| Max. RPM |
12,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
7.75 |
| Weight lb. (kg) |
2.15 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
4.5 |
| Pkg. Length in. (mm) |
10 |
| Pkg. Weight lb. (kg) |
2.89 |
| Pkg. Width in. (mm) |
6.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527157 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
Q&A
Q: What is the Dynabrade 52715 Cone or Plug Wheel Grinder used for?
A: It is a 1 HP straight-line pneumatic grinder designed for heavy-duty metal grinding, weld cleanup, deburring, and surface preparation using cone or plug abrasive wheels.
Q: What materials is it used on?
A: It is commonly used on steel, stainless steel, castings, and welded metal structures in fabrication and industrial settings.
Q: What are its key specifications?
A: It runs at 12,000 RPM, uses a 3/8"-24 spindle thread, supports up to 1-1/4" cone or plug wheels, and operates with a high air demand (about 38 SCFM at 90 PSI).
Q: What makes it suitable for industrial work?
A: It has a governor-controlled motor that maintains speed under load, a safety-lock throttle, and a rear exhaust design for operator comfort during continuous use.
Q: What industries use it most?
A: It is widely used in welding shops, steel fabrication, shipyards, foundries, and heavy maintenance operations.
