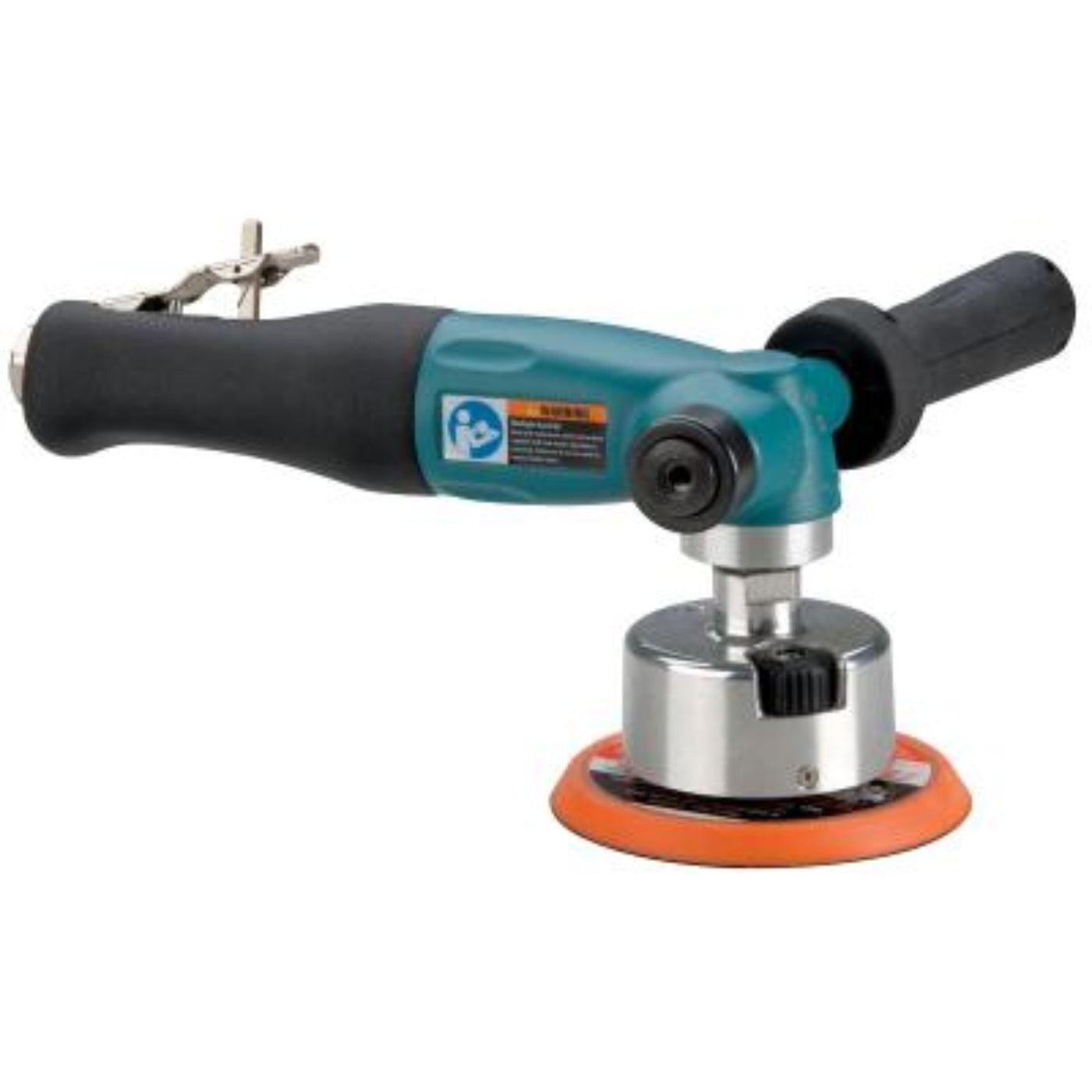

DYNABRADE 5" (127 mm) Dia. Sander w/ Random-Rotary Orbit Locking Head - 52760
-
1.3 hp, 12,000 RPM, Rotational Exhaust, 5/8"-11 Spindle Thread.
- This Sander is truly two-tools-in-one, easily changing from a rotary Disc Sander to Random Orbital Sander with the flip of a switch on the DynaLocke Head Assembly (61318). Ideal for metal applications and great on composite materials. Excellent for automotive work, such as paint stripping and blending. Also utilized for leveling glue seams on Corian and other solid surfaces.
-
Includes DynaLocke Head Assembly (61318) which comes with a 5" Dia. (127 mm), Medium Denisty, Short Hook-Face Pad (54325). This tool has a powerful 1.3 hp motor with a free -speed of 12,000 RPM. Tool has a 5/8"-11 spindle thread and has a governor controlled motor which maintains consistent RPM under load.
-
Our Wick-Lube system extends gear life when tool is properly lubricated with gear oil. reduces temperature transfer to the operator?s hand.
-
Two-position vibration dampening side handle allows for left or right hand use. A 360 degrees rotational exhaust directs exhaust where the operator desires. Insulated throttle handle.
-
Includes Grease Gun (95541), Gear Oil - 2.5 oz tube (95848) and 21 mm Open End Wrench (95823). Pad sold separately.
Specifications
| Air Consumption (SCFM) |
43.0 |
| Power (hp) |
1.3 |
| Max. RPM |
12,000 |
| Pad Face |
Hook-Face |
| Tool Spindle Thread |
5/8-11 Male |
| Exhaust Type |
Side |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Motor Type |
Rotary Vane |
| Height in. (mm) |
5.375 |
| Length in. (mm) |
10.5 |
| Weight lb. (kg) |
7 |
| Width in. (mm) |
6.5 |
| Pkg. Height in. (mm) |
5 |
| Pkg. Length in. (mm) |
12 |
| Pkg. Weight lb. (kg) |
8 |
| Pkg. Width in. (mm) |
6.5 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026527607 |
| EAC Certified |
Yes |
What our Experts Think
- The Go Power / Xantrex 12V → 115V inverter (X168133000UL) is a compact true sine wave inverter platform, designed for RV, marine, and mobile power systems where safe AC output is required for sensitive electronics.
- Delivers clean 115V AC from 12V DC, making it suitable for laptops, TVs, small appliances, CPAP machines, and entertainment systems without electrical noise or instability.
- Built around true sine wave output technology, ensuring compatibility with modern electronics and motor-based loads while reducing risk of overheating or performance issues.
- Designed for mobile installations (RV / trailer / truck systems) with emphasis on efficiency, low idle draw, and stable operation across varying battery conditions.
- Typically supports transfer-switch integration or remote control options, enabling seamless switching between shore power and battery power in RV setups.
- Includes built-in protection features such as overload, low-voltage shutdown, and thermal protection to safeguard both inverter and battery bank.
- Best suited for users needing a reliable mid-range inverter solution for RV comfort loads, rather than high-surge appliances like microwaves or heavy power tools.
Q&A
Q: What is the Dynabrade 6" DynaLocke Dual-Action Sander (58435) used for?
A: It is a professional 6-inch pneumatic dual-action (DA) air sander designed for fast material removal and fine finishing in automotive, metalworking, and composite surface prep.
Q: What makes the DynaLocke 58435 unique?
A: It features a dual-mode switch that lets you change between rotary disc sanding (aggressive cut) and random orbital sanding (smoother finish) in one tool.
Q: What are its main specs?
A: It runs about 12,000 RPM, uses a 6-inch hook-and-loop pad, and is powered by a 0.45 hp air motor with roughly 23 SCFM air consumption at 90 PSI.
Q: What materials can it be used on?
A: It’s commonly used on automotive paint stripping, body filler, metal panels, fiberglass, composites, and solid surfaces like Corian, making it a versatile shop tool.
Q: Is it vacuum compatible?
A: No, this specific model (58435) is a non-vacuum version, meaning it does not connect to dust extraction systems.
Maintenance Tips
- Lubricate air motor daily with pneumatic tool oil to maintain smooth 12,000 RPM performance.
- Keep compressed air clean and dry using a filter/regulator to prevent internal vane wear and rust.
- Inspect 6" hook-and-loop pad regularly for wear, imbalance, or loose attachment.
- Check air hose and 1/4" NPT fittings for leaks or pressure loss before each use.
- Clean dust and debris from housing and exhaust ports after every sanding session.
- Ensure correct air pressure (around 90 PSI) for optimal performance and motor longevity.
- Avoid prolonged heavy-load sanding without breaks to prevent overheating and reduced motor life.
- Periodically check throttle lever and recessed switch for smooth, safe operation.
- Store in a dry environment to prevent corrosion of internal rotary vane components
