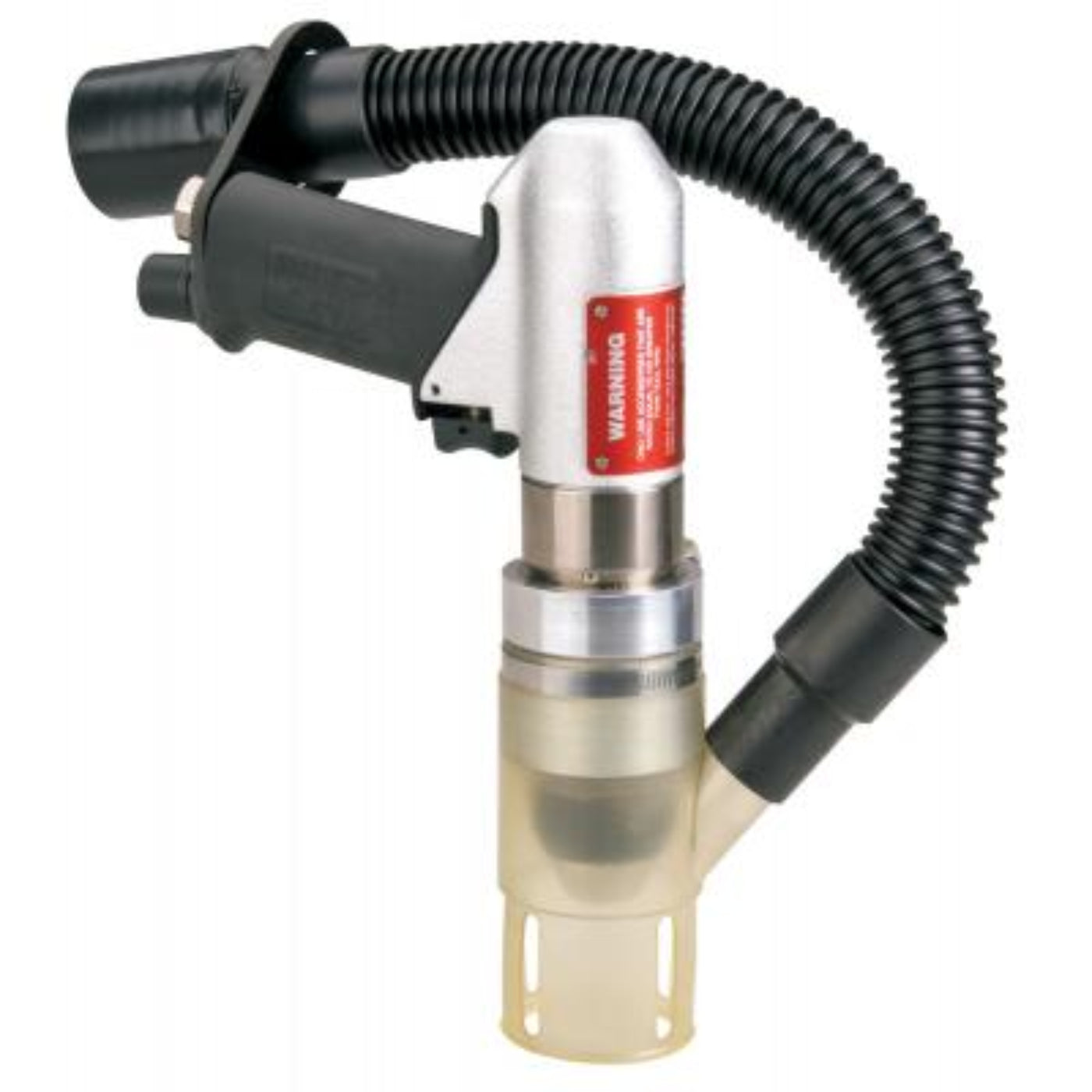

DYNABRADE 3/8" Central Vacuum Drill - 53103

DYNABRADE 3/8" Central Vacuum Drill - 53103

• .7 hp, Pistol Grip, 3,400 RPM, Rear Exhaust, Jacobs Chuck.
• .7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.
• Pistol Grip design includes slow-speed start-up trigger.
• High torque air motor; comfortable insulated tool grip.
• Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" (32 mm) Diameter Vacuum Port for connection to Central Vacuum System.
• Keyless chuck can be tightened by hand.

Specifications

What our Experts Think

• Excellent for Clean, Precision Drilling – The integrated central vacuum system captures chips and debris directly at the source, helping maintain a cleaner and safer work environment.
• Built for Industrial Production – With a 0.7 HP air motor and 3,400 RPM free speed, this drill delivers the power and consistency needed for aerospace, metalworking, manufacturing, and assembly applications.
• Operator-Friendly Design – The pistol-grip body, insulated handle, and slow-speed startup trigger provide better control, comfort, and reduced fatigue during extended use.
• Improved Workplace Safety – Conductive hoses and cuffs help reduce electrostatic discharge (ESD), making it well-suited for sensitive industrial environments.
• Reliable Dust & Debris Collection – The collapsible vacuum shroud compresses around the drill bit to maximize debris capture and improve visibility while drilling.
• Best For: Aerospace manufacturing, metal fabrication, composite materials, clean-room production, and any application where dust and chip extraction are essential.

Q&A

Maintenance Tips

• Use clean, dry compressed air at the recommended 90 PSI (6.2 Bar) for optimal performance.
• Install a Filter-Regulator-Lubricator (FRL) system and lubricate the air motor regularly with approved air tool oil. Dynabrade recommends approximately 2 drops per minute for tools using 40 SCFM.
• Empty and inspect the central vacuum hose, shroud, and vacuum port frequently to prevent dust and chip buildup that can reduce suction efficiency.
• Check the chuck, trigger, air inlet, and hose connections before each use for wear, damage, or looseness.
• Clean exterior surfaces after use and keep the vacuum shroud free from debris for maximum dust collection performance.
• Periodically inspect air lines and filters, and replace worn components promptly to maintain drilling accuracy and motor life.
• Store the drill in a clean, dry location and protect the air inlet from dust contamination when not in use.
• If performance drops, vibration increases, or speed becomes inconsistent, service the tool before continued operation.
