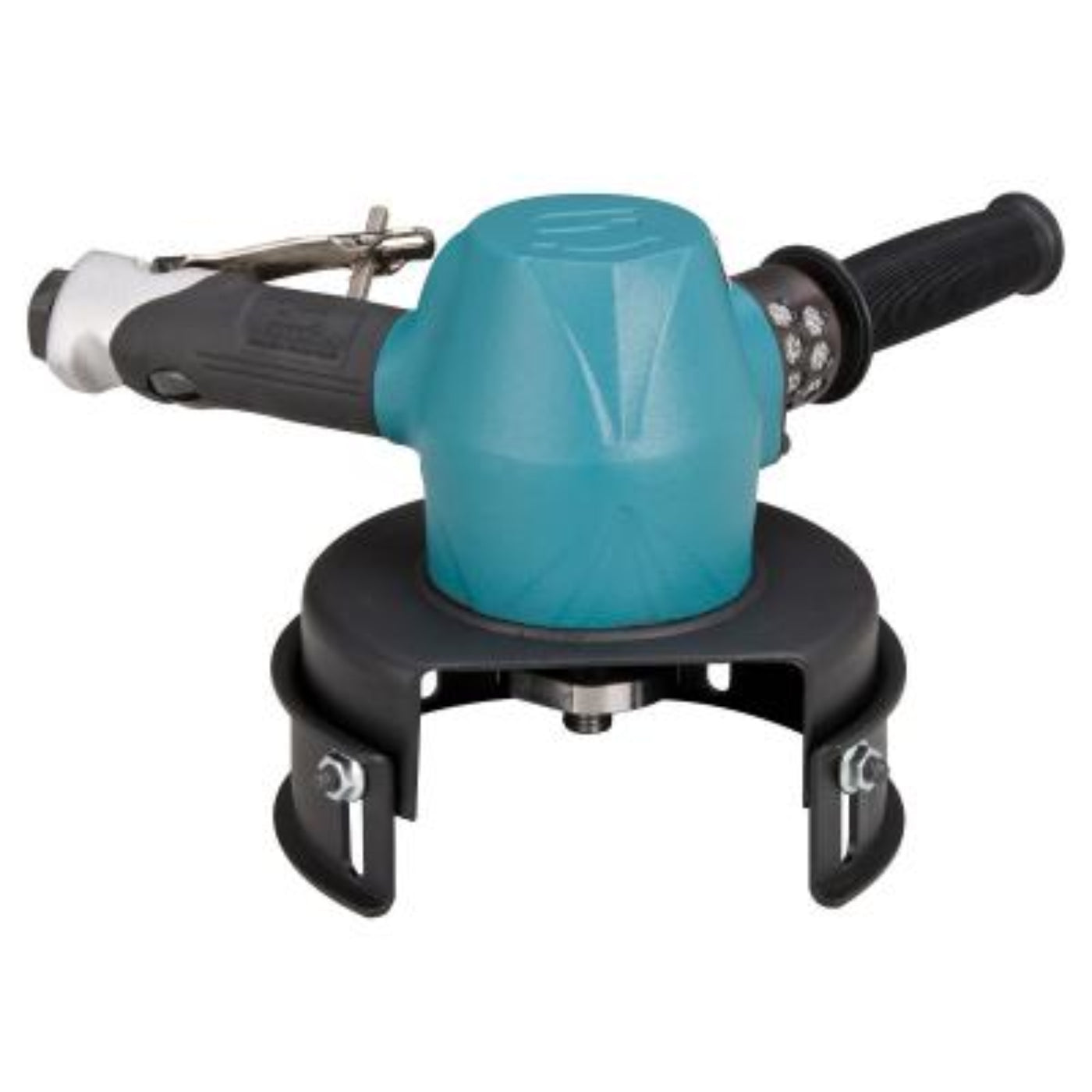

DYNABRADE 6" (152 mm) Dia. Type 11 Vertical Cup Wheel Grinder - 53243
-
3 hp, 6,000 RPM, Gearless, Rotational Exhaust, 5/8"-11 Male Spindle Thread.
- Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.
-
Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.
-
Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. Includes safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2" (13 mm) diameter is recommended.
-
Model accepts optional Type 11 Cup Wheels, 6" (152 mm) diameter. Wheel NOT included with tool. Covers more area in less time!
Specifications
| Air Consumption (SCFM) |
89.0 |
| Power (hp) |
3.0 |
| Max. RPM |
6,000 |
| Tool Spindle Thread |
5/8-11 Male |
| Air Inlet Thread |
1/2" NPT |
| Exhaust Type |
Side |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
1/2" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
7.5 |
| Length in. (mm) |
9.5 |
| Weight lb. (kg) |
11.1 |
| Width in. (mm) |
10.0 |
| Pkg. Height in. (mm) |
8.5 |
| Pkg. Length in. (mm) |
14 |
| Pkg. Weight lb. (kg) |
12.1 |
| Pkg. Width in. (mm) |
10 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026532434 |
| EAC Certified |
Yes |
| Tool Style |
Vertical |
What our Experts Think
Q&A
Q: What is the Dynabrade 53243 6" Type 11 Vertical Cup Wheel Grinder used for?
A: It is a heavy-duty pneumatic vertical grinder designed for fast stock removal, weld cleanup, rust and scale removal, and surface preparation in industrial environments.
Q: What makes the Type 11 cup wheel design important?
A: It uses a 6" vertical cup wheel (Type 11 abrasive wheel) which provides a large contact area for aggressive grinding and faster material removal on flat or slightly contoured surfaces.
Q: What are its key specifications?
A: It features a 3 HP air motor, 6,000 RPM free speed, gearless design, and 5/8"-11 spindle thread, built for continuous heavy-duty use.
Q: What industries use this grinder?
A: It is commonly used in shipyards, foundries, steel mills, heavy fabrication shops, and industrial maintenance operations.
Q: Why is it called a vertical grinder?
A: Because the grinding wheel is oriented vertically, allowing operators to apply downward force for efficient surface grinding and leveling.
Q: What materials can it be used on?
A: It is used on steel, stainless steel, cast iron, welds, rusted surfaces, and structural metal components.
