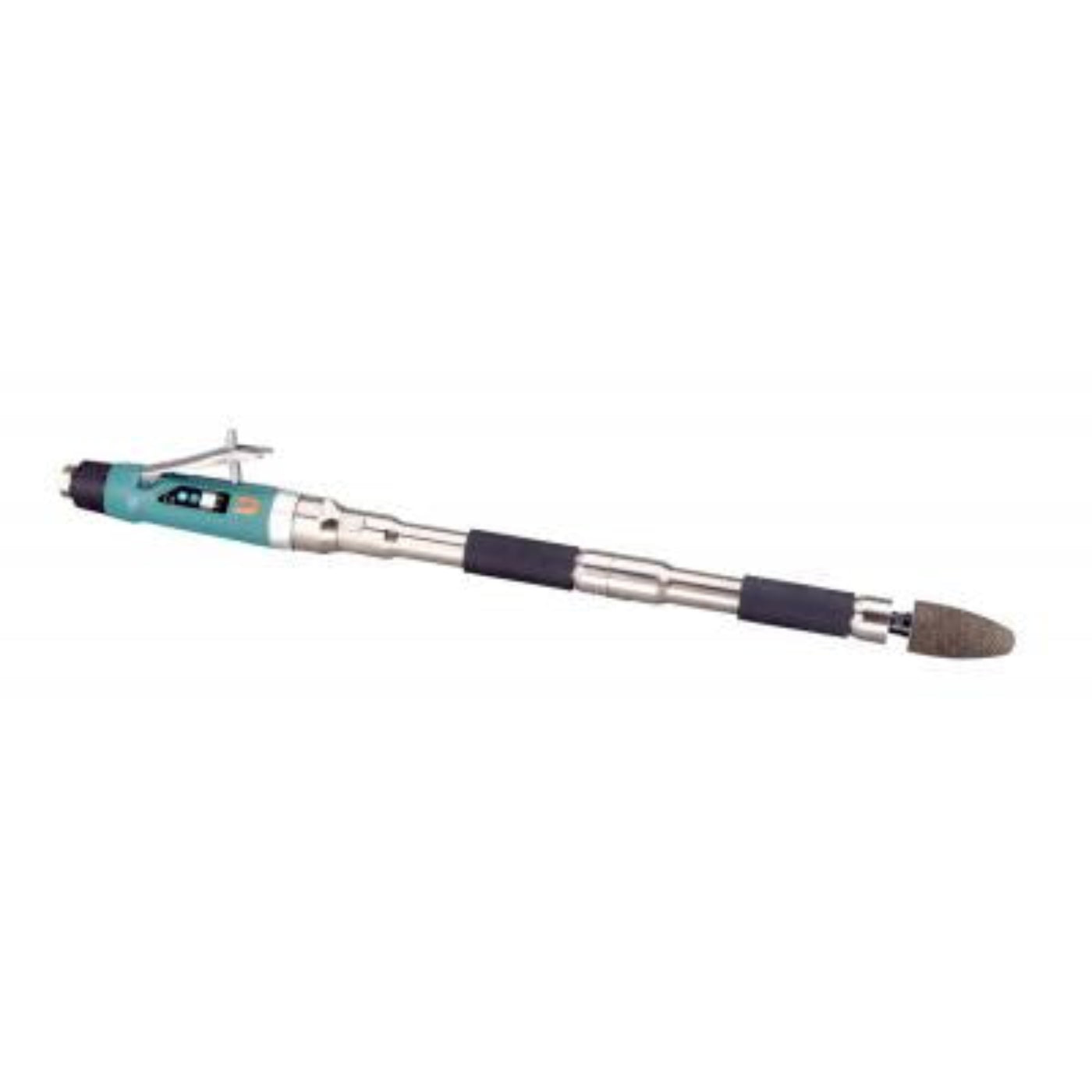

DYNABRADE Cone Or Plug Grinder (Double Extension) - 53532
-
1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
- Includes 3/8"-24 Male Threaded Adapter (53610)
-
Extension Grinders allow operator to extend into work pieces and reach lengthy distances.
-
Extension length of 8-3/8? allows longer reach than competitive models! Extensions are constructed of steel for maximum durability.
-
Designed for minimal vibration. Extensions do not spin during tool use, so continuous tightening is not needed (as with some one-piece shaft-type extensions).
-
Tools can also be fitted with optional Buffing Pads, optional collets and inserts, plus optional Cone/Plug Wheels. (Note: Speed of tool must not exceed maximum operating speed of accessory.)
Specifications
| Air Consumption (SCFM) |
40.0 |
| Power (hp) |
1.0 |
| Max. RPM |
18,000 |
| Tool Spindle Thread |
3/8"- 24 Male |
| Air Inlet Thread |
3/8" NPT |
| Exhaust Type |
Rear |
| GL_Country Of Origin |
US |
| Hose I.D. in. (mm) |
3/8" |
| Vacuum Type |
Non-Vacuum |
| Height in. (mm) |
1.875 |
| Length in. (mm) |
26.75 |
| Weight lb. (kg) |
6.9 |
| Width in. (mm) |
5.25 |
| Pkg. Height in. (mm) |
5.25 |
| Pkg. Length in. (mm) |
34 |
| Pkg. Weight lb. (kg) |
7.8 |
| Pkg. Width in. (mm) |
5.25 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026535329 |
| EAC Certified |
Yes |
| Tool Style |
Straight Line |
What our Experts Think
-
Double-extension reach enables grinding, deburring, and finishing deep inside pipes, tubes, castings, and fabricated assemblies.
-
Powerful 1 HP pneumatic motor delivers consistent industrial-grade performance for demanding metalworking applications.
-
18,000 RPM free speed provides fast material removal and efficient surface preparation.
-
Steel extension construction offers outstanding durability in heavy-duty production environments.
-
Low-vibration design improves operator control and comfort during extended use.
-
Non-rotating extension system eliminates the need for constant retightening, improving productivity and tool reliability.
-
Compatible with cone and plug wheels, collets, inserts, and buffing accessories, increasing versatility across multiple finishing applications.
Q&A
Q: What is the DYNABRADE 53532 used for?
A: A pneumatic straight-line grinder designed for grinding, deburring, weld cleanup, and surface preparation in deep, hard-to-reach areas such as pipes, castings, and fabricated components.
Q: What makes the double-extension design unique?
A: The double-extension shaft provides extended reach into confined spaces while maintaining stability and minimizing vibration during operation.
Q: How much power does it deliver?
A: It features a powerful 1 HP air motor for demanding industrial grinding applications.
Q: What is the maximum operating speed?
A: The grinder operates at 18,000 RPM for efficient material removal and consistent performance.
Q: What accessories can it use?
A: It is compatible with cone wheels, plug wheels, buffing pads, collets, and inserts, making it versatile for multiple finishing and grinding tasks.
Q: Does it reduce vibration during use?
A: Yes. The extension system is engineered for minimal vibration, and the extensions do not rotate independently, reducing the need for constant tightening.
Q: What spindle thread does it use?
A: It features a 3/8"-24 male spindle thread and includes a threaded adapter for accessory compatibility.
Maintenance Tips
-
Use clean, dry compressed air: Moisture and contaminants can damage the air motor and reduce tool life. Install a filter/regulator system whenever possible.
-
Lubricate daily: Add pneumatic tool oil to the air inlet before use to keep internal vanes and bearings operating smoothly.
-
Maintain correct operating pressure: Run at the recommended air pressure (typically 90 PSI) to prevent premature wear and maintain performance.
-
Inspect extension assemblies regularly: Check the double-extension shaft for looseness, wear, or damage before each use. Steel extensions are durable but should be inspected frequently.
-
Check abrasive accessories before use: Never use cracked, damaged, or improperly rated cone or plug wheels. Ensure accessory RPM ratings meet or exceed the tool's 18,000 RPM maximum speed.
-
Keep exhaust ports unobstructed: A blocked rear exhaust can reduce power and increase operating temperatures.
-
Inspect air hoses and fittings: Repair leaks immediately to maintain consistent airflow and tool performance.
-
Clean after every shift: Remove grinding dust and debris from the housing, spindle, and air inlet area to extend service life.
-
Store in a dry environment: Protect the grinder from moisture and corrosion when not in use.
