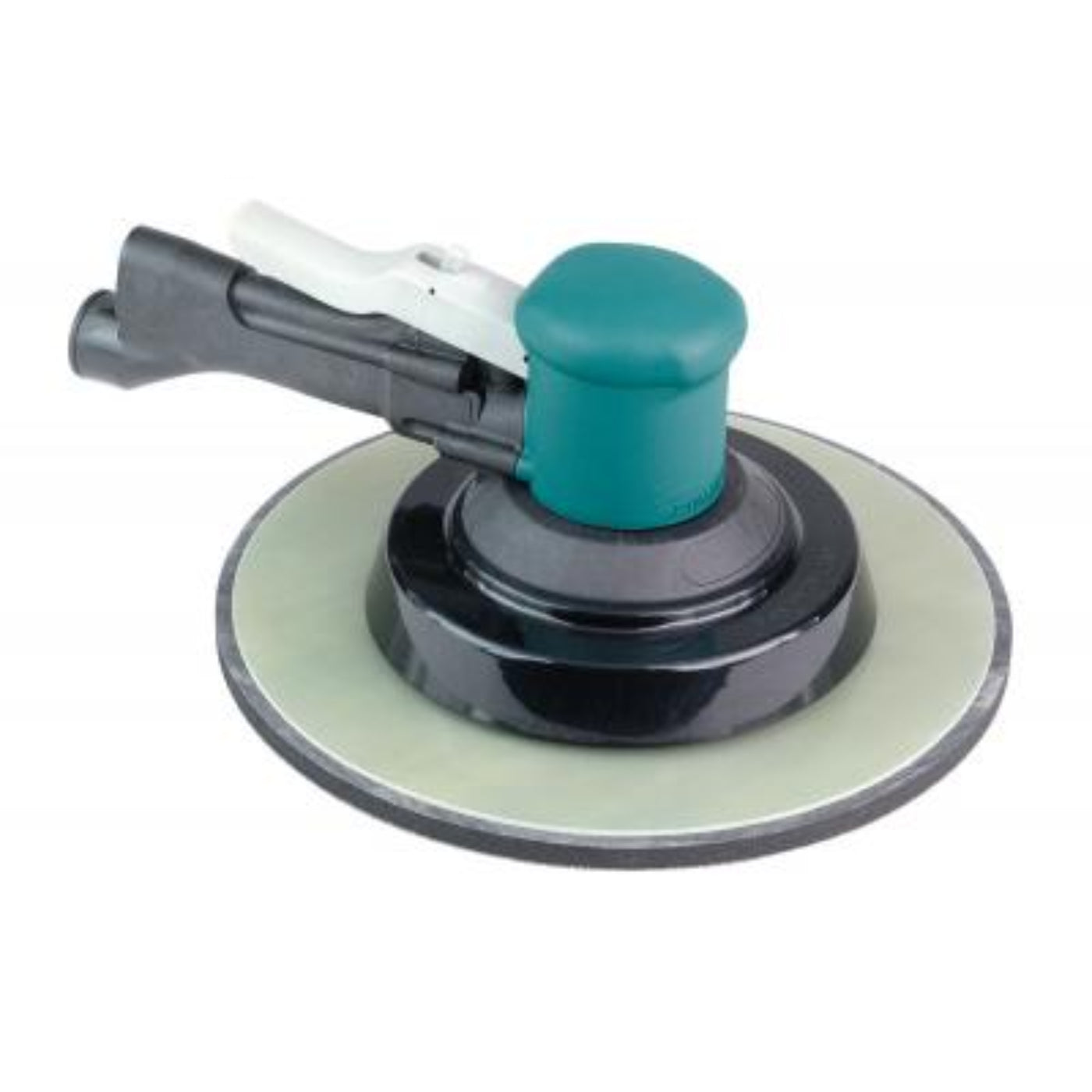

DYNABRADE 11" (279 mm) Dia. Two-Hand Gear-Driven Sander, Non-Vacuum - 58040

DYNABRADE 11" (279 mm) Dia. Two-Hand Gear-Driven Sander, Non-Vacuum - 58040

•  .45 hp, 900 RPM, Rear Exhaust.
• Powerful .45 hp air motor runs at 900 RPM, for aggressive material removal.
• Extra-large 11" diameter sanding area allows operator to cover more area in less time, leveling substrates and removing filler material with ease and efficiency. Useful for manufacturers of large transportation, emergency vehicles, solid surface fabricators, swimming pool manufacturers, marine original equipment manufacturers, marine repair facilities and more.
• Unique epicycloidal pad motion generates torque-enhanced power, for consistent material removal. Tool features long handle design for easy two-handed control. Operator comfort is enhanced, especially when working in vertical positions. Includes weight-mated sanding pad for reduced vibration levels
• Speed control lever is conveniently located for easy thumb adjustment. Insulated tool housing reduces cold air transmission to the hand. Safety-lock throttle lever prevents accidental start-up of tool.
• For use with non-vacuum abrasive discs. Includes 56231 Hook-Face Sanding Pad, for abrasive discs 11-1/4" (286 mm) in diameter.

Specifications

What our Experts Think

• 11" (279 mm) extra-large pad size enables maximum surface coverage for high-volume sanding and leveling
• Gear-driven dual-action system delivers strong, consistent cutting power for heavy-duty applications
• Two-hand ergonomic design provides superior stability, control, and operator safety on large surfaces
• Non-vacuum configuration keeps the tool lightweight and straightforward for industrial use
• Ideal for large panel sanding, surface flattening, and high-production finishing work
• Produces uniform, swirl-free results even on broad, demanding surfaces
• Built for continuous-duty industrial and fabrication environments
• Suitable for automotive, marine, and heavy equipment refinishing
• Durable construction supports long service life under aggressive operating conditions
• Designed for professionals needing a high-output, wide-area gear-driven sanding solution for


Q&A

Q: What is the DYNABRADE 58040 used for?
A: A heavy-duty pneumatic gear-driven sander designed for aggressive material removal, leveling body filler, weld smoothing, and preparing large surface areas in industrial and automotive applications.

Q: What makes the 11" size important?
A: The extra-large 11" pad covers more surface area per pass, making it ideal for fast leveling of large panels and reducing overall sanding time.

Q: What type of sanding motion does it use?
A: It uses epicycloidal gear-driven motion, which delivers high torque and consistent, aggressive material removal compared to standard random orbital sanders.

Q: What is the power and speed?
A: It features a 0.45 HP pneumatic motor operating at approximately 900 RPM for controlled, high-torque sanding performance.

Q: Is it for finishing or heavy sanding?
A: It is designed for heavy material removal and leveling, not fine finishing or polishing.

Q: Does it have dust collection?
A: No, this is a non-vacuum model, so dust must be managed externally in the workspace.

Q: Why is it a two-hand tool?
A: The long dual-grip handle improves stability, reduces operator fatigue, and gives better control when working on large or vertical surfaces.

Maintenance Tips

• Use clean, dry compressed air: Moisture or contamination reduces air motor life and affects torque consistency under heavy load.
• Lubricate daily: Add a few drops of pneumatic tool oil before each use to protect vanes and keep airflow smooth.
• Maintain correct air pressure (~90 PSI): Ensures stable 900 RPM operation and prevents gear strain during aggressive sanding.
• Inspect gear head for abnormal noise/vibration: Any roughness usually signals gear wear or insufficient lubrication.
• Check 11" pad and mounting screws: Uneven or loose pads cause vibration, poor finish quality, and accelerated gear wear.
• Keep pad mounting clean (5-screw system): Dust buildup or misalignment can throw the head out of balance.
• Inspect air hoses and fittings: Air leaks reduce torque and force the motor to work harder.
• Keep exhaust path clear: Prevents heat buildup during continuous heavy-duty use.
• Clean after each use: Remove filler dust and debris from housing, pad face, and gear area.
• Store dry: Prevent internal corrosion in both the air motor and gear assembly.
