| Power (hp) |
.02 (15) |
| Max. RPM |
8,500 |
| Orbit Dia. Inches (mm) |
1/8 (3) |
| Air Inlet Thread |
1/4" NPT |
| GL_Country Of Origin |
TW |
| Hose I.D. in. (mm) |
1/4 (6) |
| Height in. (mm) |
4.1 (104) |
| Length in. (mm) |
5.2 (132) |
| Weight lb. (kg) |
1.015 |
| Width in. (mm) |
1.63 (41) |
| Pkg. Height in. (mm) |
4.1 |
| Pkg. Length in. (mm) |
5.19 |
| Pkg. Quantity |
1 |
| Pkg. Weight lb. (kg) |
1.235 |
| Pkg. Width in. (mm) |
1.63 |
| CE Certified |
Yes |
| EAN (UPC) |
0616026004696 |
| EAC Certified |
Yes |
| Included Products |
Complete Tool DN1 with 54088 1-1/4" (32 mm) Dia. Pad |
| Pad Thread Size |
1/4"-20 Female Thread |
| Applications |
Paint Repair and Refinish, Denib Sanding, Gel-Coat Repair |
| Markets |
AOEM, Auto Aftermarket, Auto Refinishing |
| Materials |
Metal โ painters, fabricators, refinishers; Wood โ cabinet and furniture makers; Plastics โ molds, signs; Carbon Fiber โ vehicle and aircraft components; Composites โ fiberglass |
| Warranty |
1 Year |
| Optional Pads |
54018 1-1/4" (32 mm) Dia. Rubber-Face Foam Sanding Pad, Medium Density
54084 1-1/4" (32 mm) Dia. Vinyl-Face Urethane Sanding Pad, Soft Density
54086 1-1/4" (32 mm) Dia. Vinyl-Face Foam Sanding Pad, Very Soft Density
54088 1-1/4" (32 mm) Dia. Vinyl-Face Foam Sanding Pad, Soft Density |
| Optional Abrasives |
78994 1-1/4" (32 mm) Dia. A3 Sandpaper, Round (50 qty.)
78995 1-1/4" (32 mm) Dia. A5 Sandpaper, Round (50 qty.)
78996 1-1/4" (32 mm) Dia. A7 Sandpaper, Round (50 qty.)
79860 1-1/4" (32 mm) Dia. A3 Sandpaper, Round (500 qty.)
79861 1-1/4" (32 mm) Dia. A5 Sandpaper, Round (500 qty.)
79862 1-1/4" (32 mm) Dia. A7 Sandpaper, Round (500 qty.)
78997 1-3/8" (35 mm) Dia. A3 Sandpaper, Scalloped (50 qty.)
78998 1-3/8" (35 mm) Dia. A5 Sandpaper, Scalloped (50 qty.)
78999 1-3/8" (35 mm) Dia. A7 Sandpaper, Scalloped (50 qty.)
79870 1-3/8" (35 mm) Dia. A3 Sandpaper, Scalloped (500 qty.)
79871 1-3/8" (35 mm) Dia. A5 Sandpaper, Scalloped (500 qty.)
79872 1-3/8" (35 mm) Dia. A7 Sandpaper, Scalloped (500 qty.) |
| Optional Accessories |
95756 1/4" NPT Speed Control Level, Maximum air flow: 50 SCFM
96813 Tune-Up Kit, Includes assorted parts to help maintain and repair motor |
| 1) Product Details |

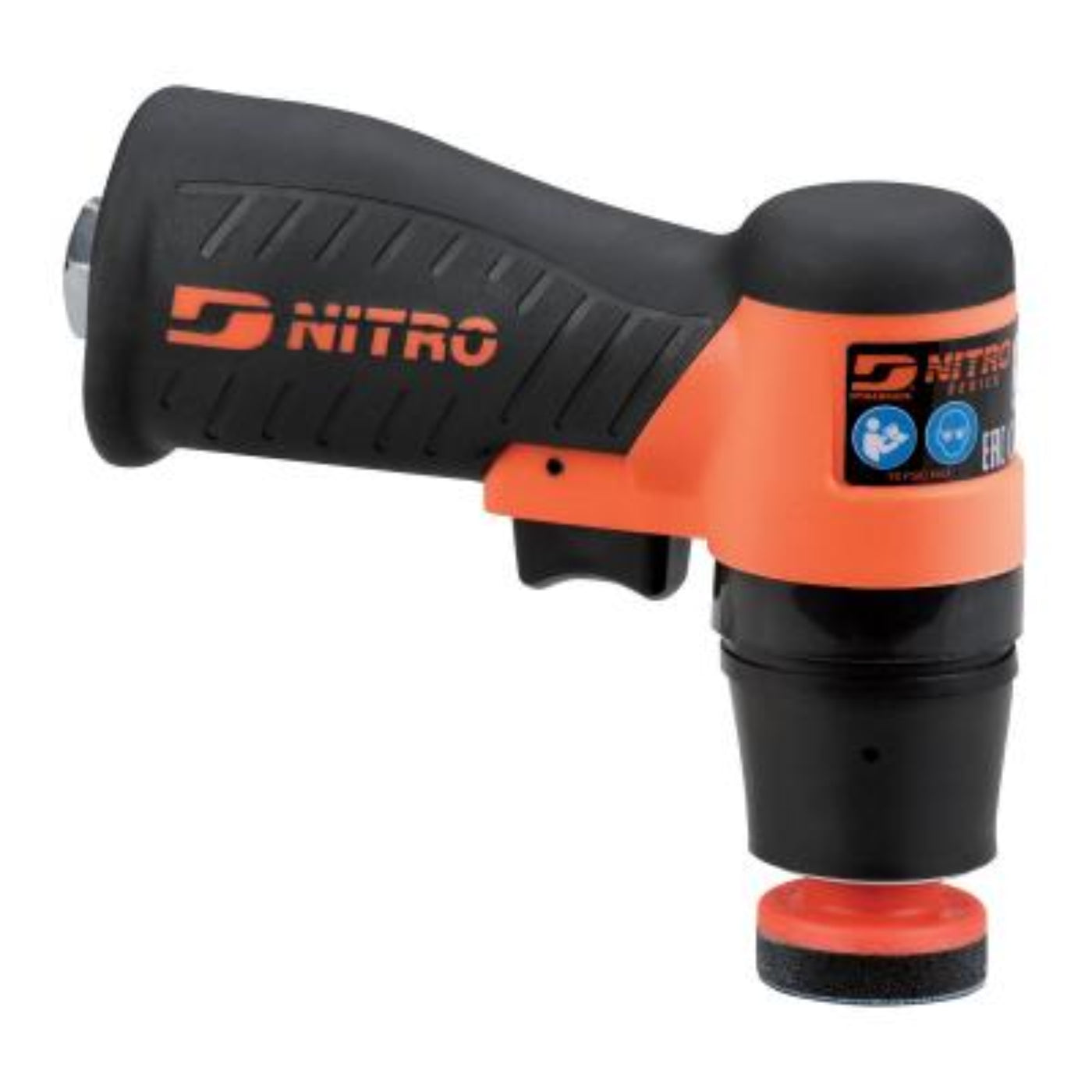

The Dynabrade Nitro Series Pistol Grip Mini Orbital Sander (DN1) is the tool of choice for a wide variety of small-scale sanding applications. Fabricators, repair technicians, detailers and woodworkers alike will all experience functional and ergonomic benefits during use in addition to benefiting from enhanced productivity when completing repair and refinishing applications. |
| 2) Product Details |
The DN1 has been designed for clear coat repair. The DN1 will work with a 1-1/4" (32 mm) and 1-3/8" (35 mm) pad abrasive. Ideal for removal of small defects in the clear coat. |
