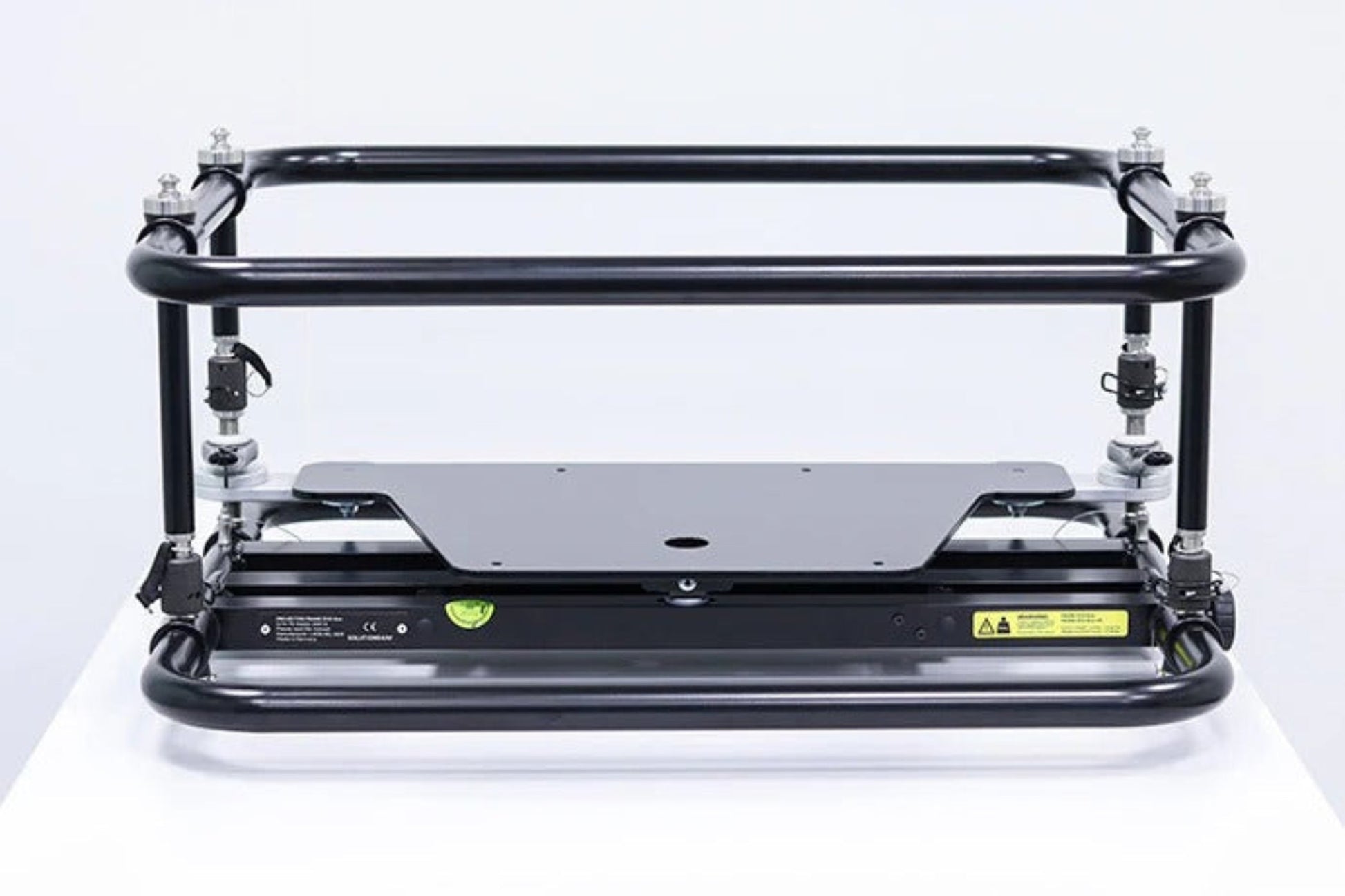

Epson V12H996A01 ELPMB59 Stacking and Rigging Frame - V12H996A01
The ELPMB59 stacking and rigging frame* by LANG is the perfect partner to the Epson Pro L1000 Series of projectors, protecting the projectors during transport and making them easier to handle during the installation process. With a convenient design engineered for optimum functionality, the ELPMB59 features tilt, horizontal and vertical adjustments. And, it allows installers to stack up to three projectors.
included
-
Convenient design — for outstanding functionality and ease of use (Weight: 30.4 lb, Dimensions: 28.6" x 25.3" x 13.9")
-
Added peace of mind — protects the projector during transport
-
Cabrio mode — for easy setup and short throw lens compatibility, lower frame ring can be used on its own
-
Tilt, horizontal and vertical adjustments — built-in 3-axis adjustments
-
Compatible — works with the Pro L1000 Series projectors and full stacking compatiblity with earlier ELPMB50 model
-
Versatile — enables installers to stack up to three projectors
What our Experts Think
-
Secure stacking & rigging — Built to stack up to three compatible Epson projectors or rig a single unit safely.
-
Precise alignment — Includes fine-tune adjustment for vertical, horizontal, and tilt — great for triple‑stack or blended setups.
-
Versatile mount mode — Lower frame ring supports “Cabrio” mounting with short-throw lenses for flexible installations.
-
Durable build — Supports significant weight, including large projectors and lenses, without compromising stability.
-
Transport friendly — Provides a protective frame that eases shipping or touring use.
-
Ideal for high-brightness setups — Especially useful in large venues or events where stacking is needed for brightness or 3D applications.
Q&A
Q: What is the Epson V12H996A01?
A: It’s a stacking and rigging frame designed for large-venue Epson projectors to enable secure mounting and alignment.
Q: Which projectors is it compatible with?
A: Compatible with Epson EB‑P Series and Pro L1000‑series projectors.
Q: How many projectors can it stack?
A: It supports stacking of up to three projectors for increased brightness or redundancy.
Q: What alignment adjustments does it offer?
A: Provides 3-axis adjustment: vertical, horizontal, and tilt, for precise positioning.
Q: What is the frame’s load capacity?
A: It can support projectors (including lens) weighing up to approximately 35 kg.
Q: Is it transport‑friendly?
A: Yes — the rigging frame functions as a protective cage, making handling and movement safer.
Q: Does it support short‑throw setups?
A: Yes — it can operate in “cabrio mode,” where the lower ring is used independently to accommodate short-throw lenses.
Q: What are its dimensions and weight?
A: Roughly measures 28.6″ × 25.3″ × 13.9″ and weighs about 13.8 kg.
Q: Why would you choose this frame?
A: Ideal for installations needing stacked projectors, secure rigging, or flexible lens setups — especially for professional large-venue or multi-projector systems.
Maintenance Tips
-
Inspect the frame regularly for signs of wear, cracks, or loose fittings to ensure safe projector mounting.
-
Tighten all bolts and fasteners periodically to maintain structural stability.
-
Clean the frame with a dry or slightly damp cloth to prevent dust accumulation without affecting metal surfaces.
-
Avoid overloading beyond the projector’s weight specifications to prevent structural stress.
-
Store in a dry environment when not in use to prevent corrosion or rusting.
-
Check alignment before mounting to ensure secure and accurate projector positioning.
