Eurodib USA Lamber Dishwashers - L21EKDPS
30 racks/hr • 20" x 20" rack system • ENERGY

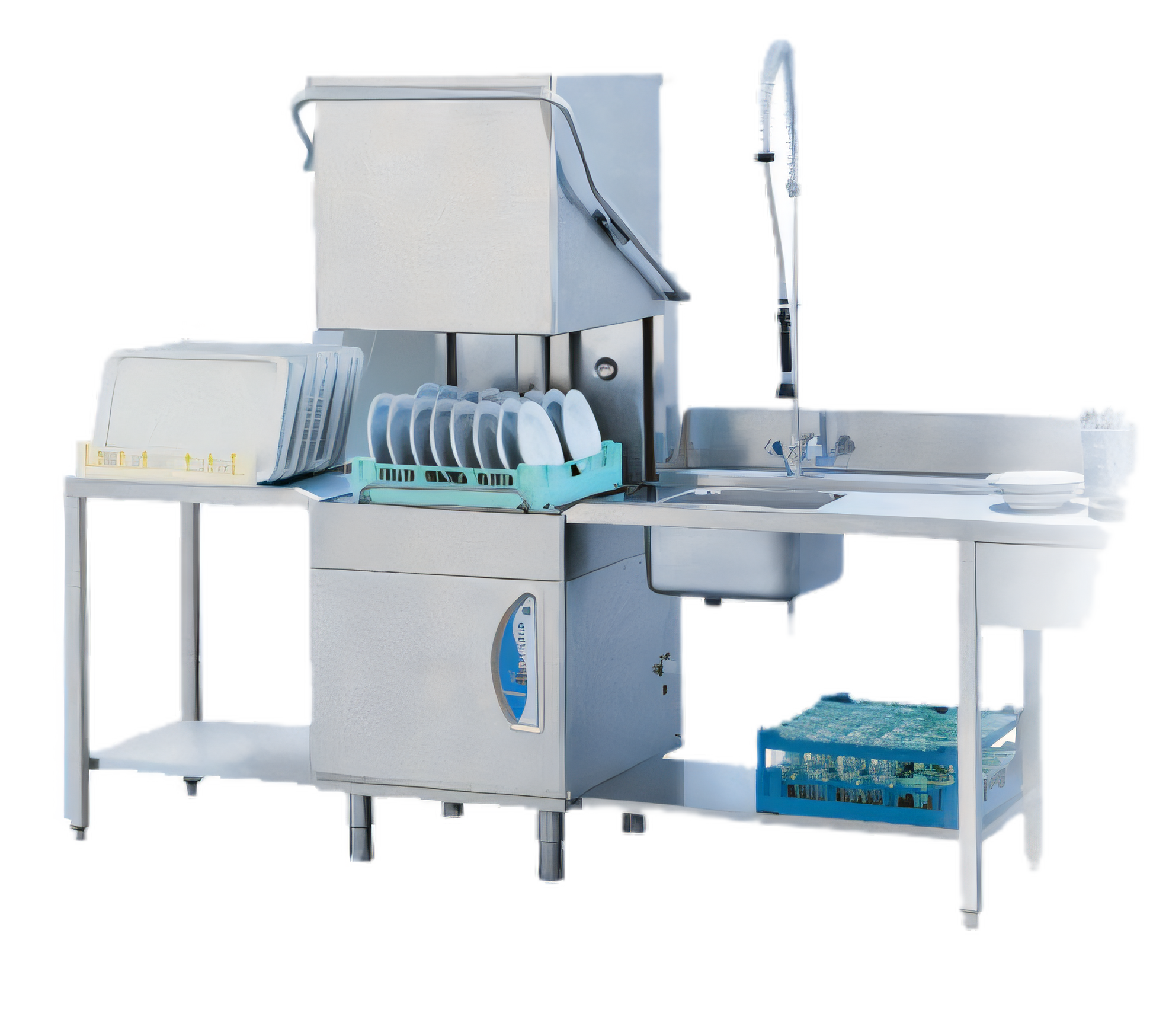

Made in Italy from AISI 304 stainless steel, the Lamber L21-EK is the professional hood-type dishwasher that combines speed, hygiene and energy savings in one compact footprint. A powerful 6 kW booster, built-in chemical pumps and intuitive electronic controls guarantee spot-free results with every cycle.
Features
- High-temperature sanitizing—reaches 179-194 °F rinse without external booster.
- Three adjustable cycles (2 / 3 / 4 min) process up to 30 racks or 540 plates per hour.
- 6 kW booster element + 2 kW wash tank element ensure constant temperatures.
- Soft-touch electronic panel with digital temperature read-out and cycle counter.
- Thermocontrol system guarantees rinse temp on every cycle, even during rush periods.
- Automatic fill, hood-closing start & safety cut-out for operator protection.
- Rotating stainless steel upper & lower arms for both wash and rinse phases.
- Double-skin, self-cleaning slanted tank with two integral filters reduces soil build-up.
- Built-in rinse-aid dispenser, detergent pump and drain pump—no extra kits required.
- Convertible for straight-through or corner installation; noise level < 60 dB(A).
- UL, cULus, ANSI/NSF 3 & ENERGY STAR listed for food-service compliance.
What’s in the box
- 2 × 20" x 20" racks for dishes (peg racks)
- 1 × flat/general utility rack
- 2 × cutlery baskets
- Factory-installed rinse-aid, detergent & drain pumps
- Comprehensive owner’s/installation manual
Specifications
| Model / Type |
L21-EK • High-temp pass-through (hood) |
| Capacity |
30 racks/hr • up to 540 plates/hr |
| Wash Cycles |
2 / 3 / 4 minutes (selectable) |
| Rack Size |
20" x 20" (508 x 508 mm) |
| Maximum Ware Height |
14.96" (380 mm) |
| Electrical |
208-240 V, 1 ph, 60 Hz, 28 A, 6.65 kW total connected load |
| Heating Elements |
Booster 6 kW • Wash tank 2 kW |
| Wash Pump |
0.65 kW (0.9 HP) |
| Water Consumption |
0.63 gal (2.4 L) per cycle • ≈ 13.7 gal (52 L) per hour |
| Water Inlet / Pressure |
3⁄4" G • 20 ± 5 psi • recommended 131 °F supply |
| Rinse Temperature |
179 – 194 °F (82 – 90 °C) |
| Tank / Boiler Capacity |
5.5 gal (21 L) • 1.6 gal (6 L) |
