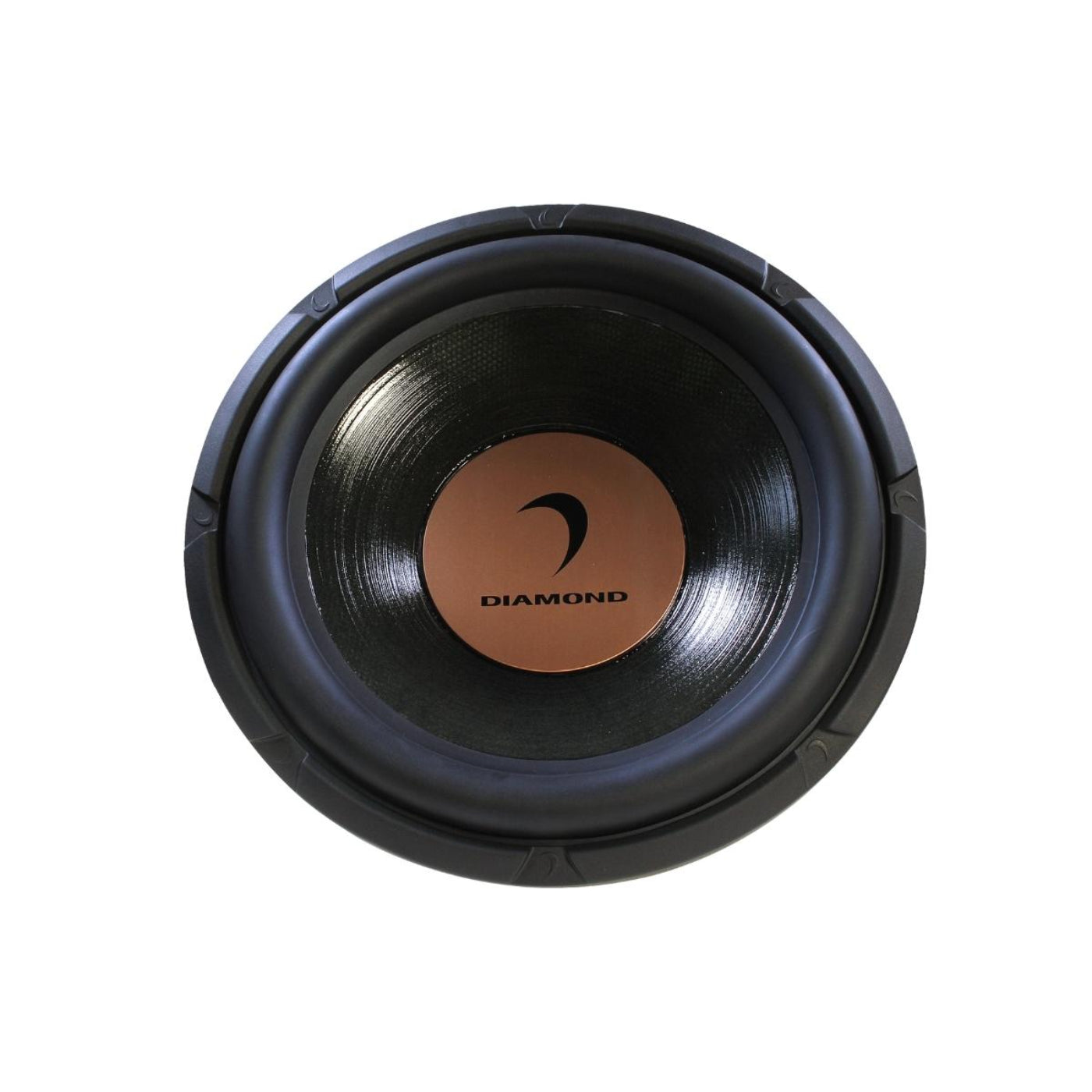

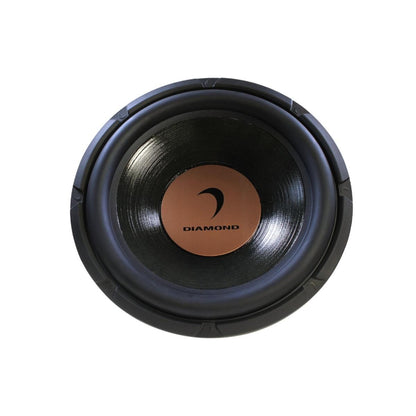

Diamond Audio 15" Dual Voice coil Subwoofer (4Ω) 1100W RMS - HXP154
Command the low end with authority using the Diamond Audio HXP154 HEX PRO Series 15-inch dual voice coil subwoofer (4Ω), engineered for extreme SPL performance, precision bass control, and uncompromising durability. Built for serious car audio enthusiasts and competition-level systems, this 15" subwoofer delivers massive output with refined musical accuracy.

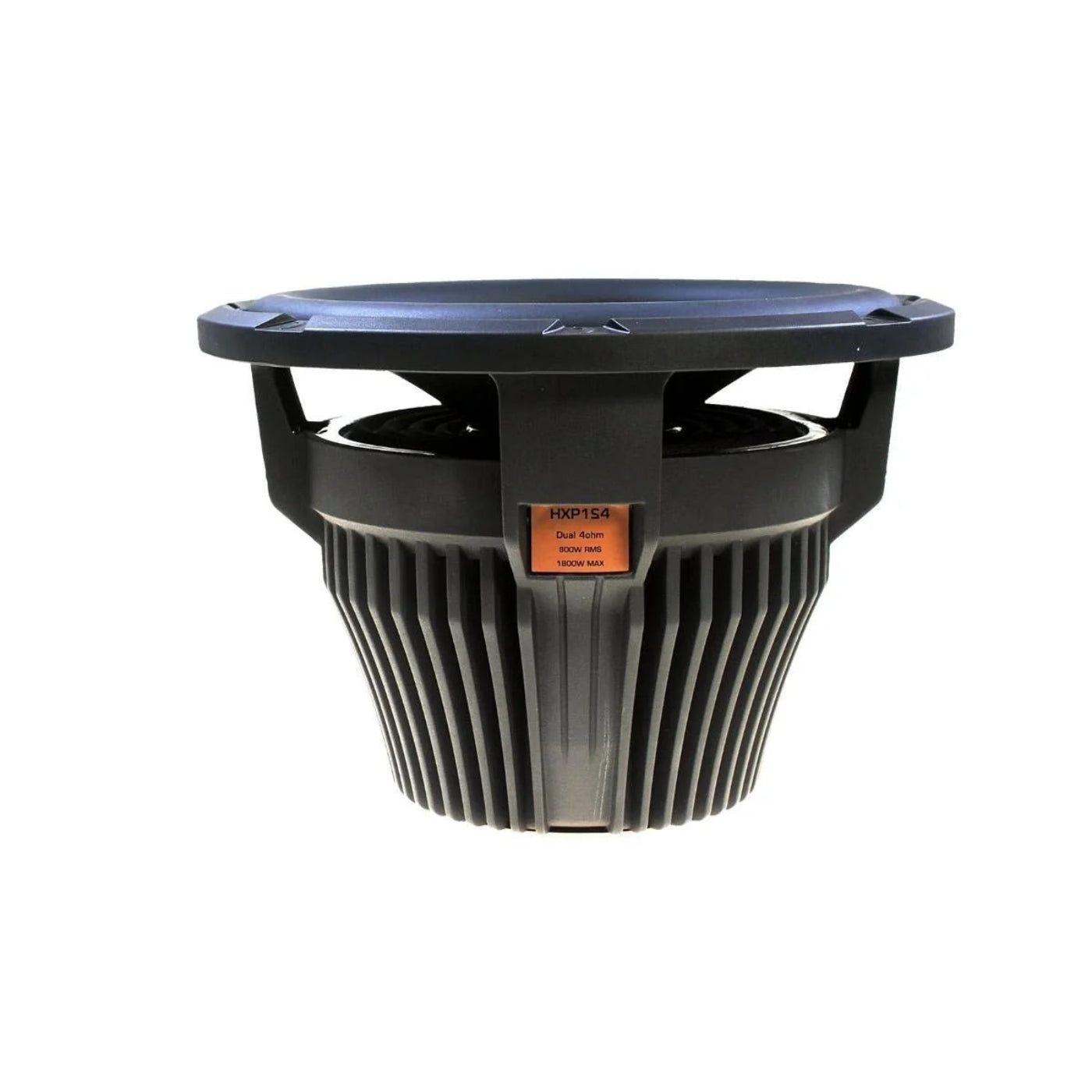

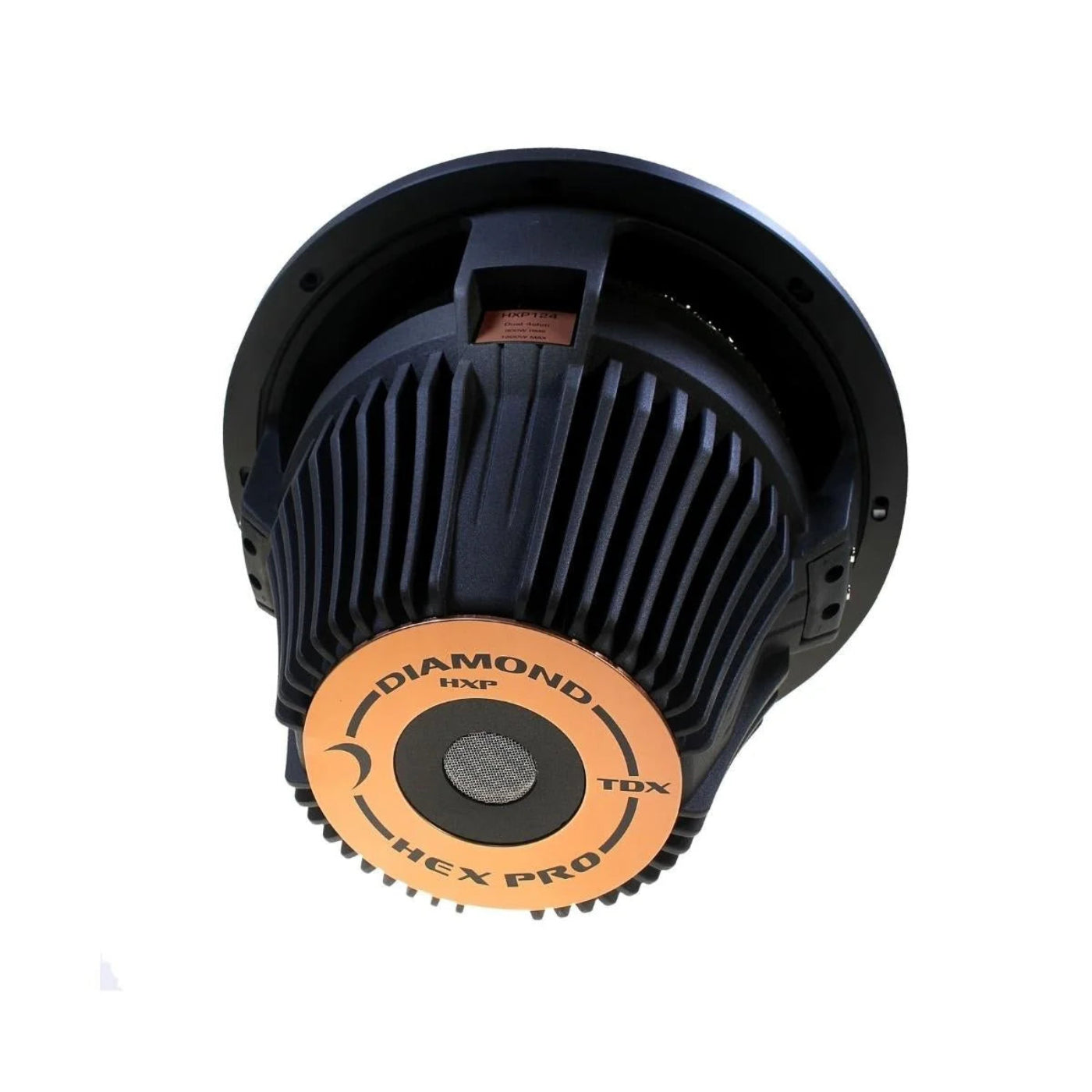

At the core of the HXP154 15-inch subwoofer is Diamond Audio’s patented TDX (Thermal Dyne Extreme) Technology, seamlessly integrating the motor structure into a rugged cast aluminum frame. This advanced design maximizes heat dissipation, allowing the subwoofer to maintain peak performance during extended high-output sessions while reducing power compression and enhancing long-term reliability.
With an impressive 1100W RMS and 2200W MAX power handling, this high-performance car subwoofer is built to push serious air. Its massive 4-inch high-temperature voice coil and ultra-high energy neodymium motor structure provide exceptional efficiency, control, and output. Combined with nearly 3 inches of linear excursion, the HXP154 produces deep, hard-hitting bass with outstanding clarity and precision.
The proprietary composite hex cone, reinforced with a NBR surround and dual progressive poly-aramid spiders, ensures superior strength and linear cone movement under extreme conditions. Integrated radial venting and a vented pole piece further enhance cooling and performance consistency.
The dual 4-ohm voice coil configuration offers flexible wiring options, allowing configurations down to 2Ω or up to 8Ω, making it ideal for custom amplifier matching in high-output builds.
The Diamond Audio HXP154 HEX PRO 15-inch subwoofer delivers crushing bass, elite engineering, and competition-ready performance, making it the ultimate choice for high-output car audio systems that demand dominance and precision.
Features
• 15" dual voice coil subwoofer (4Ω)
• 1100W RMS / 2200W MAX power handling
• TDX™ Thermal Dyne Extreme cooling technology
• 4" high-temperature voice coil for extreme output
• High-excursion design for deep bass extension
• Neodymium motor for efficiency and power
• Reinforced composite cone with NBR surround
• Flexible wiring for advanced system configurations
What our Experts Think
-
Delivers deep, hard-hitting bass response with 1100W RMS power handling for serious low-frequency output.
-
15” large-diameter cone moves significant air, producing strong sub-bass presence and impact.
-
Dual voice coil (4Ω) design offers flexible wiring options for series or parallel configurations.
-
Engineered for high excursion performance, maintaining control and clarity at high output levels.
-
Heavy-duty motor structure ensures thermal stability and consistent performance under sustained load.
-
Reinforced cone and suspension system provide durability and reduced distortion at extreme volume.
-
Ideal for enthusiasts seeking a competition-capable subwoofer with deep, authoritative bass output.
Q&A
Q: What is the Diamond Audio HXP154?
A: Diamond Audio HXP154 15" Dual Voice Coil Subwoofer (4Ω) 1100W RMS is a high-performance 15" dual voice coil subwoofer designed for deep, powerful bass output in car audio and custom sound systems.
Q: How much power does it handle?
A: It is rated at 1100W RMS, allowing strong, sustained low-frequency performance with proper amplification.
Q: What is a dual voice coil (DVC) design?
A: Dual voice coils provide wiring flexibility (series or parallel) for matching different amplifier configurations and maximizing power output.
Q: What type of sound does it produce?
A: Deep, hard-hitting, low-frequency bass with strong excursion capability for loud, impactful sub-bass performance.
Q: What makes this subwoofer suitable for high-output systems?
A: Its large 15" cone area, high power handling, and robust motor structure allow it to move more air for louder and deeper bass.
Q: What systems is it best for?
A: Ideal for competition-style bass builds or high-power systems where deep, chest-thumping low-end is required.
Q: What are the key benefits?
A: High excursion capability, strong thermal handling, and consistent bass performance at high volume levels.
Maintenance Tips
- Keep subwoofer cone and surround clean using a soft, dry microfiber cloth.
- Avoid direct contact with the cone to prevent damage or deformation.
- Ensure enclosure is properly sealed to maintain correct air pressure and performance.
- Regularly check mounting bolts and enclosure screws for tight, vibration-free fit.
- Inspect voice coil wiring terminals for secure, corrosion-free connections.
- Properly tune amplifier gain, low-pass filter, and bass boost to avoid clipping.
- Avoid sustained distortion or overdriving the subwoofer beyond RMS rating.
- Protect from moisture, excessive heat, and direct sunlight exposure.
- Periodically check enclosure for air leaks or rattling sounds.
- Store in a dry, controlled environment when not in use or during long periods of inactivity.
