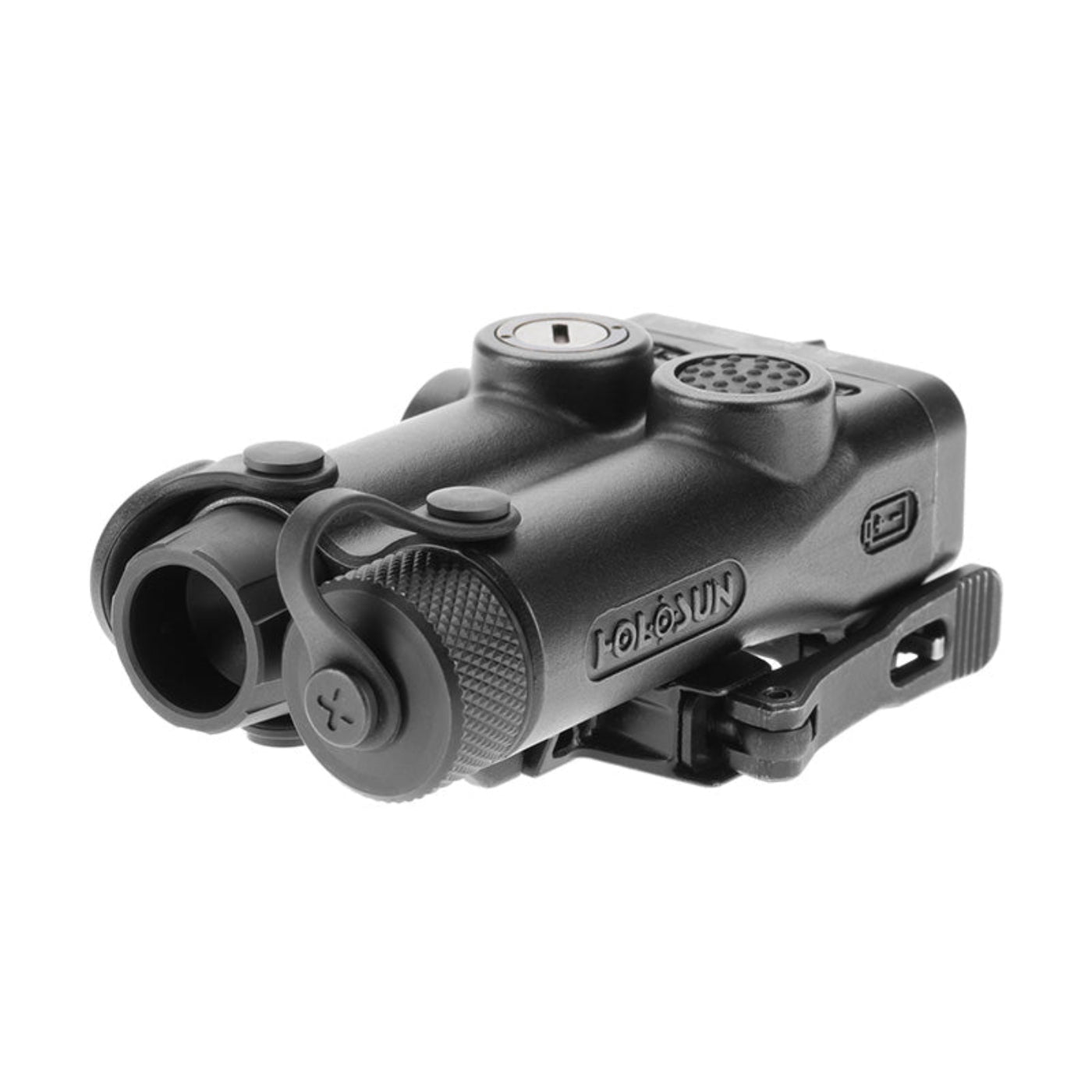

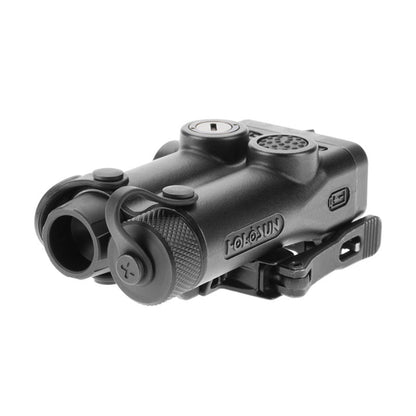

Holosun Titanium Co-axial Red and IR Pointer Laser Sight - LE221-RD&IR
The LE221-RD is a Titanium bodied multi- laser aiming device. Includes class IIIA visible red laser and class 2M IR laser coaxially mounted for easy zeroing. Also features a quick release picatinny rail mount, remote pressure switch, and IPX8 water resistance.
Features
- Coaxial Red and IR Laser Pointer
- High/Low Brightness Setting
- Complete Titanium Housing
- Remote Cable Switch
- Quick Release Mount
- IP67 Waterproof
Specifications
- Power Source: Battery
- Battery Type: CR123A
- Battery Life (Hours): Up to modes
- Brightness Setting: Up to mode
- Housing Material: Titanium
- Surface Finish: Titanium
- Adjustment per Click: 0.5 MOA
- W&E Travel Range: ±60 MOA
- Laser & Illuminator Type: Dual Laser
- IR Illuminator Output: 0.7mw
- IR Pointer Output: 0.1mw(low)/0.7mw(high)
- Visible Laser Class: IIIA
- Visible Laser Output: 1mw(low)/5mw(high)
- Dimension (in): 3.43×1.77×1.34
- Weight (oz): 6.88
- Submersion: IPX8
What Our Experts Think
-
Built for Serious Night Operations: The LE221-RD&IR combines a visible red laser and IR aiming laser in one compact unit, making it highly effective for both daylight and night vision use.
-
Premium Titanium Construction: Grade 5 titanium housing offers exceptional durability while keeping weight low for professional-duty applications.
-
Simplified Zeroing: Co-axial laser design helps maintain alignment and streamlines setup compared to separate laser systems.
-
Mission-Ready Reliability: Waterproof construction, high shock resistance, and a secure Picatinny mounting system make it dependable in demanding environments.
-
Fast Activation Options: Includes onboard controls and a remote pressure switch for rapid engagement when seconds matter.
Q&A
Q: What is the Holosun LE221-RD&IR designed for?
A: It is a dual-laser aiming device featuring a visible red laser and an infrared (IR) laser for both daytime and night vision applications.
Q: Does it work with night vision devices?
A: Yes. The integrated 830nm Class 1 IR laser is specifically designed for use with compatible night vision equipment.
Q: What makes the LE221-RD&IR durable?
A: It features a Grade 5 titanium housing, IPX8 waterproof rating, and 1000G vibration resistance for demanding environments.
Q: What mounting system does it use?
A: The LE221-RD&IR mounts directly to standard Picatinny rails and includes a quick-release mount for fast installation.
Q: How is the unit powered?
A: It runs on a single CR123A battery and includes a remote pressure switch for convenient activation.
Maintenance Tips
- Clean laser apertures and lenses with a microfiber cloth; remove dust before wiping to prevent scratches.
- Regularly inspect and tighten mounting hardware to maintain zero and alignment.
- Replace batteries before extended field use and remove them during long-term storage.
- Keep protective covers on when the unit is not in use to protect optics and emitters.
- Avoid exposure to harsh solvents, acetone, or alcohol-based cleaners that may damage coatings.
- Store in a cool, dry location and protect the titanium housing from unnecessary impacts.
- Periodically verify both the visible red laser and IR laser zero after heavy use or transport.
