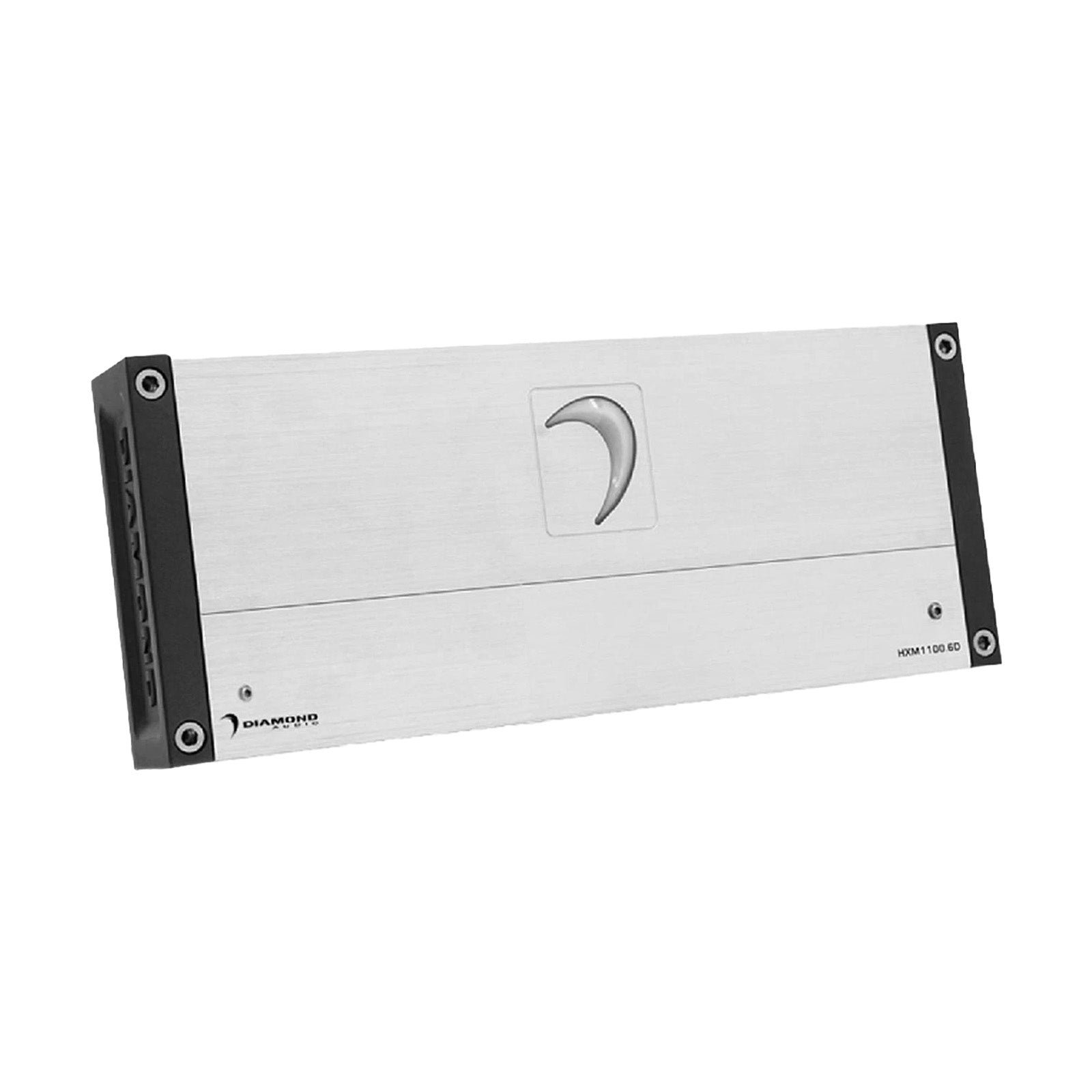

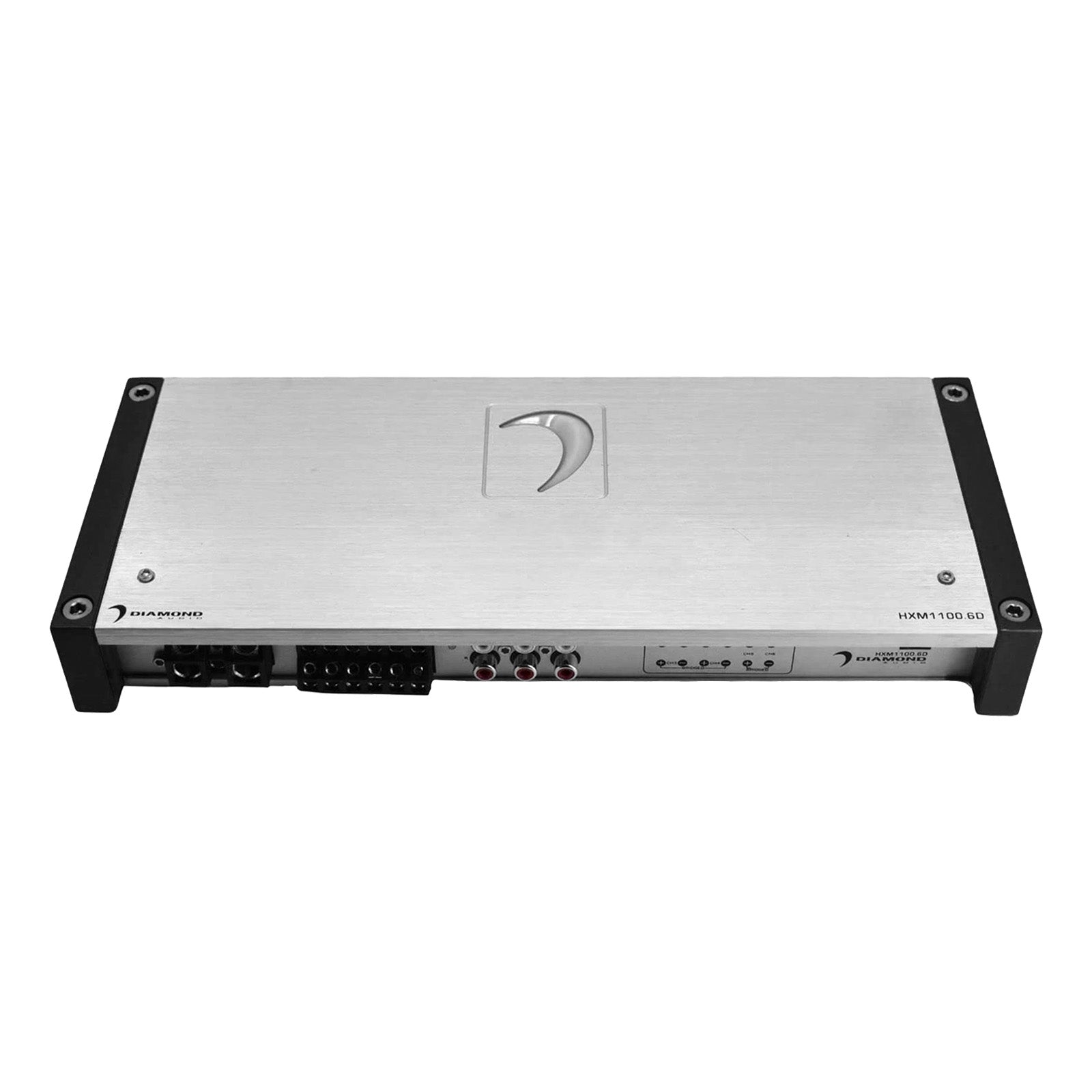

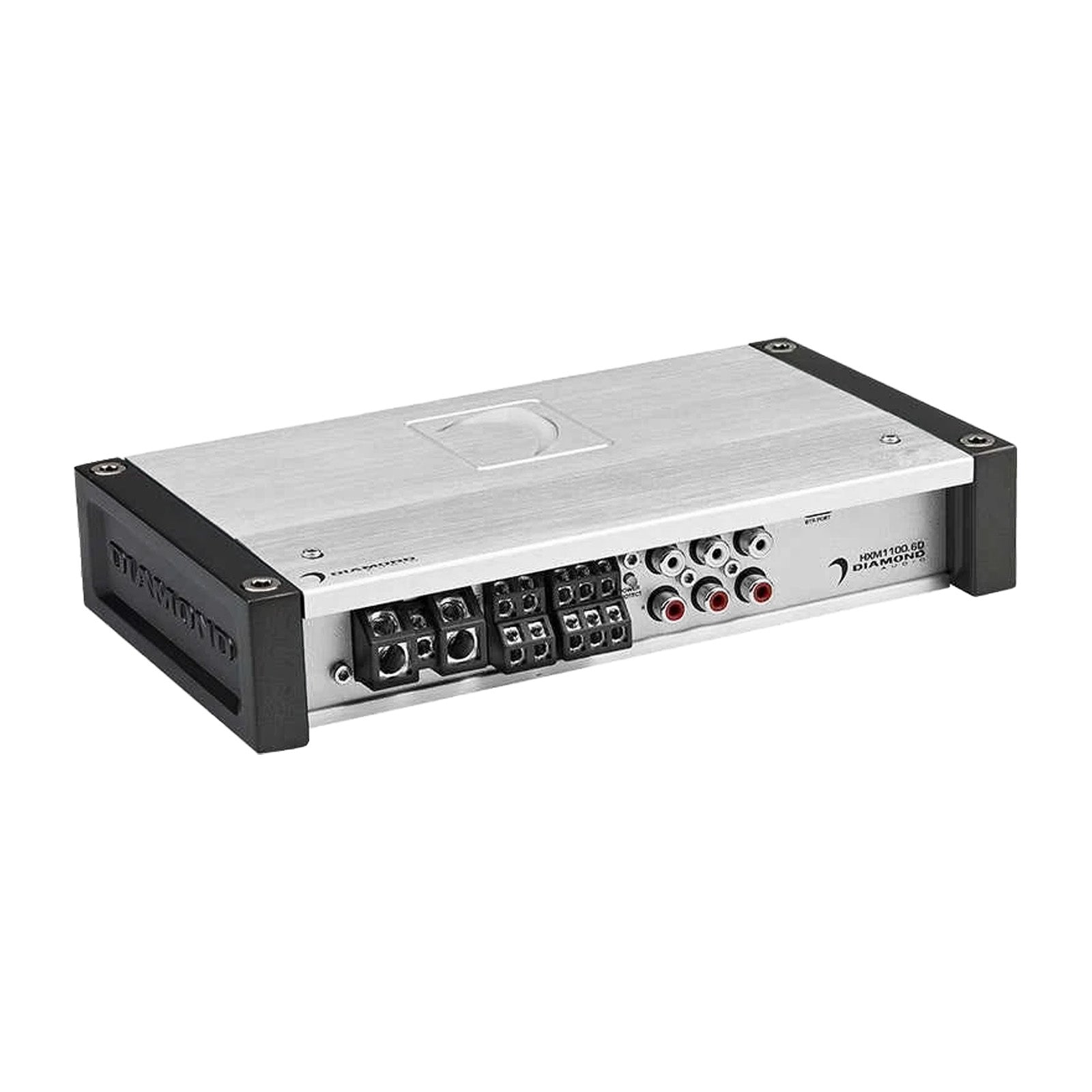

Diamond Audio 6-Channel HXM Series Full Range Class D Amplifier - HXM1100.6D
Power your entire system with precision and durability using the Diamond Audio MOTORSPORT Series 6-Channel Full Range Class D Amplifier. Designed for marine, motorcycle, UTV, ATV, and powersports audio systems, this 6-channel amplifier delivers powerful, clean sound while standing up to the harshest outdoor conditions.
Engineered with advanced full-range Class D digital technology, the Diamond Audio MOTORSPORT 6-channel amplifier provides impressive output with 90W x 4 + 150W x 2 at 4 ohms and 150W x 4 + 250W x 2 at 2 ohms. For higher power applications, it supports bridged operation up to 300W x 2 and 500W x 1 (channels 5/6 bridged), making it ideal for powering full-range speakers and subwoofers from a single amplifier.
Built for extreme environments, this water-resistant amplifier features conformal-coated multi-layer circuit boards, ensuring long-lasting reliability in wet, dusty, and rugged conditions. The anodized extruded aluminum heat sink enhances cooling performance, keeping the amplifier operating efficiently even during extended play.
The Diamond Audio MOTORSPORT amplifier also incorporates balanced differential inputs for noise-free signal transmission and a DirectFET power MOSFET output stage for efficient, high-quality audio performance. With variable high-pass (40Hzā400Hz) and low-pass (30Hzā300Hz) crossovers, along with phase control, this versatile multi-channel amplifier allows precise system tuning for optimal sound.
Installation is simplified with selectable REM, VOX, and DC turn-on modes, making it compatible with factory and aftermarket head units. Additional features such as top-mounted controls, output clip indicators, an illuminated logo, and an included bass remote control provide convenience and system control.
The Diamond Audio MOTORSPORT 6-Channel Amplifier delivers powerful, flexible, and reliable performance, making it the ultimate solution for multi-channel outdoor and marine audio systems.
Features
ā¢ 6-channel full range Class D amplifier
ā¢ 90W x 4 + 150W x 2 @ 4Ī© / 150W x 4 + 250W x 2 @ 2Ī©
ā¢ Bridging capability for higher output applications
ā¢ Water-resistant design for marine and powersports use
ā¢ Conformal-coated circuit boards for durability
ā¢ Balanced differential inputs for clean signal
ā¢ Variable HPF / LPF crossovers and phase control
ā¢ Anodized aluminum heat sink for efficient cooling
ā¢ Includes bass remote control and harness kits
What our Experts Think
-
One amplifier for your entire system ā The HXM1100.6D powers front and rear speakers plus a subwoofer from a single compact chassis, making it ideal for marine, motorcycle, UTV, ATV, and powersports audio systems.
-
High-output Class D performance ā Delivers 90W x 4 + 150W x 2 @ 4Ī©, 150W x 4 + 250W x 2 @ 2Ī©, with bridging up to 300W x 2 + 500W x 1, providing clean, efficient power for complete system builds.
-
Built for harsh environments ā Water-resistant construction, conformal-coated circuit boards, and an anodized aluminum heat sink ensure reliable performance in wet, dusty, and high-vibration conditions.
-
Advanced system tuning ā Features variable high-pass and low-pass crossovers, phase control, balanced differential inputs, output clip indicators, and an included bass remote for precise sound optimization.
-
Excellent all-in-one upgrade ā A premium 6-channel amplifier that combines powerful output, flexible configuration, and rugged durability for enthusiasts seeking high-performance outdoor or mobile audio.
Ā Ā
Q&A Ā Ā
Q: What is the Diamond Audio HXM1100.6D designed for?
A: It is a 6-channel full-range Class D amplifier designed to power multiple speakers with clean, high-efficiency audio performance.
Q: What are the benefits of a 6-channel amplifier?
A: A 6-channel design allows you to power front, rear, and additional speakers from a single amplifier, simplifying system installation.
Q: Is the HXM1100.6D suitable for marine and powersports use?
A: Yes. The HXM Series is engineered for marine, motorcycle, UTV, and other outdoor audio applications.
Q: Does it include adjustable audio controls?
A: Yes. It features adjustable gain and crossover controls for precise system tuning and optimized sound quality.
Q: Why choose a Class D amplifier?
A: Class D technology provides high power output, excellent efficiency, reduced heat, and a compact design for versatile installations.
