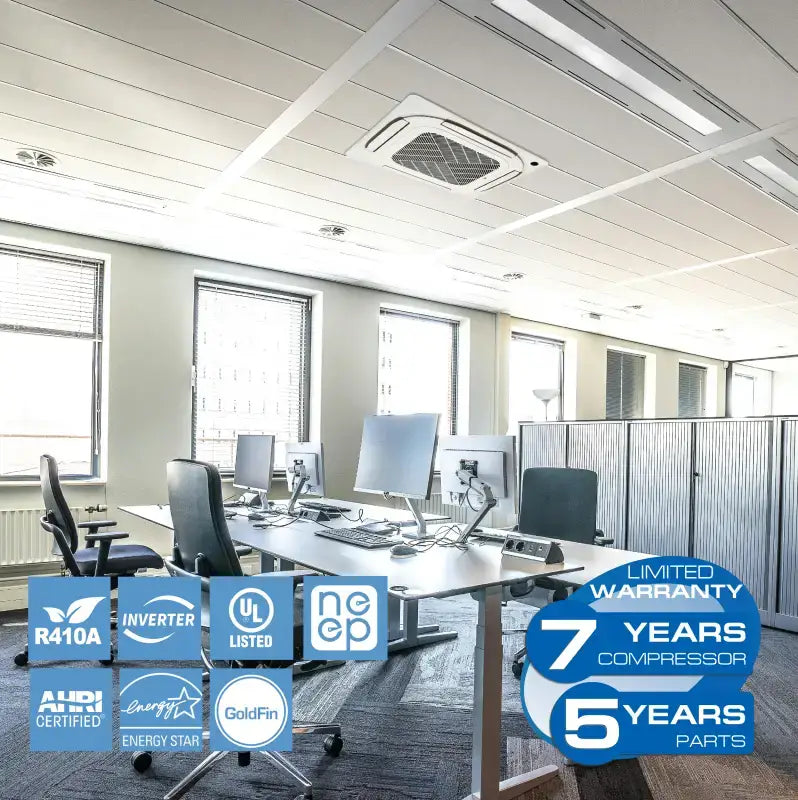

The Cooper & Hunter Hyper Heat 48,000 BTU (4 Ton) light commercial ceiling cassette is a single-zone flush-mount mini split air conditioner and heat pump on next-generation R454B refrigerant. The cassette recesses fully into the ceiling — only the low-profile panel stays visible — and a built-in condensate pump handles drainage. With a 18.0 SEER2 inverter system on 208/230V, it cools and heats spaces up to approximately 3,000 sq ft and keeps heating in outdoor temperatures as low as -22°F. Wi-Fi control is built in.
Key Features
-
48,000 Btu/h cooling / 53,000 Btu/h heating — inverter range 4,900–52,700 cooling, 19,000–57,400 heating
-
18.0 SEER2 / 10.0 EER2 / 11.0 HSPF4 — current R454B-generation efficiency
-

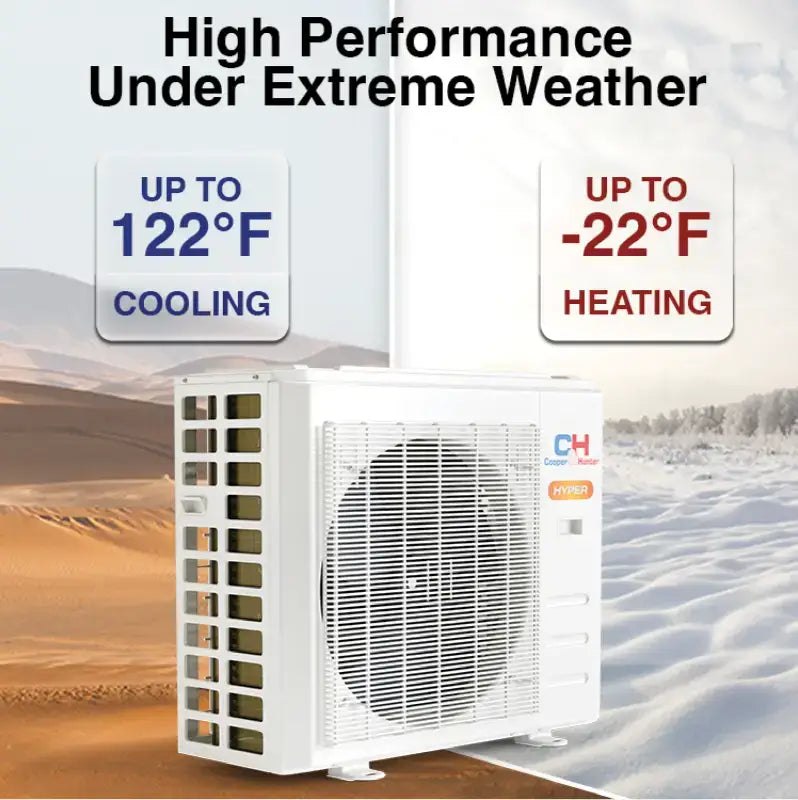

Hyper Heat: heats down to -22°F outdoor ambient; cooling operation -22–122°F
-
Built-in condensate pump — drain lift pipe up to 29.5 in above the ceiling board
-
Humidity sensor (active on single-zone systems) and washable fresh-air filter
-
Quiet: indoor unit from 38.5 dB(A); outdoor unit 62.5 dB(A)
-
Wi-Fi Smart Kit built in — Cooper & Hunter app control; IR remote and 12V wall thermostat included (thermostat connection enables smart features)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed

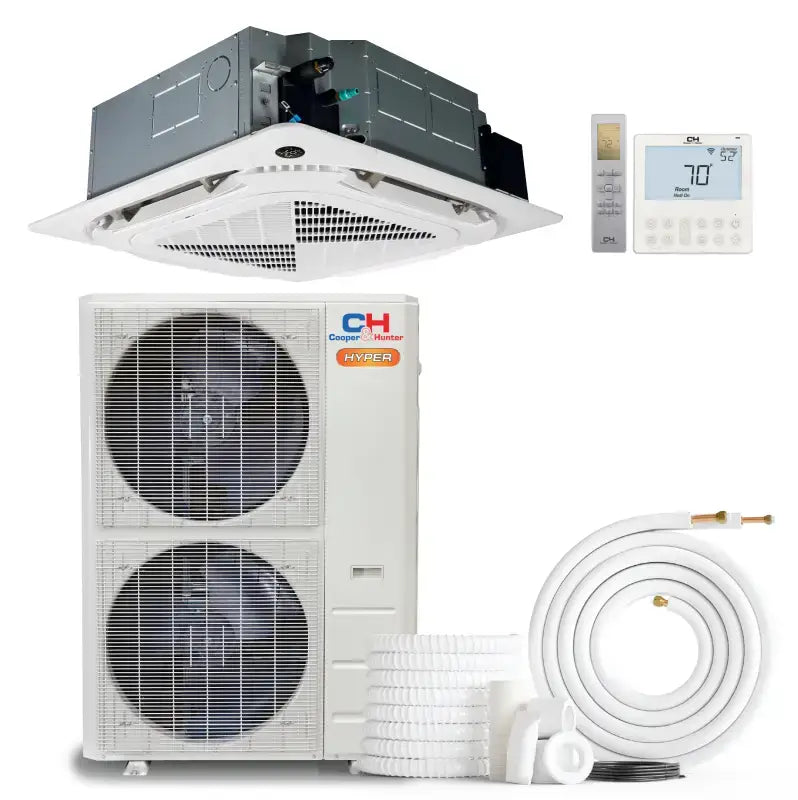

Included in Your Order
-

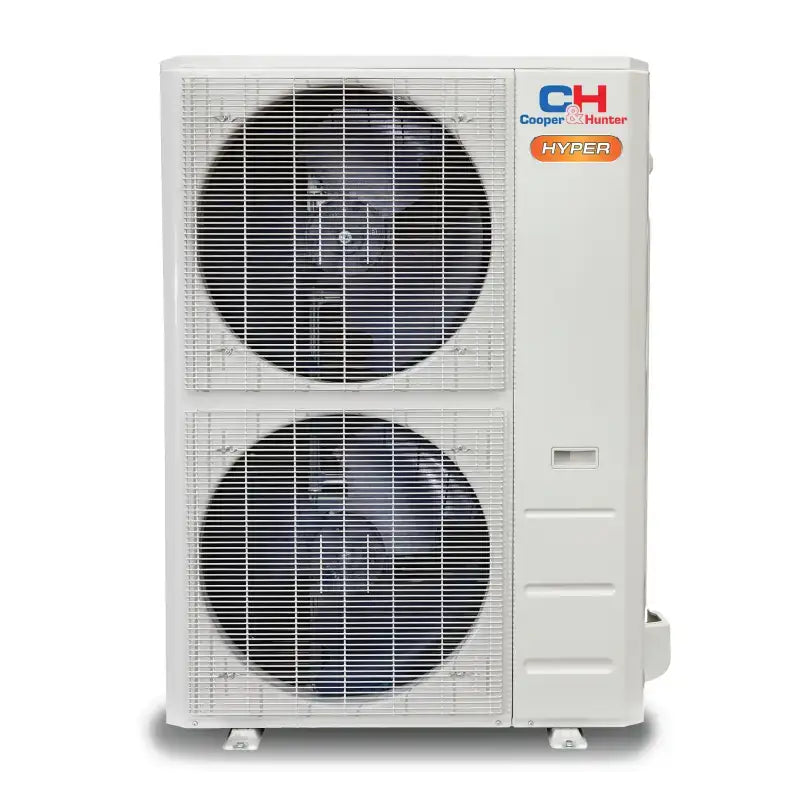

Outdoor unit (condenser): CH-RHP48LCU-230VO — pre-charged for up to 25 ft of line
-

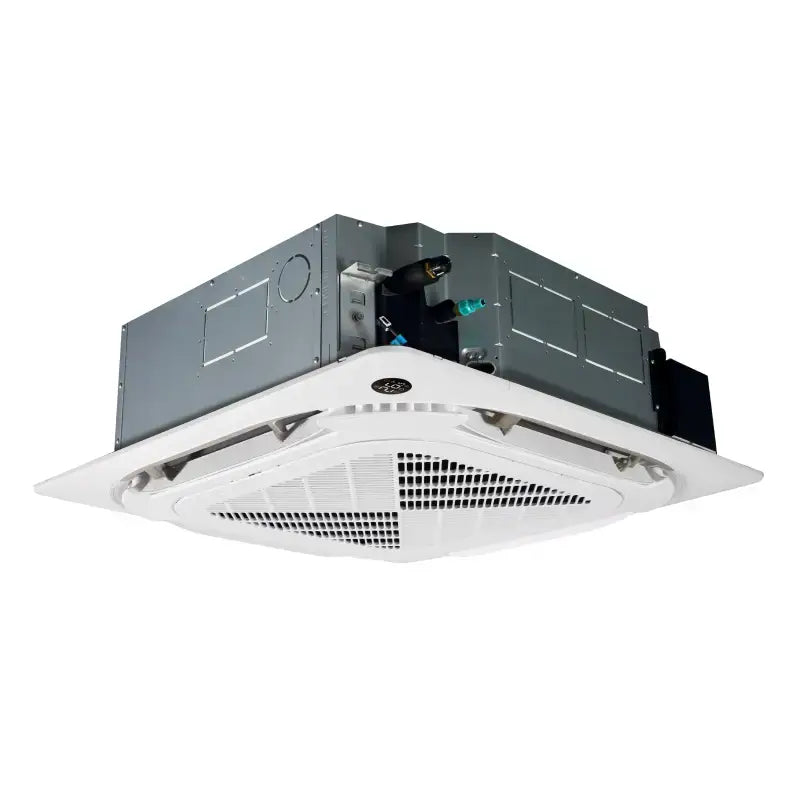

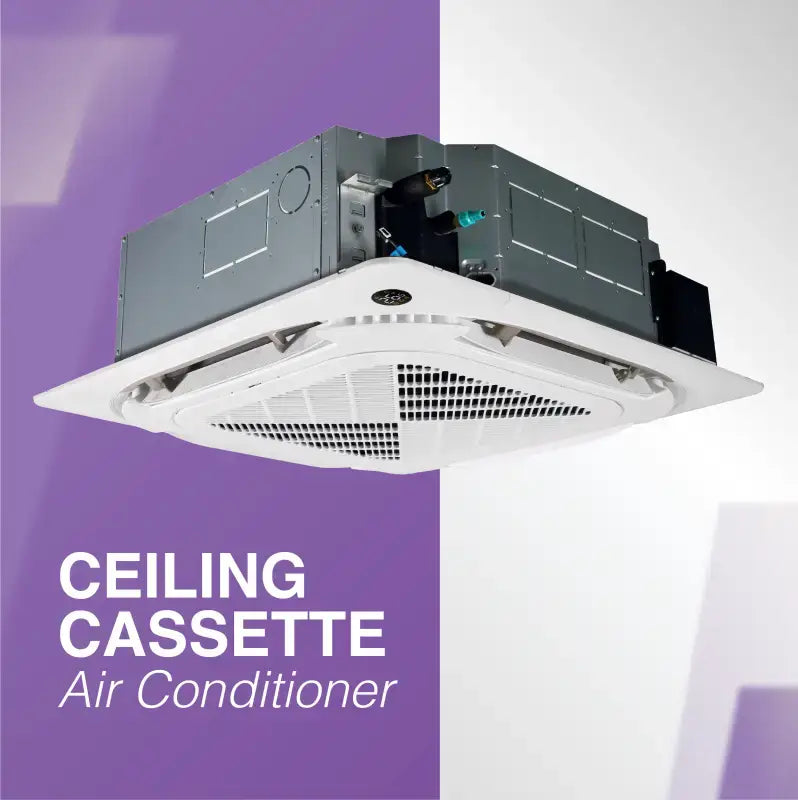

Indoor cassette: CH-RH48LCCT with IR remote control
-
Wi-Fi Smart Kit (built in) for app control
-

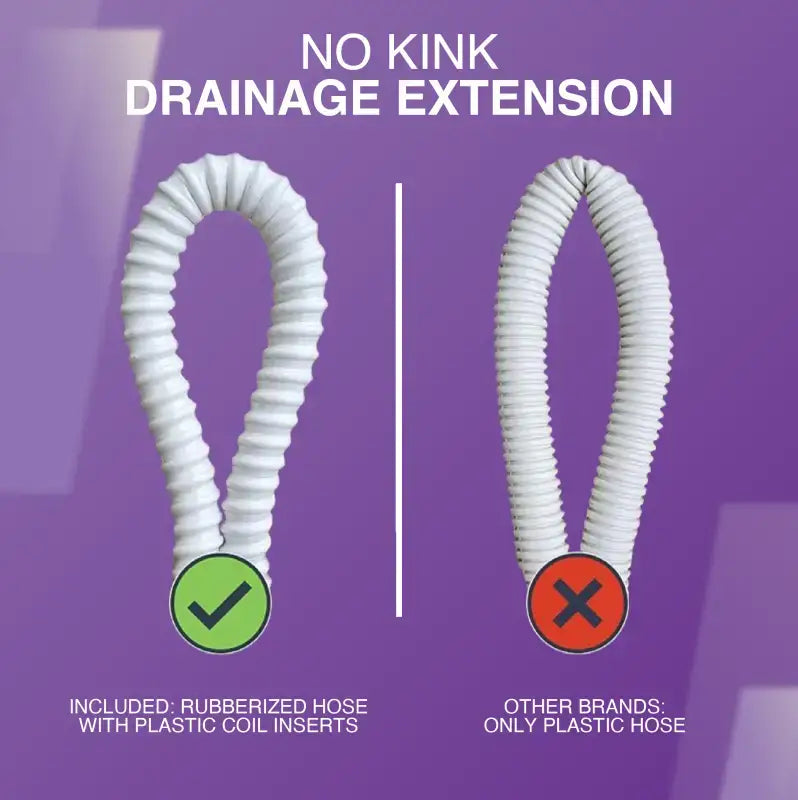

Installation kit — choose 25 ft or 50 ft: copper line set, communication cable, and drain line
Specifications — CH-RHP48LCU-230VO + CH-RH48LCCT (48,000 BTU, 208/230V)
| Power Supply |
208/230V, 1Ph, 60Hz (voltage range 187–253V) |
| Cooling — Rated Capacity (Range) |
48,000 Btu/h (4,900–52,700) |
| Heating — Rated Capacity (Range) |
53,000 Btu/h (19,000–57,400) |
| SEER2 / EER2 |
18.0 / 10.0 |
| HSPF4 / HSPF5 / COP (47°F) |
11.0 / 7.7 / 3.09 |
| Outdoor Unit MCA / Max. Fuse |
44 A / 45 A |
| Indoor Unit MCA / Max. Fuse |
3 A / 15 A |
| Indoor Air Flow (Turbo/Hi/Mid/Lo/Silent) |
1236 / 1124 / 1018 / 801 / 689 CFM |
| Indoor Noise Level (Turbo/Hi/Mid/Lo/Silent) |
56.0 / 52.5 / 50.0 / 42.5 / 38.5 dB(A) |
| Indoor Cassette Dimensions (W×D×H) |
32.68 × 32.68 × 11.30 in (recessed body) |
| Decorative Panel |
CH-NPNL24-48CT — 37.4 × 37.4 × 2.17 in |
| Indoor Unit Net / Gross Weight |
64.6 / 76.1 lbs |
| Condensate Removal |
Built-in drain pump; lift pipe up to 29.5 in above ceiling |
| Outdoor Noise Level |
62.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight |
208.8 / 239.9 lbs |
| Refrigerant Type / Charge |
R454B / 126.99 oz |
| Pre-charged Line Length |
25 ft (add 0.32 oz per additional ft) |
| Line Set (Liquid / Gas) |
3/8" / 3/4" |
| Max. Pipe Length |
246 ft |
| Max. Elevation Difference |
98.4 ft |
| Operating Range — Cooling / Heating |
-22–122°F / -22–75°F outdoor ambient |
| Recommended Coverage |
up to 3,000 sq ft (guidance) |
Cooper & Hunter Ceiling Cassette (R454B) Lineup
| Capacity |
Outdoor + Indoor Cassette |
SEER2 |
Heats down to |
Coverage* |
| 9,000 BTU |
CH-RES09-230VO + CH-RH09MCT |
21.6 |
-13°F |
up to 400 sq ft |
| 9,000 BTU Hyper Heat |
CH-RHP09-230VO + CH-RH09MCT |
22.6 |
-22°F |
up to 400 sq ft |
| 12,000 BTU |
CH-RES12-230VO + CH-RH12MCT |
21.1 |
-13°F |
up to 550 sq ft |
| 12,000 BTU Hyper Heat |
CH-RHP12-230VO + CH-RH12MCT |
22.2 |
-22°F |
up to 550 sq ft |
| 18,000 BTU |
CH-RES18-230VO + CH-RH18MCT |
20.7 |
-13°F |
up to 900 sq ft |
| 18,000 BTU Hyper Heat |
CH-RHP18-230VO + CH-RH18MCT |
20.0 |
-22°F |
up to 850 sq ft |
| 24,000 BTU |
CH-RES24-230VO + CH-RH24MCT |
22.0 |
-13°F |
up to 1,500 sq ft |
| 24,000 BTU Hyper Heat |
CH-RHP24-230VO + CH-RH24MCT |
20.7 |
-22°F |
up to 1,400 sq ft |
| 36,000 BTU LC |
CH-R36LCU-230VO + CH-RH36LCCT |
20.0 |
-13°F |
up to 2,200 sq ft |
| 36,000 BTU Hyper Heat LC |
CH-RHP36LCU-230VO + CH-RH36LCCT |
21.2 |
-22°F |
up to 2,200 sq ft |
| 48,000 BTU LC |
CH-R48LCU-230VO + CH-RH48LCCT |
19.0 |
-13°F |
up to 3,000 sq ft |
| 48,000 BTU Hyper Heat LC |
CH-RHP48LCU-230VO + CH-RH48LCCT |
18.0 |
-22°F |
up to 3,000 sq ft |
*Coverage is sizing guidance; actual load depends on insulation, ceiling height, sun exposure, and climate. LC = Light Commercial.
Warranty & Support
Backed by Cooper & Hunter’s 7-year compressor / 5-year parts warranty. Installation by a licensed HVAC professional and product registration within 60 days are required to keep the warranty valid — registration takes minutes online. Cooper & Hunter maintains wide U.S. parts availability and English-speaking technical support.
Frequently Asked Questions
What's included in this system?
A complete single-zone system: the indoor unit and its matching outdoor condenser. Choose a line-set kit length at checkout, or supply your own.
What size room does it suit?
It is rated at 48,000 BTU — size it to your room’s square footage and insulation for the best match.
Does it heat as well as cool?
Yes — it is an inverter heat pump that both cools and heats down to -22°F outdoor ambient (Hyper Heat). See the specifications for this model’s heating range.
What refrigerant does it use?
R454B. The system ships factory pre-charged; a licensed installer adjusts the charge for your line length.
Who should install it?
A licensed HVAC professional — required for the refrigerant, electrical, and startup work, and to keep the manufacturer warranty valid. Many customers buy the equipment here and hire a local installer.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty (with professional installation and registration).
