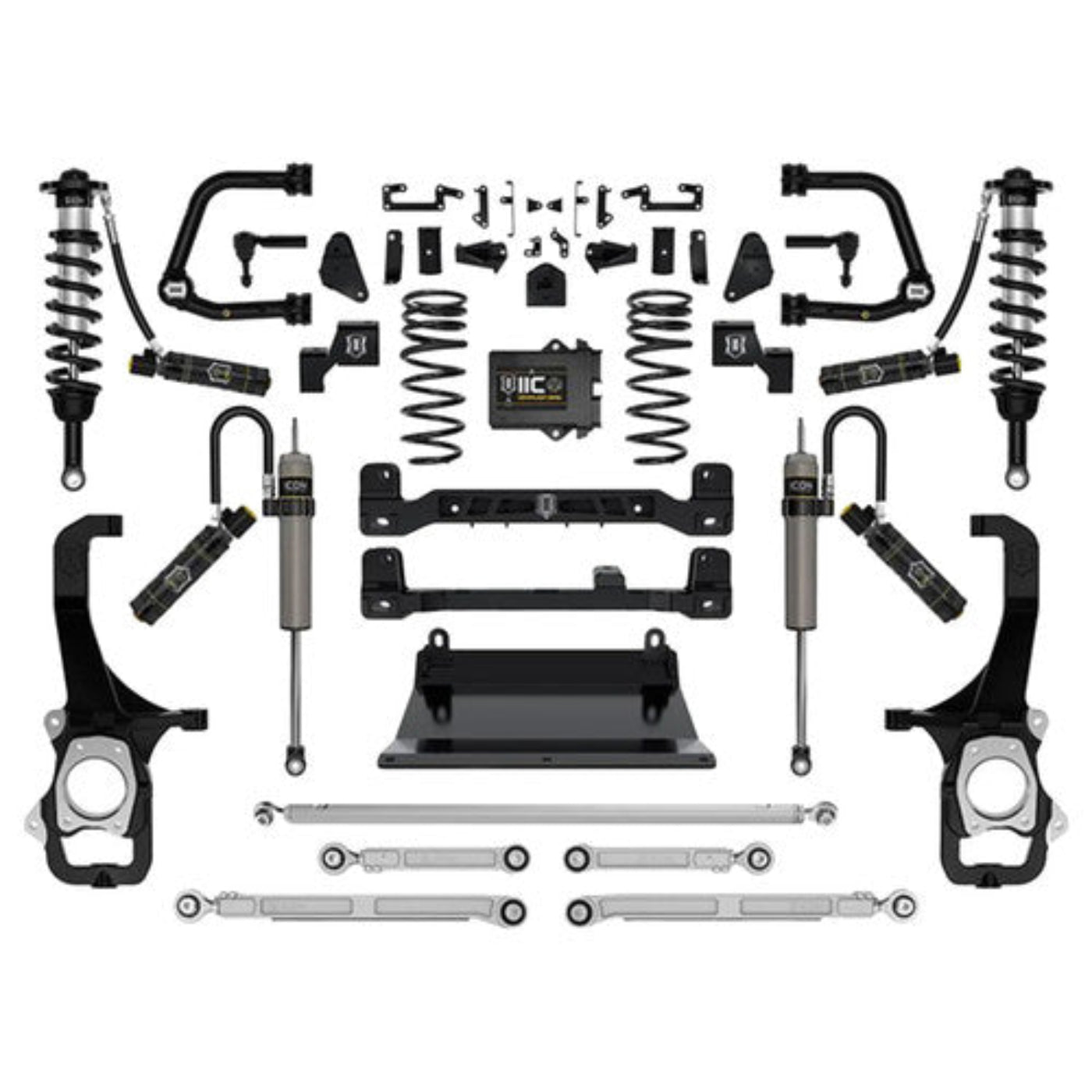

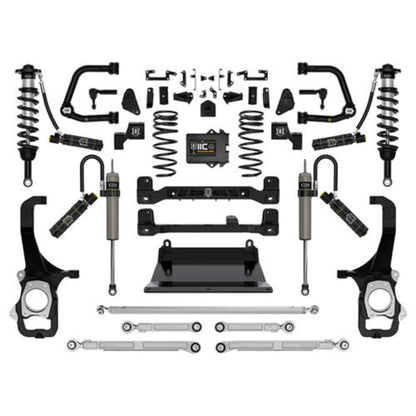

Air Lift ICON Vehicle Dynamics Stage 8 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - ICOK53278
TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 8 Suspension System 6" Lift with Billet UCA for your 2022+ Toyota Tundra. Experience superior damping and vehicle control with the ICON Vehicle Dynamics Stage 8 Suspension System 6" Lift with Billet UCA. Equipped with ICON's Compression Damping Electronic Valve (CDEV) technology and ICON Intelligent Control (IIC) for in vehicle adjustment and active compression damping adjustments, the system also allows for up to 40% increase in front wheel travel over stock without overstressing OE components and is designed to fit 37" tires with full articulation.
Features
- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via IIC
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make on-the-fly, near instantaneous compression damping adjustments on CDEV-equipped shocks
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
What our Experts Think
-
Premium 6-inch suspension upgrade – The ICON Stage 8 system is engineered for drivers who want exceptional off-road capability, improved ride quality, and confident handling without compromising daily drivability.
-
Billet aluminum upper control arms with Delta Joint Pro® provide increased strength, precise alignment correction, and up to 90° of articulation for maximum suspension travel and durability.
-
CDEV electronic shocks with ICON Intelligent Control (IIC) automatically adjust compression damping in real time, delivering a smoother, more controlled ride across changing terrain.
-
Designed to clear up to 37-inch tires while maintaining factory track width and optimized suspension geometry to reduce bump steer and improve steering precision.
-
Complete high-performance lift system includes remote reservoir coilovers, heavy-duty rear suspension components, high-clearance crossmembers, reinforced steering parts, and progressive-rate rear springs for balanced on- and off-road performance.
-
Expert Tip: Professional installation, precision wheel alignment, and ADAS recalibration are recommended after installation to maximize handling, safety, and tire life.
Q&A
Q: What vehicles does this suspension system fit?
A: Fits 2022–2026 Toyota Tundra models without Adaptive Variable Suspension (AVS) or Load-Leveling Rear Air Suspension. A minimum 20-inch wheel is required.
Q: How much lift does this kit provide?
A: Delivers a 6-inch suspension lift with 5–6 inches of adjustable front lift and approximately 3–3.5 inches of rear lift, depending on vehicle configuration.
Q: What size tires can this kit accommodate?
A: Engineered to fit up to 37-inch tires with recommended wheels. Larger tires may require minor trimming depending on wheel offset and tire choice.
Q: What are the benefits of the billet upper control arms?
A: The included billet aluminum upper control arms improve suspension geometry, alignment, strength, wheel travel, and steering precision while supporting larger tires and demanding off-road use.
Q: What makes the Stage 8 system unique?
A: Stage 8 includes 2.5 Series remote reservoir shocks, Compression Damping Electronic Valve (CDEV) technology, ICON Intelligent Control (IIC) for active electronic damping adjustment, and upgraded billet rear lower links for improved articulation, durability, and ground clearance.
Maintenance Tips
- Inspect all suspension components regularly, especially after off-road use.
- Check shocks for leaks, damage, or signs of reduced performance.
- Verify torque on all suspension mounting hardware at recommended service intervals.
- Clean mud, dirt, and road salt from shocks, billet upper control arms, and suspension components.
- Lubricate all greaseable joints according to ICON Vehicle Dynamics' maintenance guidelines.
- Maintain proper wheel alignment after installation or suspension adjustments.
- Inspect bushings, Delta Joint Pro assemblies, and tie rod ends for wear.
- Rebuild the serviceable shocks as recommended to maintain peak performance.
- Rotate tires regularly to encourage even tread wear and consistent handling.
