Air Lift ICON Vehicle Dynamics Stage 9 Suspension System 6" Lift With Billet UCA | 2022-2026 Toyota Tundra - ICOK53279
TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 9 Suspension System 6" Lift with Billet UCA for your 2022+ Toyota Tundra. Experience the ultimate in off-road performance with the ICON Vehicle Dynamics Stage 9 Suspension System 6" Lift with Billet UCA for 2022+ Toyota Tundra. Featuring 2.5 Series Front Coilovers and Rear Shocks with Remote Reservoirs for advanced dampening and vehicle control, plus ICON's Compression Damping Electronic Valve (CDEV) and ICON Intelligent Control (IIC) technologies, allowing for in-vehicle adjustment and active on-the-fly compression damping. Up to 40% more front wheel travel than stock, and designed to fit 37" tires with full articulation.
Features

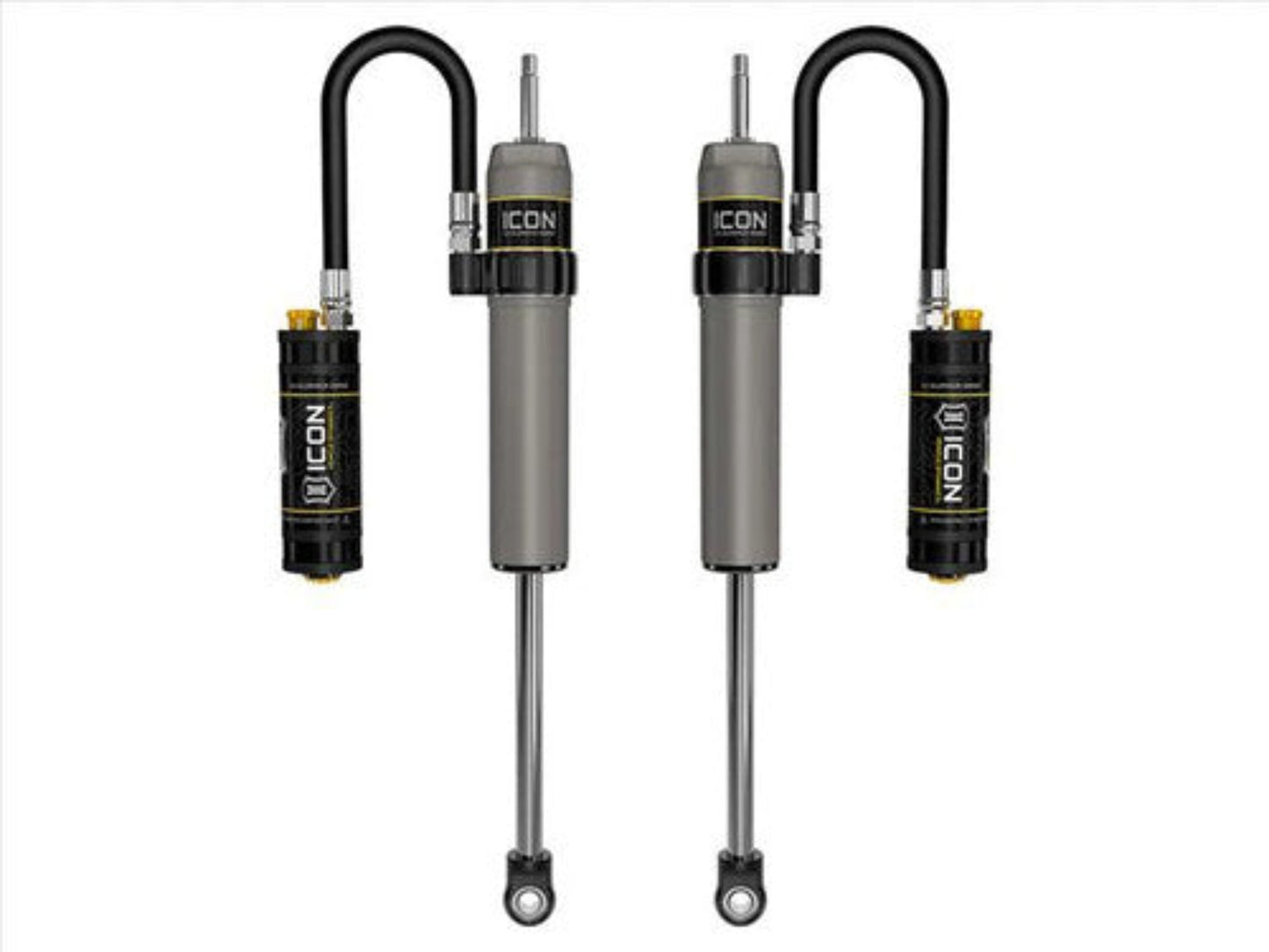

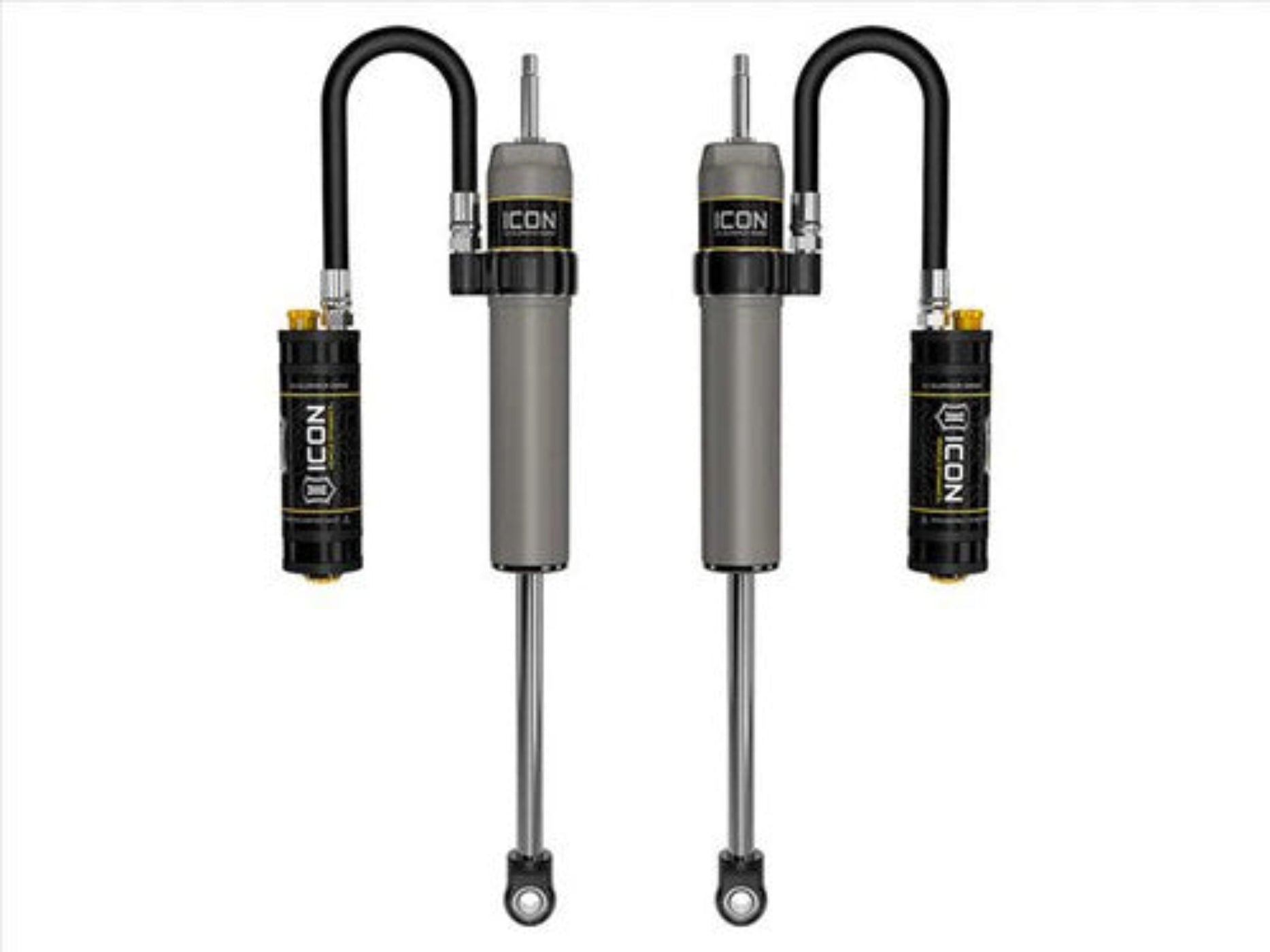

- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via IIC
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make on-the-fly, near instantaneous compression damping adjustments on CDEV-equipped shocks
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6โ of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
- Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
- On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
What our Experts Think
Q&A
Q: What vehicles does this suspension system fit?
A: Fits 2022โ2026 Toyota Tundra models without Adaptive Variable Suspension (AVS) or Load-Leveling Rear Air Suspension.
Q: How much lift does this kit provide?
A: Delivers a true 6-inch suspension lift with 5โ6 inches of adjustable front lift and approximately 2 inches of rear lift, depending on vehicle configuration.
Q: What size tires can I run?
A: Designed to fit up to 37-inch tires with recommended wheel specifications and proper setup.
Q: What makes the Stage 9 system different?
A: Stage 9 features 2.5 Series remote reservoir shocks, CDEV electronic compression damping, ICON Intelligent Control (IIC), billet upper control arms, heavy-duty steering and suspension components, and in-cab adjustable ride tuning.
Q: Why choose billet upper control arms?
A: Billet UCAs improve alignment, suspension geometry, strength, wheel travel, and durability while supporting larger tires and demanding off-road use.
Q: Is professional installation recommended?
A: Yes. Professional installation and ADAS recalibration are recommended after installation for proper safety system operation.
