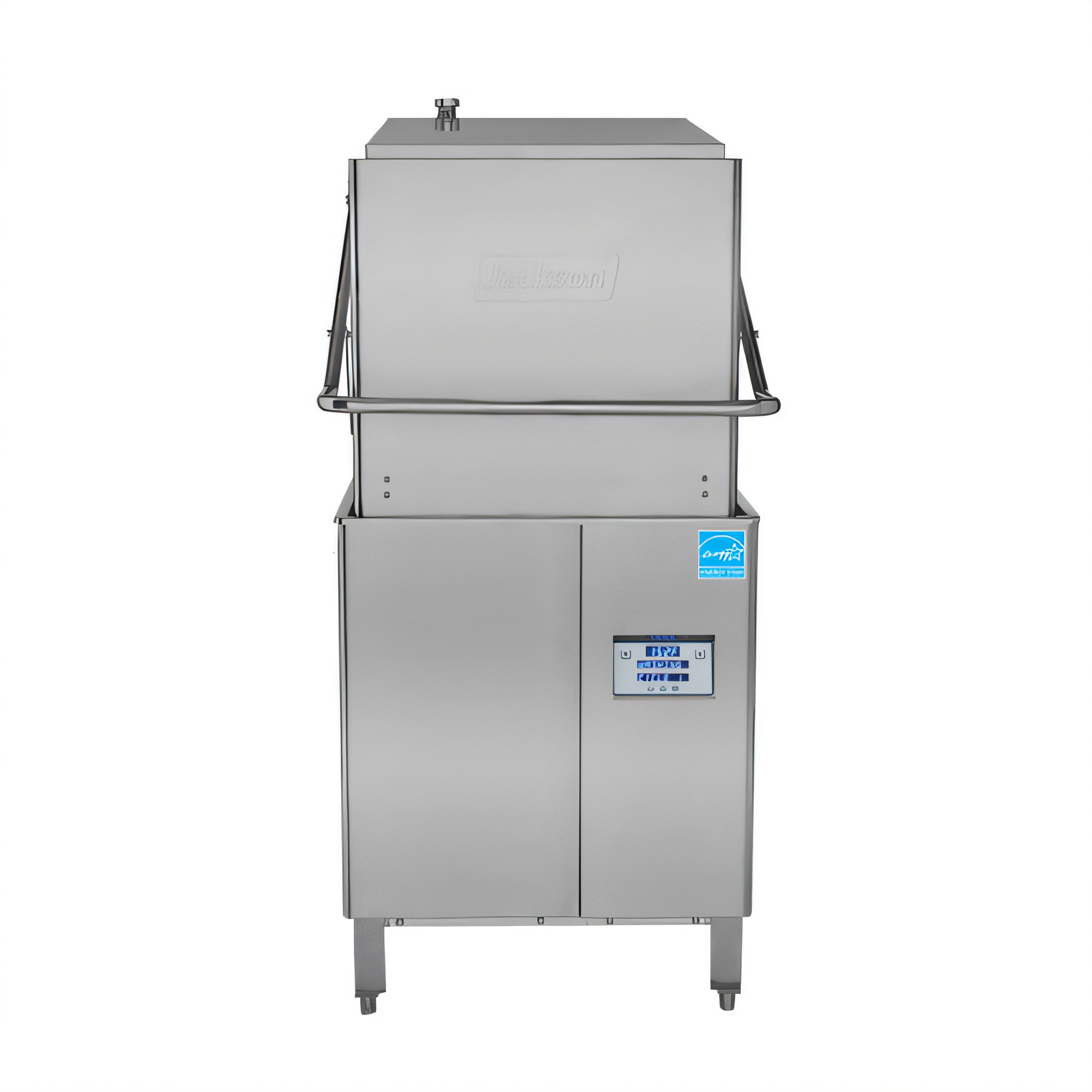

Jackson WWS DynaStar Dishwashers - DYNASTAR(40-70)
ENERGY STAR certified power, packed into a universal pass-thru machine.
Handle today’s rush—and tomorrow’s utility bill—with one rugged, water-saving workhorse. The DynaStar processes up to 62 racks per hour while using as little as 0.70 gal per rack, thanks to its built-in 40–70 °F booster heater and exclusive Sani-Sure final-rinse system. Whether you install it straight-through or in a corner, this high-temperature unit delivers spotless, fully sanitized ware in under a minute.
Features
- 40–70 °F rise booster heater with Sani-Sure ensures a 180 °F sanitizing rinse every cycle.
-
Adjustable rinse system – choose water-saving Econo (0.70 gal/rack) or heavy-duty Turbo (0.89 gal/rack).
- Pumped final rinse maintains consistent pressure—no external rinse booster required.
- Three timed cycles (Normal :58 s, Heavy :108 s, Extra-Heavy :238 s) give you the flexibility to tackle any soil load.
- 17 ½" interior clearance fits full-size sheet pans, mixing bowls and tall glassware.
- Triple stainless-steel wash arms and precision nozzles blast away stubborn soils.
- Door-actuated start, automatic tank fill and vent-fan shut-off streamline operation.
- Intuitive digital LED display with onboard diagnostics and dedicated delime cycle.
- Universal design converts from straight-thru to corner (kit required) and from 3-ph to 1-ph if needed.
- 1 HP stainless-steel wash-pump motor & interchangeable scrap baskets for maximum durability.
- Single-point utility connections simplify installation.
Specifications
| Racks per hour |
Up to 62 |
| Gallons per rack |
0.70 (Econo) / 0.89 (Turbo) |
| Selectable cycle times |
Normal :58 s • Heavy :108 s • Extra-Heavy :238 s |
| Wash temperature (min.) |
150 °F / 66 °C |
| Rinse temperature (min.) |
180 °F / 82 °C |
| Interior clearance |
17 ½" (445 mm) |
| Wash tank capacity |
8 gal (30.3 L) |
| Booster tank capacity |
1.66 gal (6.3 L) |
