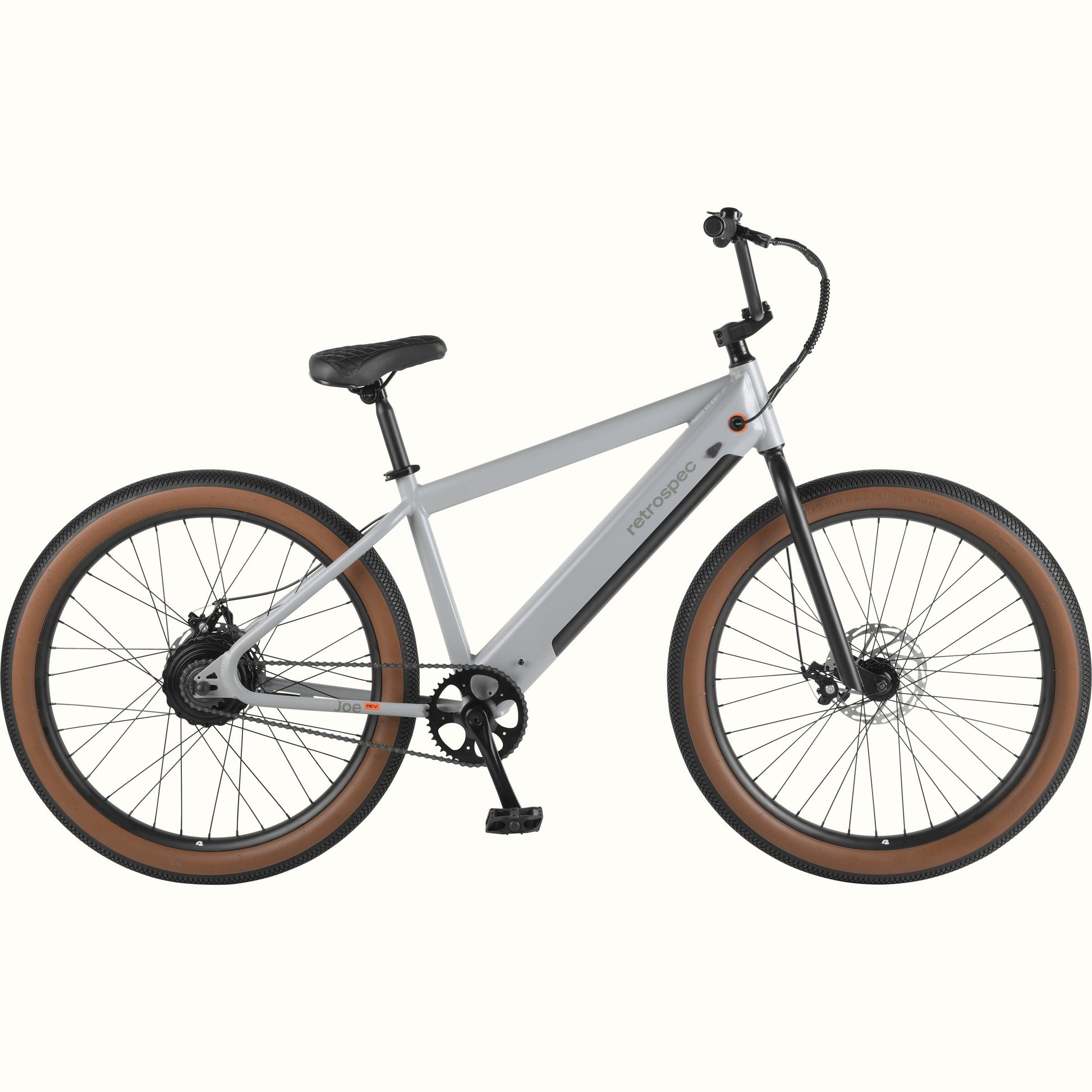

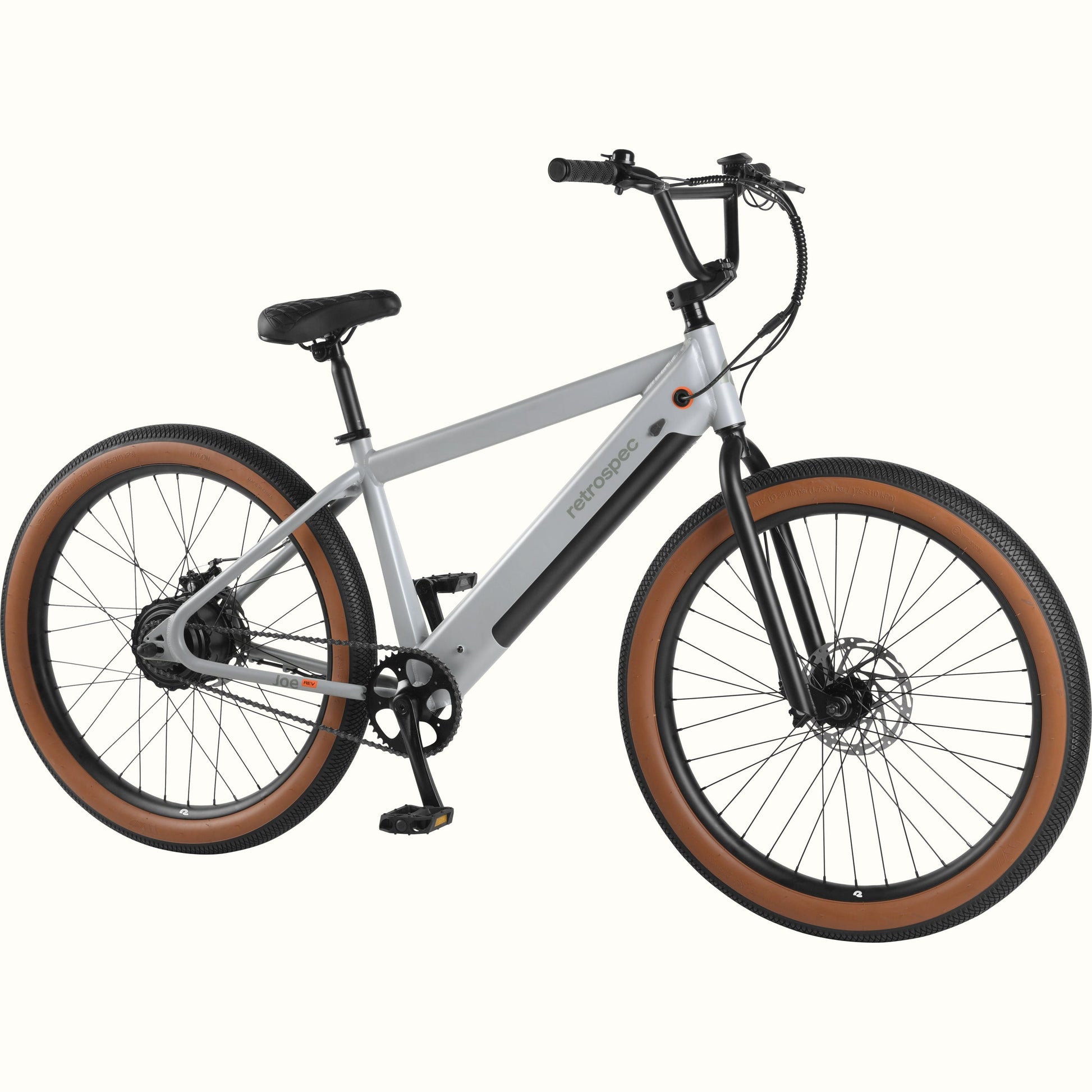

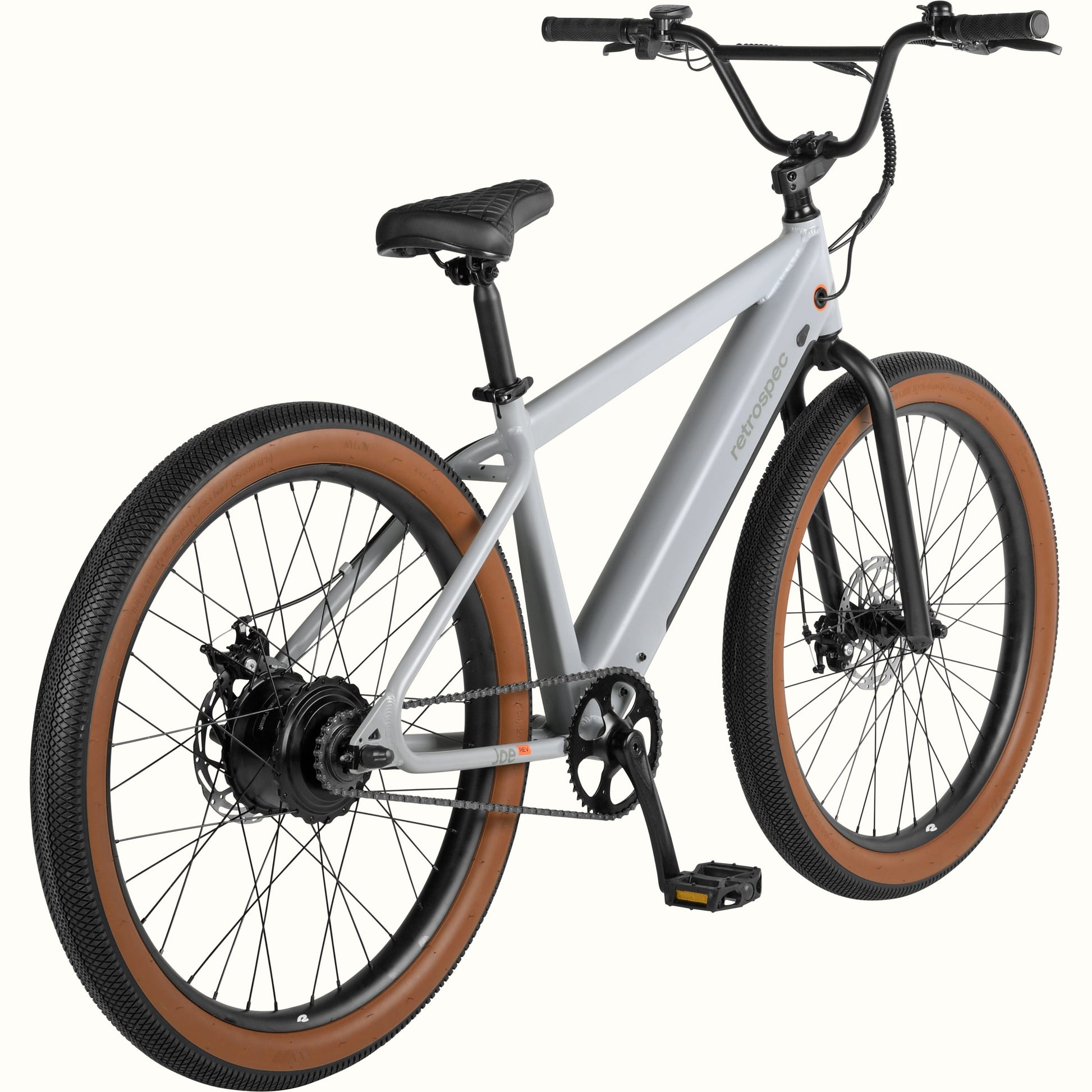

Retrospec Joe Rev BMX Electric Bike - 6025

• Sizes: 18" Step Over;

• Material: Alloy, 6061 TIG welded, hydroformed tubing

• Dropouts:
• Decals:
• Replaceable Der Hanger
• Fork:

DriveTrain

• Derailleur - Rear: Shimano Altus 8speed

• Shifter: Shimano Rapidfire Plus

• Crankset: 46T w/double alloy chainguard

• Chain: KMC Z8.

• BB: JIS square taper cartridge

• Freewheel/Cog: Shimano 11-34T



Wheelset

• Rims: Alloy 36H for disc brake

• Hubs: Alloy bolt on 17mm nut

• Spokes: 13G/2.3mm w/brass nipples

• Tires: 26 x 4.0, with moto-belt anti-puncture protection



Components

• Headset: Threadless, 1 1/8"

• Brakes: Tektro hydraulic with ebike specific 180mm rotors and semi-metalic pads
• Handlebars: Alloy 700mm

• Grips: Comfort with alloy lock rings

• Stem: Die-Casting alloy; 31.8mm barbore, ext. 60mm +6d, 4-bolt faceplate

• Saddle: SuperSoft MTB

• Seatpost: Alloy; 30.9mm diameter, 400mm length

• Seatpost Clamp: Alloy QR

• Pedals: Alloy platform 9/16"



Extras

• Kickstand: Rear mount, adjustable, aluminum alloy

• Lights: Integrated/system-powered front and rear lights w/brake function

• Fenders: Full coverage front and rear

• Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver

• Weight - Bike (Assembled w/battery): 71 lbs

• Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.

• Rover Compatible: Yes

E-Power System

• Motor: 750W geared

• Battery: 48V 720W LG 21700 cells

• Modes: PAS/Thumb throttle Left side , cadence sensor

• Display: Full color display with 6 levels of assist, anytime throttle and walk mode.

• Controller: Retrospec 22Amp
• Charge Time: Approximately 6hrs
• Watt Hours: 720Wh
• Range: 720Wh: 50+ Miles

What our Experts Think

• BMX-inspired electric bike built for fun, agility, and urban riding, blending a playful geometry with modern e-bike power.
• Powerful 750W rear hub motor delivers punchy acceleration, ideal for quick starts, tricks, and confident city riding.
• Up to ~60–75 miles of range (depending on conditions) supports long recreational rides and extended daily use.
• Compact BMX-style frame with wide tires (27.5” x 3”) provides stability, cushioning, and control on rough urban terrain.
• Throttle + 5-level pedal assist system allows flexible riding—go full electric or mix in pedaling as needed.
• Single-speed drivetrain keeps maintenance simple, making it ideal for riders who want performance without mechanical complexity.
• Mechanical disc brakes ensure reliable stopping power in all weather conditions for safer riding at higher speeds.
• Integrated Ananda e-system with LCD display centralizes control for assist levels, battery monitoring, and ride modes.
• Built for style + performance, appealing to riders who want a more aggressive, stunt-ready electric bike feel.
• Best suited for urban thrill riders and casual commuters who prioritize fun handling, power, and BMX aesthetics over lightweight efficiency.


Q&A

Q: What is the Retrospec Joe Rev BMX Electric Bike designed for?
A: A compact BMX-style electric bike built for urban riding, tricks, short commutes, and fun, agile performance.

Q: What makes the BMX-style frame special?
A: It offers a sturdy, compact design that improves maneuverability, control, and durability for street-style riding.

Q: Is this e-bike suitable for beginners?
A: Yes. Its simple controls, stable geometry, and electric assist make it easy to learn and ride confidently.

Q: How does the electric assist help?
A: The motor provides extra power for acceleration, hill climbing, and reducing effort during longer urban rides.

Q: What type of terrain is it best for?
A: Best suited for city streets, bike parks, paved paths, and light recreational use.

Q: Who should choose this bike?
A: Ideal for riders who want a fun, compact e-bike with BMX styling for commuting and recreational riding.

Maintenance Tips

• Keep tires properly inflated for better grip, control, and battery efficiency during rides.
• Charge the battery regularly and avoid full discharge; store at ~40–70% charge when idle.
• Clean the bike after use, especially dirt or street riding—avoid water near motor and battery.
• Lubricate the chain and drivetrain frequently due to higher torque from electric assist.
• Inspect and tighten BMX-style handlebars, stem, and frame bolts for stunt-ready stability.
• Check brakes (mechanical or hydraulic) often for strong, responsive stopping power.
• Ensure wheel trueness and spoke tension to handle jumps, tricks, and rough impacts.
• Verify all electrical connectors are secure, dry, and free of corrosion.
• Avoid heavy impacts that could damage battery mounting or motor housing.
• Schedule a professional e-BMX tune-up every 6–12 months.
