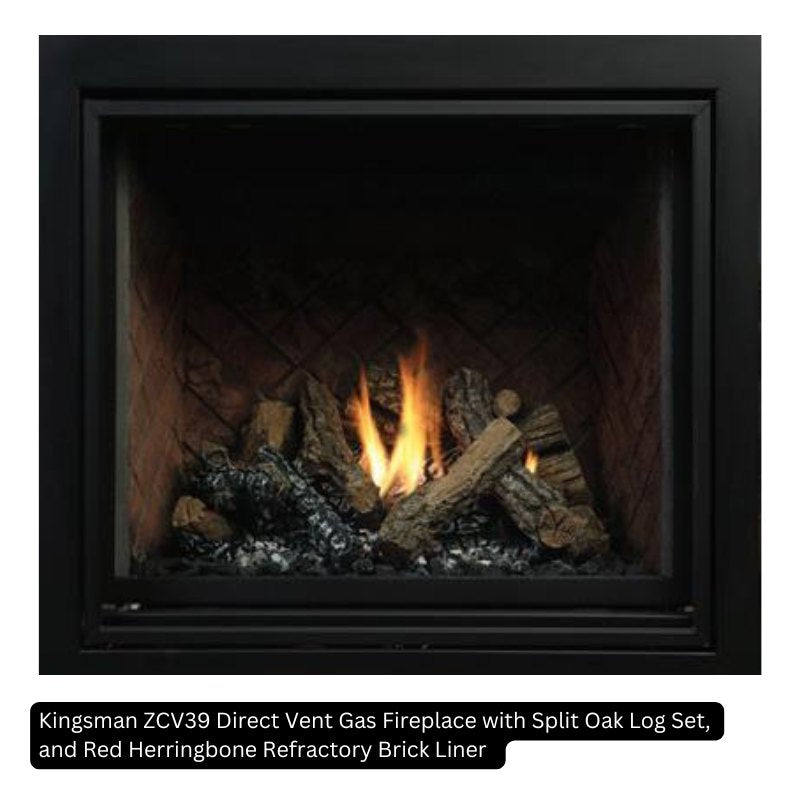

The ZCV39 with Tempered Glass from Kingsman
The Kingsman ZCV39 with Tempered Glass has a glass viewing area of 33" W x 28 5/8" H, and a max BTU input of 25,000.
The ZCV Series is the ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.
With it's expansive glass viewing area and clever designer options it's no wonder the ZCV from Kingsman is one of the most popular direct vent fireplaces on the market.
Shop all ZCV39 models:
ZCV39 Standard Features
- Dedicated Clean View appliance
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
- Safety Screen Barrier
- Matte Black Liner
- Tempered Glass
- 25,000 Max BTU Input
- ProFlame II Models include remote control: features flame, fan, thermostat, smart thermostat control
ZCV Optional Features
Fan Kit - heat activated with variable speed control

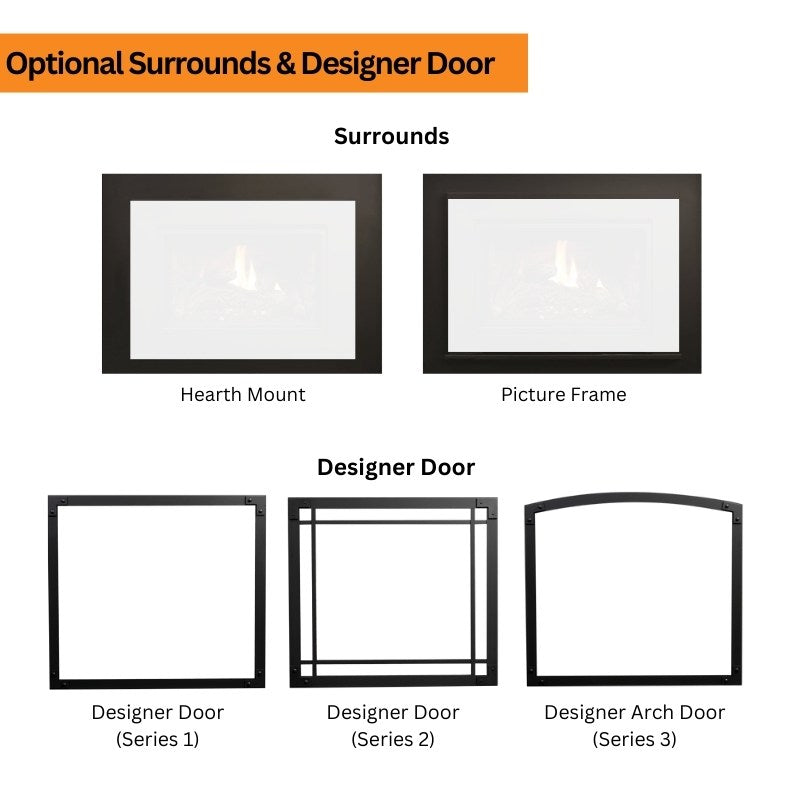

Designer Doors - Arch or Straight Black
Picture Frame Surrounds

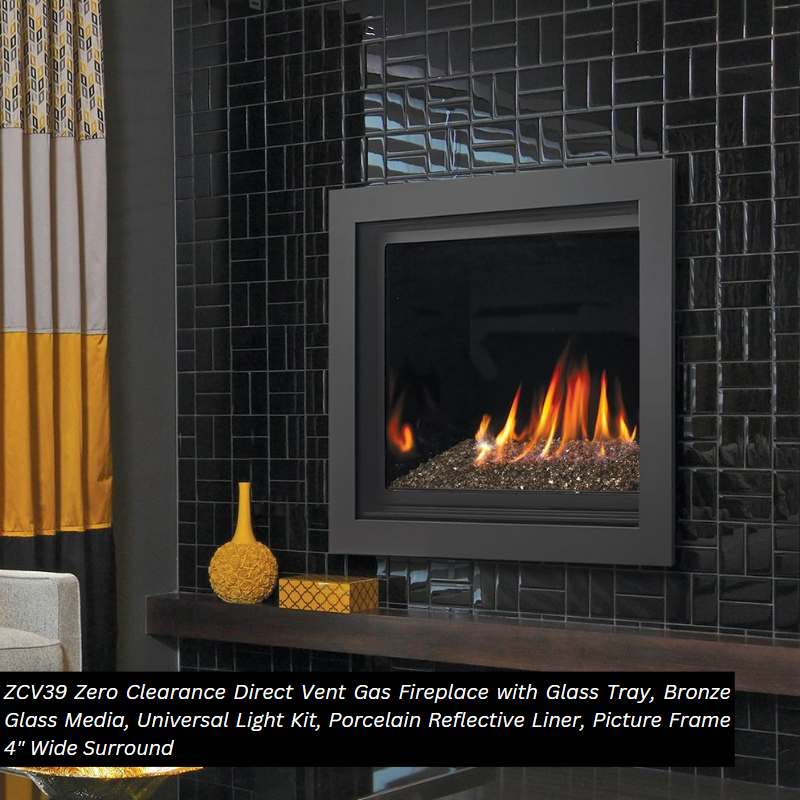

- 4” Wide (Covers 40 5/8” W x 37” H)
- 1 5/8” Wide (Covers 36 1/8” W x 32 1/2” H)

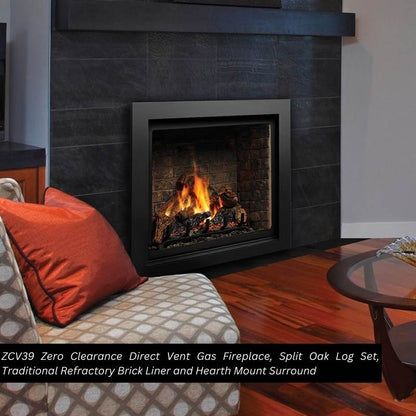

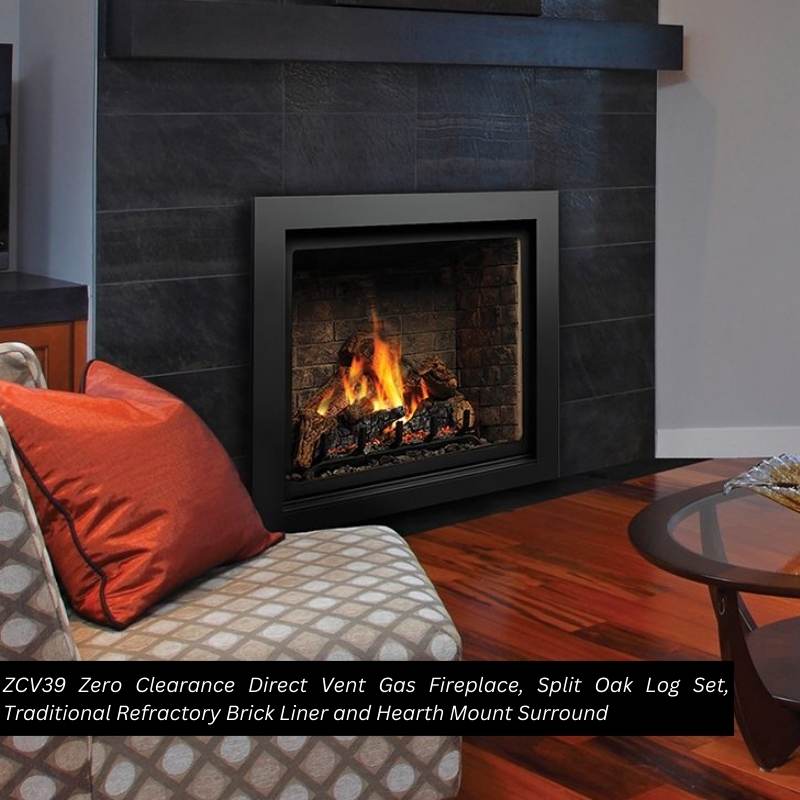

Hearth Mount Surround - 4” Wide (Covers 40 5/8” W x 35” H)

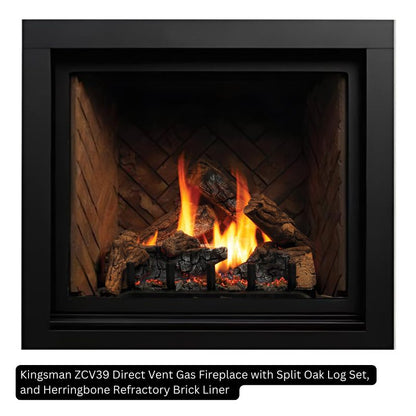

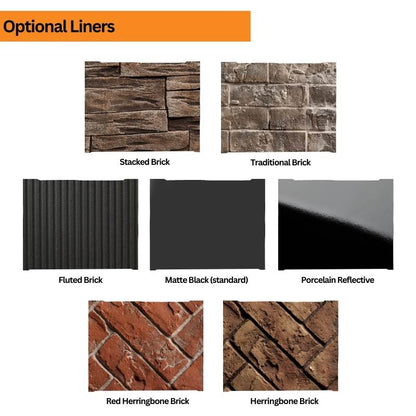

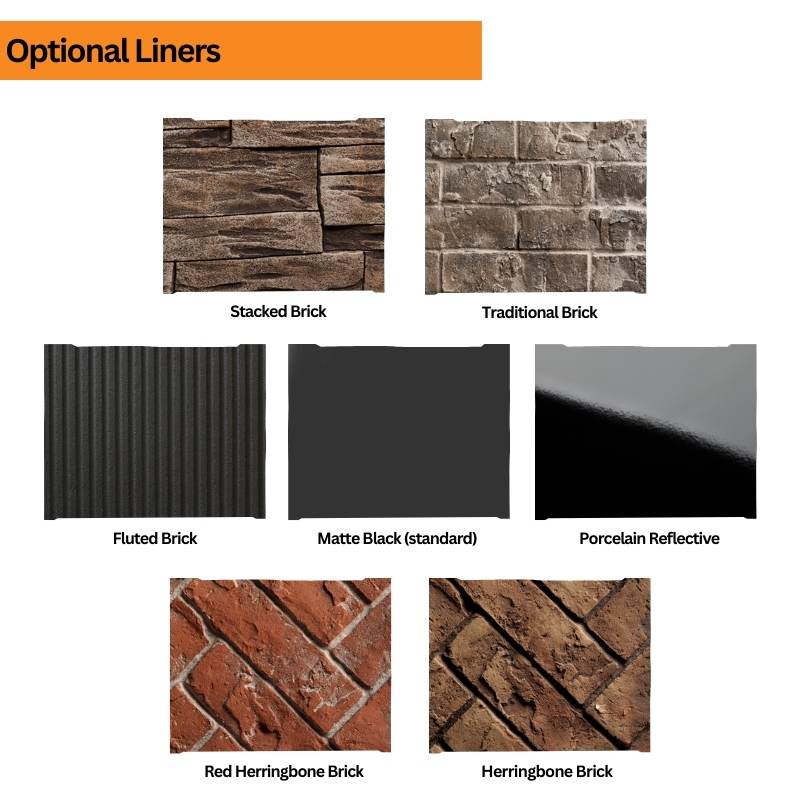

Liners - Standard Matte Black, Traditional Brick, Herringbone Brick, Red Herringbone Brick, Stacked Brick, Fluted Brick and Porcelain Reflective
Media Options - Contemporary Rocks (2 options), Driftwood Set (2 options), Decorative Stones, Decorative Ember Glass (Glacier Ice, Cobalt Blue, Black, Bronze, White), Ember Chunks or Multi-Colored Cannonballs

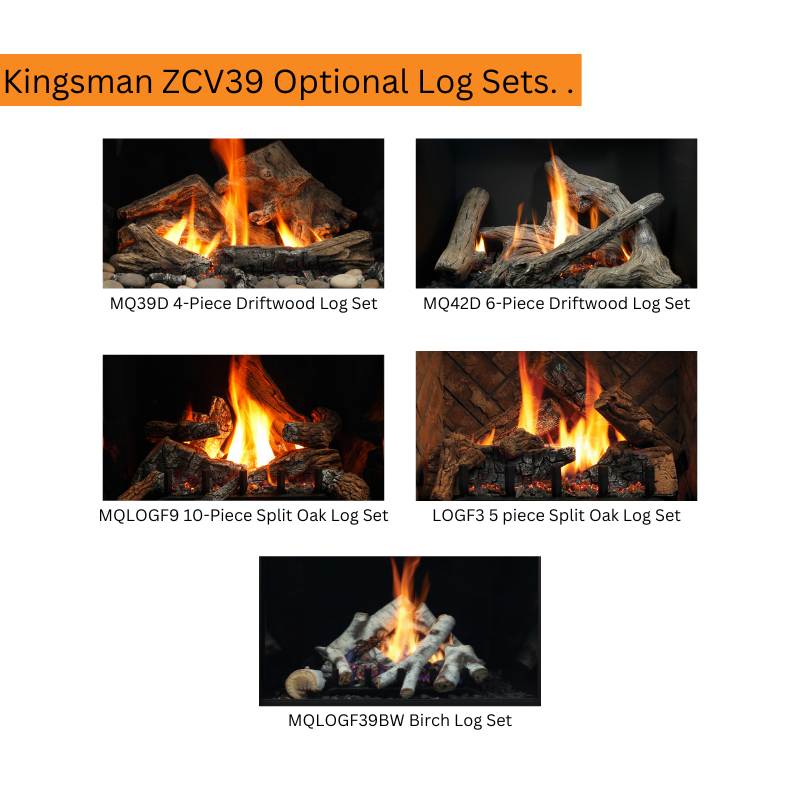

Log Sets - Choose from a selection of Oak, Birch, or Driftwood Log Sets
Accent Lighting - For use with the Glass Tray

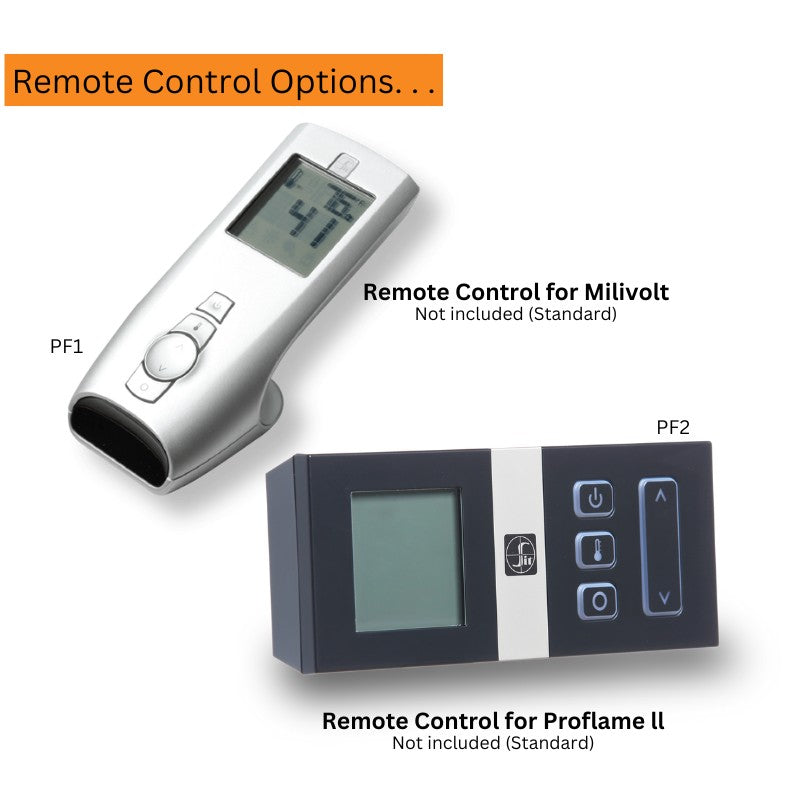

Remote Control - Thermostat On/Off, thermostat on/off modulating, thermostat on/off modulating and fan control
Thermostat - Wall mount millivolt thermostat or programmable thermostat
Wall Mount Battery Holder (WMBH) - The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.
Vented Chase - for cool touch walls and reduced mantel clearances.
Cool Wall Technology
Mounting a TV or artwork above your fireplace? No problem. With the ZCV Fireplace the chase of the appliance may be vented to achieve cool touch walls or reduced mantel clearances!
Benefits to Cool Way Technology:
- Wall above the fireplace will be cooler. Useful when installing TV's or Artwork above the fireplace.
- In some instances combustible materials can be used to cover the face of the fireplace (please review the installation manual)
- Min clearance to mantel is lower than non-vented chase
- Chase must be vented at the top with a specified grill or opening
Framed Cool Touch Wall Technology
Recessed Cool Touch Wall Technology Option
NOTE: Ventilation Plates are removed from fireplace before it is installed into a Vented Chase. Consult manual for further information.
Minimum enclosure height for a vented chase is measured from bottom of fireplace, ventilation of minimum free air opening is required. Choose between our Enclosure Grills (Front or Sides) for adequate ventilation opening as stated in the manual. Grill or opening must meet minimum (as specified in the installation manual) of chase top/ceiling.
