With P-System connectors, you can build strong joints in seconds without glue, clamps, or screws
Adjustable depth for multiple connector sizes — no need to change cutters
Multi-function stop square provides a stable base, allowing for secure and accurate cuts
Adjustable flip stop allows for accurate positioning when making angled cuts
Can also cut grooves for standard biscuits and other 4mm fittings (4mm cutter sold separately)
Includes a diamond cutter, highly recommended for most materials, including abrasive ones like MDF, particle board, and plywood (For dense hardwoods, choose the carbide cutter set.)
Batteries and charger sold separately. To purchase with two batteries and a charger, select the Cordless Set
2-Year Warranty
The Details:

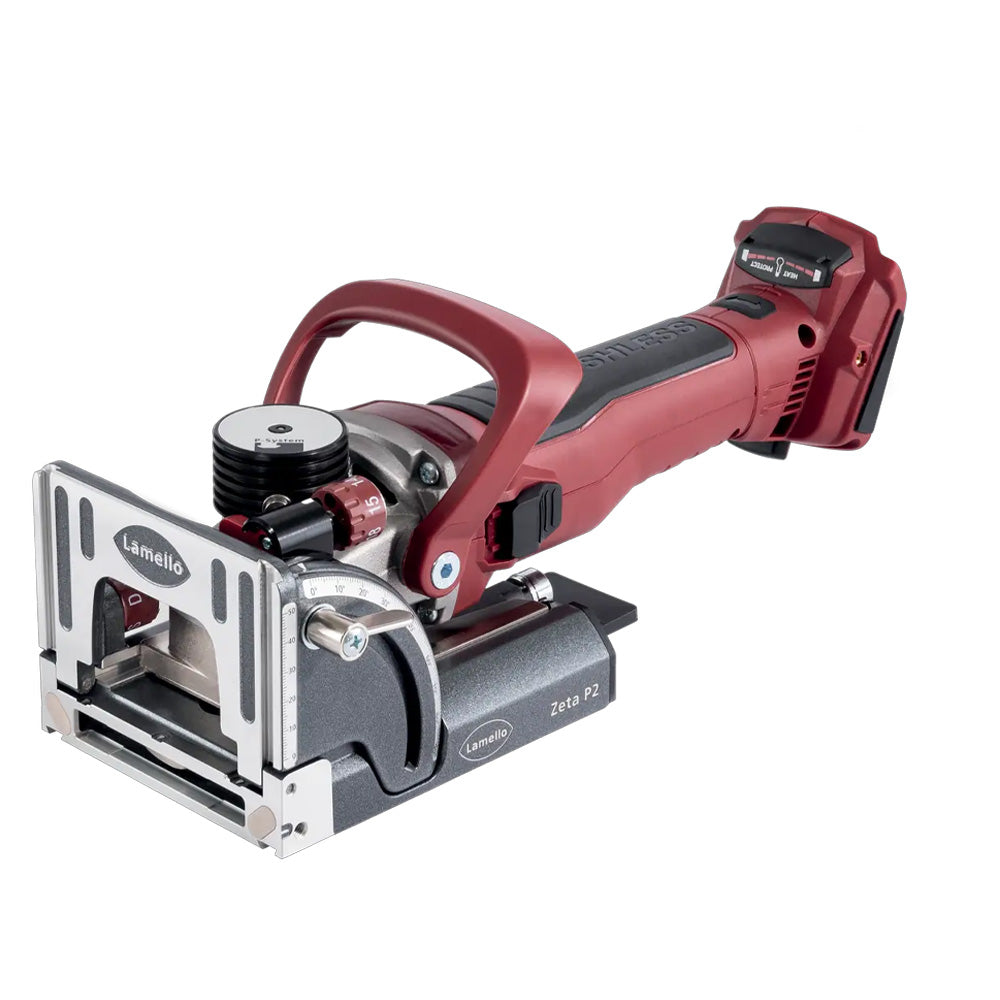

The Zeta P2 is the handheld joiner for P-System Connectors. The innovative profile groove coupled with Lamello's connector system greatly reduces labor time while also eliminating the need for additional fastening materials like glue or screws. This cordless 18V version gives you the convenience of working anywhere without needing a power outlet.
What sets the Zeta P2 apart from other biscuit joiners is its vertical cutting movement. During the groove cutting process, the Zeta's mechanical drive automatically performs a vertical movement at the end of the cut to create the uniquely-shaped groove needed for P-System connectors. This vertical movement is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. All P-System connectors are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 can cut P-System grooves for P-System connectors with varying installation depths simply by turning the P-System depth adjuster. This eliminates the need to change cutters. The Zeta P2 can also be used as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.
This Zeta P2 Kit comes with a diamond-tipped cutter, which has a PCD coating on its carbide teeth. The diamond cutter is extremely rigid and can last for up to 10,000 cuts, making it ideal for most materials, including abrasive ones like MDF, particle board, and plywood. If you're working with denser hardwoods, you'll want the carbide cutter. Both the carbide and diamond cutters are compatible with the Zeta P2 and can be purchased separately as needed.
Trademark P-System Vertical Mechanical Drive: Creates the unique P-System groove required for all P-System connectors.
Tool-free connector anchoring: Join pieces without adhesive, clamps, or screws.
P-System Depth Adjuster: Quickly set the depth of the P-System grooves to. multiple connector sizes(10, 12, 14, 15, or 18) without having to change your blade.
Switch to standard biscuits: Simply turn the depth adjuster to OFF and swap the 7mm P-System cutter for a 4mm groove cutter.

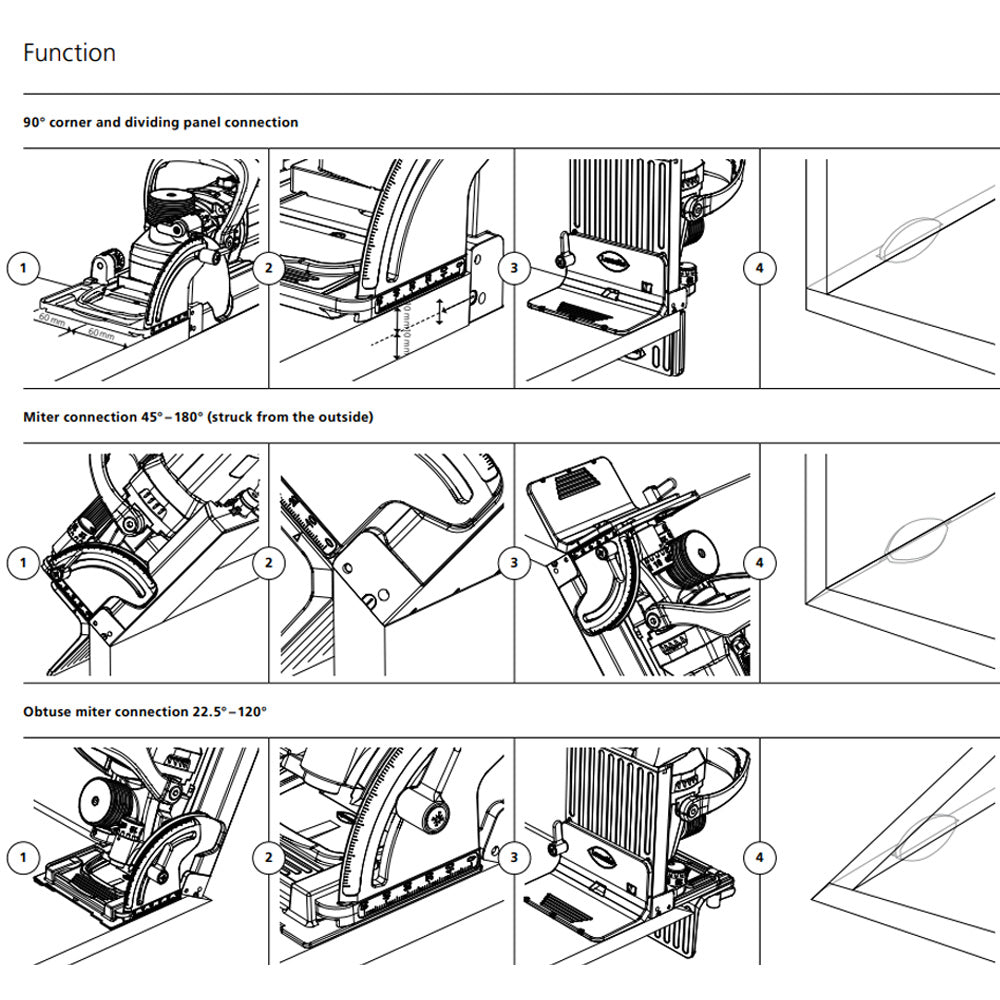

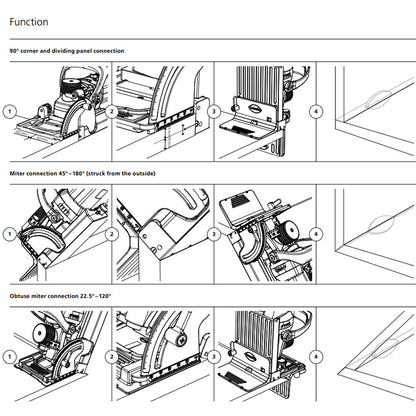

Swiveling front stop with fixed pivot point: Ensures accurate angle cuts every time.
Multifunctional Stop Square: In addition to vertical stability, the stop square enables variable adjustment of the groove position, 0-50 mm.
Identical grooves on both workpieces: Saves time by removing the need for depth adjustments and minimizing the risk of errors.
Connector system with innovative profile groove technology: Greatly reduces labor time while also negating the need for additional fastening materials.
Also compatible with biscuits and other 4mm fittings.
Specs
Power: 800W Cordless Version Battery Voltage: 18V Speed: 9,000 RPM Cutter: Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm Max. cutting depth: 20 mm Weight: 8.15 lbs. incl. 4.0 Ah battery / 9.03 lbs. incl. 5.5 Ah battery*
*Battery not included.

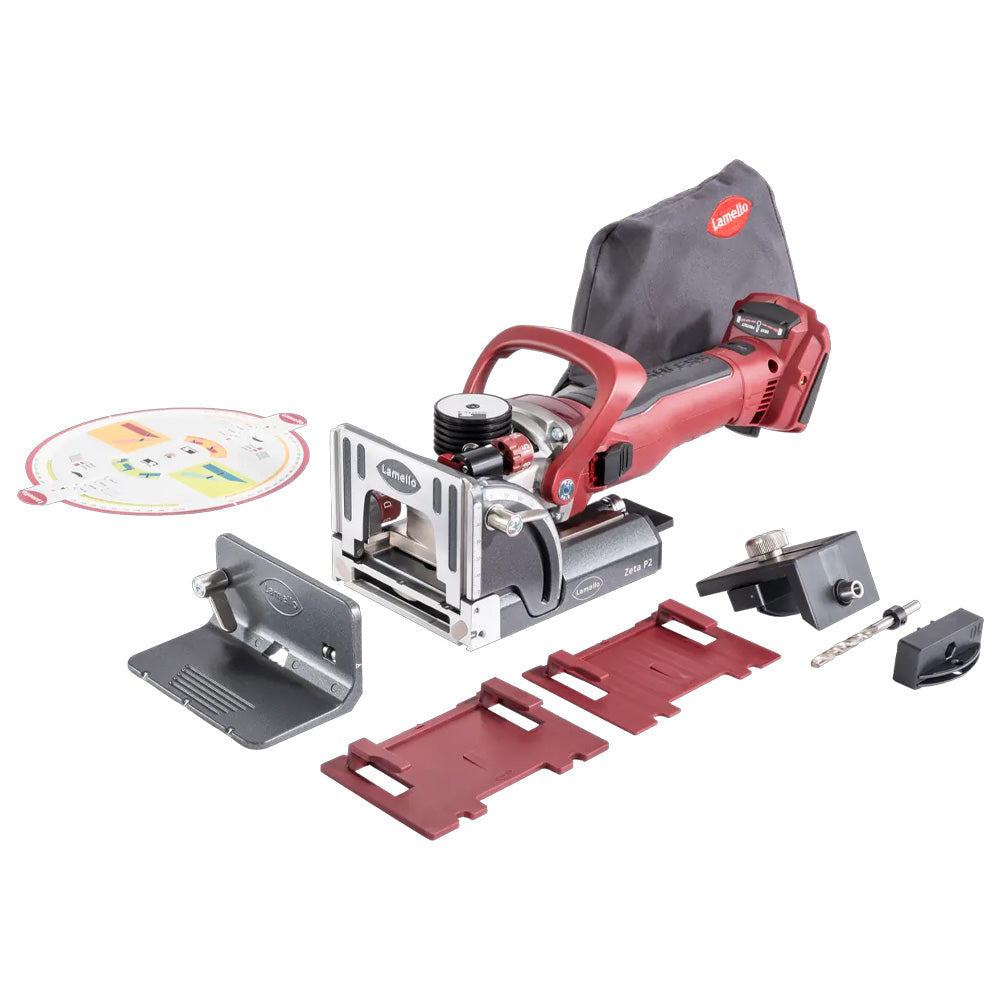

Includes
Zeta P2 Cordless Biscuit Joiner
Diamond P-System Cutter
P-System Drill Jig with 6mm Bit
2mm Spacer Plate
4mm Spacer Plate
Dust Bag
Tool Set
Stop Square
Lamello Systainer Case
36mm Dust Extractor Stub
Sample Connectors
Lamello Stickers
Instruction Manual
