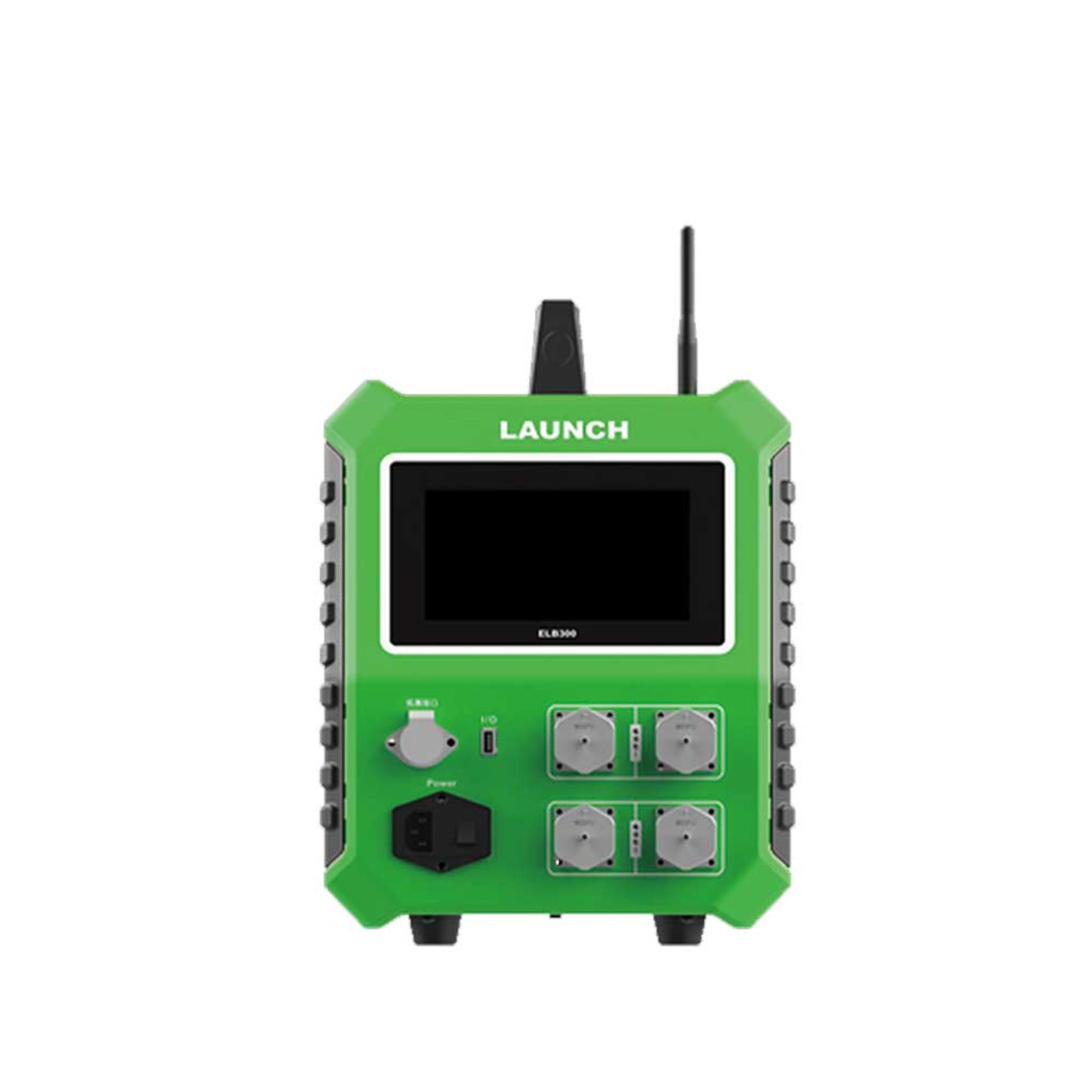

Launch Battery Pack Cell Equalizer - LNCH-ELB300
The Launch ELB300 Battery Pack Cell Equalizer is battery maintenance equipment diagnostic tool for EV Batteries and technology. The ELB300 diagnoses numerous issues such as inconsistent cell voltage, and individual battery cell capacity variances. The ELB300 issuer friendly and can be us for maintenance, battery production, research and development of new EV/Battery enterprises.
Features
- The ability to test and address lithium battery pack with varying voltage levels.
- Lithium Batteries can be activated in the Balanced Maintenance Mode.
- By Testing, Voltage and temperature information allows for protection against overcharging and discharging the lithium batteries.
- The intelligent balancing function enables the individual batteries to be charged uniformly.
- Ability to balance the maintenance parameters customization.
- Ability to set abnormal operating parameters such as voltage, current, and temperature to ensure the safety of the batteries and equipment.
- Supports the functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection, and overheating protection.
- Adopting wave width modulation technology with higher efficiency, higher power factor, lower noise, and lower electromagnetic interference.
- 7-lnch touch screen with a portable design that is user friendly and accessible.
- Built-in memory, supports the automatic storage of operational records.
Specifications
- Display: 7" capacitive LCD touch screen, 800*480
- Power Input: Single phase AC 90-264V, 40-60Hz
- Charging and Discharging Voltage Range: DC 1.8~4.2V
- Voltage Measurement Accuracy: ±0.1%FS±2mV (maximum range 5V)
- Charging and Discharging Current Range: 0.1-5A (Max)
- Current Measurement Accuracy: ±1%FS±0. 05A (maximum range 5A)
- Battery Temperature Detection Accuracy: ±2°℃ (-25-+85°C) Charge and discharge temperature range can be set
- The Number of Channels: 2*12
- Charging and Discharging Power: 600W Max
- Battery Interface: 16 Pin, 24Pin
- PC Data Communication: TCP/IP, USB-Device
- Wireless Communication: Wi-Fi and BT (Wi-Fi external antenna)
- Radiation Method: Forced air cooling
- Working temperature range: -5-40°C; Storage temperature: -20-70°C
- Humidity: Relative humidity 0-90% (40±2°C)
- Elevation: Rated altitude 2000m
What our Experts Think
-
Designed for EV Battery Maintenance – Helps balance individual battery cells within a battery pack, supporting optimal performance and system stability.
-
Improves Battery Efficiency – Cell equalization can help reduce voltage differences between cells, contributing to more consistent battery operation.
-
Supports Battery Health Management – Maintaining balanced cells may help identify weak cells and support long-term battery pack reliability.
-
Ideal for EV & Battery Service Centers – A valuable tool for technicians working with electric vehicle batteries, energy storage systems, and advanced battery diagnostics.
-
Enhances Diagnostic Accuracy – Cell balancing and analysis provide deeper insight into battery pack condition beyond standard diagnostic scans.
-
Future-Ready Workshop Equipment – As electric vehicles become more common, specialized battery service tools are increasingly important for professional repair facilities.
Q&A
Q: What is the Launch ELB300 Battery Pack Cell Equalizer?
A: The ELB300 is a professional battery cell equalization device designed to balance individual cells within a battery pack and help maintain optimal battery performance.
Q: What is battery cell equalization?
A: Cell equalization is the process of balancing voltage and charge levels across battery cells to improve efficiency, consistency, and overall battery health.
Q: Why is cell balancing important?
A: Properly balanced cells can help maximize battery performance, improve reliability, and support longer battery service life.
Q: Is the ELB300 suitable for electric vehicle battery systems?
A: Yes, it is designed for use in battery maintenance and service applications involving EV and other high-voltage battery systems.
Q: How does the ELB300 help battery maintenance?
A: It assists technicians in identifying cell imbalances and restoring more uniform performance across the battery pack.
Q: Is this device intended for professional use?
A: Yes, it is designed for EV service centers, battery specialists, automotive technicians, and professional maintenance facilities.
Q: Can it help improve battery pack performance?
A: Yes, balancing battery cells can contribute to more consistent operation and improved battery efficiency.
Q: Who is the Launch ELB300 Battery Pack Cell Equalizer ideal for?
A: It is ideal for EV technicians, battery repair specialists, fleet maintenance teams, and workshops servicing advanced battery systems.
