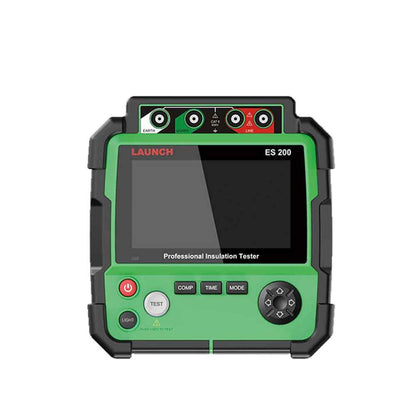

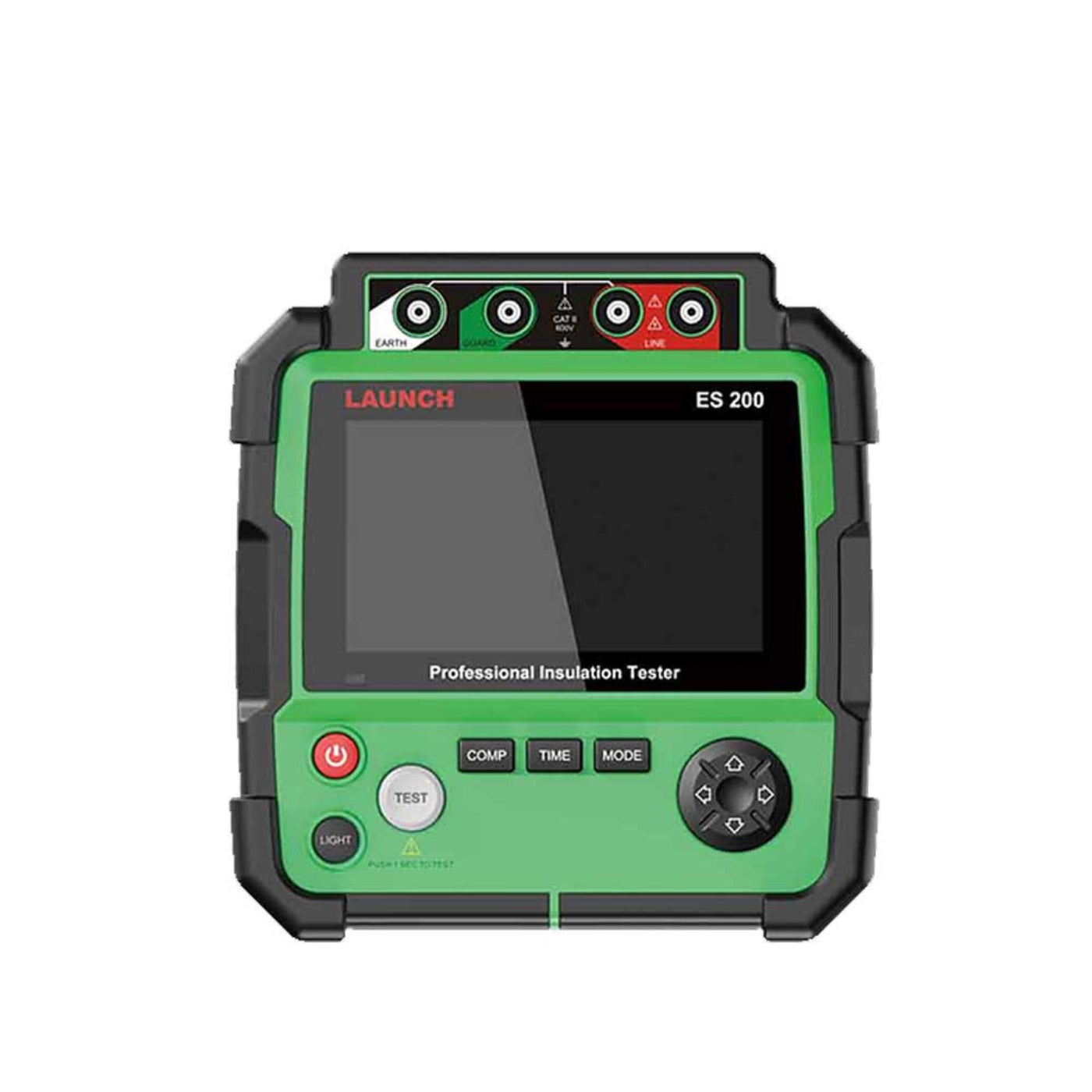

Launch Insulation Resistance Tester - LNCH-ES200
Insulation testing allows for detecting the resistance of high voltages in the electrical components of Electric Vehicles. By performing the insulation test, this ensures that electrical components of the EV are in optimal condition within the specified parameters enabling a safe driving experience and operation of the EV. Insulation Resistance testing is when the DC high voltage is transformed from the E pole to the L pole, in which current is generated between the E pole and L pole. The insulation resistance is then displayed on the screen through IN conversion and calculation. The insulation resistance refers to the leakage current of the insulation material between the live part and the exposed non-live metal part (shell).In comparison to different products, the varying values of DC high voltages will be applied, such as 500V,1000V,2500V etc. and a minimum safe insulation resistance value will be set. If the measured resistance value is lower than the safe resistance value, there may be a risk of electric shock.
Features
- ES200 is capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
- Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
- Three measurement modes: timing measurement, comparison measurement, continuous measurement, and omnidirectional measurement.
Specifications
- Battery: 3150mAh
- Display: 5”
- Working Temperature: 0~50°C / 122.00 ℉
- Dimensions: 180*174*65.5 (mm)
- Weight: 1.7kg
What our Experts Think
-
Essential Electrical Safety Tool – Designed to measure insulation resistance and identify potential electrical leakage or insulation breakdown before it becomes a serious problem.
-
Ideal for EV & Advanced Vehicle Systems – Particularly valuable when working with electric vehicles, hybrid systems, and high-voltage electrical components.
-
Improves Diagnostic Accuracy – Helps technicians verify the integrity of wiring, motors, battery systems, and electrical circuits during troubleshooting.
-
Supports Preventive Maintenance – Early detection of insulation deterioration can help prevent equipment failures, costly repairs, and unexpected downtime.
-
Professional Workshop Equipment – Well suited for automotive repair facilities, EV service centers, industrial maintenance teams, and electrical diagnostic specialists.
-
Enhances Safety Compliance – Reliable insulation testing is critical when servicing high-voltage systems where electrical safety is a top priority.
Q&A
Q: What is the Launch ES200 Insulation Resistance Tester?
A: The ES200 is a professional insulation resistance tester designed to evaluate the condition and safety of electrical insulation in vehicle and electrical systems.
Q: What is insulation resistance testing used for?
A: It helps detect insulation deterioration, leakage currents, and potential electrical faults before they lead to equipment failure or safety hazards.
Q: Is the ES200 suitable for electric and hybrid vehicles?
A: Yes, insulation resistance testing is especially important for diagnosing and maintaining high-voltage systems in electric and hybrid vehicles.
Q: Why is insulation testing important?
A: Proper insulation helps prevent electrical leakage, component damage, system malfunctions, and safety risks.
Q: Can this tester help identify electrical faults?
A: Yes, it can help technicians locate insulation-related problems in wiring, motors, batteries, and electrical circuits.
Q: Is the ES200 designed for professional use?
A: Yes, it is intended for automotive technicians, EV specialists, electricians, and maintenance professionals.
Q: How does it improve diagnostic efficiency?
A: It provides fast and accurate insulation measurements, helping technicians identify potential issues before major failures occur.
Q: Who is the Launch ES200 Insulation Resistance Tester ideal for?
A: It is ideal for EV service centers, automotive repair shops, electrical maintenance teams, and technicians working with high-voltage systems.
