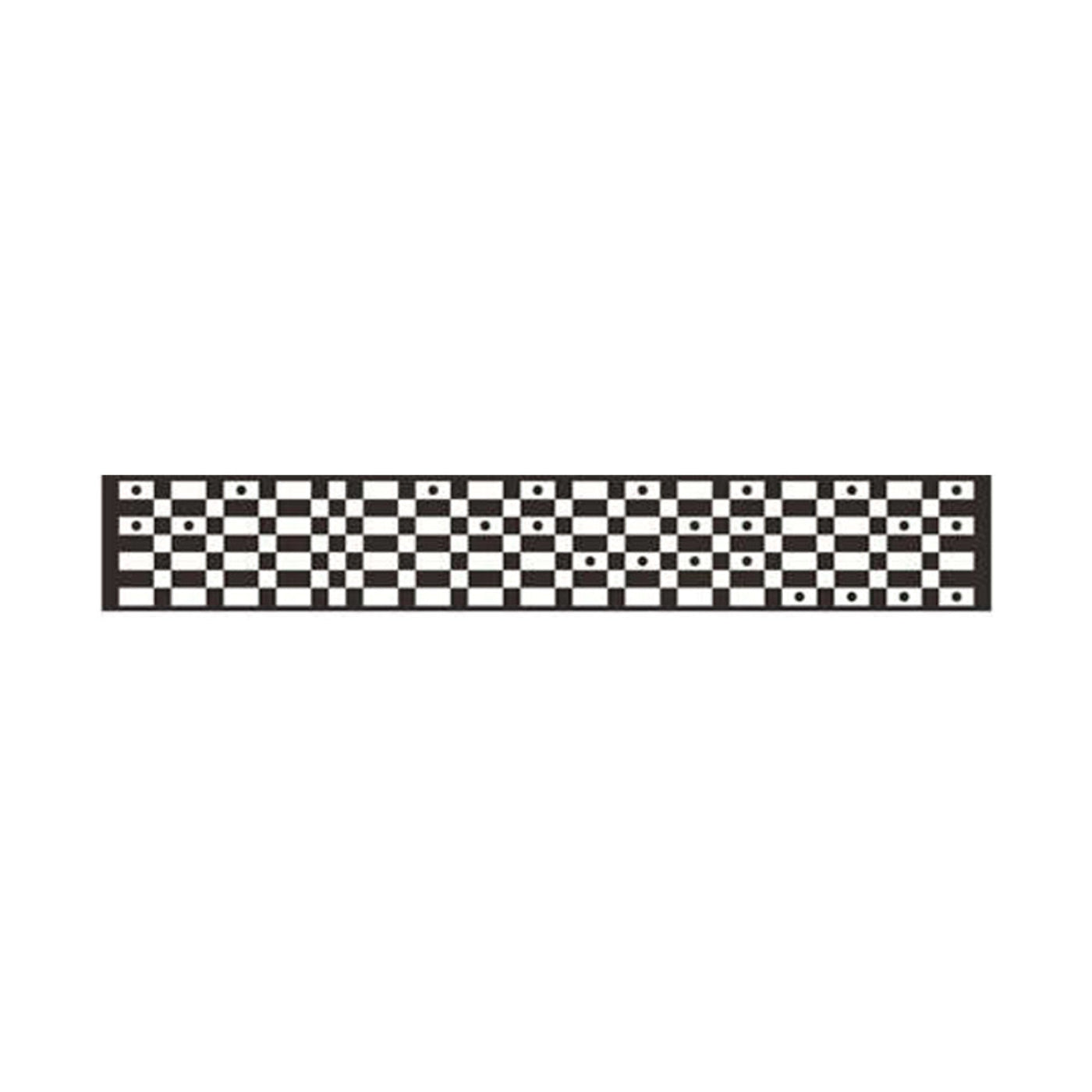

Launch Ford AVM Target - LNCH-LAC04-07
Features
-
Brand: Launch Tech USA
-
MPN: LAC04-07
What our Experts Think
-
Ford-Specific AVM Calibration Tool: Engineered for accurate Around View Monitor (AVM) calibration on compatible Ford vehicles after camera or body repairs.
-
OEM Alignment Accuracy: Ensures precise restoration of 360° surround-view systems to factory specifications for safe parking assistance.
-
Launch X-431 ADAS Compatibility: Fully integrates with Launch X-431 ADAS platforms for guided calibration workflows and consistent results.
-
Essential After Repairs: Required following rear camera replacement, bumper repair, or any work affecting camera positioning.
-
High-Precision Target Design: Clear, durable AVM patterns enable reliable recognition during static calibration procedures.
-
Reduces Parking System Errors: Helps eliminate misaligned guidelines, distorted stitching, and inaccurate proximity readings.
-
Workshop-Ready Durability: Built for repeated professional use in collision repair and ADAS calibration environments.
-
Time-Efficient Setup: Streamlined design supports faster calibration processes while maintaining strict OEM standards.
Q&A
Q: What is the Launch Ford AVM Target LNCH-LAC04-07 used for?
A: It is a precision ADAS calibration target used to align Ford Around View Monitoring (AVM) 360° camera systems after repair, replacement, or collision work.
Q: Which vehicles is it compatible with?
A: It is designed for Ford models equipped with factory-installed 360° surround view (AVM) camera systems.
Q: Is it a standalone tool?
A: No, it is used with the Launch X-431 ADAS calibration frame and diagnostic system for accurate OEM-level calibration.
Q: Why is AVM calibration necessary?
A: It ensures correct 360° image stitching, accurate parking assist performance, and restores factory camera alignment and safety function.
Q: What makes the LNCH-LAC04-07 important?
A: It provides Ford-specific target positioning, ensuring precise calibration for AVM systems that require exact geometric alignment.
Maintenance Tips
-
Keep surface clean: Wipe with a soft microfiber cloth; avoid chemicals that can blur or distort the calibration pattern.
-
Prevent bending/warping: Store flat in a rigid case to maintain geometric accuracy.
-
Protect printed markers: Avoid scratches, abrasion, or UV exposure that can fade reference points.
-
Use on level ground only: Uneven placement causes incorrect 360° AVM calibration results.
-
Check pattern clarity before use: Ensure all markers are sharp, visible, and fully intact.
-
Avoid moisture & heat: Store in a dry, temperature-stable environment to prevent material deformation.
-
Handle with care: Use clean hands or gloves to prevent oil or fingerprint contamination.
-
Inspect regularly: Replace if any peeling, fading, or structural damage is detected.
