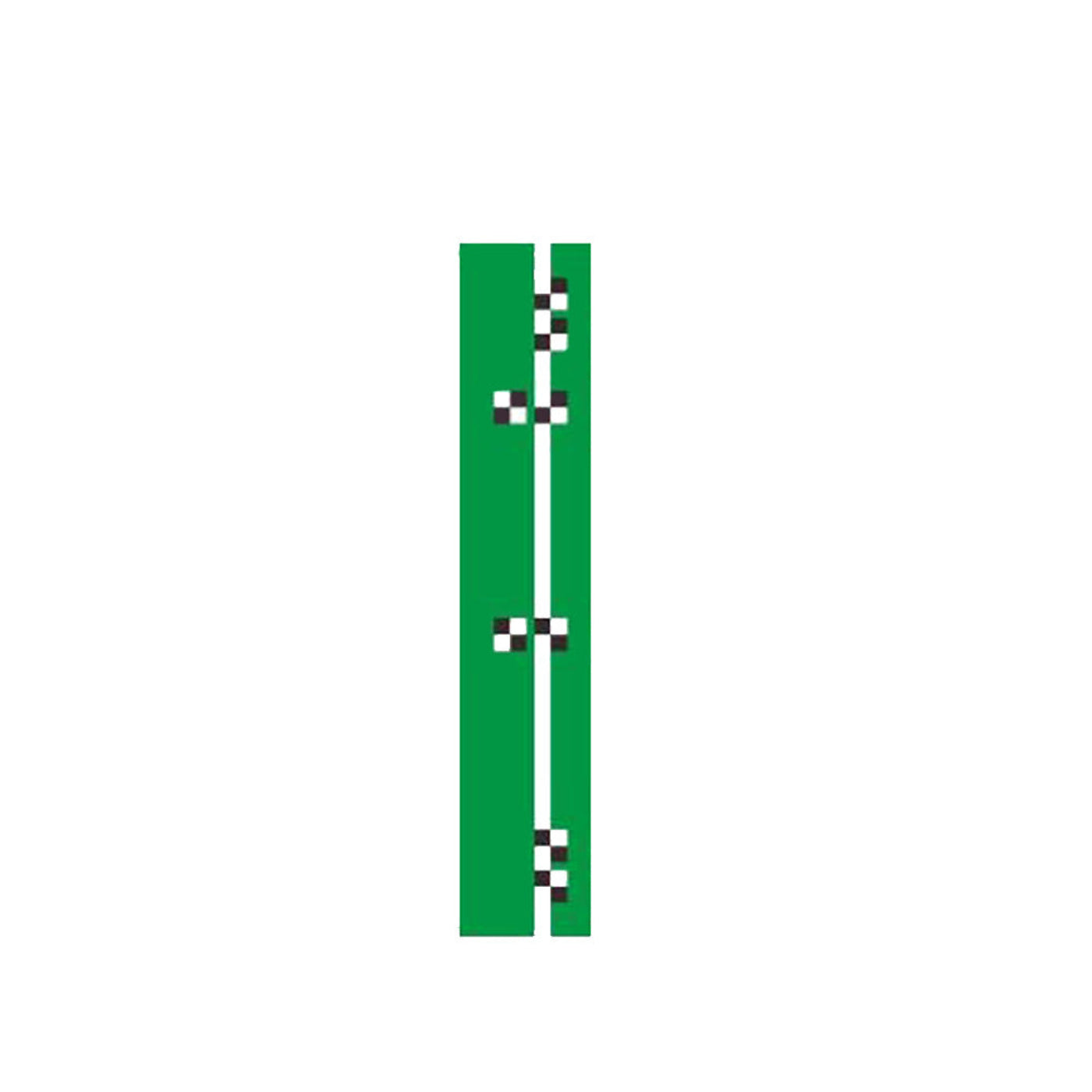

Launch X-431 ADAS Hyundai/Kia AVM Target - LNCH-LAC04-12-01
Features
-
Brand: Launch Tech USA
-
MPN: LAC04-12-01
What our Experts Think
-
OEM-Specific Hyundai/Kia Coverage: Designed specifically for Hyundai/Kia AVM (Around View Monitor) systems, ensuring accurate calibration after camera or bumper service.
-
Essential ADAS Calibration Component: A core target set required to restore 360° surround-view camera alignment to factory specifications.
-
Works with Launch X-431 ADAS Platforms: Fully compatible with Launch X-431 calibration systems for guided, step-by-step procedures.
-
Precision-Engineered Target Geometry: High-accuracy printed patterns ensure repeatable positioning for static AVM calibration workflows.
-
Workshop Must-Have for Collision Repair: Ideal for body shops handling Hyundai/Kia rear camera, bumper, or parking system repairs.
-
Reduces Calibration Errors: Helps eliminate parking assist misalignment issues, false distance readings, and surround-view distortion.
-
Durable & Reusable Setup: Built for repeated professional use in demanding workshop environments.
-
Supports Modern ADAS Requirements: Aligns with Hyundai/Kia’s increasing reliance on camera-based driver assistance systems.
Q&A
Q: What is the Launch X-431 ADAS Hyundai/Kia AVM Target LNCH-LAC04-12-01 used for?
A: It is a precision calibration target used for aligning Hyundai and Kia Around View Monitoring (AVM) 360° camera systems after replacement, repair, or collision work.
Q: Which vehicles is it compatible with?
A: It is designed specifically for Hyundai and Kia models equipped with factory AVM (360° surround view) systems.
Q: Is it part of a larger calibration kit?
A: Yes, it is typically used alongside the LAC04-12-02 target within the Launch X-431 ADAS calibration system for complete AVM setup.
Q: Why is AVM calibration important?
A: It ensures accurate 360° camera stitching, correct object detection, and restores OEM-level parking safety performance.
Q: Does it require special equipment to use?
A: Yes, it must be used with a Launch X-431 ADAS calibration frame and compatible diagnostic tablet for precise positioning and calibration.
Maintenance Tips
-
Keep surface perfectly clean: Wipe with a soft microfiber cloth to remove dust, fingerprints, and grease that can affect camera recognition accuracy.
-
Avoid any bending or flexing: Even slight deformation can cause AVM calibration errors. Always store flat.
-
Protect printed calibration pattern: Do not scratch, peel, or use abrasive cleaners—pattern integrity is critical for correct targeting.
-
Store in dry, stable conditions: Keep away from moisture, heat, and direct sunlight to prevent warping or fading.
-
Check alignment regularly: Ensure target markers are not faded, misprinted, or damaged before every calibration job.
-
Use only on level calibration setups: Uneven positioning leads to incorrect 360° camera alignment results.
-
Handle with clean hands or gloves: Prevent oil or smudge buildup that reduces detection accuracy.
-
Inspect before each use: Replace if any distortion, edge damage, or print degradation is visible.
