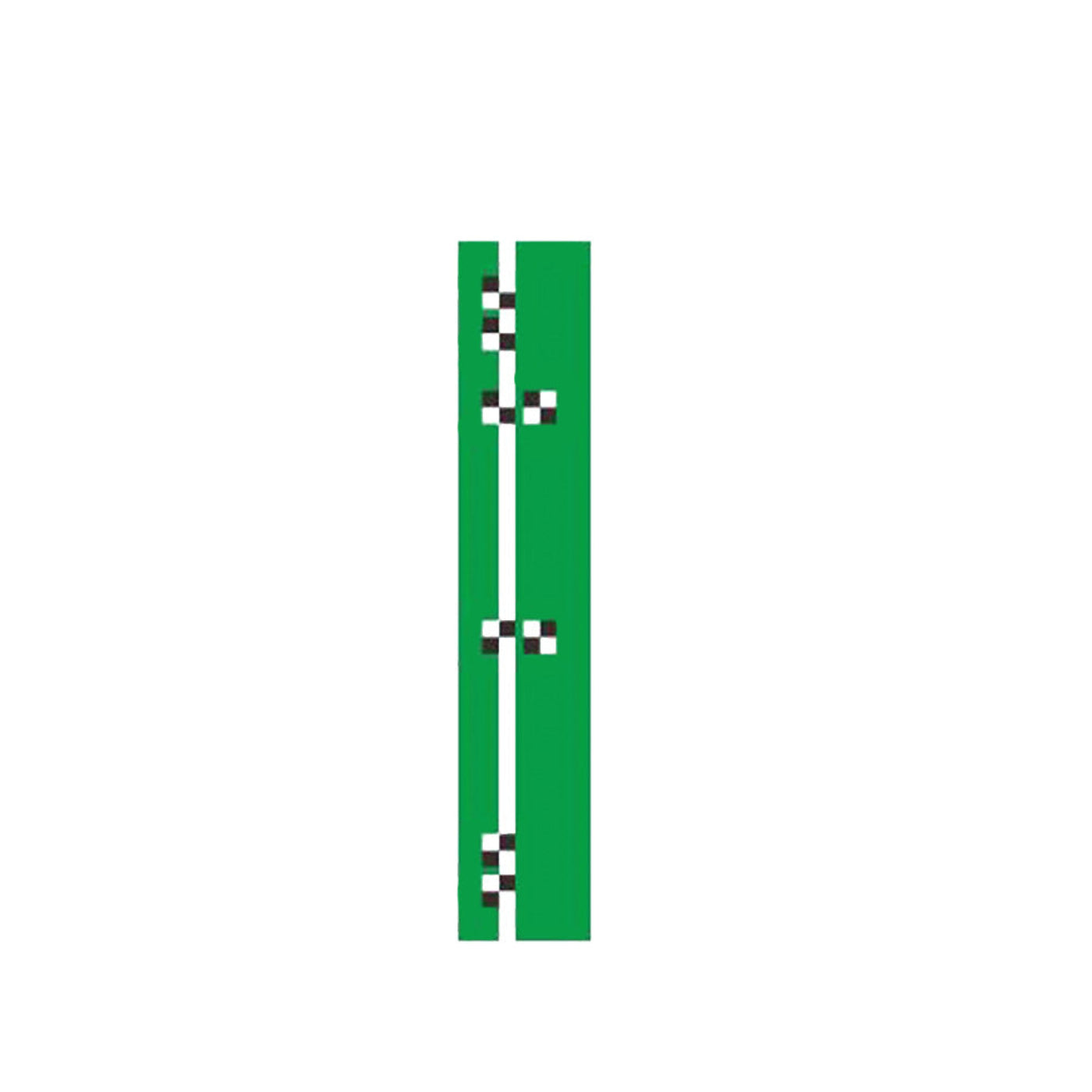

Launch X-431 ADAS Hyundai/Kia AVM Target - LNCH-LAC04-12-02
Features
-
Brand: Launch Tech USA
-
MPN: LAC04-12-02
What our Experts Think
-
Hyundai/Kia AVM Calibration Essential: Specifically engineered for Hyundai and Kia Around View Monitor (AVM) systems requiring precise rear/side camera alignment.
-
Complements Full Target System: Designed as part of the LAC04-12 AVM calibration set, ensuring complete 360° surround-view accuracy when used with matching targets.
-
Launch X-431 ADAS Compatibility: Fully integrates with Launch X-431 ADAS calibration platforms for guided, OEM-aligned procedures.
-
High-Precision Target Markings: Accurate geometric patterns ensure reliable camera recognition and consistent calibration results.
-
Supports Collision Repair Workflows: Ideal after bumper replacement, rear camera removal, or bodywork affecting parking camera systems.
-
Reduces Alignment Errors: Helps correct distorted stitching, parking guide misalignment, and surround-view inaccuracies.
Q&A
Q: What is the Launch X-431 ADAS Hyundai/Kia AVM Target LNCH-LAC04-12-02 used for?
A: It is a precision calibration target used to align Hyundai and Kia Around View Monitoring (AVM) 360° camera systems after repair, replacement, or collision work.
Q: Is it compatible with Hyundai and Kia vehicles?
A: Yes, it is specifically designed for Hyundai/Kia models equipped with factory AVM (surround-view camera) systems.
Q: Does it work alone or as part of a kit?
A: It is used together with the LAC04-12-01 target as part of the full Launch X-431 ADAS Hyundai/Kia AVM calibration set.
Q: What equipment is required for use?
A: It requires a Launch X-431 ADAS calibration frame and compatible diagnostic tablet for accurate OEM-level setup.
Q: Why is AVM calibration important?
A: It ensures correct 360° image stitching, accurate parking assistance, and restores factory-level camera system safety performance.
Maintenance Tips
-
Keep calibration surface clean: Use a soft, dry microfiber cloth to remove dust, smudges, or fingerprints that may affect AVM detection accuracy.
-
Prevent bending or impact: Store flat and avoid stacking heavy tools on top to maintain perfect geometric precision.
-
Protect printed target pattern: Do not scratch, rub aggressively, or use chemical cleaners that can fade or distort markings.
-
Store in controlled environment: Keep away from humidity, direct sunlight, and high heat to prevent warping or discoloration.
-
Verify pattern integrity before use: Ensure all markers are clear, sharp, and undamaged for reliable camera recognition.
-
Use only on level setup areas: Uneven ground can cause misalignment during 360° AVM calibration procedures.
-
Handle with care: Use clean hands or gloves to avoid oil transfer that can reduce detection performance.
-
Routine inspection: Replace immediately if any deformation, peeling, or print wear is observed.
