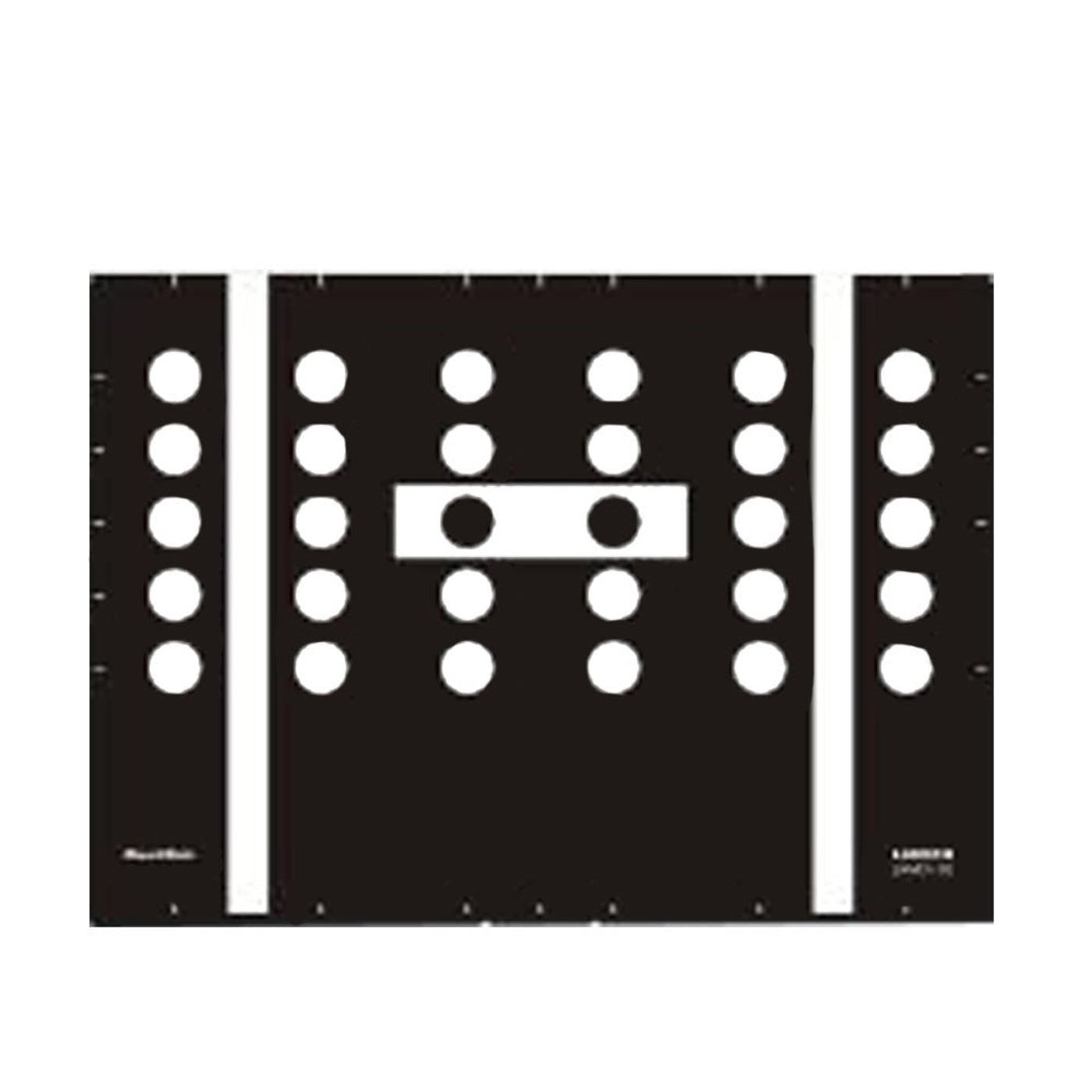

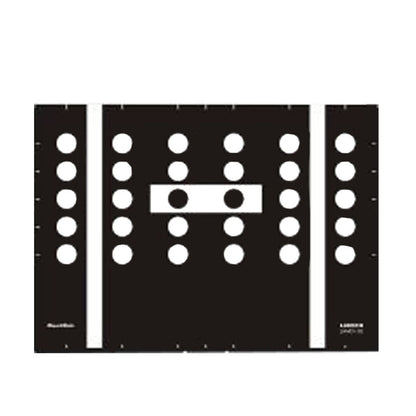

Launch VW Lane Departure Warning(LDW) Target - LNCH-LAM01-02
Features
-
Brand: Launch Tech USA
-
MPN: LAM01-02
What our Experts Think
-
Dedicated VW LDW calibration target, designed for precise recalibration of Volkswagen Lane Departure Warning camera systems after windshield or structural repairs.
-
OEM-specific alignment accuracy, ensuring correct positioning for Volkswagen Group vehicles (VW, Audi, SEAT, Škoda systems where applicable).
-
Optimized for camera-based ADAS calibration, especially forward-facing LDW systems requiring strict target placement.
-
Fast and simple setup, reducing technician time and improving workshop efficiency during routine calibrations.
-
Compatible with Launch X-431 ADAS platforms, supporting guided calibration procedures and standardized workflow execution.
-
High-visibility target design, improving recognition and alignment accuracy during calibration processes.
-
Lightweight and portable, suitable for both fixed workshop use and mobile ADAS service operations.
-
Durable construction, built for repeated professional use in busy automotive repair environments.
-
Ideal for VW Group specialists, glass replacement services, and ADAS calibration technicians working on European vehicles.
Q&A
Q: What is the Launch VW Lane Departure Warning (LDW) Target – LNCH-LAM01-02?
A: The LNCH-LAM01-02 is a model-specific ADAS calibration target designed for Volkswagen and Audi Lane Departure Warning (LDW) camera systems, used with the Launch X-431 ADAS platform for precise windshield camera alignment after repair or replacement.
Q: What is it used for?
A: It is used to calibrate VW/Audi forward-facing LDW (Lane Assist) systems, ensuring the vehicle correctly detects lane markings and maintains accurate driver assistance functionality after service work.
Q: When is VW LDW calibration required?
A: Calibration is typically required after windshield replacement, front camera removal, collision repair, suspension work, or any procedure affecting camera alignment or vehicle ride height.
Q: Which vehicles is this target compatible with?
A: It is designed for Volkswagen and Audi models equipped with camera-based Lane Departure Warning / Lane Assist systems that require OEM-style calibration targets for accurate alignment.
Q: Why is accurate LDW calibration important?
A: VW LDW systems rely on precise camera positioning to detect lane markings; incorrect calibration can cause false warnings, reduced lane detection accuracy, or disabled driver assistance functions.
Q: What system does it work with?
A: It is used with Launch X-431 ADAS calibration frames and diagnostic tablets, which guide technicians through correct target positioning and measurement procedures for OEM-level calibration.
Maintenance Tips
- Store the LDW target of Launch VW Lane Departure Warning (LDW) Target - LNCH-LAM01-02 in a flat, dry, dust-free case to prevent bending or surface damage.
- Inspect printed lane markings regularly for fading, scratches, or distortion that can affect calibration accuracy.
- Clean only with a soft microfiber cloth; avoid solvents, alcohol, or abrasive cleaners that may damage the target pattern.
- Keep the target perfectly flat during storage and transport to avoid warping or alignment errors.
- Ensure no pressure or heavy objects are placed on the target surface at any time.
- Protect from direct sunlight, heat, and moisture to prevent material degradation and measurement drift.
- Check edges and corners for cracks or lifting that may interfere with proper positioning.
- Use only on clean, stable surfaces during calibration to maintain correct VW LDW alignment.
- Handle with care to avoid fingerprints, smudges, or surface contamination on reference markings.
- Replace immediately if the target is damaged, as even minor defects can impact OEM-level calibration accuracy.
