Launch X-431 ADAS Mobile LDW Standard Package - LNCH-MOBILELDW

Launch  X-431 ADAS Mobile LDW Standard Package - LNCH-MOBILELDW

As a flexible and portable ADAS calibration tool, featuring OE standard targets and advanced ADAS software, the X-431 ADAS Mobile provides one-stop calibration service. With foldable two arms and a base, the X-431 ADAS Mobile is compact enough to place into the trunk of a mid-size vehicle. A wide range of models of more than5O makes are supported for various ADAS calibrations. Calibration starts in seconds, no more tedious work of disassembly and installation.

Features

• Lane Departure Warning (LDW) Patterns and Targets.

• Space Saving - More than 50% working space can be used due to the compact design.
• Time Saving - Faster calibration with simple procedures
• Portable - Foldable kits and small sized panels can fit in vehicles trunk for mobile repair
• Labor Saving - No installation require, can be used straight our of the box
• Convenient to carry designed with the foldable base and crossbars, supporting outdoor calibration
• Five-line & cross laser instrument available for precise centering positioning.
• Simple to fold/unfold and easy to operate.
• Manual rocker for adjusting the height freely.
• Dedicated storage bracket for storing small target boards and big pattern boards.
• Covering a wide range of car makes.
• Excellent user experience for providing vehicle-specific, step-by-step instructions and detailed illustrations.

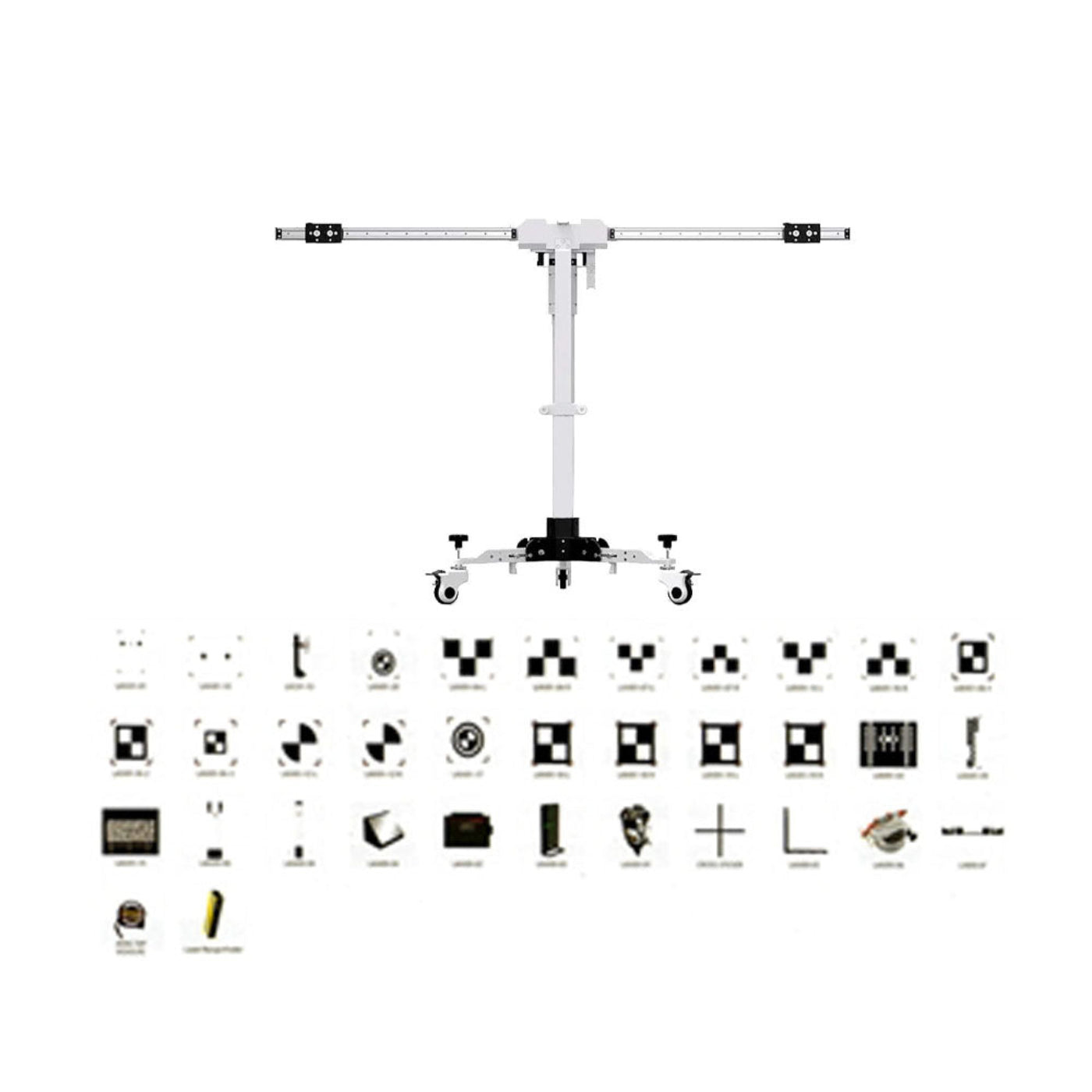

Includes

• Calibration frame
• Five-line laser device (LAM09-01)
• Cross laser module (LAM09-02)
• Laser Reflector (LAM09-03)
• Auxiliary mirror (LAM09-04)
• L-shaped positioning bracket (LAM09-05)
• Plumb line (LAM09-06)
• Target storage bracket (LAM09-07)
• Lead Hammer
• Target extension rod for Toyota (LAM09-08)
• Target extension rod for Honda (LAM09-09)
• Laser range finder
• Cross sticker
• ADAS Activation Card
• User Manual
• Packing List

What our Experts Think

• Mobile ADAS calibration solution designed specifically for fast, on-site calibration of Lane Departure Warning (LDW) systems.
• Compact and portable setup, making it ideal for mobile technicians, glass installers, and small workshop environments.
• Focused LDW calibration capability, optimized for forward-facing camera alignment after windshield replacement or body repair.
• Quick deployment design reduces setup time, helping increase daily calibration throughput.
• Compatible with Launch X-431 diagnostic platforms, enabling guided calibration procedures and consistent results.
• Precision alignment targets included, ensuring accurate vehicle positioning and OEM-level calibration standards.
• Lightweight frame system supports easy transport while maintaining stability during calibration work.
• Cost-efficient entry package for businesses starting ADAS calibration services or expanding mobile operations.
• Suitable for a wide range of modern vehicles, especially those equipped with camera-based LDW systems.

Q&A

Q: What is the Launch X-431 ADAS Mobile LDW Standard Package (LNCH-MOBILELDW)?
A: The LNCH-MOBILELDW is a portable ADAS calibration system designed specifically for Lane Departure Warning (LDW) camera calibration. It works with Launch X-431 diagnostic tools and provides OE-style targets and a foldable mobile frame for fast setup and transport.

Q: What does this LDW Standard Package support?
A: It primarily supports LDW calibration and can assist with basic camera alignment procedures used in forward-facing ADAS systems when paired with compatible Launch software and vehicles.

Q: What makes the Mobile LDW system useful?
A: It features a compact foldable design, laser alignment tools, and quick setup without complex installation, making it suitable for mobile technicians and workshop environments.

Q: What is included in the package?
A: The package typically includes a calibration frame, LDW targets, laser alignment devices, positioning accessories, and storage components for organized transport and field use.

Q: Which vehicles are compatible?
A: It supports a wide range of passenger vehicles (over 50 manufacturers), including Asian, European, and American brands depending on the vehicle’s ADAS configuration and Launch software coverage.

Q: When is this system used?
A: It is commonly used after windshield replacement, collision repair, or camera removal/replacement to restore proper LDW camera alignment and safety system performance.

Maintenance Tips

• Store LDW targets, calibration boards, and accessories in a clean, dry protective case to prevent warping or damage.
• Inspect lane departure warning (LDW) targets regularly for scratches, fading, or surface contamination.
• Clean reflective and printed target surfaces gently with a microfiber cloth; avoid chemicals that may distort markings.
• Ensure mobile frame alignment and leveling are correct before each calibration session for accurate LDW setup.
• Check locking mechanisms, brackets, and mounting points for tightness and stability.
• Keep wheels, rails, and adjustable components free from dust, debris, and grease buildup for smooth positioning.
• Avoid bending, folding, or applying pressure to calibration boards during transport or storage.
• Verify all measurement scales and reference markings remain clearly visible and undamaged.
• Store away from direct sunlight and moisture to prevent material degradation and measurement drift.
• Replace damaged or worn targets immediately to maintain OEM-level LDW calibration accuracy.
