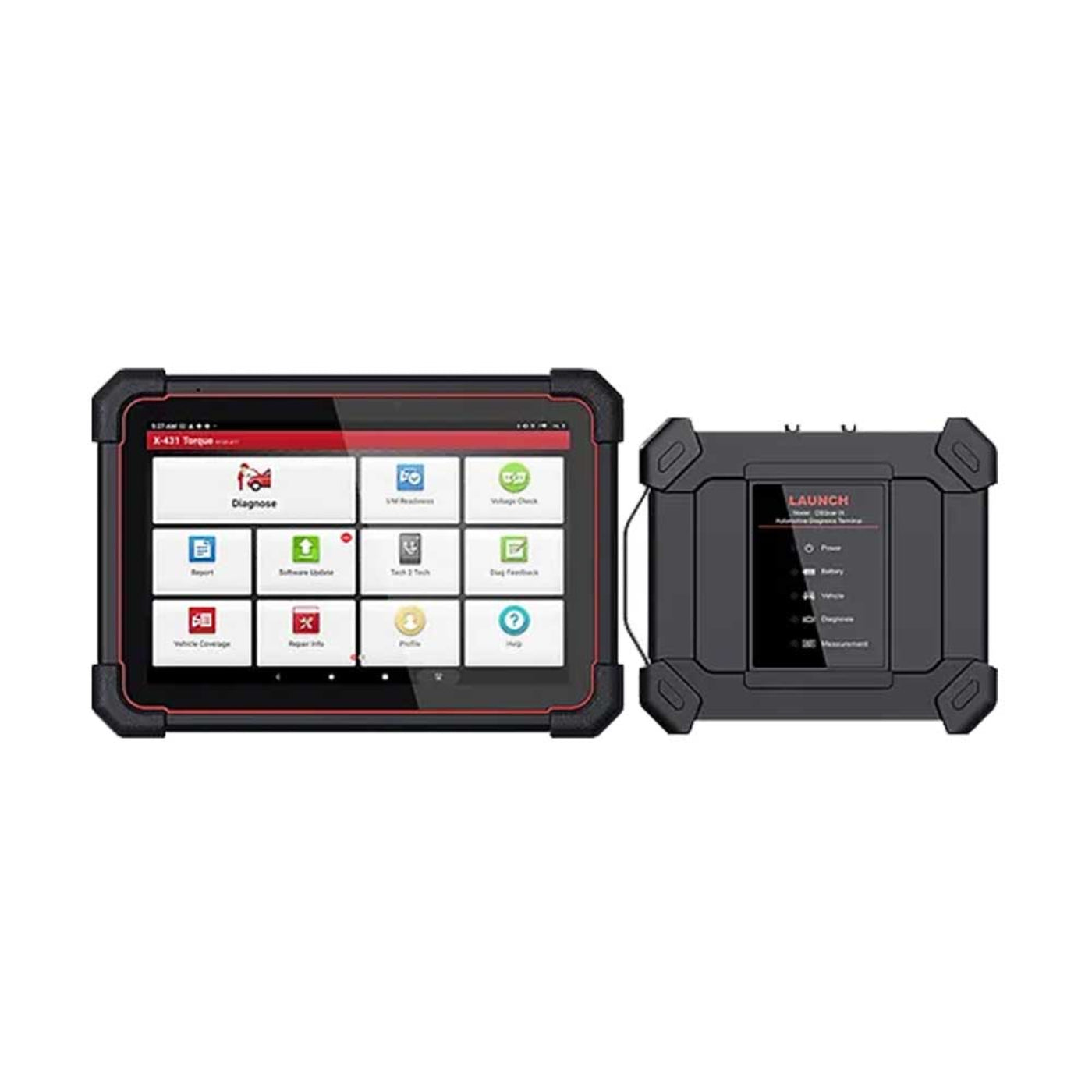

Launch Tech USA Advanced Intelligent Vehicle Diagnostic Device - LNCH-X431-TORQUE-5
X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.
X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.
Features
- Full system & full function diagnosis
- Auto Detect VINs in minutes
- Bi-Directional Control/ Remote Diagnostic Function
- Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
- Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
- Code Assist Database by identifix
- Support X431 Fix repair information, driven by motor
- SGW Security gateway approved by FCA
- Supports 2-channel oscilloscope and multimeter functions
- More available software can be purchased via in-app Mall
- One-click upgrade for car models software
- Support USB Type C, USB Type A interface, etc
- OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer
Product Specifications:
- Android 10.0
- 10.1 inch touch screen 1280*800
- Rear 8 MP, Front 5 MP
- Battery: 47880mWh (7.6V, 6300mAh)
- CPU 2.0 GHz Quad-core
- Memory and Storage:4GB+128GB
- StorageTemperature: -20℃--70℃-
- Working Temperature: 0℃--50℃
- Connectivity：WiFI/Bluetooth
- Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
- Weight 1.45 kg
- Front camera host 4 + 128
- HD15F to OBDII 16 male integrated test connector
- HDB15F to HDB15F test main line (with DC)
- X431 DBSCAR IX diagnostic connector
- HT30 test line
- Needle Set (Colored 4mm Female+20 needle+2 screw head)
- Crocodile clip，black
- Crocodile clip，red
- Multimeter probe black
- Multimeter probe red
- Power adapter
- Universal PIN envelope
- Multilingual Quick Start
- Type A to type C USB data cable
What our Experts Think
-
Advanced Diagnostic Performance – Designed for professional technicians who need intelligent vehicle scanning, fault detection, and accurate troubleshooting support.
-
Wide Vehicle Compatibility – A strong fit for multi-brand repair shops, helping diagnose a broad range of makes and models with one reliable device.
-
Smart System Analysis – Provides access to key vehicle systems such as engine, transmission, ABS, SRS, and other electronic control modules.
-
Improves Repair Workflow – Fast scans, service resets, and guided diagnostic functions help reduce downtime and increase workshop efficiency.
-
Built for Daily Professional Use – Suitable for busy garages, mobile mechanics, fleet service teams, and advanced automotive specialists.
-
Future-Focused Investment – An intelligent diagnostic platform helps shops stay prepared for modern vehicle technology and complex electronic systems.
Q&A
Q: What is the Launch Tech USA X-431 Torque 5?
A: The X-431 Torque 5 is an advanced intelligent vehicle diagnostic device designed for professional automotive diagnostics and repair.
Q: What can the Torque 5 diagnostic tool do?
A: It helps technicians read fault codes, diagnose vehicle systems, perform maintenance functions, and identify performance-related issues.
Q: Is the Torque 5 suitable for professional workshops?
A: Yes, it is designed for automotive repair shops, dealerships, fleet maintenance facilities, and professional technicians.
Q: Does it support advanced vehicle diagnostics?
A: Yes, the device is engineered to provide advanced diagnostic capabilities across multiple supported vehicle systems.
Q: How does it improve repair efficiency?
A: It helps technicians quickly access vehicle data, reduce troubleshooting time, and make more accurate repair decisions.
Q: Can it help with warning light diagnostics?
A: Yes, it can assist in identifying the causes of check engine lights and other system warning indicators on supported vehicles.
Q: Is it suitable for modern vehicle technology?
A: Yes, advanced diagnostic platforms are designed to work with many modern vehicle electronic systems and modules.
Q: Who is the X-431 Torque 5 ideal for?
A: It is ideal for professional mechanics, diagnostic specialists, automotive service centers, and fleet maintenance professionals.
Maintenance Tips
-
Keep Diagnostic Software Current: Regularly update firmware and vehicle coverage databases for optimal diagnostic accuracy.
-
Protect the Display: Clean the touchscreen with a soft microfiber cloth and avoid abrasive cleaning products.
-
Inspect Cables and Connectors: Check OBD-II adapters, charging ports, and communication cables for wear or damage before use.
-
Charge Properly: Maintain battery health by following recommended charging practices and avoiding complete battery depletion.
-
Store in a Protective Case: Keep the device protected from dust, moisture, impacts, and extreme temperatures when not in use.
-
Back Up Scan Reports: Save diagnostic records and customer data regularly to prevent accidental loss.
-
Maintain Stable Connectivity: Periodically verify Wi-Fi and Bluetooth connections for smooth software updates and vehicle communication.
-
Perform Routine Equipment Checks: Inspect hardware, accessories, and system performance regularly to ensure reliable operation in professional automotive environments.
