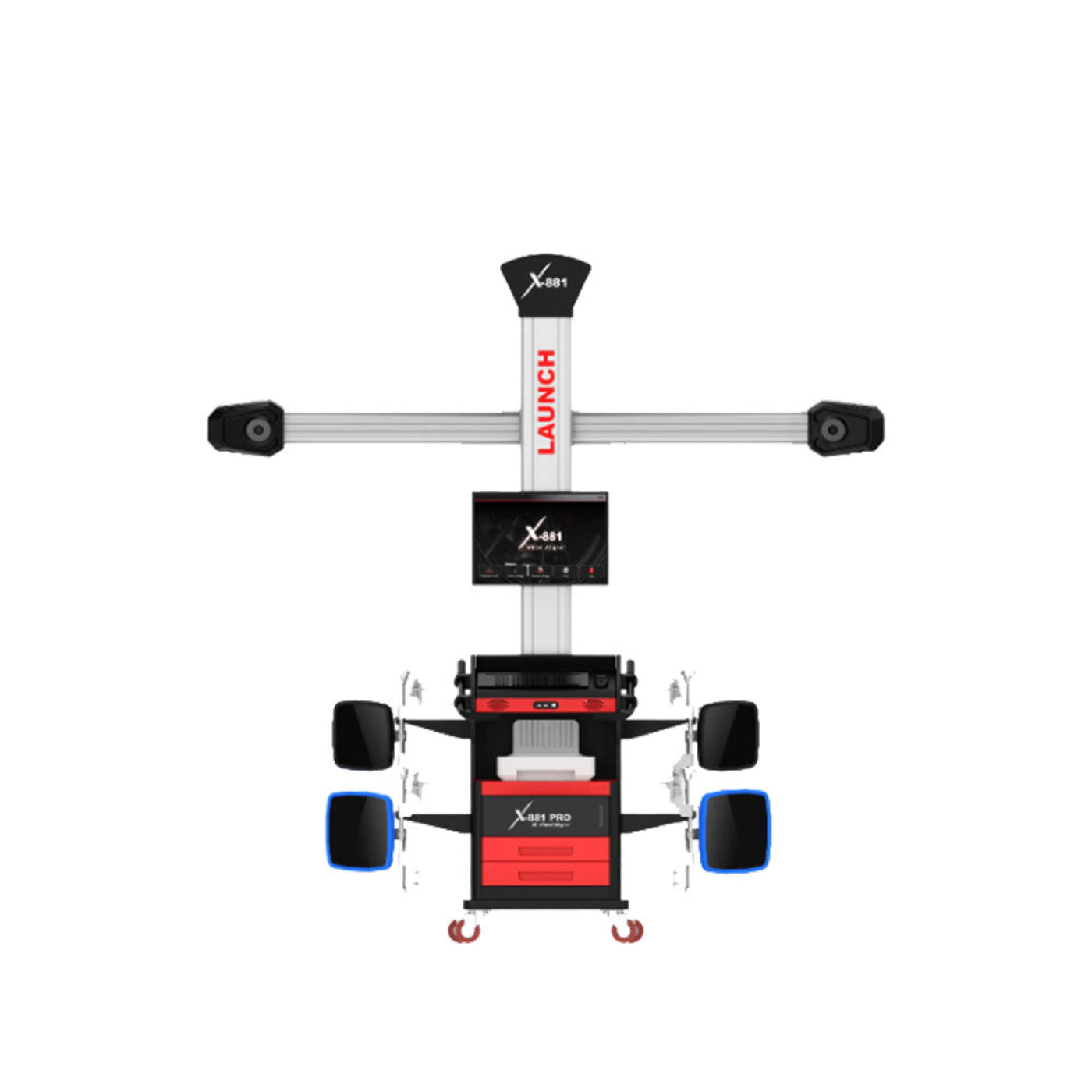

Launch Tech USA Professional Mobile 3D Wheel Aligner - LNCH-X-881PRO

Launch Tech USA  Professional Mobile 3D Wheel Aligner - LNCH-X-881PRO

LAUNCH X-881 Pro is a professional mobile 3D wheel aligner that is based on a user-friendly interface communicating with two smart imaging cameras.

LAUNCH X-881 Pro is equipped with Dynamic Constitute Coordinate (DCC) which is a new revolutionary technology in the wheel alignment industry allowing the LAUNCH X-881 PRO to work on uneven surfaces with variance of 30 degrees. This DCC technology makes the LAUNCH X-881 Pro a mobile wheel aligner. It allows the mechanic to move the aligner and generate alignment reports on different bays, which increases shops’ productivity.

The revolutionary software of LAUNCH X-881 Pro is compatible with 2post lifts and all other lift types. A lucrative function that enables shops to perform easy alignment jobs on 2 post lifts that increases the shop’s revenue without having to invest in a space demanding, budget restraining 4 post or scissor lift. The smart dynamic of this revolutionary software reads and records the initial measurements of loaded suspension of the vehicle on ground. When performing adjustments to the vehicle jacked on the 2-post lift, the adjustments are made to the initial measurements that were recorded when the suspension was loaded on ground and NOT to the hanging suspension in the air.

LAUNCH X-881 Pro is equipped with a VIN decoder that saves time and error selecting the vehicle’s VIN number while matching OE specifications provided by OE built in database. LAUNCH X-881 Pro also performs ADAS Pre-calibration wheel alignment jobs according to OE specs.

Freely generates three different types of reports that can be saved, printed or emailed at your convenience.

Features

• Automatic VIN decoader
• Wireless VIN scanner included
• OEM solution for automotive repair information
• Remote tech support; WIFI enabled
• 5Gbps transmission bandwidth
• USB 3.0 interface

• 5MP camera for extended size vehicles
• Adjustable monitor height on beam
• HP Printer included
• Seamless operational software
• Mobile aligner
• Dust cover included
• Hand-held extra screen (optional)

Specifications

• Power: AC 110/220V 50/60Hz
• SKI/Kingdom: ±5° Accuracy: ±0.03°
• HD Capacity: 60G
• Wheel Base: 4000mm Accuracy:
• Operating System: 64-bit Windows 10
• Caster: ±20° Accuracy: ±0.03°
• Monitor: 32" Color Monitor
• Processor: Intel Series
• Retraction Angle: ±5° Accuracy: ±0.03°
• Rim Diameter: 10-24 Inch
• Memory: 2G
• Thrust Angle: ±10° Accuracy: ±0.01°
• Wheel Track: 2000mm Accuracy: ± 2mm

What our Experts Think

• Professional Alignment Accuracy – A 3D wheel aligner helps technicians measure wheel angles precisely for improved handling, tire wear, and vehicle safety.
• Mobile Workshop Advantage – The mobile design adds flexibility, making it easier to perform alignments in different service bays or shop environments.
• Improves Tire Life – Accurate alignment helps reduce uneven tire wear, improving customer satisfaction and long-term vehicle performance.
• Ideal for High-Volume Shops – A strong fit for tire centers, repair garages, dealerships, and service facilities offering regular alignment work.
• Boosts Service Efficiency – Advanced 3D measurement technology can speed up setup, readings, and adjustment workflow compared with traditional alignment methods.
• Valuable Revenue Tool – Wheel alignment is a high-demand service, making this equipment a practical investment for shops looking to expand service offerings.

Q&A

Q: What is the Launch Tech USA X-881PRO 3D Wheel Aligner?
A: The X-881PRO is a professional mobile 3D wheel alignment system designed to measure and adjust vehicle wheel alignment accurately.

Q: Why is wheel alignment important?
A: Proper wheel alignment helps improve tire life, vehicle handling, steering performance, and overall driving safety.

Q: What are the benefits of 3D wheel alignment technology?
A: 3D alignment technology provides fast, precise measurements and helps technicians make accurate alignment adjustments.

Q: Is the X-881PRO suitable for professional workshops?
A: Yes, it is designed for automotive repair shops, tire centers, dealerships, and alignment specialists.

Q: Can this system help reduce tire wear?
A: Yes, correct wheel alignment helps promote even tire wear and can extend tire lifespan.

Q: How does a mobile alignment system improve workflow?
A: Its mobile design allows flexible positioning within the workshop, helping maximize space and improve operational efficiency.

Q: Can it help improve vehicle handling?
A: Yes, proper alignment can enhance steering response, stability, and overall driving comfort.

Q: Who is the X-881PRO 3D Wheel Aligner ideal for?
A: It is ideal for professional automotive technicians, tire service centers, repair facilities, and dealerships performing wheel alignment services.
