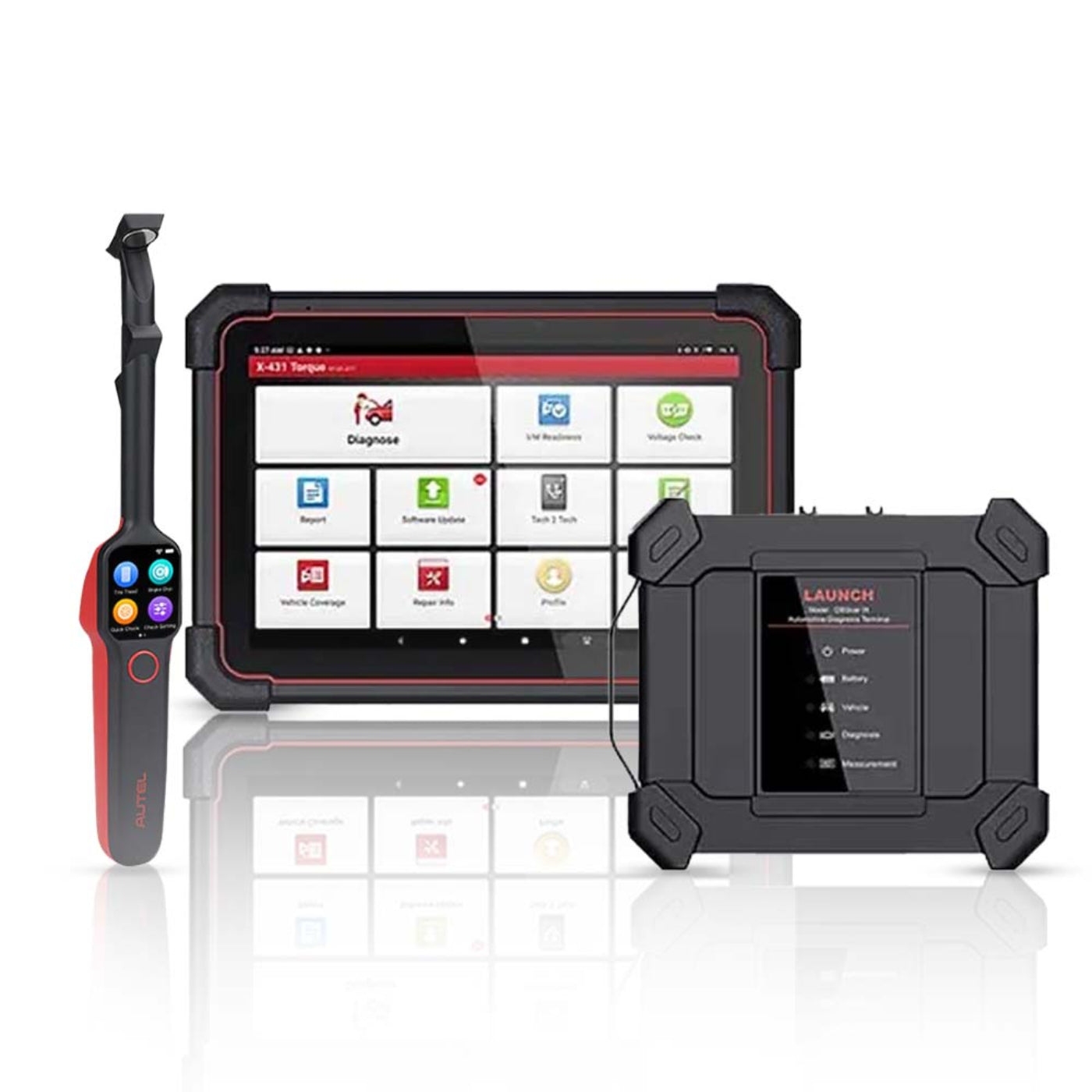

Launch Vehicle Diagnostic Device with Autel Laser Tread Depth and Brake Disc Examiner - LNCH-X431-TORQUE-5-TBE200
X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.
X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.
Features
- Full system & full function diagnosis
- Auto Detect VINs in minutes
- Bi-Directional Control/ Remote Diagnostic Function
- Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
- Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
- Code Assist Database by identifix
- Support X431 Fix repair information, driven by motor
- SGW Security gateway approved by FCA
- Supports 2-channel oscilloscope and multimeter functions
- More available software can be purchased via in-app Mall
- One-click upgrade for car models software
- Support USB Type C, USB Type A interface, etc
- OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer
Specifications
- Android 10.0
- 10.1 inch touch screen 1280*800
- Rear 8 MP, Front 5 MP
- Battery: 47880mWh (7.6V, 6300mAh)
- CPU 2.0 GHz Quad-core
- Memory and Storage:4GB+128GB
- StorageTemperature: -20℃--70℃-
- Working Temperature: 0℃--50℃
- Connectivity：WiFI/Bluetooth
- Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
- Weight 1.45 kg
- Front camera host 4 + 128
- HD15F to OBDII 16 male integrated test connector
- HDB15F to HDB15F test main line (with DC)
- X431 DBSCAR IX diagnostic connector
- HT30 test line
- Needle Set (Colored 4mm Female+20 needle+2 screw head)
- Crocodile clip，black
- Crocodile clip，red
- Multimeter probe black
- Multimeter probe red
- Power adapter
- Universal PIN envelope
- Multilingual Quick Start
- Type A to type C USB data cable
