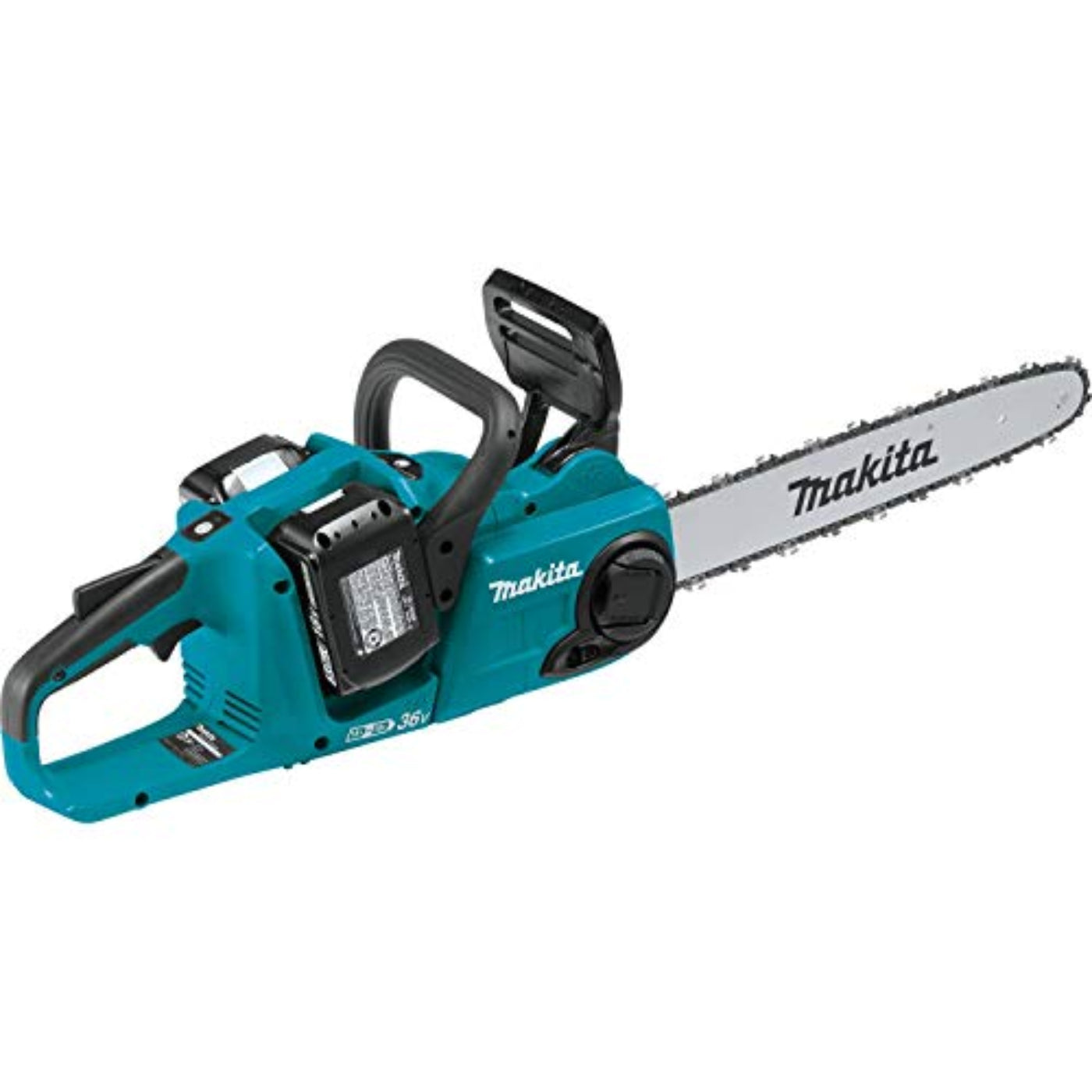

Makita 18V LXT Brushless 16" Chain Saw Kit with 4 Batteries (5.0Ah) - XCU04PT1
Landscapers and contractors are demanding more cordless alternatives to gas-powered outdoor power equipment. Makita is meeting demand with an expanding line of cordless OPE, including the 18V X2 LXT (36V) Brushless 16” Chain Saw (XCU04PT1). With zero emissions, lower noise, and considerably less maintenance, the XCU04PT1 is a welcome solution for cutting and trimming applications. It’s powered by two 18V LXT Batteries for maximum power, speed and run-time, but without leaving the strongly preferred 18V battery platform. And with the efficient Makita outer rotor brushless motor with direct drive system, users get high power efficiency that is equivalent to a gas chain saw. The XCU04PT1 has a 16” guide bar and the Makita-built Outer Rotor BL Brushless Motor direct drive system motor with variable speed delivers 0-3, 940 FPM for increased cutting speed. It has zero emissions and reduced maintenance: there's no engine oil to change, no sparkplug to replace, and no air filter or muffler to clean. And there's no need to drain the fuel for storage. Simply pick it up, load two 18V LXT Lithium-Ion batteries, and the saw is ready to use. Convenience features include a tool-less chain adjustments, a front hand guard engineered to actuate chain brake when engaged, an electric brake for maximum productivity, and more. It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
Features
- No gas, emissions, oil mixing or pull starts with reduced maintenance and low noise levels.
- Makita-built Outer Rotor BL Brushless Motor direct-drive system delivers power of a 32cc gas chain saw.
- Two 18V LXT Lithium-Ion batteries deliver power and performance without leaving the 18V LXT platform.
- Tool-less chain adjustment for convenient operation and maintenance.
- Variable speed trigger and high chain speed (0-3,940 FPM) for improved cutting performance.
What our Experts Think
Q&A
Q: What is the Makita XCU04PT1 used for?
A: It is a professional cordless chain saw designed for tree trimming, cutting firewood, landscaping, and general outdoor cutting applications.
Q: How powerful is the Makita XCU04PT1?
A: The brushless direct-drive motor delivers power comparable to a 32cc gas chain saw with cordless convenience.

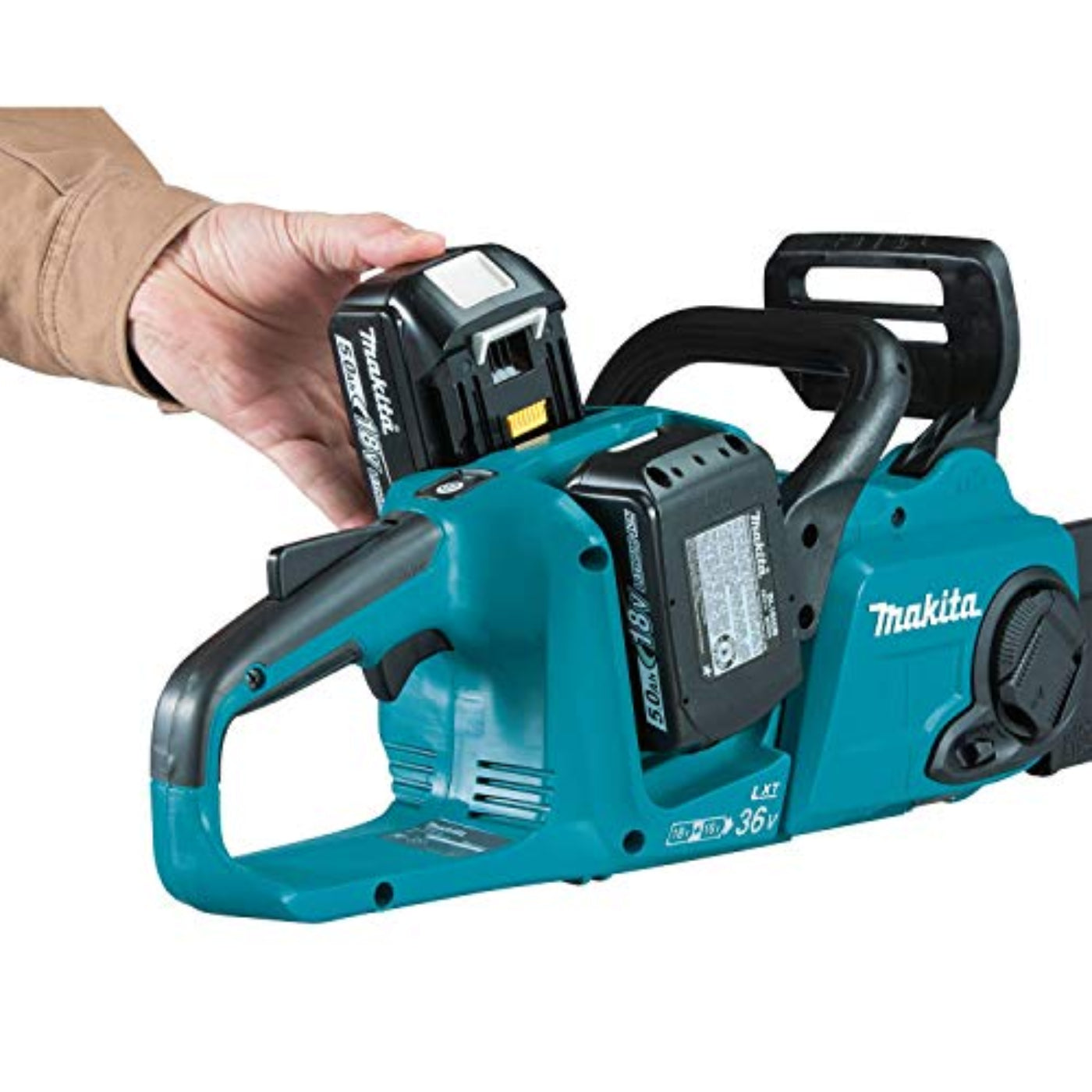

Q: What batteries does the XCU04PT1 use?

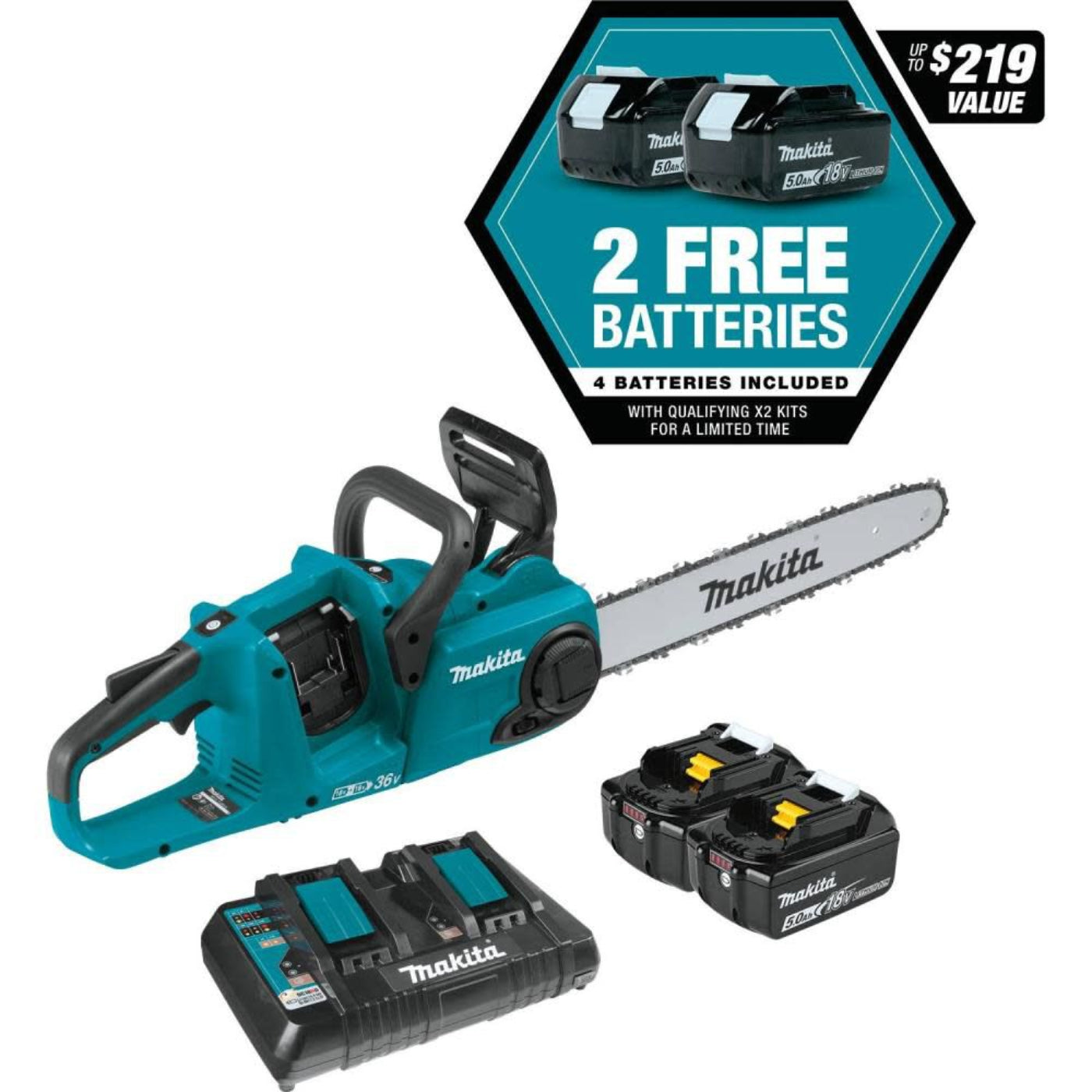

A: It uses two 18V LXT Lithium-Ion batteries to provide 36V power and includes four 18V LXT 5.0Ah batteries plus a dual-port rapid charger.
Q: What is the bar length and chain speed?
A: It features a 16-inch guide bar and variable-speed control with a chain speed of up to 3,940 FPM for fast cutting performance.
Q: Does the Makita XCU04PT1 have a brushless motor?
A: Yes. The Makita-built BL Brushless Motor improves efficiency, runtime, and durability while reducing maintenance needs.
Q: How long can the XCU04PT1 run on its batteries?
A: With four 18V LXT 5.0Ah batteries, it can deliver up to 380 cuts in 4x4 cedar under testing conditions.
Q: Does the chain saw require gas or oil mixing?
A: No. It eliminates gas, fuel mixing, pull starts, and many maintenance tasks associated with gas-powered saws.
Q: Does the XCU04PT1 have tool-less chain adjustment?
A: Yes. The tool-less chain adjustment system allows quick chain tensioning and easier maintenance.
Q: Is the Makita XCU04PT1 easy to use?
A: Yes. It features a variable-speed trigger, automatic chain lubrication, electric brake, and ergonomic soft-grip handle for improved control.
Maintenance Tips
- Remove batteries before cleaning, inspecting, or performing maintenance.
- Clean sawdust, wood chips, and debris from the chain, guide bar, sprocket area, and cooling vents after each use.
- Check and adjust chain tension regularly using the tool-less chain adjustment system for safe, efficient cutting.
- Keep the 16" guide bar and chain properly lubricated; refill the automatic chain oil reservoir as needed.
- Inspect the chain for dull, damaged, or worn cutters and sharpen or replace when cutting performance decreases.
- Clean the guide bar groove and oil ports to maintain proper chain lubrication.
- Check the chain brake, trigger switch, and safety features before operation.
- Keep battery contacts clean and use only compatible Makita 18V LXT batteries and chargers.
- Avoid harsh cleaners such as gasoline, thinner, or alcohol; use a clean cloth for routine cleaning.
- Store the chain saw with the chain cover installed in a dry, protected location.
- Use genuine Makita replacement parts and authorized service for repairs to maintain long-term reliability.
