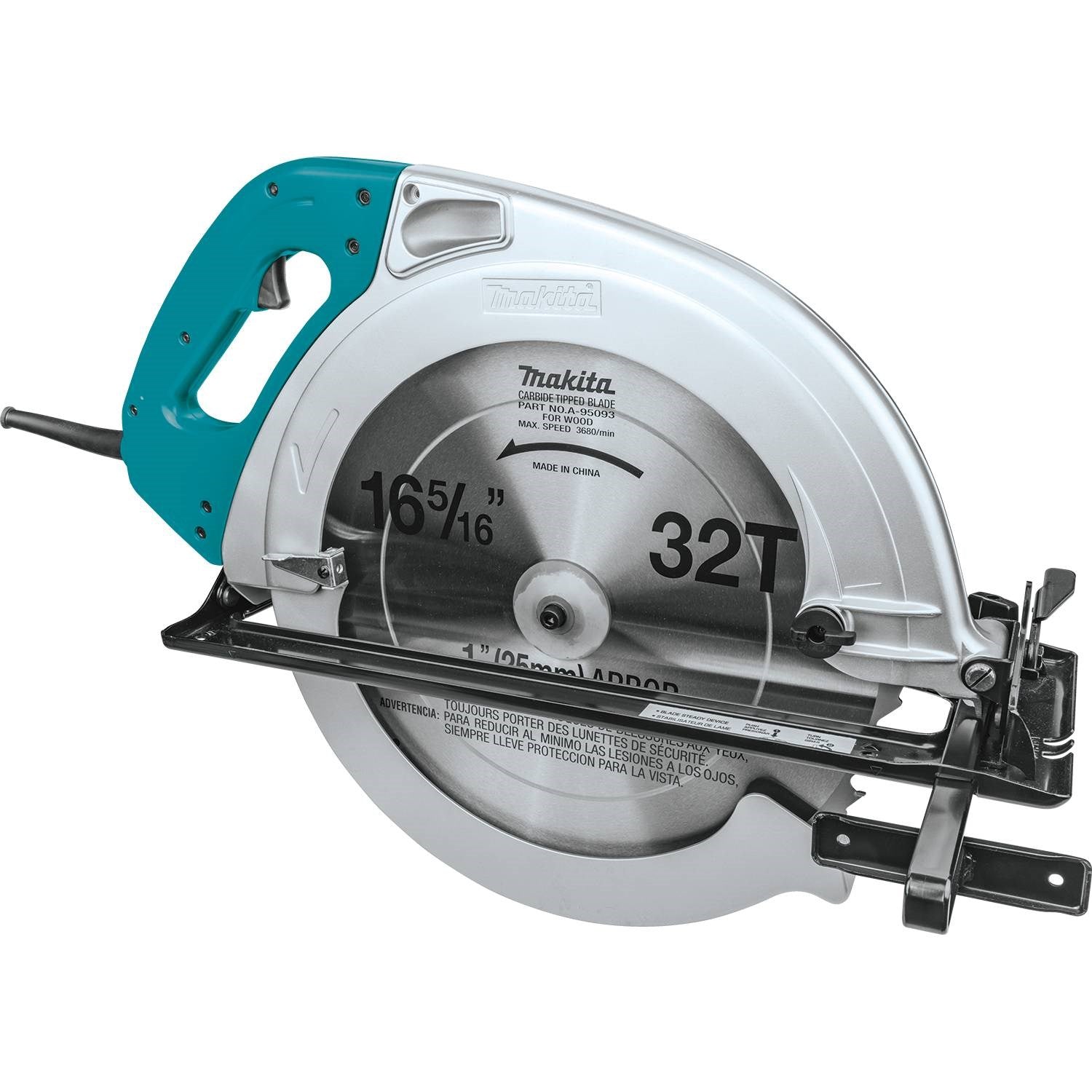

Makita (5402NA) 16-5/16" Circular Saw, 15 AMP, electric brake - 5402NA

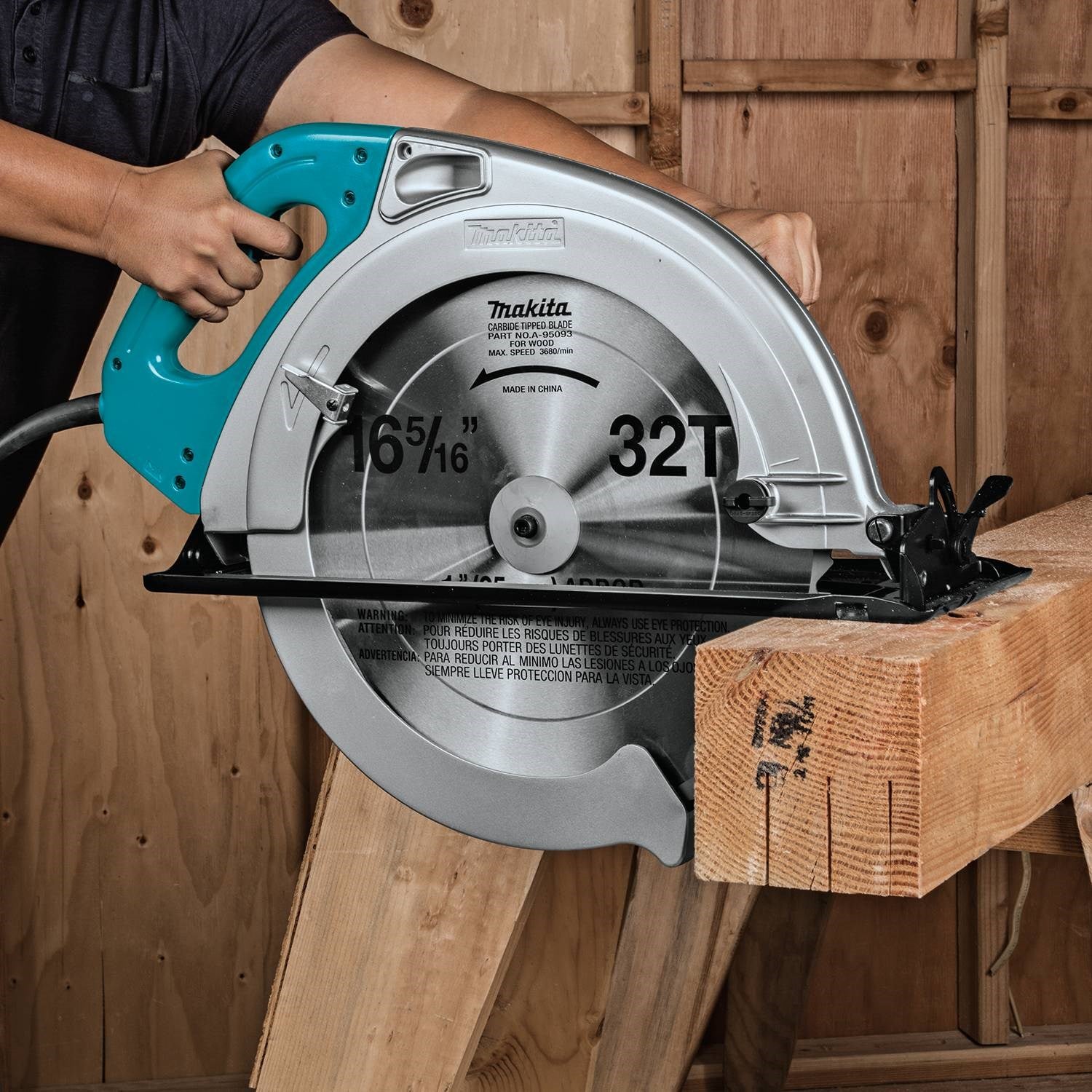

Makita's 16-5/16 In. circular saw with electric brake, model 5402NA, is ideal for cutting large beams and timber. The weight distribution makes this saw easy to operate and provides a smooth cut. With a built-in electric brake, this saw allows for maximize productivity. Model 5402NA is equipped with a 32T carbide-tipped blade that makes cutting easier and more efficient.
Features
- Model 5402NA is capable of cutting 6x lumber at 90 degrees and 4x lumber at 45 degrees in a single pass.
- The powerful 15 AMP motor makes this tool the ideal solution for cutting dense timber and beams.
- Easy to read markings to maximize speed and cutting capacities.
- Well balanced and weighs only 28.7 lbs. for better control.
What our Experts Think
Q&A
Q: What is the Makita 5402NA used for?
A: It is a heavy-duty corded circular saw designed for cutting large beams, timber, pressure-treated lumber, and oversized wood materials.
Q: What size blade does the Makita 5402NA use?
A: It uses a 16-5/16" blade with a 1" arbor for deep cutting applications.
Q: How powerful is the Makita 5402NA?
A: It features a 15 AMP motor delivering 2,300 RPM for powerful cutting performance through demanding materials.
Q: What is the maximum cutting capacity?
A: It cuts up to 6-3/16" at 90° and 4-3/16" at 45° in a single pass.
Q: Does the 5402NA have an electric brake?
A: Yes. The electric brake helps improve productivity by quickly stopping the blade after the trigger is released.
Q: Is the saw easy to control during large cuts?

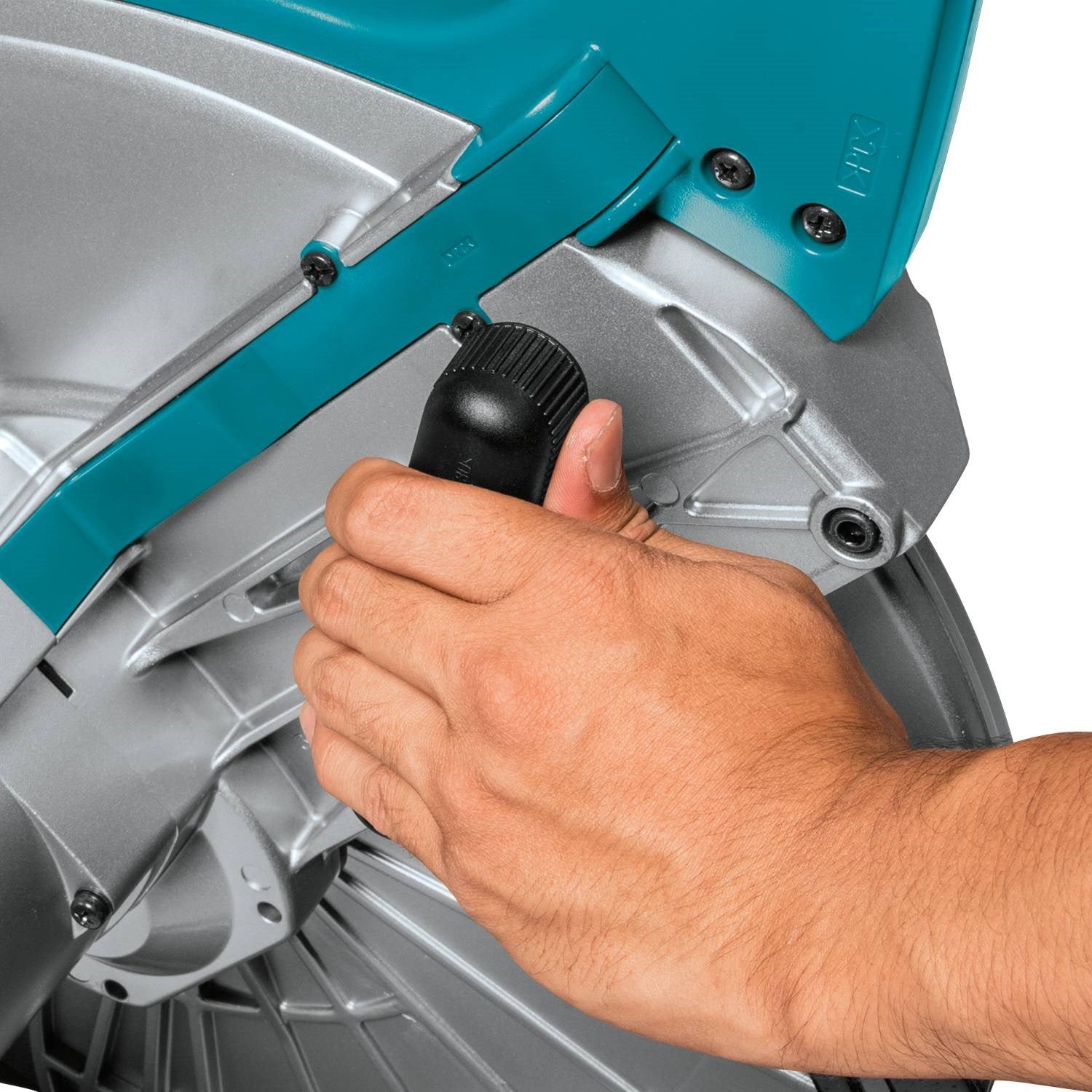

A: Yes. It features a large support handle, depth adjustment lever, rugged steel base, and blade stabilizer for improved control and cutting accuracy.
Q: How much does the Makita 5402NA weigh?
A: The saw weighs approximately 32.1 lbs., providing stability for heavy-duty cutting tasks.
Q: What accessories are included?
A: The kit includes a 32T carbide-tipped blade, rip fence, hex wrench, and saw storage holder.
Q: What materials can the Makita 5402NA cut?
A: It is ideal for cutting large timber, beams, wood logs, and pressure-treated lumber in construction and framing applications.
Maintenance Tips
- Unplug the saw before cleaning, inspecting, or performing any maintenance.
- Remove sawdust and debris from the blade area, lower guard, and motor vents after each use.
- Keep the 16-5/16" blade clean, sharp, and properly installed for smooth cutting performance.
- Inspect the blade, arbor, shaft lock, and fasteners regularly for wear or damage.
- Check that the electric brake and blade guard operate correctly before use.
- Clean the base plate and bevel adjustment mechanisms to maintain accurate cuts.
- Inspect the power cord, trigger switch, and handles for damage or excessive wear.
- Check carbon brushes periodically and replace worn components through authorized Makita service.
- Avoid using harsh cleaners such as gasoline, thinner, or alcohol; use a clean cloth for maintenance.
- Store the circular saw in a dry, protected area to prevent rust and jobsite damage.
