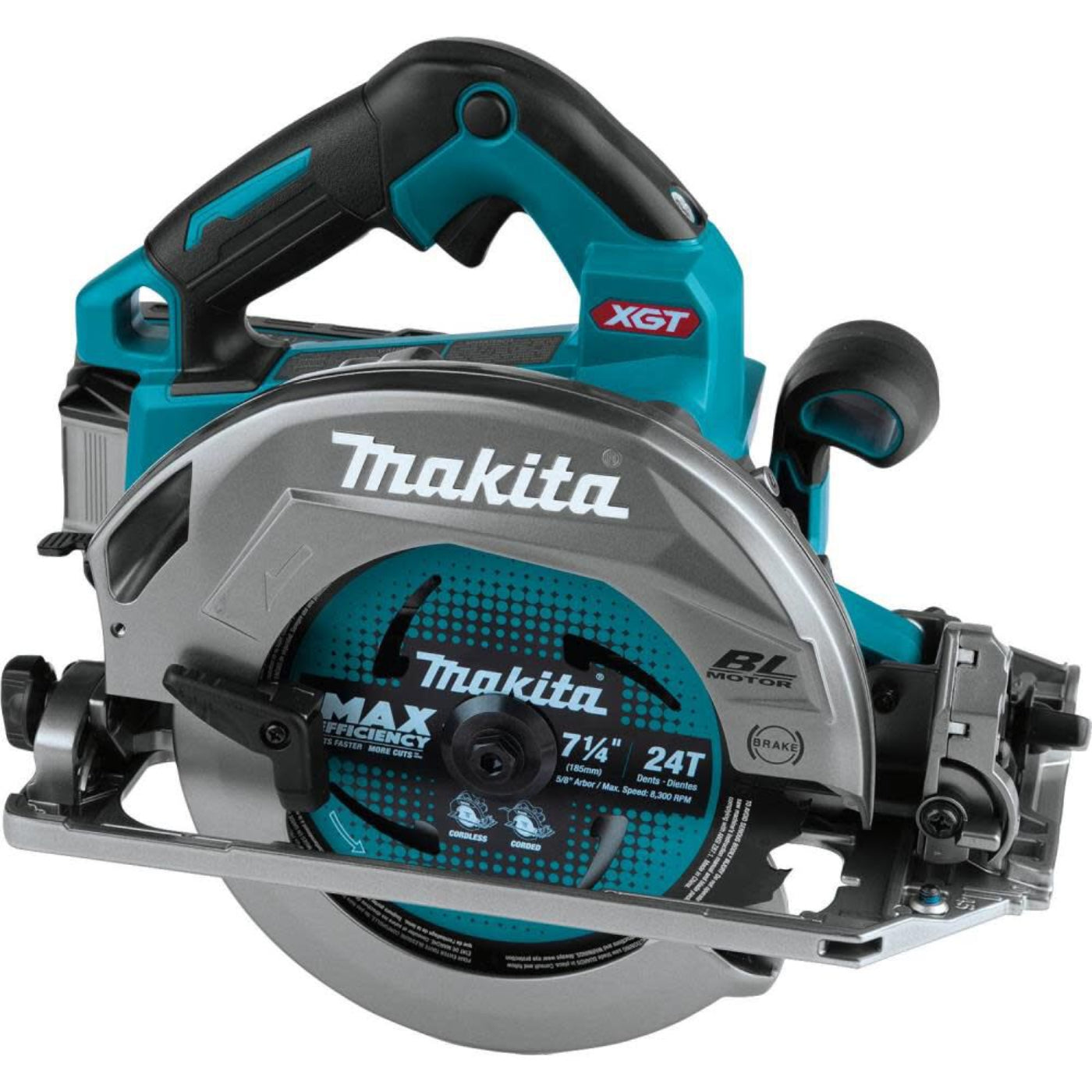

Makita (GSH02M1) 40V Max XGT️ 7-1/4 In. Circular Saw Kit with Guide Rail Compatibility - GSH02M1

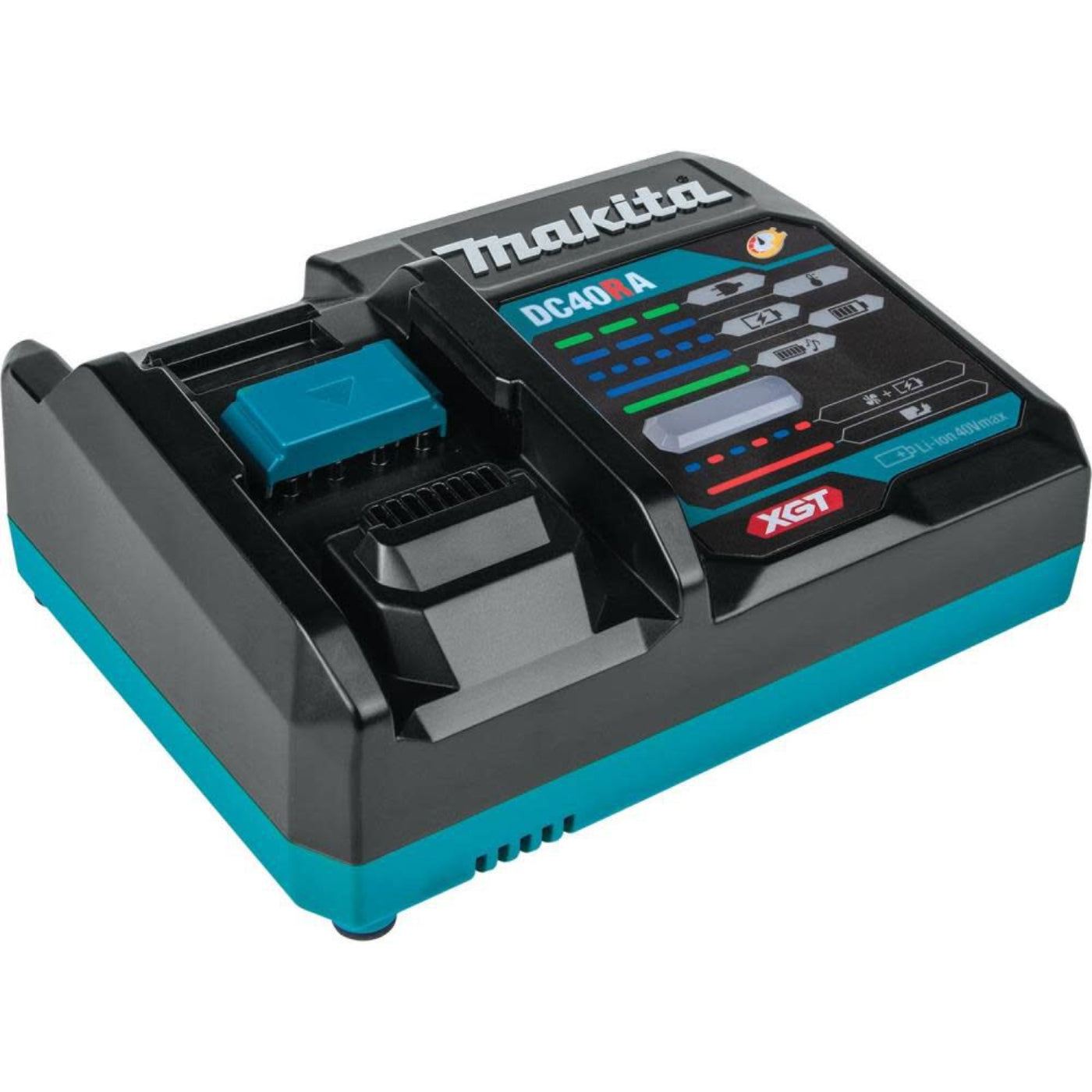

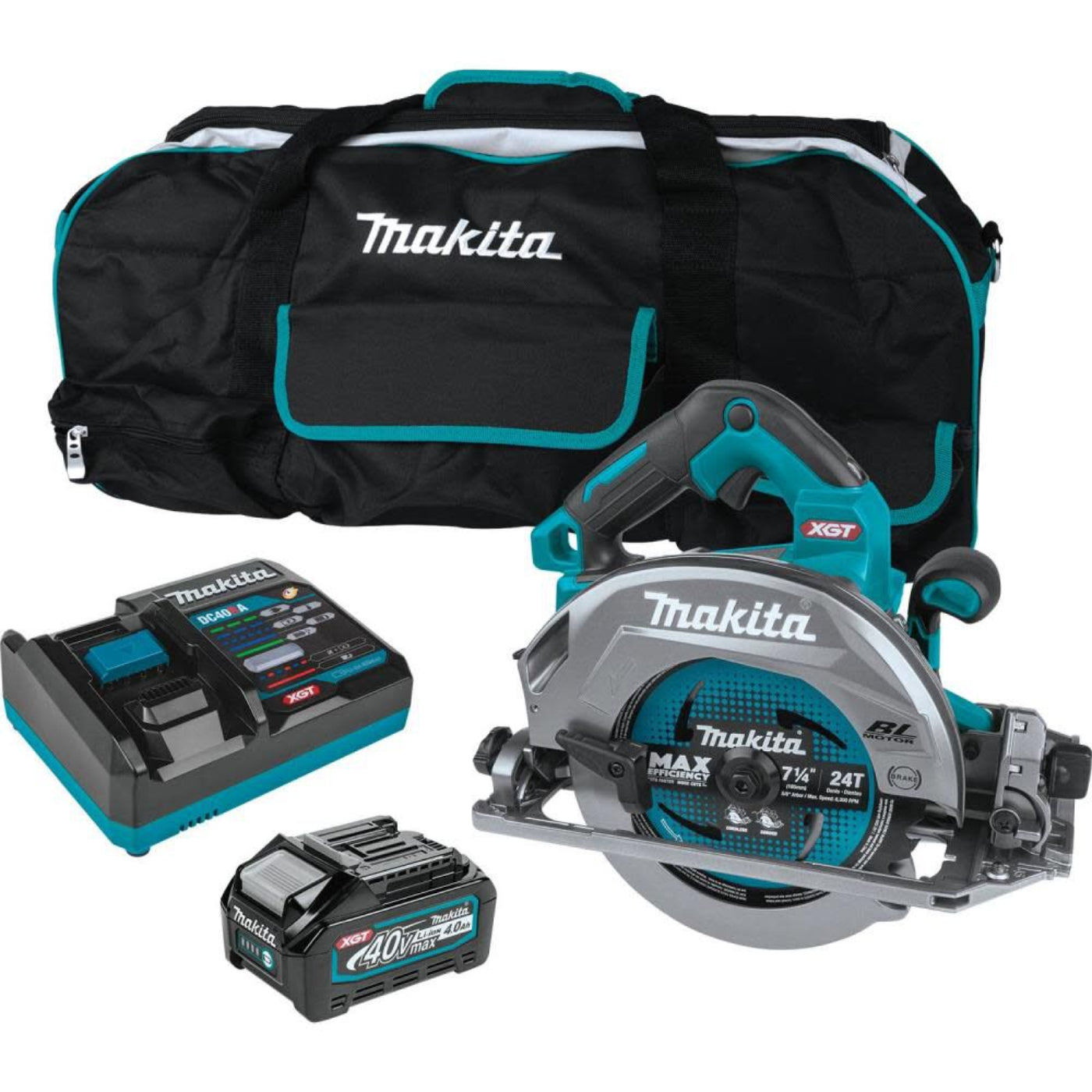

The Makita 40 VOLT Max XGT cordless circular saw kit rapid optimum charger (DC40RA), hex wrench (783204-6), 4.0 Amp-hour battery (BL4040), 7-1/4 Inch 24T CT circular saw blade (B-61656) and a tool bag. The circular saw with guide rail compatible base, provides cordless convenience while taking on high-demand applications. Saw features the Makita-built brushless motor to deliver 6000 RPM for high-speed cutting performance. Tool can cut 3X the material in a single pass with a large cutting capacity of 2-3/8 Inch at 90 degree. It is ideal for framers, builders, roofers, forming and more. The convenient guide rail compatible base interacts with optional guide rails to provide dead-on, straight or bevel cutting without the need for an adapter. Saw offers 56 degree bevel capacity with positive stops at 22.5 degree, 45 degree and 56 degree. The saw features an electric brake and dual LED lights for maximum productivity. It has a die-cast magnesium base and blade guard, which combines durability with less weight. Tool featuring Automatic Torque Drive Technology, adjusts cutting speed under load for optimum cutting performance. This saw is also equipped with the Makita's Extreme Protection Technology (XPT), a series of integrated seals designed to improve a tool's operation in harsh conditions by channeling water and dust from key internal components.
Features
- OUTPOWER: Makita-built brushless motor delivers 6,000 RPM for faster cutting performance
- OUTSMART: Automatic torque drive adjusts cutting speed under load for optimum cutting performance
- OUTLAST: XPT is engineered to provide increased dust and water resistance in harsh jobsite conditions

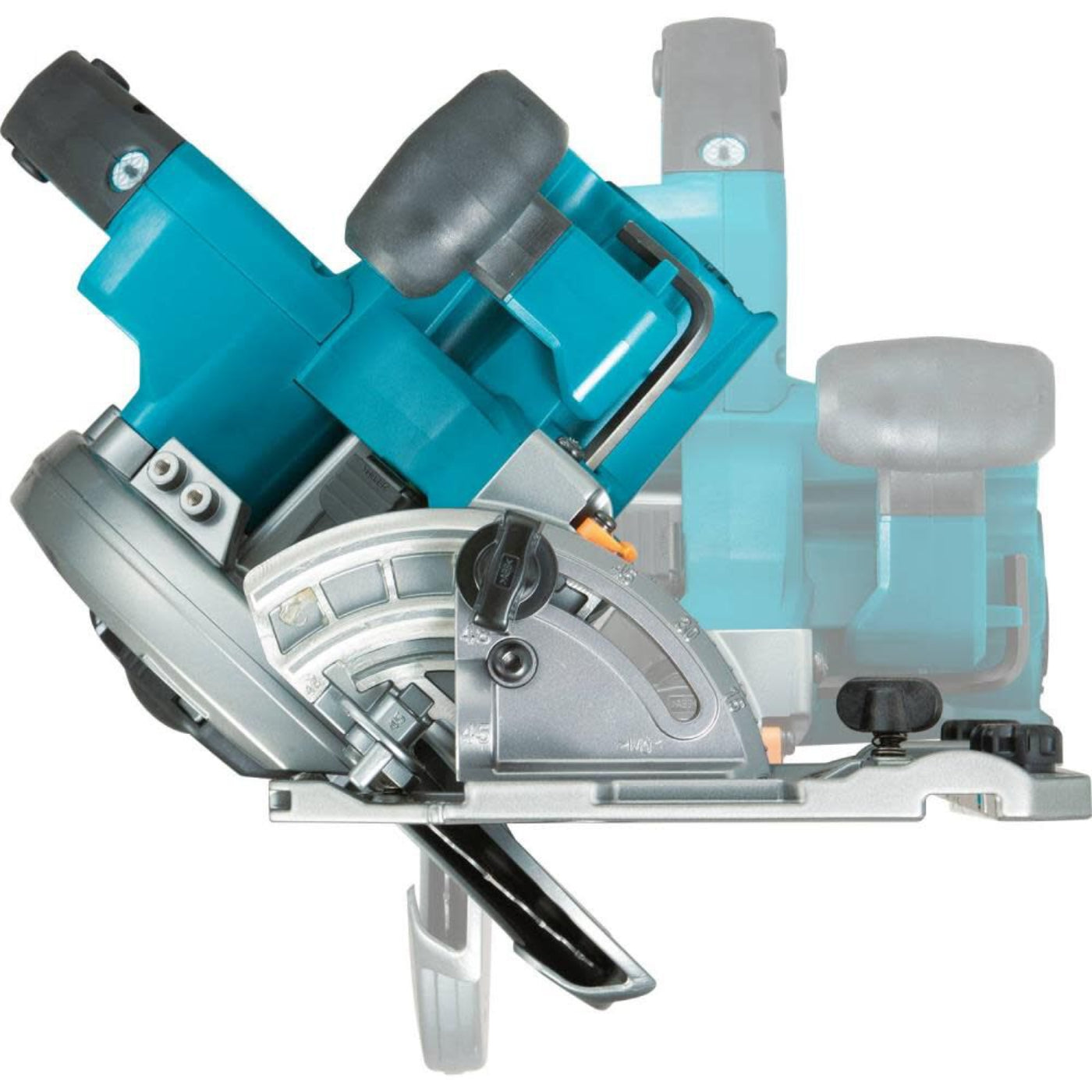

- 0-56° bevel capacity with positive stops at 22.5°, 45°
- Large 2-3/8" cutting capacity at 90°
- Electric brake for maximum productivity

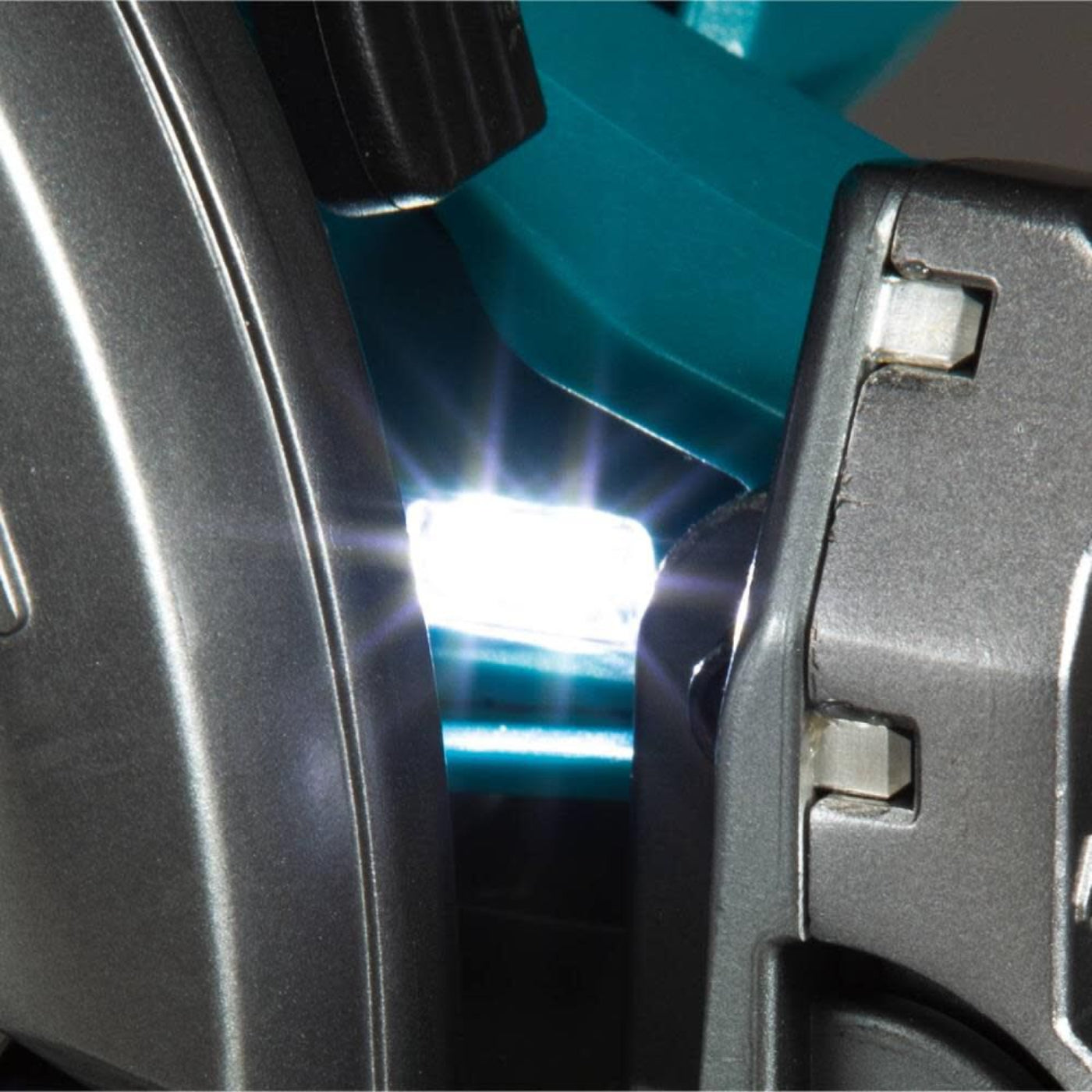

- L.E.D. light with preglow and afterglow illuminates the work area
- Makita 40V max XGT 7 1/4" Circular Saw Brushless Cordless Kit with Guide Rail Compatible Base
- Convenient guide rail compatible saw base interacts with optional guide rails to provide perfect, dead-on straight or bevel cutting without the need for an adapter
- Die-cast magnesium base, blade guard, and blade cover provide a lightweight design; weighs only 10.4 lbs. with battery
What our Experts Think
-
High-speed cutting performance: The brushless motor delivers 6,000 RPM for fast, smooth cuts through demanding materials.
-
Large cutting capacity: Cuts up to 2-3/8" at 90°, making it suitable for heavy-duty framing and construction applications.
-
Guide rail compatible: The integrated base works with optional guide rails for accurate straight and bevel cuts without requiring an adapter.
-
Durable yet lightweight design: The die-cast magnesium base, blade guard, and blade cover provide strength while keeping the tool easier to handle.
-
Enhanced job-site control: Features dual LED lights, electric brake, and up to 56° bevel capacity with positive stops for precise cutting.
-
Expert verdict: A premium cordless circular saw for builders, framers, and contractors who need corded-level performance with the freedom and convenience of the 40V XGT platform.
Q&A
Q: What is the Makita GSH02M1 circular saw kit?
A: The Makita GSH02M1 is a 40V max XGT Brushless Cordless 7-1/4" circular saw kit with a guide rail compatible base, AWS capability, and a 4.0Ah battery for professional cutting performance.
Q: How powerful is the Makita GSH02M1?
A: Its Makita-built BL™ Brushless Motor delivers 6,000 RPM for fast cutting performance and power comparable to a corded 15 AMP circular saw.
Q: What cutting capacity does the GSH02M1 offer?
A: It provides a maximum cutting depth of 2-3/8" at 90°, 1-11/16" at 45°, and 1-5/8" at 48° for versatile framing and construction cuts.
Q: Is the Makita GSH02M1 compatible with guide rails?
A: Yes. Its integrated guide rail compatible base works with optional guide rails for accurate straight and bevel cuts without an adapter.

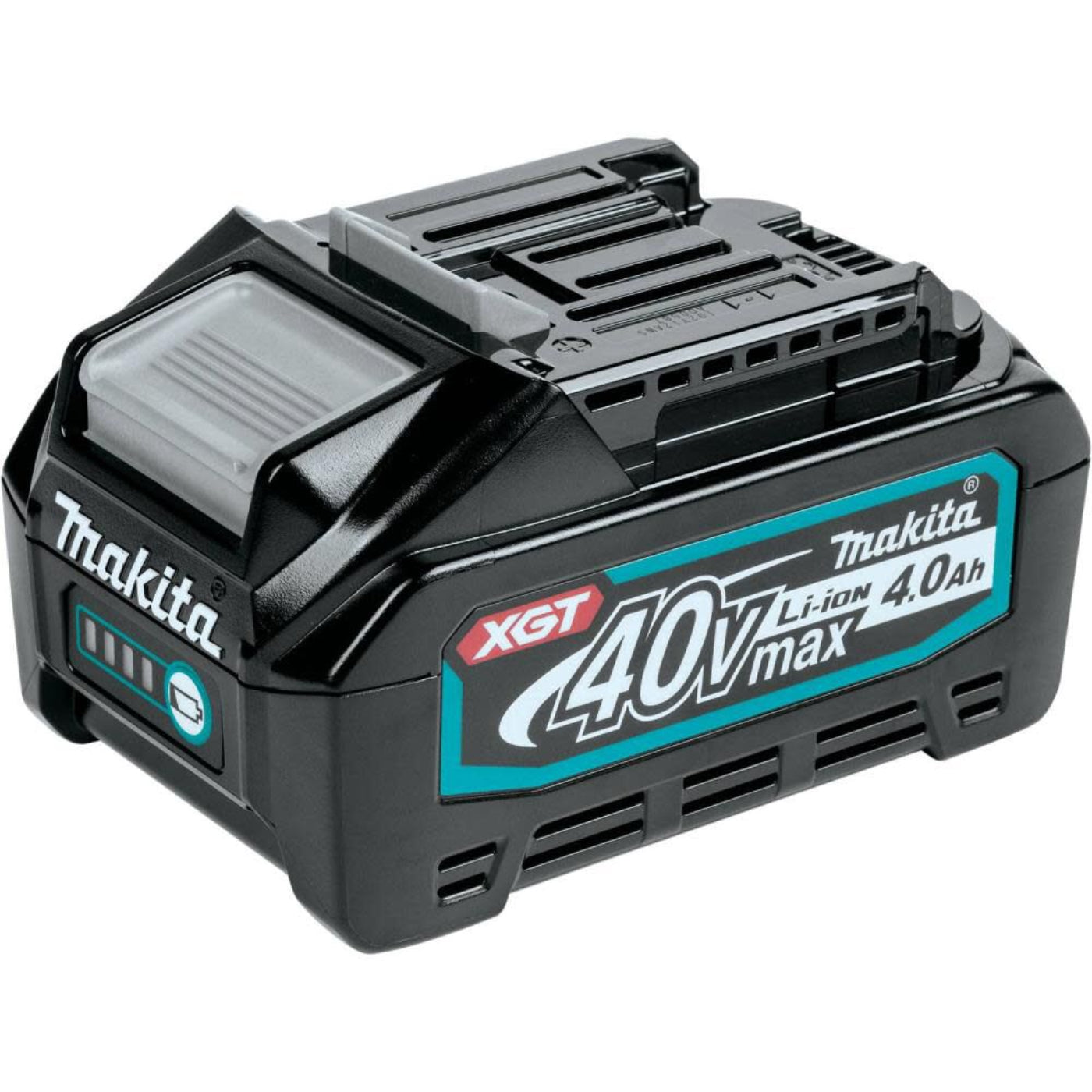

Q: What battery is included with the GSH02M1 kit?
A: The kit includes one 40V max XGT 4.0Ah Lithium-Ion battery and a rapid charger for convenient cordless operation.
Q: Does the Makita GSH02M1 have bevel adjustment?
A: Yes. It offers up to 56° bevel capacity with positive stops at 22.5°, 45°, and 56° for accurate angled cuts.
Q: What safety features does the GSH02M1 include?
A: It features an electric brake for improved productivity, dual LED lights for visibility, and Automatic Torque Drive Technology that adjusts cutting speed under load.
Maintenance Tips
- Clean sawdust, wood chips, and debris from the blade area, base plate, guards, and vents after each use.
- Inspect the 7-1/4" blade regularly for dullness, damage, or missing teeth; replace when needed for smooth cuts.
- Keep the blade clean and free from resin buildup to improve cutting performance and reduce strain on the motor.
- Check the lower blade guard for smooth movement and proper operation before each use.
- Inspect the guide rail compatibility components and base plate for dirt, damage, or alignment issues.
- Keep motor cooling vents clear to prevent overheating and maintain brushless motor efficiency.
- Check bevel adjustment, depth adjustment, and locking mechanisms for smooth operation.
- Maintain XGT battery performance by keeping battery contacts clean and storing batteries in a cool, dry location.
- Inspect the blade arbor, fasteners, and housing for looseness or damage before operation.
- Store the circular saw in a dry, protected area and remove the battery during long-term storage.
