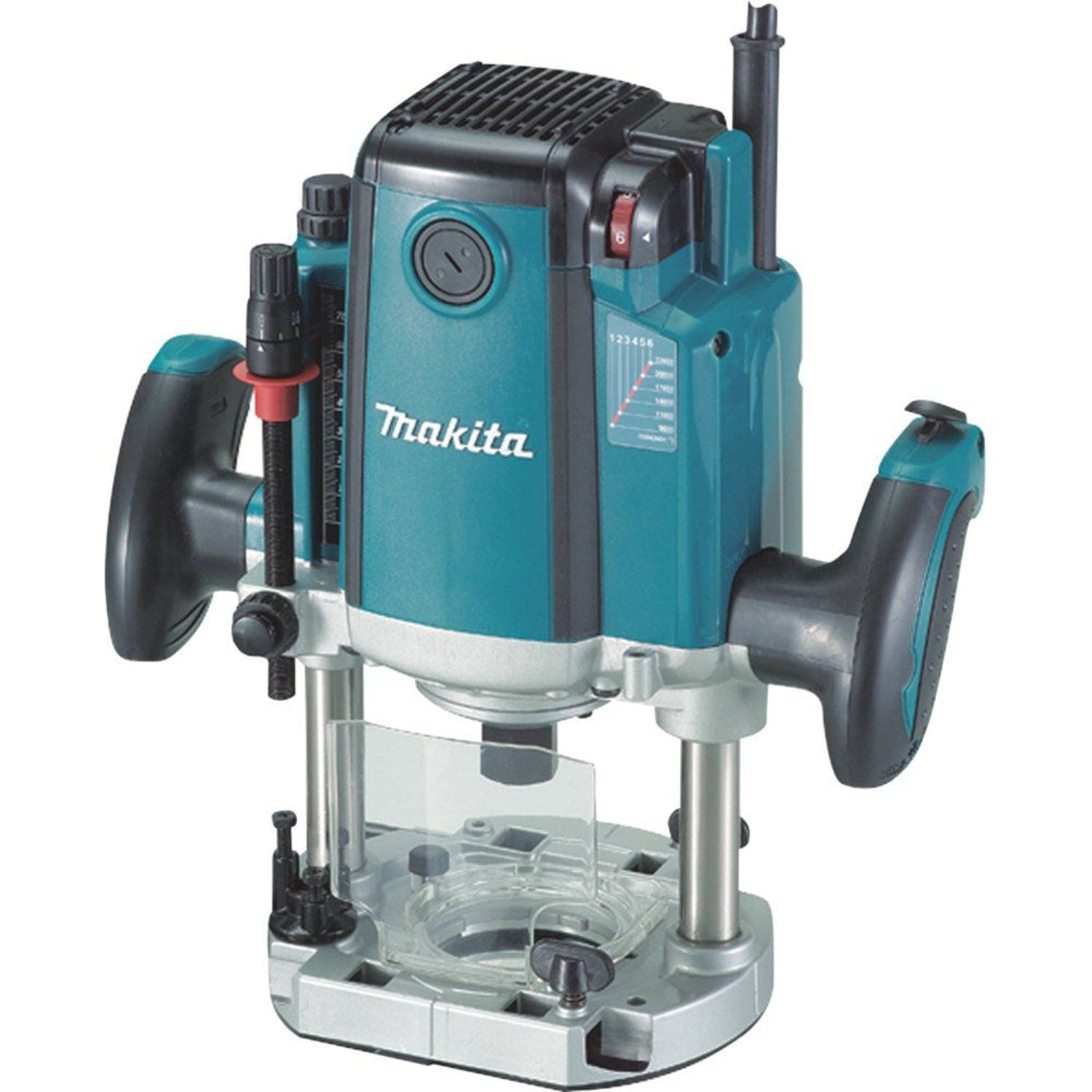

Makita 3-1/4 HP Plunge Router, 9,000-22,000 RPM, var. spd., L.E.D. Lights, electric brake - RP2301FC

Makita 3-1/4 HP Plunge Router, 9,000-22,000 RPM, var. spd., L.E.D. Lights, electric brake - RP2301FC

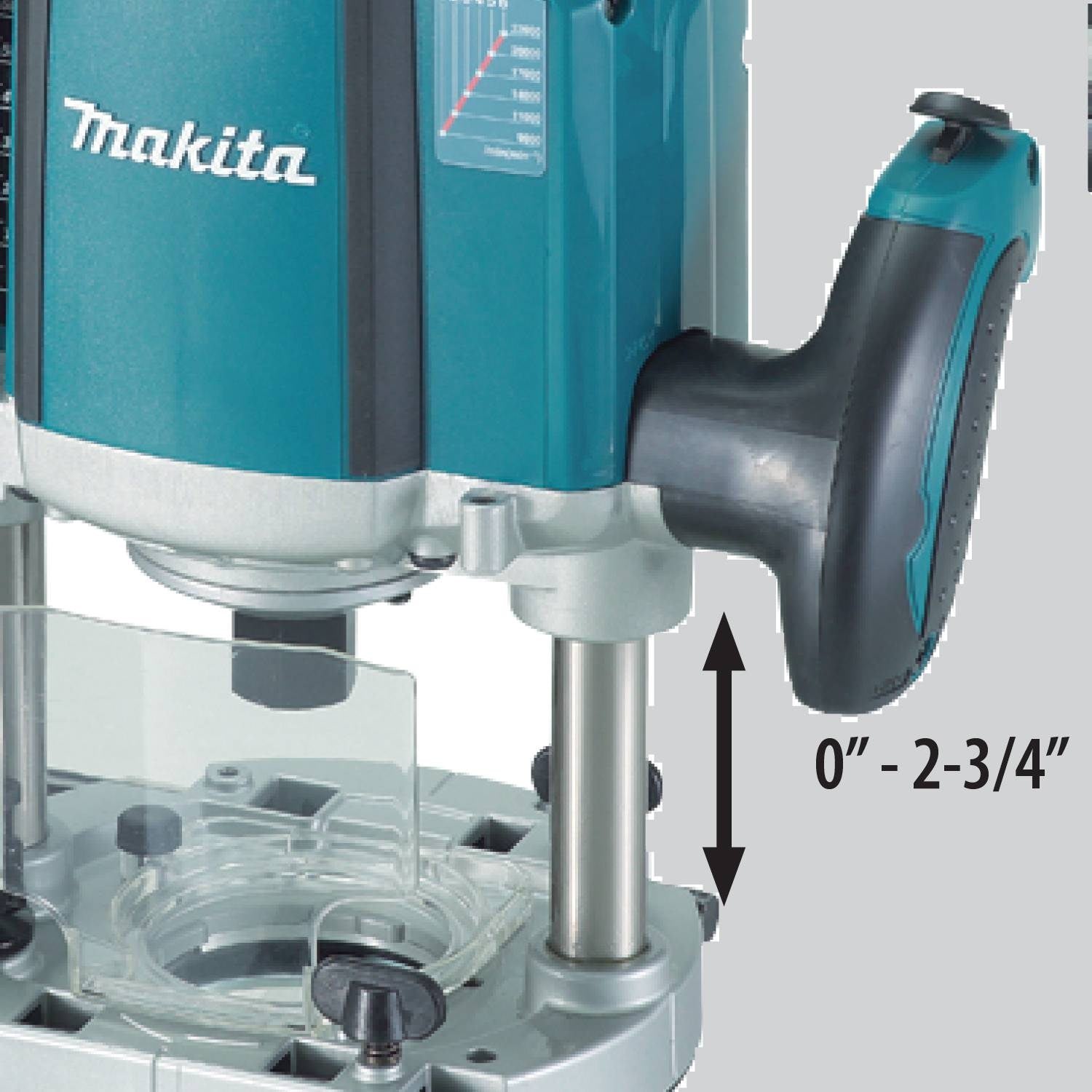

The Makita 3-1/4 HP plunge router with variable speed (RP2301FC) delivers powerful precision with smooth plunge action and superior performance, with added features including variable speed, electronic speed control and an electric brake. The RP2301FC is engineered with 15 AMP power, ease-of-use features, and an increased plunge capacity for a wide range of applications including fine woodworking, cabinetry, windows, doors, and more. The RP2301FC features a 15 AMP motor with variable speed from 9,000 to 22,000 RPM, and electronic speed control to maintain constant speed under load. The RP2301FC has a soft start feature for smooth start-ups and an electric brake for increased productivity. It has a 0 In. – 2-3/4 in. plunge depth capacity for easy penetration into the work piece, with linear ball bearings for smooth plunge action. The RP2301FC is engineered with oversized ball bearing construction – as well as a built-in fan with labyrinth construction to minimize dust from entering the tool – for longer tool life. The RP2301FC has ergonomic rubberized handles with a built-in two-finger switch for added control, with a lock-on trigger for continuous operation and built-in twin L.E.D. lights that illuminate the work area for increased visibility. The quick release plunge depth adjustment with micro control and three preset depth stops are engineered for added precision, and the plunge lock lever is conveniently located for efficient operation. The RP2301FC is equipped with a shaft lock for quick and easy bit changes, and the tool-less template guide system provides quick and easy installation and removal. Additional ease-of-use features include easy-to-read depth scales, a chip deflector engineered to direct chips away from the operator, and a durable flat top design for stability when changing bits.

Features

• Powerful 15 AMP motor delivers 9,000-22, 000 RPM for smooth routing
• Electronic speed control maintains constant speed under load

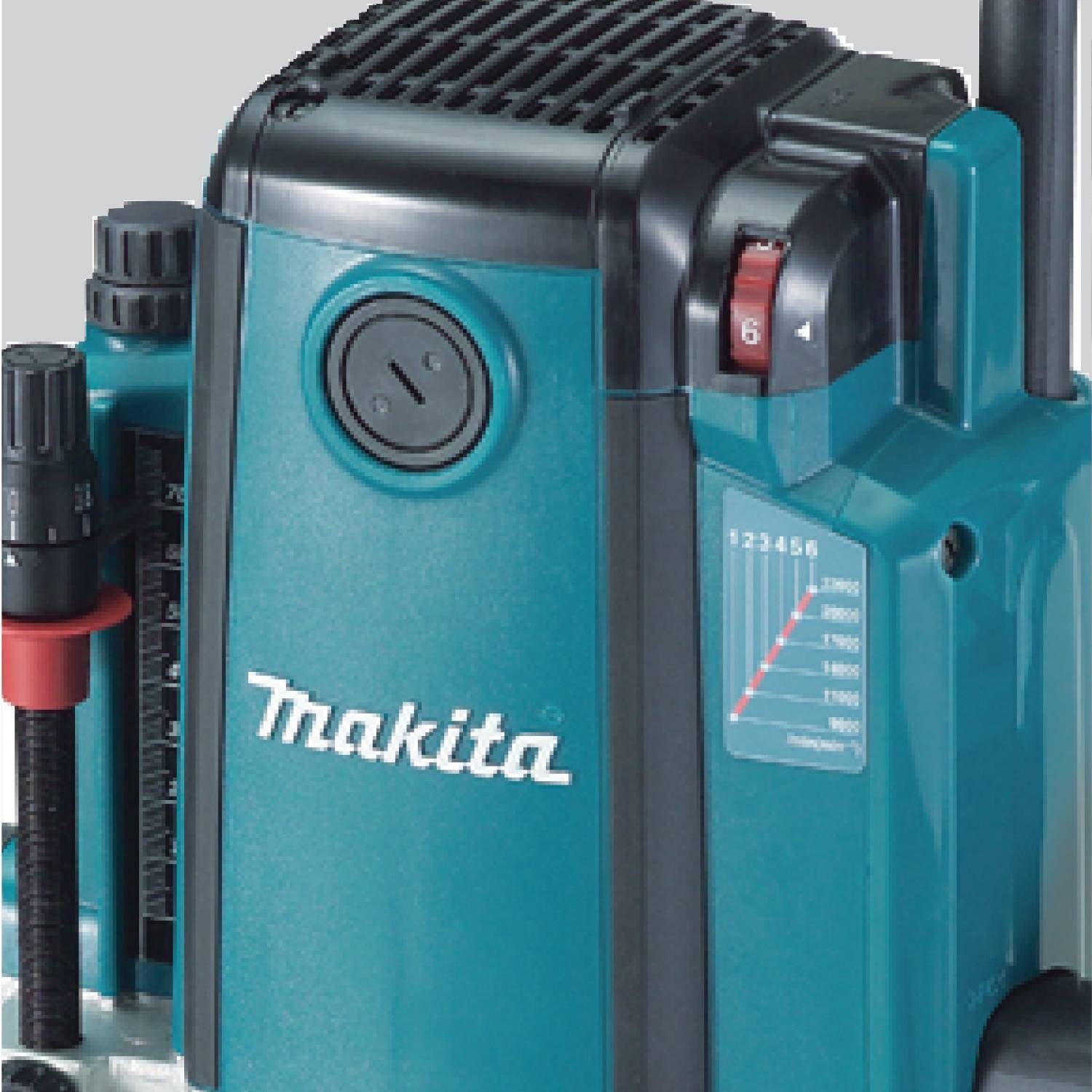

• Variable speed control dial enables user to match the speed to the application
• Soft start feature for smooth start-ups

What our Experts Think

• 3-1/4 HP motor provides exceptional power for deep cuts and challenging routing tasks.
• Variable speed control (9,000–22,000 RPM) allows optimized performance across different materials and applications.
• Plunge base design offers smooth, controlled depth adjustments for versatile routing operations.
• Electronic speed control maintains consistent RPM under load for cleaner, more precise cuts.
• Built-in LED lights improve visibility around the cutting area for enhanced accuracy.
• Electric brake quickly stops the bit after shutdown for improved safety and productivity.
• Precision depth adjustment system allows fast, accurate setup and repeatable results.
• Ergonomic handles and balanced design provide better comfort and control during extended use.
• Durable construction is built for professional woodworking environments.

Q&A

Maintenance Tips

• Clean after use: Remove wood dust and debris from the router base, vents, collet area, and plunge mechanism to maintain performance.
• Maintain the collet and bits: Keep the collet clean, inspect router bits for damage, and ensure bits are securely tightened before operation.
• Lubricate plunge components: Keep plunge posts and moving parts clean for smooth adjustment and consistent routing accuracy.
• Check brushes and motor: Inspect carbon brushes periodically and replace worn brushes to maintain motor performance.
• Protect ventilation openings: Clear dust buildup around air vents to help the 15 AMP motor maintain proper cooling.
• Inspect safety features: Verify the electric brake, switch operation, LED lights, and depth adjustment controls are working properly.
• Avoid harsh cleaners: Use a clean cloth for maintenance; do not use gasoline, thinner, alcohol, or similar chemicals.
• Store properly: Keep the router in a dry, dust-free area and protect the base and accessories when not in use.
