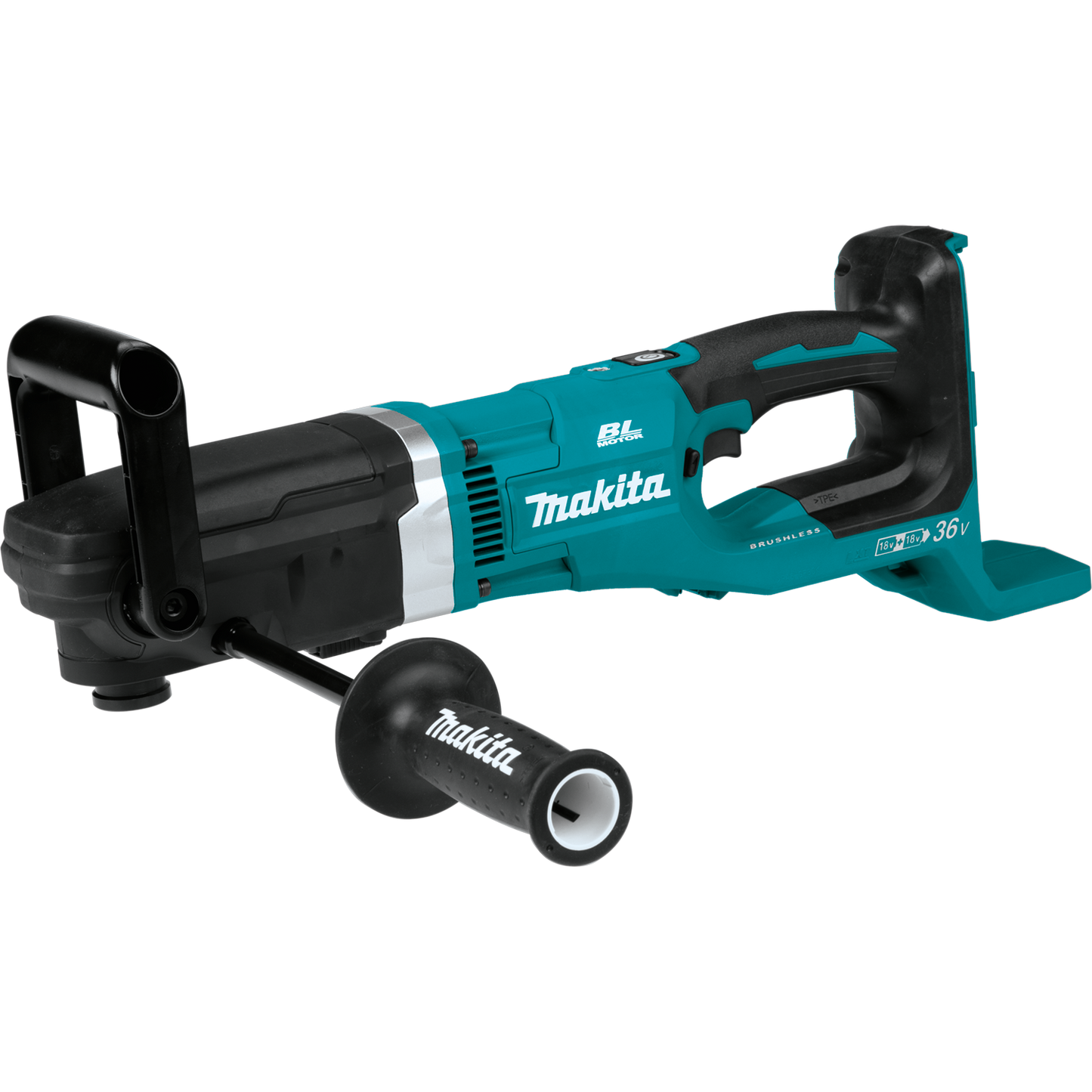

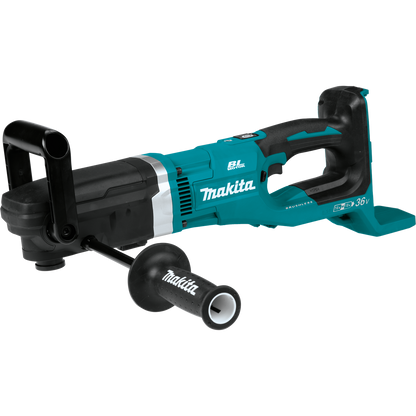

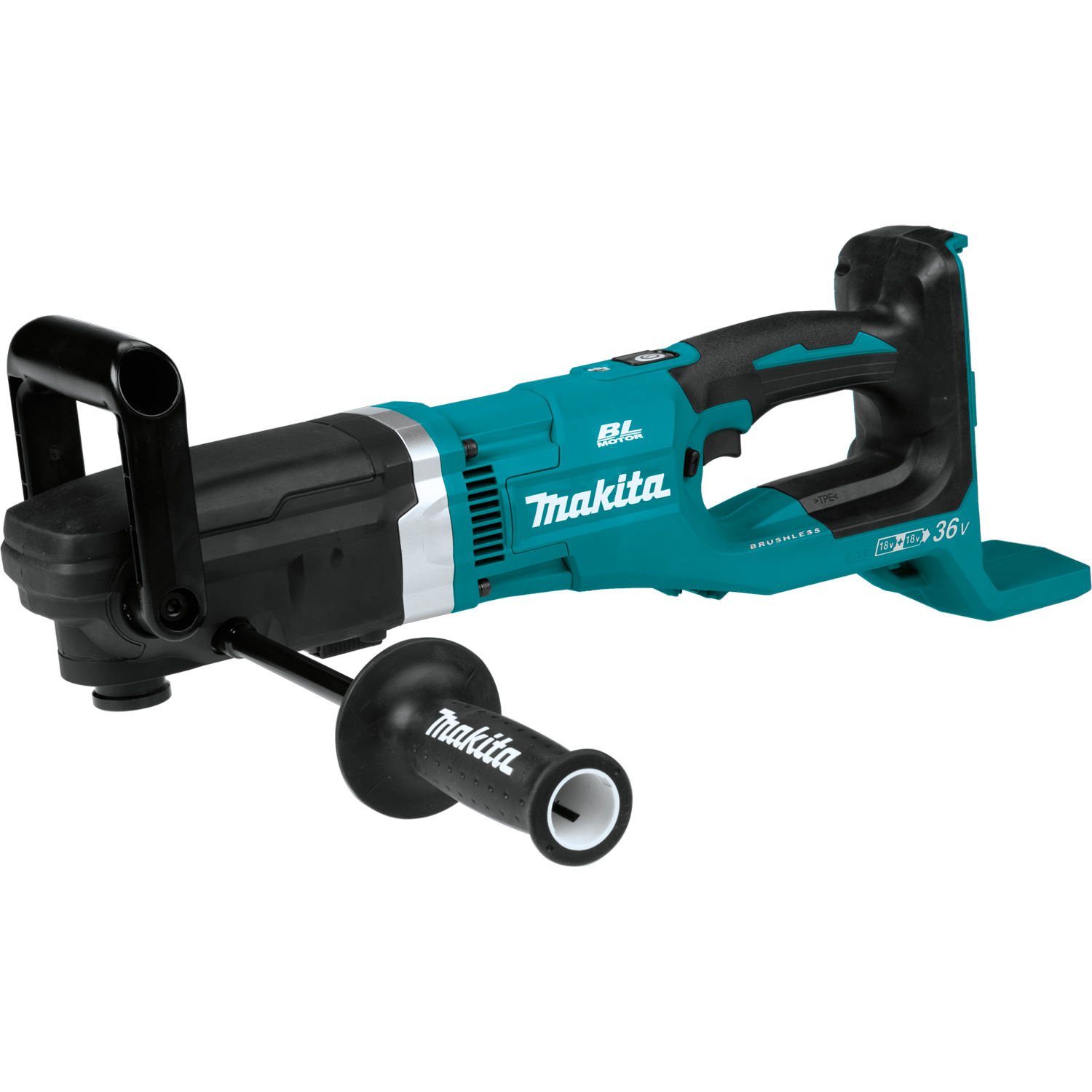

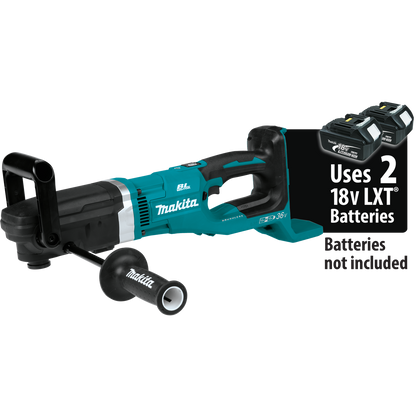

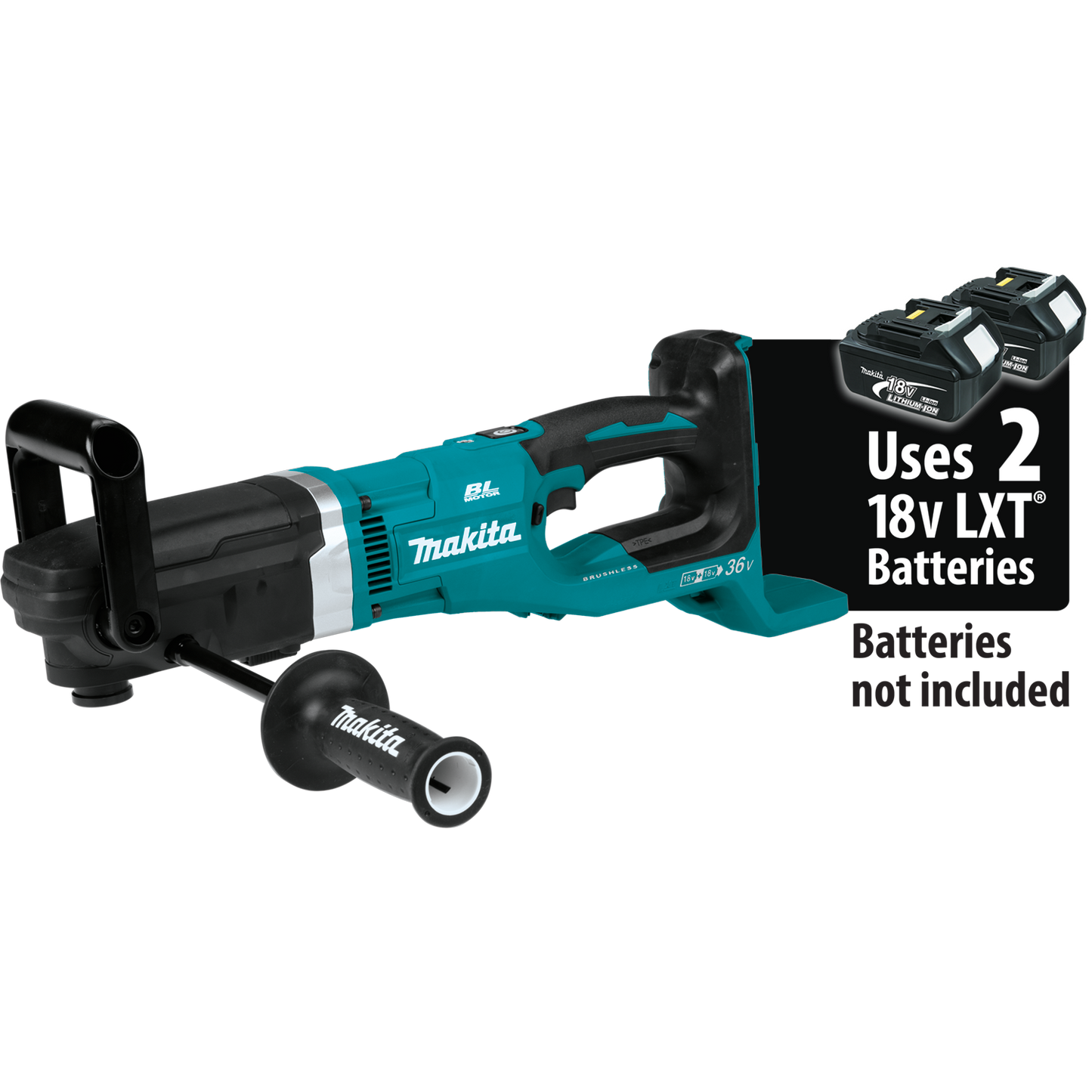

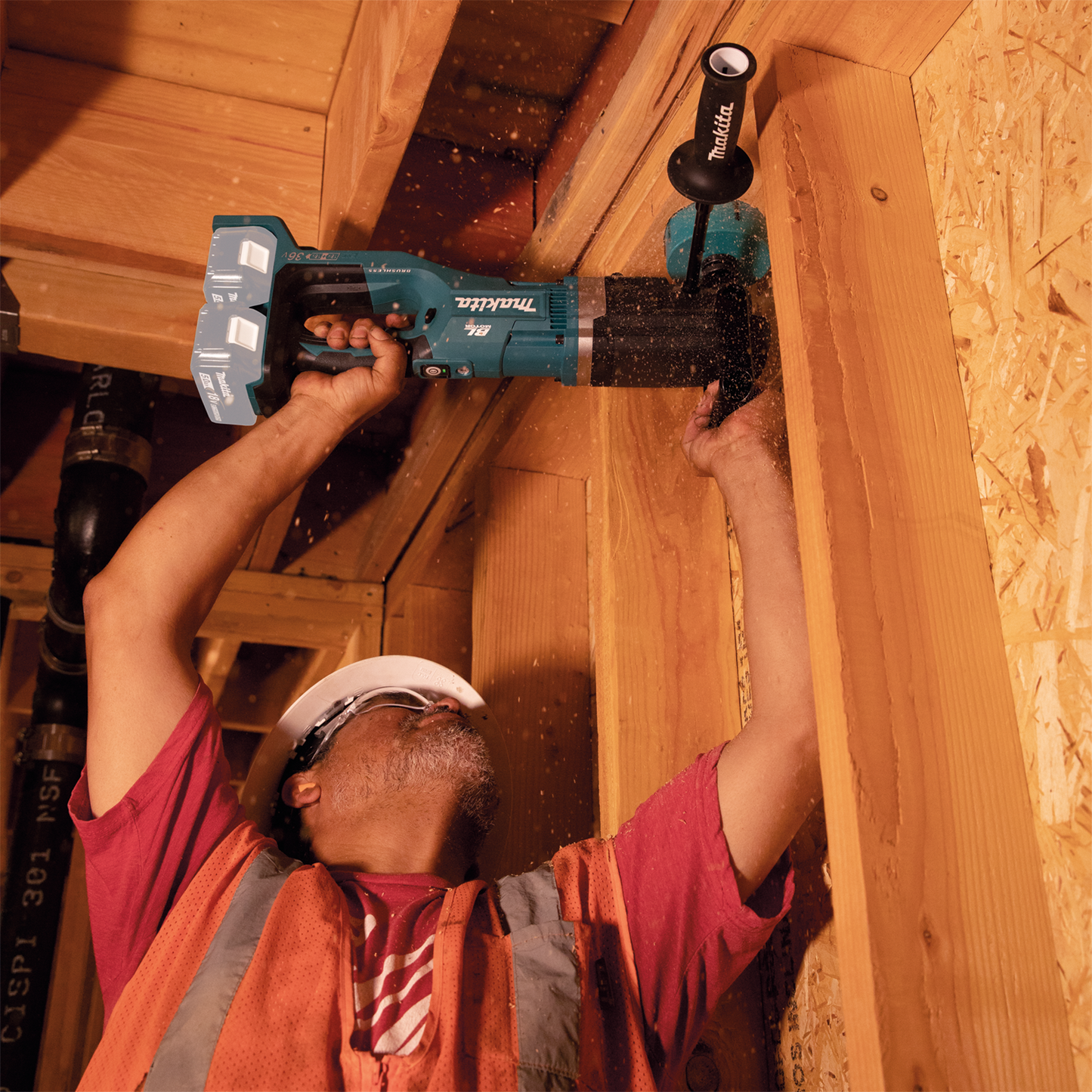

Makita XAD04Z 36V (18V X2) LXT Brushless Cordless 7/16" Hex Right Angle Drill (Tool Only) - DML813

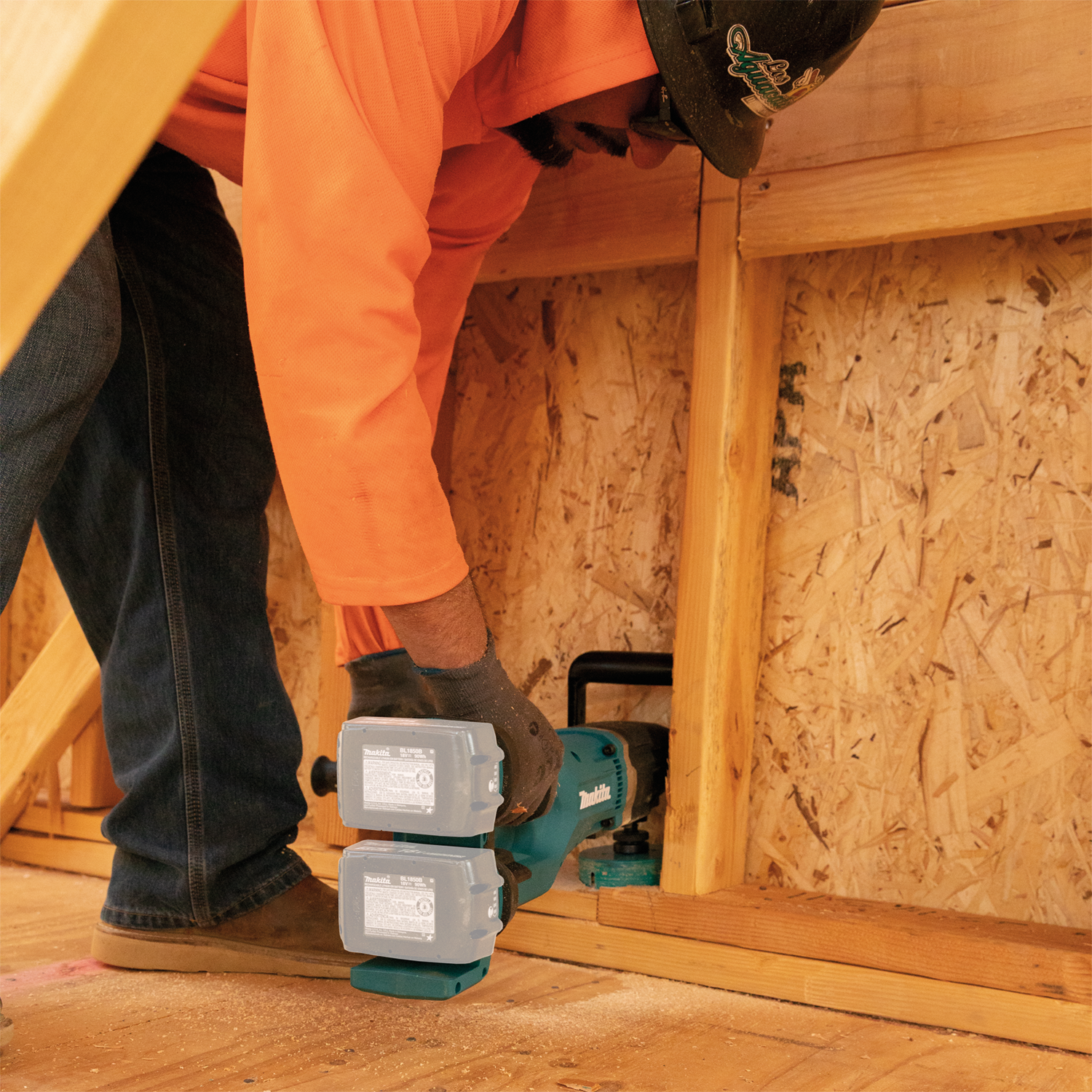

- Powered by two LXT batteries; X2 LXT technology delivers more power, speed and run time without the hassles of a cord (batteries not included)

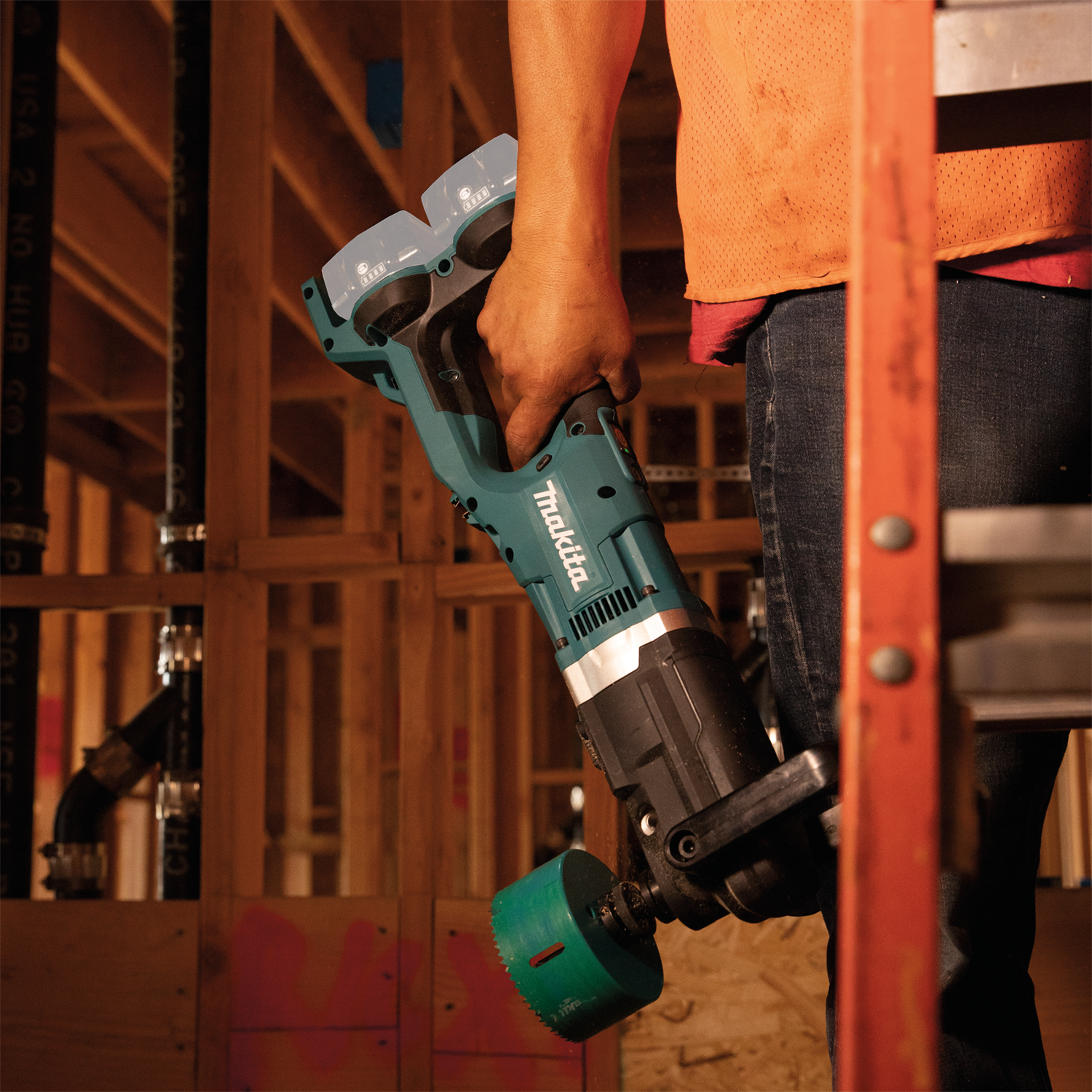

- Drills up to 6-1/4" holes with hole saws and 4-5/8" holes with self feed bits
- Drills up to 160 2-9/16" holes per charge in 2x SPF using two 5.0Ah batteries and self feed bit (batteries and bit not included)

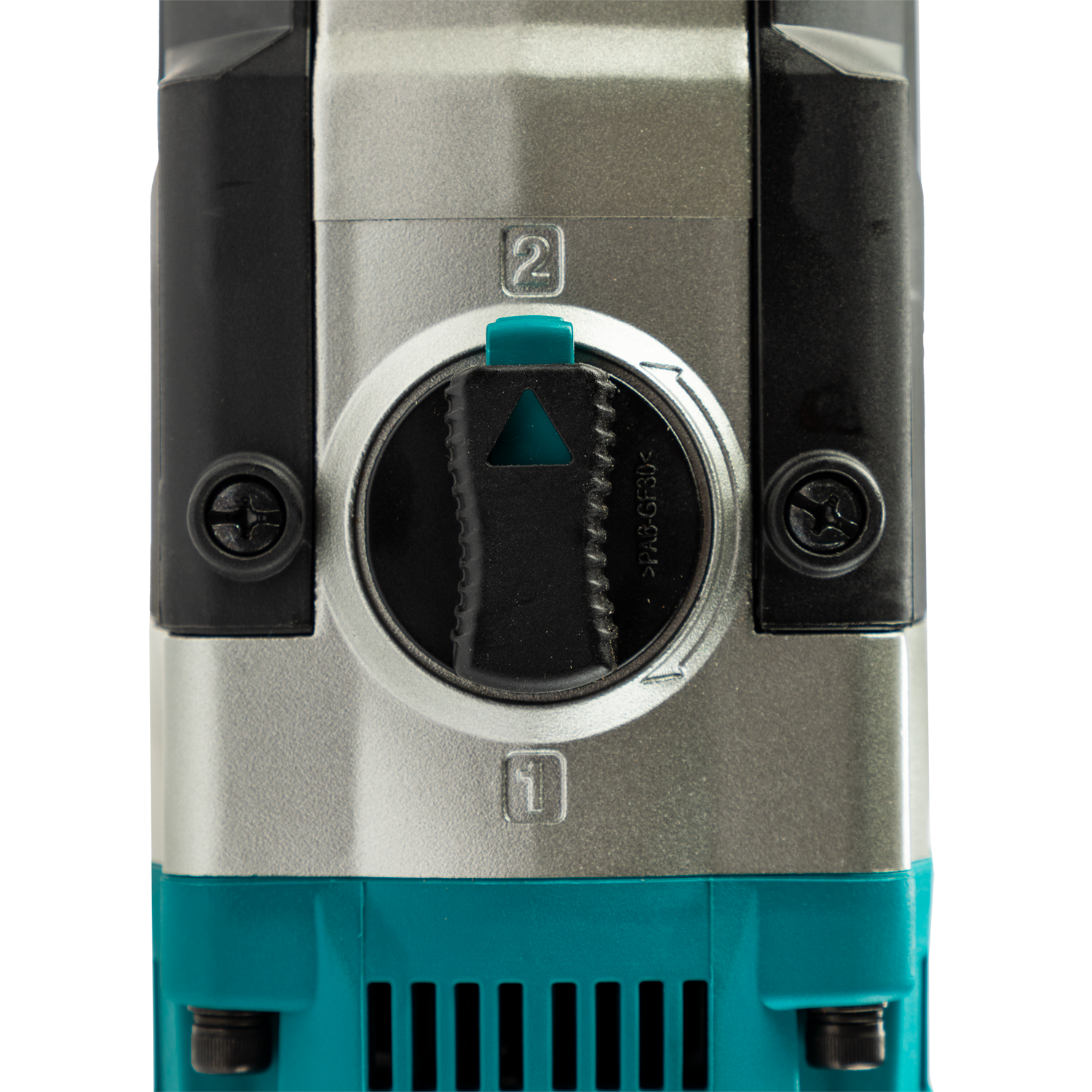

- Makita-built brushless motor combined with X2 LXT technology delivers no-load drilling speeds of 0-350 RPM and 0-1,400 RPM for maximum efficiency
- Automatic Speed Change technology adjusts drill speed and torque during drilling for optimum performance
What our Experts Think
-
36V (18V X2) brushless motor system delivers high power for demanding drilling applications.
-
7/16" hex quick-change chuck provides secure bit retention and fast bit changes.
-

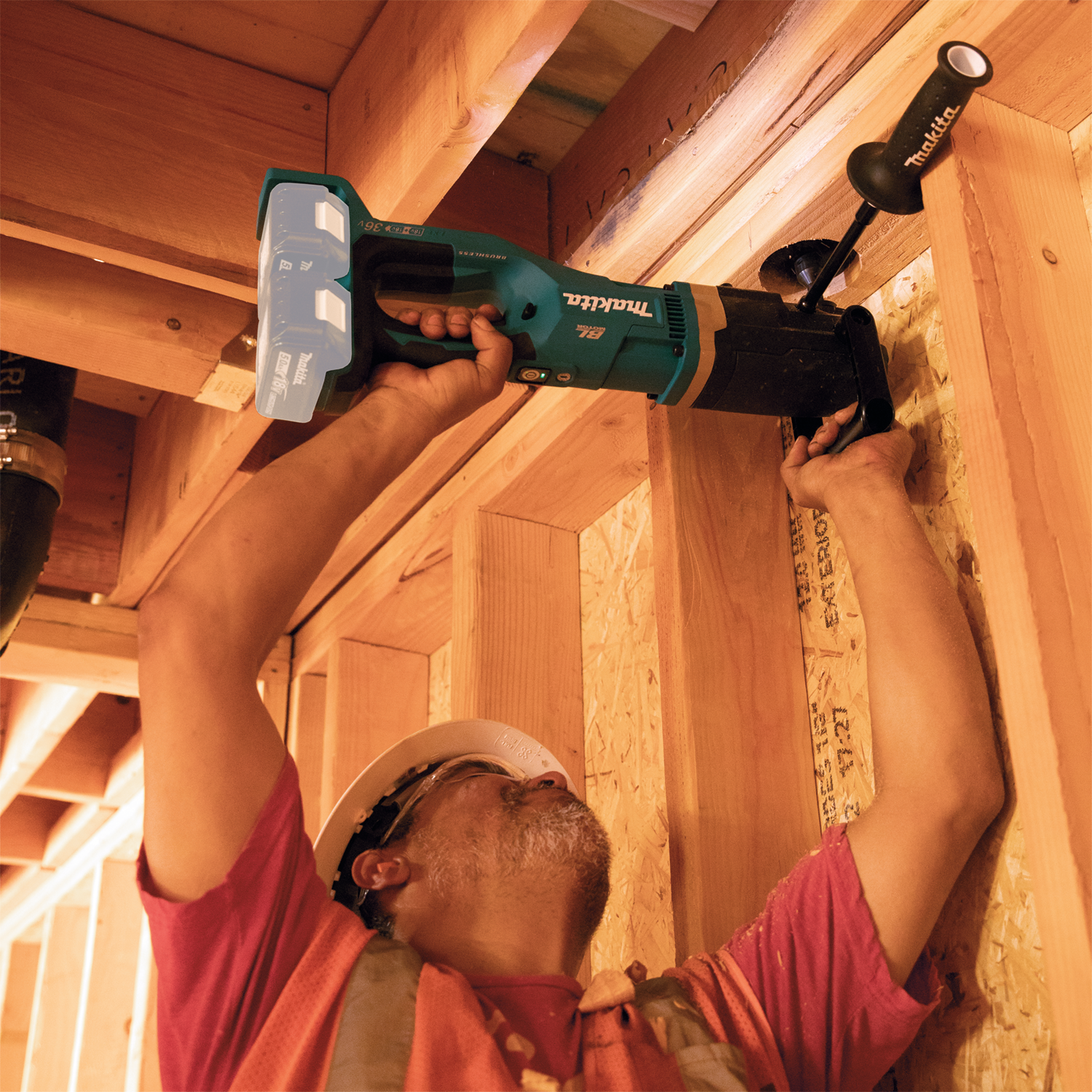

Right-angle design allows access in confined spaces where standard drills cannot reach.
-
High torque performance makes it ideal for large-diameter drilling through wood and other materials.
-

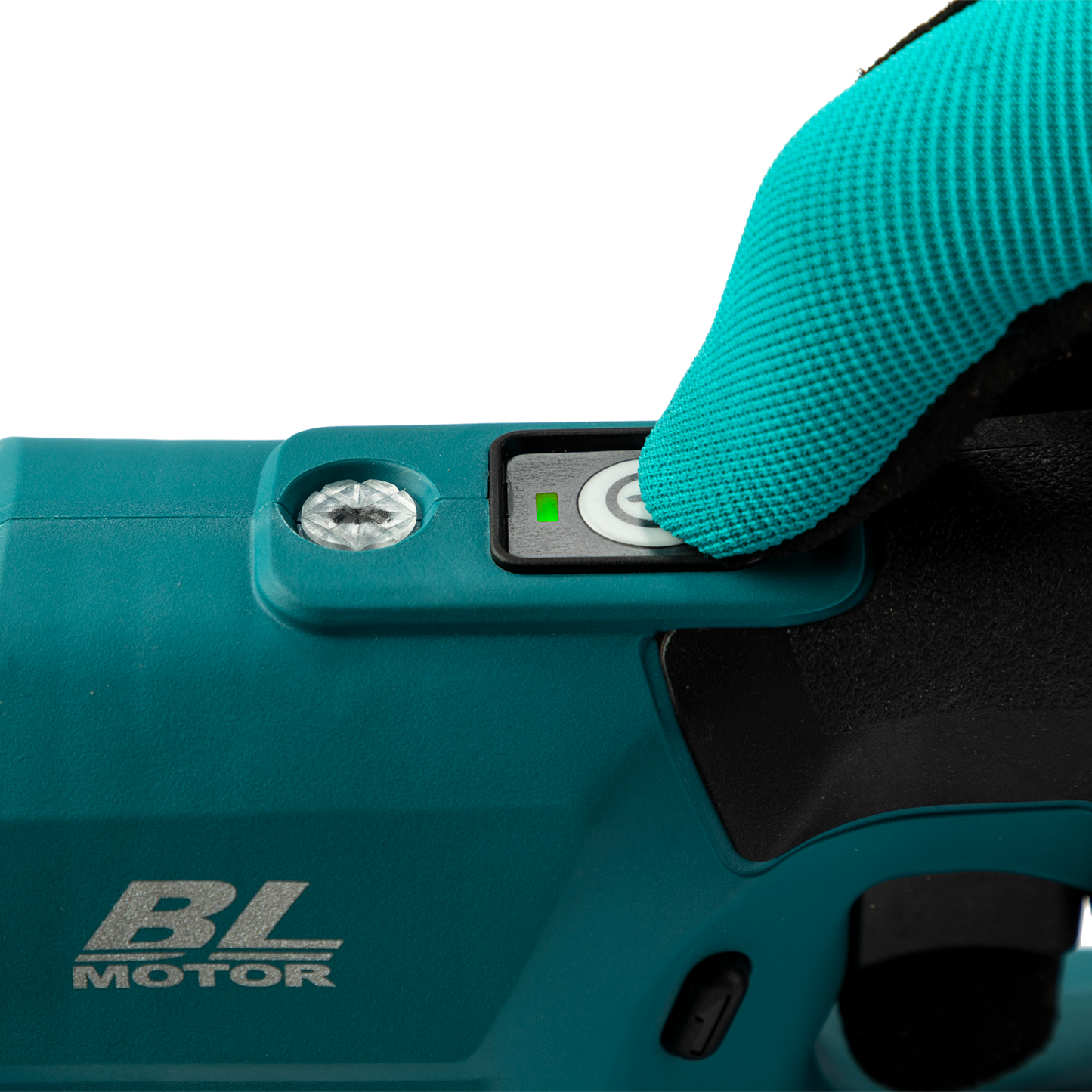

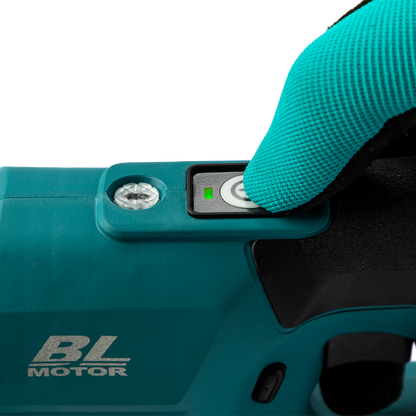

Brushless motor technology improves efficiency, runtime, and tool durability.
-
Variable speed trigger provides precise control for different drilling tasks.
-
Electric brake enhances safety by quickly stopping the bit after trigger release.
-
Extreme Protection Technology (XPT™) helps protect against dust and moisture in harsh environments.
-
Tool-only design is ideal for users already invested in the Makita 18V LXT battery platform.
Q&A
Q: What is the Makita XAD04Z right angle drill?
A: The Makita XAD04Z is a 36V (18V X2) LXT® Brushless cordless 7/16" hex right angle drill designed for heavy-duty drilling applications in construction, plumbing, electrical, and woodworking.
Q: What batteries does the Makita XAD04Z use?

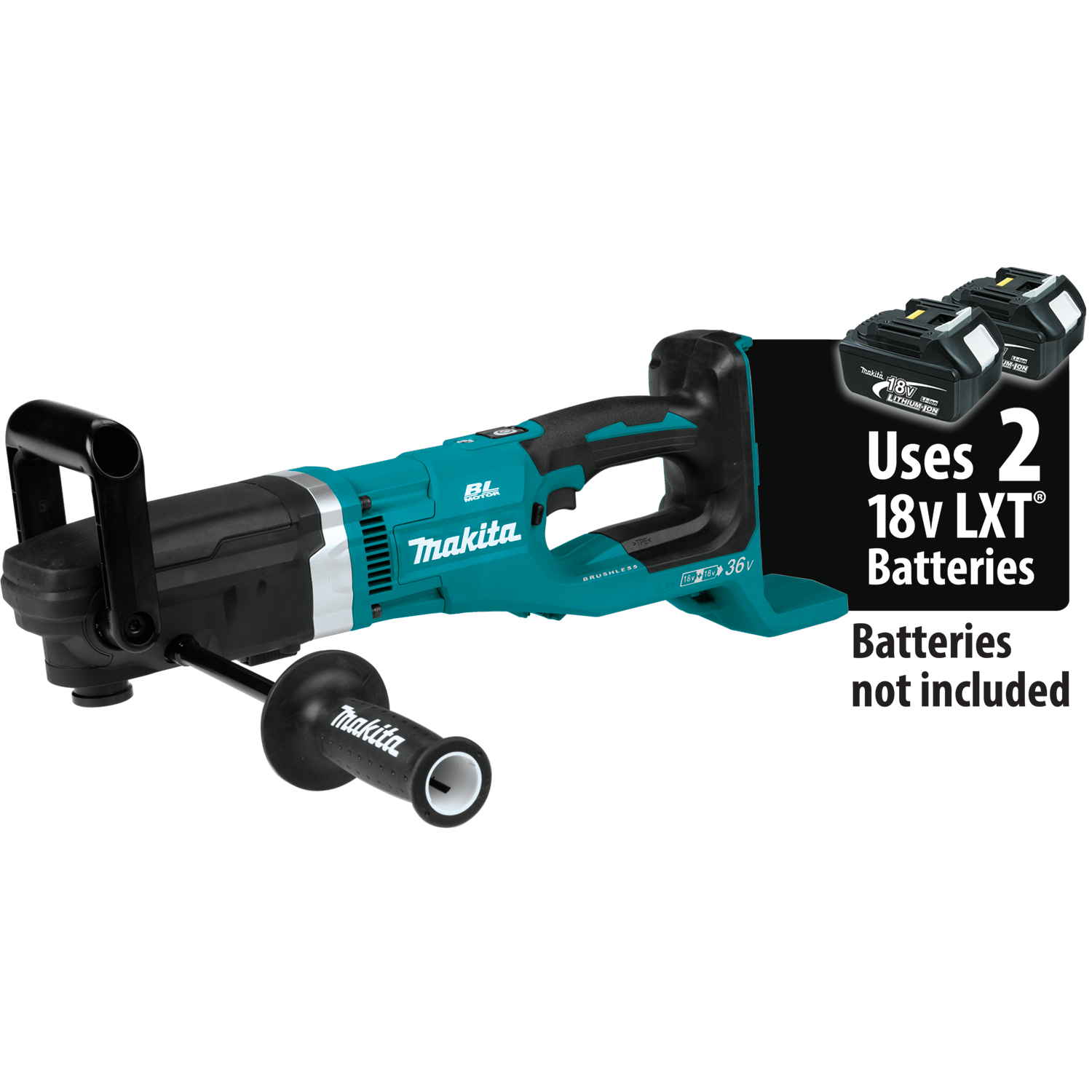

A: It uses two 18V LXT Lithium-Ion batteries to deliver 36V power and extended runtime. This is a tool-only model; batteries and charger are sold separately.
Q: How powerful is the Makita XAD04Z?
A: Its BL Brushless Motor provides two-speed variable operation from 0-350 RPM and 0-1,400 RPM for high torque drilling performance.
Q: What size bits does the XAD04Z accept?
A: It features a tool-less 7/16" hex sleeve for quick bit installation and removal, ideal for large drilling applications.
Q: What drilling capacity does the Makita XAD04Z offer?
A: It can drill up to 6-1/4" holes with hole saws, 4-5/8" holes with self-feed bits, and 1/2" holes in steel.
Q: Does the XAD04Z have speed control technology?
A: Yes. Automatic Speed Change technology adjusts speed and torque during drilling to optimize performance under changing loads.
Q: What safety features are included on the Makita XAD04Z?
A: It features an electric brake, built-in clutch for reduced gear damage if the bit binds, torque limiter, and Star Protection Computer Controls™ for overload, over-discharge, and overheating protection.
Maintenance Tips
-
Clean after use: Remove wood chips, dust, and debris from the hex sleeve, vents, handles, and housing to maintain performance.
-
Inspect the hex sleeve: Keep the 7/16" hex shank holder clean and check for wear to ensure secure bit installation.
-
Protect the brushless motor: Keep cooling vents clear to prevent overheating and maintain efficient operation.
-

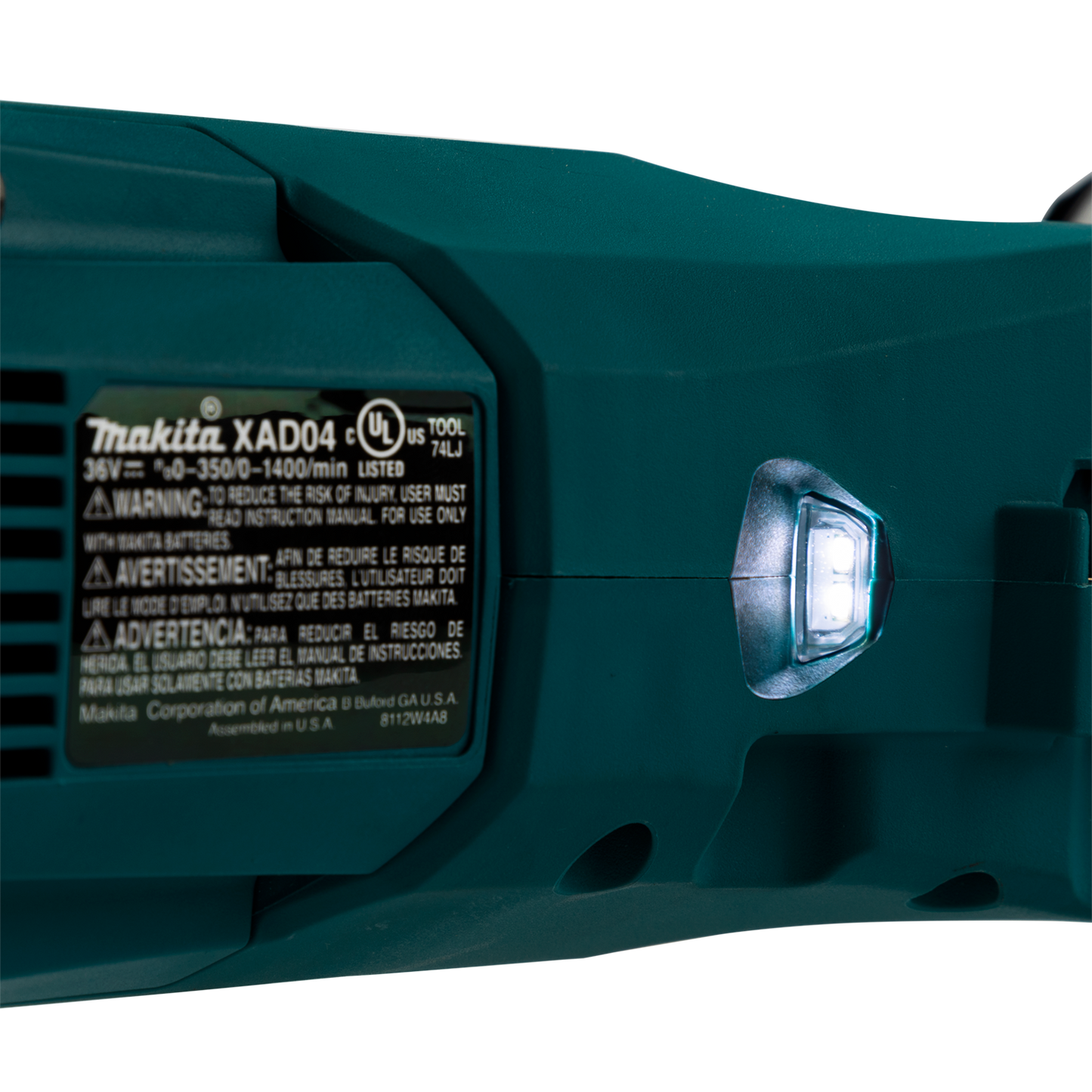

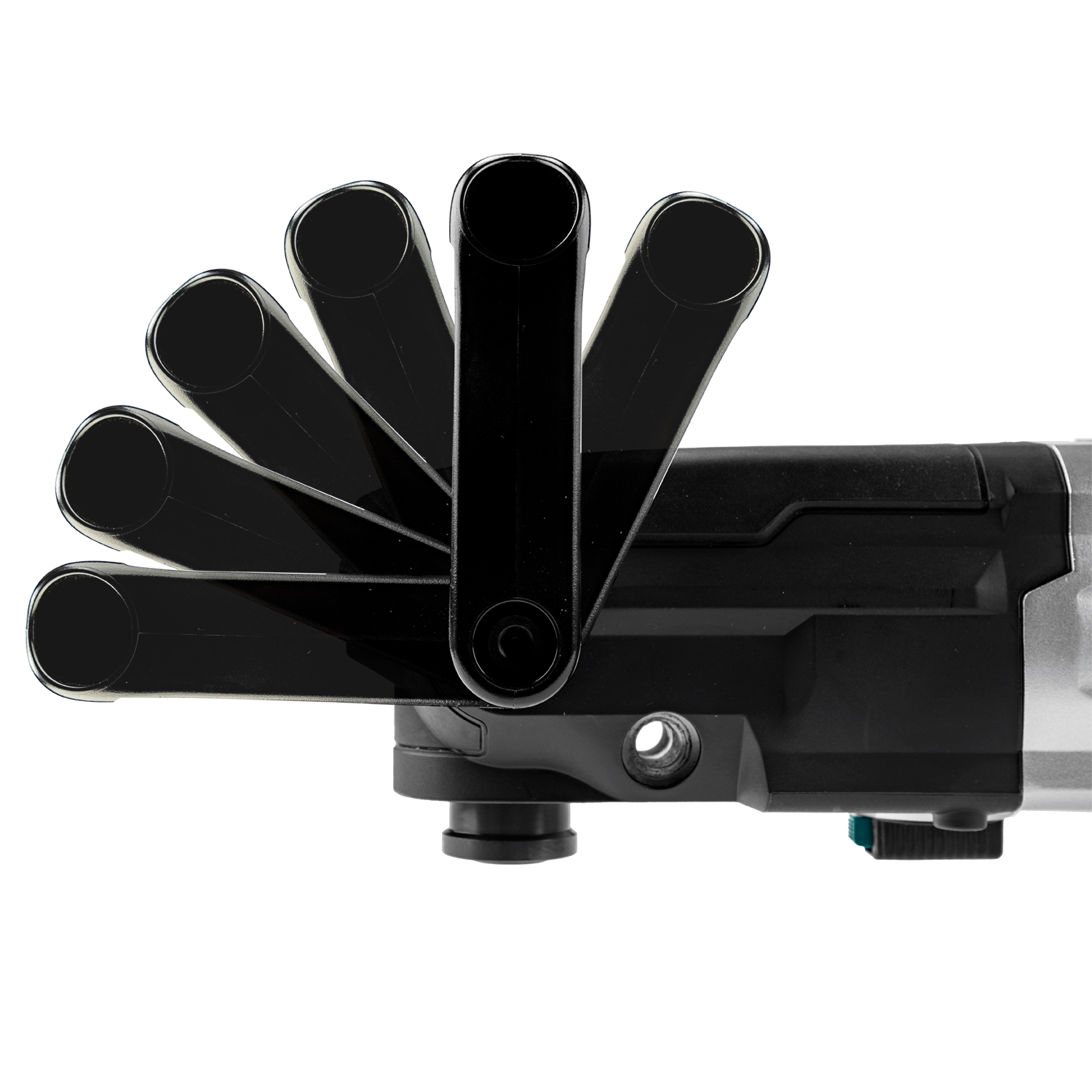

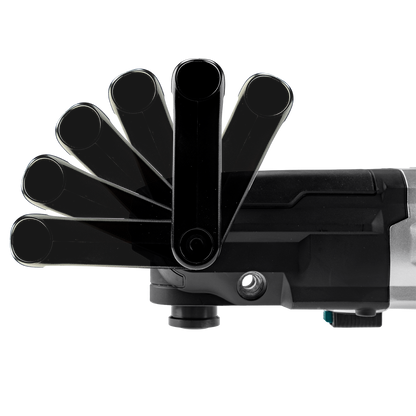

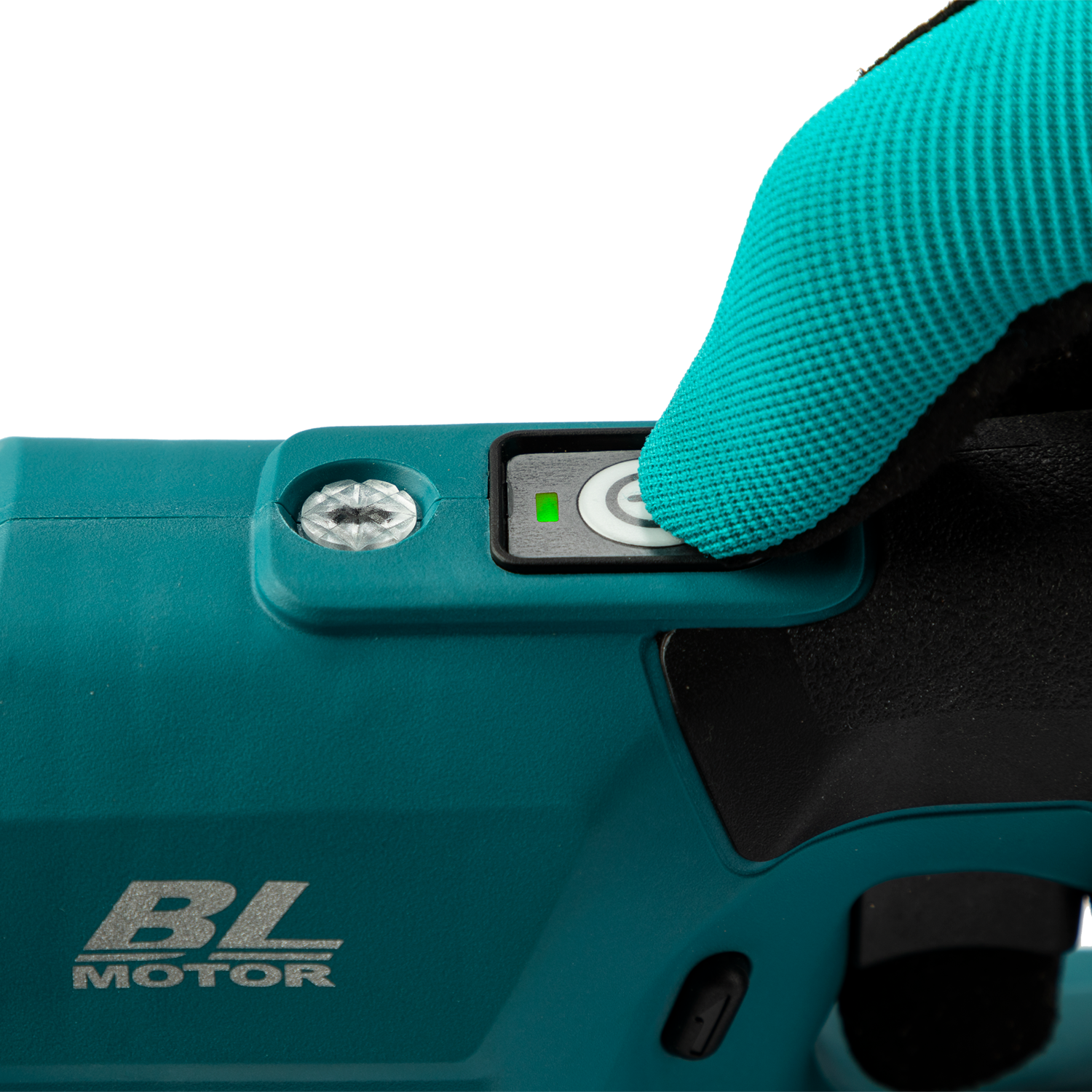

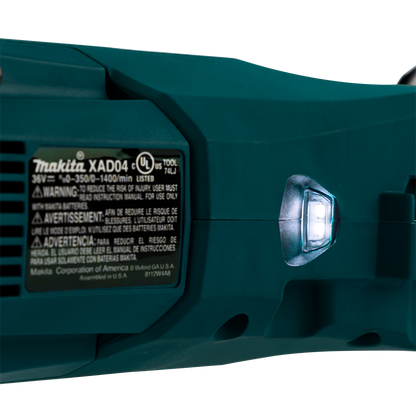

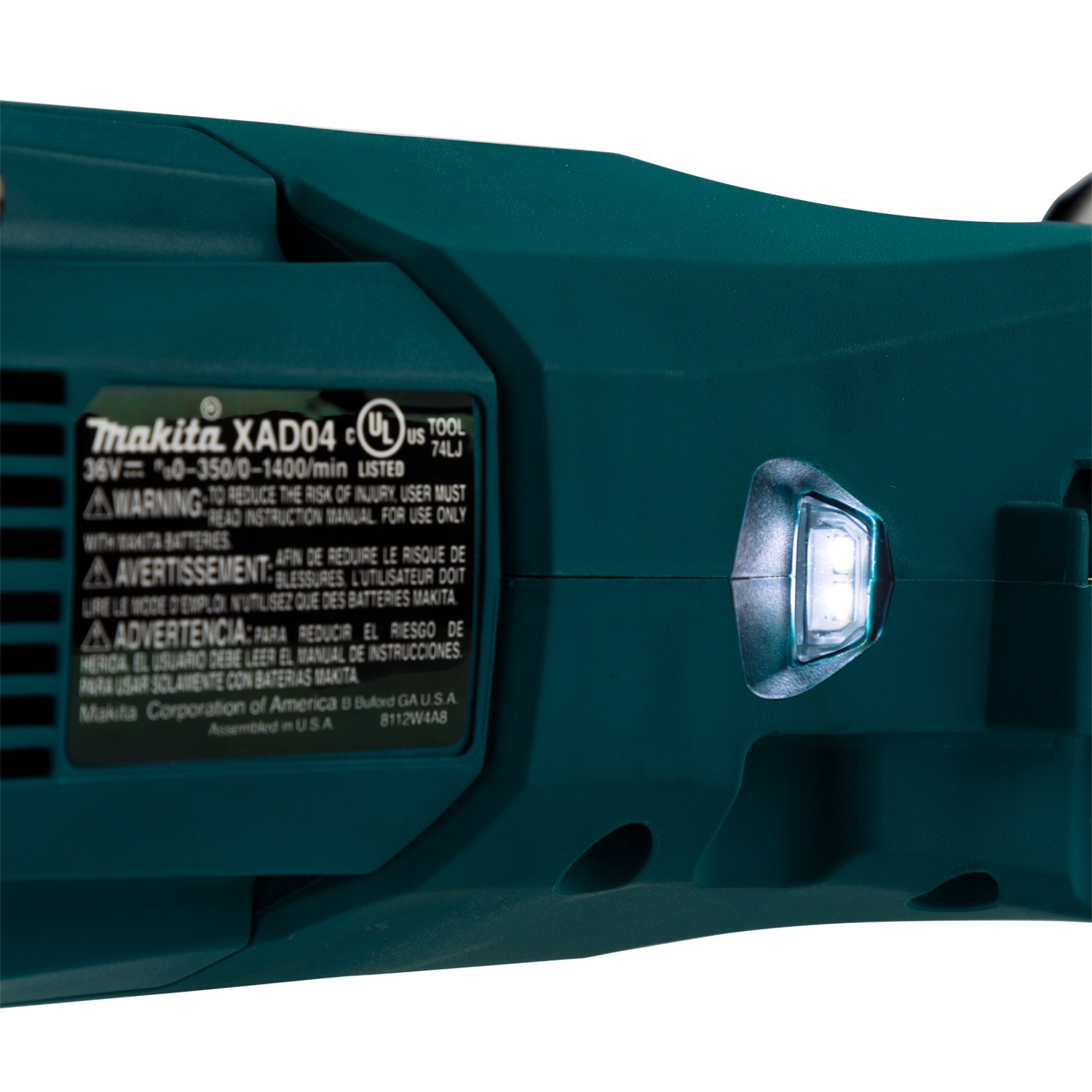

Check handles and controls: Inspect the top handle, side handle, trigger, and LED light for proper operation before use.
-
Maintain batteries: Store 18V LXT batteries in a cool, dry place and keep battery contacts clean for reliable performance.
-
Avoid harsh cleaners: Do not use gasoline, thinner, alcohol, or similar chemicals; clean with a soft cloth instead.
-
Inspect regularly: Check for loose fasteners, unusual vibration, or damage before operation.
-
Store properly: Remove batteries, clean the drill, and store it in a dry location to extend tool life.
