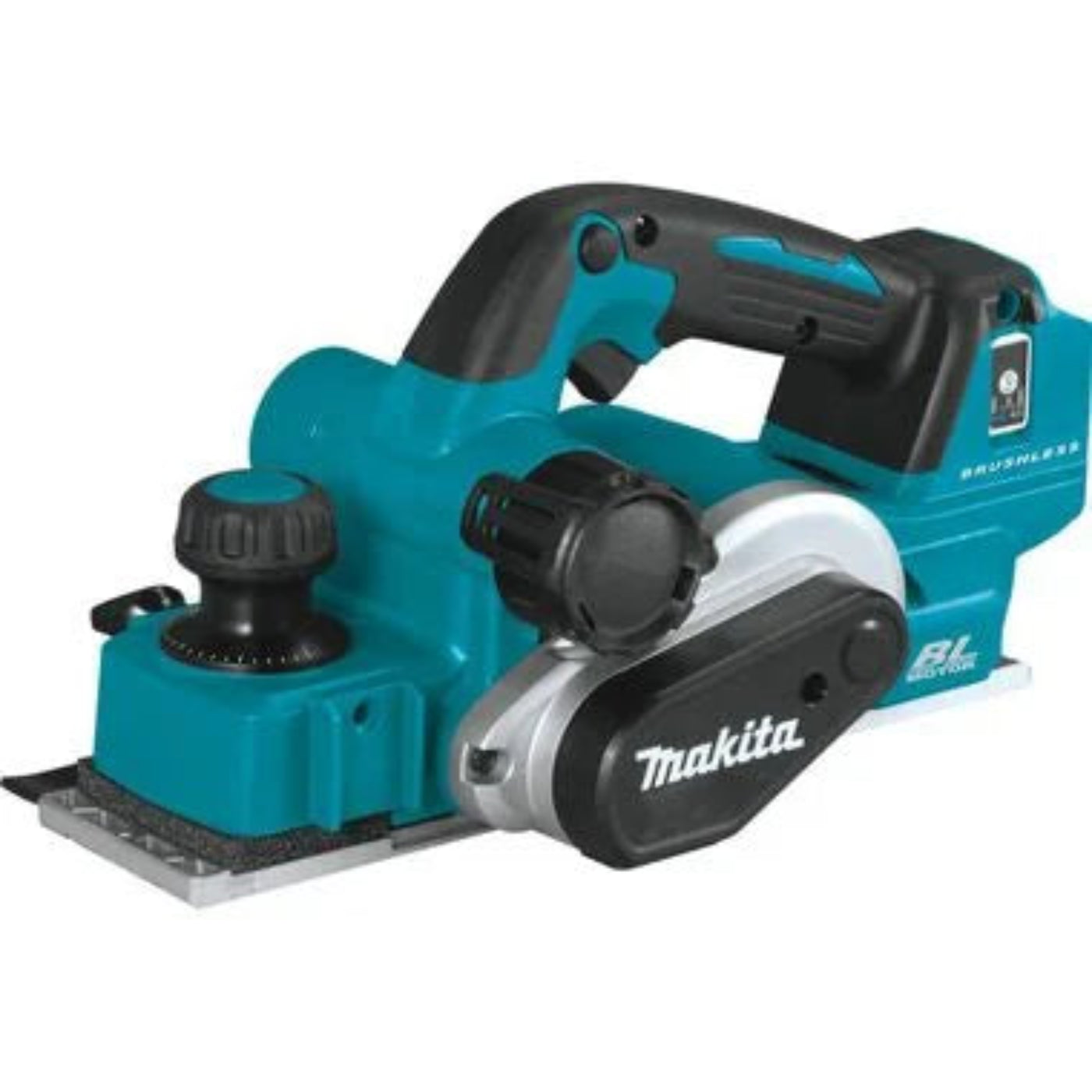

Makita 18V LXT 3-1/4 In. Planer (Bare Tool) - XPK02Z

Makita 18V LXT 3-1/4 In. Planer (Bare Tool) - XPK02Z

The Makita 18 Volt LXT Brushless Cordless Planer is a perfect tool for any door installers, finish carpenters, deck installers and general contractors. The planer can plane 3-1/4" wide and 1/8 Inch deep surfaces in a single pass with rabbet up to 1" deep. The aluminum base gives better stability and accuracy. Three chamfering grooves make it easy and convenient to use. It is powered by a brushless motor that eliminates carbon brushes and operates at a speed of 12,000 RPM. User can adjust the planning depth with the help of a click-depth knob, which features an easy-to-read scale with settings from 0 to 7/64". The Auto-Start Wireless System (AWS) uses Bluetooth technology to communicate between the tool and the dust extractor better. For increased productivity, the planer features a blade setting mechanism facilitates quicker blade installation and an electric brake. Integrated Star Protection technology helps in preventing overheating, over-discharging and overloading of the battery. Automatic speed change mechanism helps in adjusting the speed and torque while operating. Two-blade cutter head delivers sharp and accurate results. The ergonomic design and the soft grip on the handle prevent fatigue and improve user comfort.

Features

• Makita-built brushless motor delivers 12,000 RPM for faster stock removal.
• Automatic Speed Change technology adjusts cutting speed and torque during cut for optimum performance.
• Auto-Start Wireless System (AWS) utilizes Bluetooth technology for wireless power-on/off communication between tool and optional dust extractor.
• AWS capable with Auto-Start Wireless Transmitter (part no. 198901-5) sold separately.
• 2-blade cutter head with double edge carbide blades for added performance and smooth finish.
• High power-to-weight ratio; weighs only 7.8 lbs. with battery (battery not included).
• Planes up to 3-1/4" wide and 1/8" deep in a single pass with ability to rabbet up to 1" deep.
• 18V LXT Lithium-Ion Brushless Cordless 3-1/4" Planer, AWS™ Capable, Tool Only.
• Chip ejection can be directed to either side of the tool for convenience.
• Spring-loaded stand elevates the base to protect the blades and workpiece.

What our Experts Think

• Cordless Planing Power: The Makita XPK02Z 18V LXT Brushless Cordless 3-1/4" Planer delivers professional performance with the freedom of a cordless platform, making it ideal for finish carpenters, remodelers, and contractors.
• Fast Material Removal: The efficient brushless motor delivers 12,000 RPM for smooth, quick stock removal while improving runtime and tool durability.
• Wide Cutting Capacity: The 3-1/4" planing width and 1/8" cutting depth per pass allow users to quickly level doors, boards, framing materials, and other wood surfaces.
• Smooth Professional Finish: The 2-blade cutter head with double-edge carbide blades helps produce clean, consistent results across woodworking applications.
• Precision Control: The precision-machined aluminum base and easy-to-read depth adjustment knob help achieve accurate cuts and repeatable results.
• Jobsite-Friendly Design: The spring-loaded stand protects the blades and work surface, while dual-side chip ejection improves convenience during operation.
• Enhanced Dust Management: AWS® capability allows connection with compatible dust extractors for automatic tool activation when paired with the optional transmitter.

Q&A

Q: What is the Makita XPK02Z used for?
A: It is a cordless planer designed for door installation, finish carpentry, remodeling, deck work, and general woodworking applications.

Q: What motor does the XPK02Z use?
A: It features a Makita-built BL Brushless Motor that delivers efficient power, longer runtime, and reduced maintenance.

Q: What is the planing capacity of the Makita XPK02Z?
A: It planes up to 3-1/4 inches wide and 1/8 inch deep in a single pass, with up to 1 inch rabbeting depth capability.

Q: How fast does the XPK02Z operate?
A: The brushless motor delivers up to 12,000 RPM for fast stock removal and smooth finishes.

Q: Does the Makita XPK02Z include a battery and charger?
A: No. The XPK02Z is a bare tool only; Makita 18V LXT battery and charger are sold separately.

Q: Is the XPK02Z compatible with Makita 18V LXT batteries?
A: Yes. It works with Makita 18V LXT Lithium-Ion batteries.

Q: Does the XPK02Z have brushless technology?
A: Yes. The brushless motor improves efficiency, durability, and runtime compared with traditional brushed motors.

Q: Does this planer provide accurate cuts?
A: Yes. It features a precision-machined aluminum base, adjustable depth control, and three chamfering grooves for accurate woodworking results.

Q: Does the Makita XPK02Z support dust extraction?
A: Yes. It is AWS capable, allowing wireless connection with compatible Makita dust extractors using an optional transmitter.

Maintenance Tips

• Remove the battery before cleaning, inspecting, or performing maintenance.
• Clean wood chips, dust, and debris from the chip discharge opening, blade area, and motor vents after each use.
• Keep the 3-1/4" planer blades sharp and properly installed for smooth cuts and a quality finish.
• Inspect carbide blades regularly for nicks, dull edges, or damage; replace when cutting performance decreases.
• Keep the precision-machined aluminum base clean to maintain accurate planing results.
• Check the blade mounting screws, depth adjustment knob, and guide components for proper tightness before use.
• Use compressed air to clear clogged chip discharge openings and prevent buildup.
• Keep battery contacts clean and store 18V LXT batteries in a cool, dry location.
• Do not use gasoline, thinner, alcohol, or harsh chemicals for cleaning, as they may damage tool components.
• Store the planer in a dry, protected area with the spring-loaded stand engaged to help protect the blades.
• Use genuine Makita replacement parts and authorized service for repairs to maintain safety and performance.
