Rich Solar 335 PRO | 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture - RS-M335P-8

Rich Solar 335 PRO | 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture  - RS-M335P-8

Features

• Generates 11.5 amps of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.

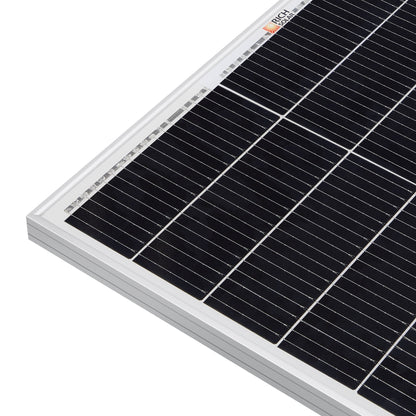

• Built with strong high transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.

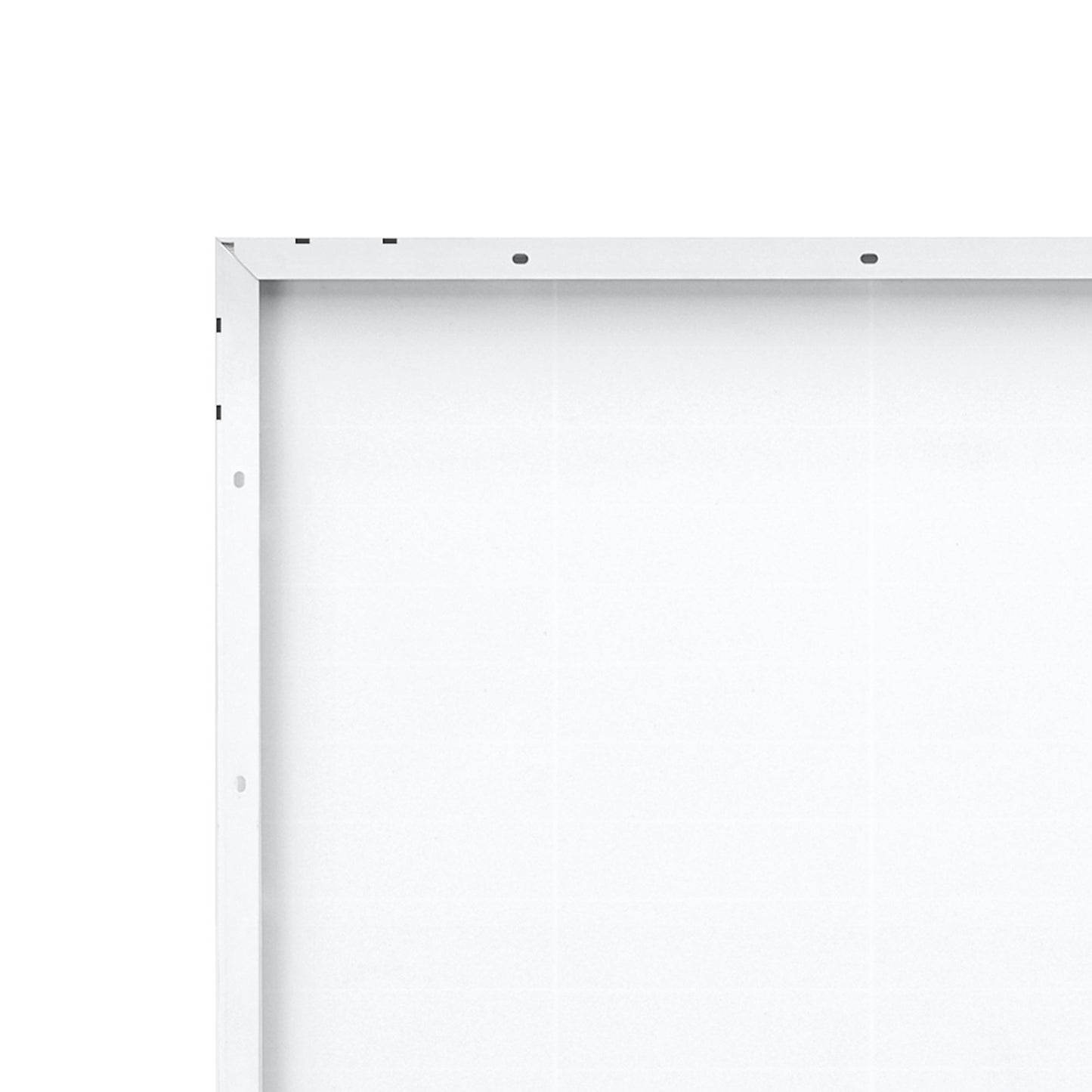

• Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year power output warranty and a 10-year workmanship warranty.

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

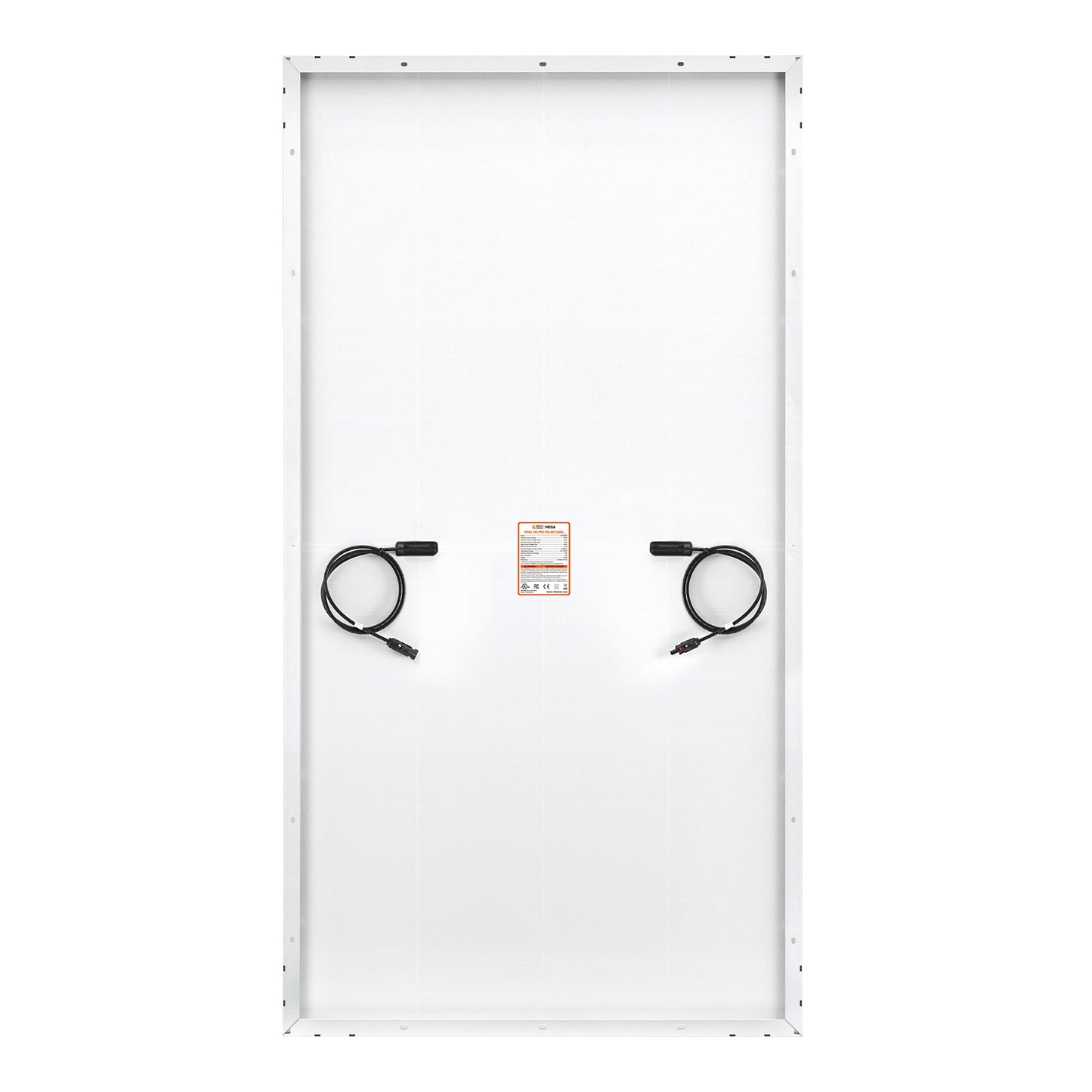

Built-in Components

• Panel leads (pair): 3 feet each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications

• Maximum Power(Pmax): 335W
• Maximum Power Voltage(Vmp): 29.2V
• Maximum Power Current(Imp): 11.5A
• Open Circuit Voltage(Voc): 36.9V
• Short Circuit Current(Isc): 11.8A
• Maximum System Voltage(Vmax): 1500VDC
• Temperature Range: -40°F ~ 185°F
• Max Series Fuse Rating: 20A

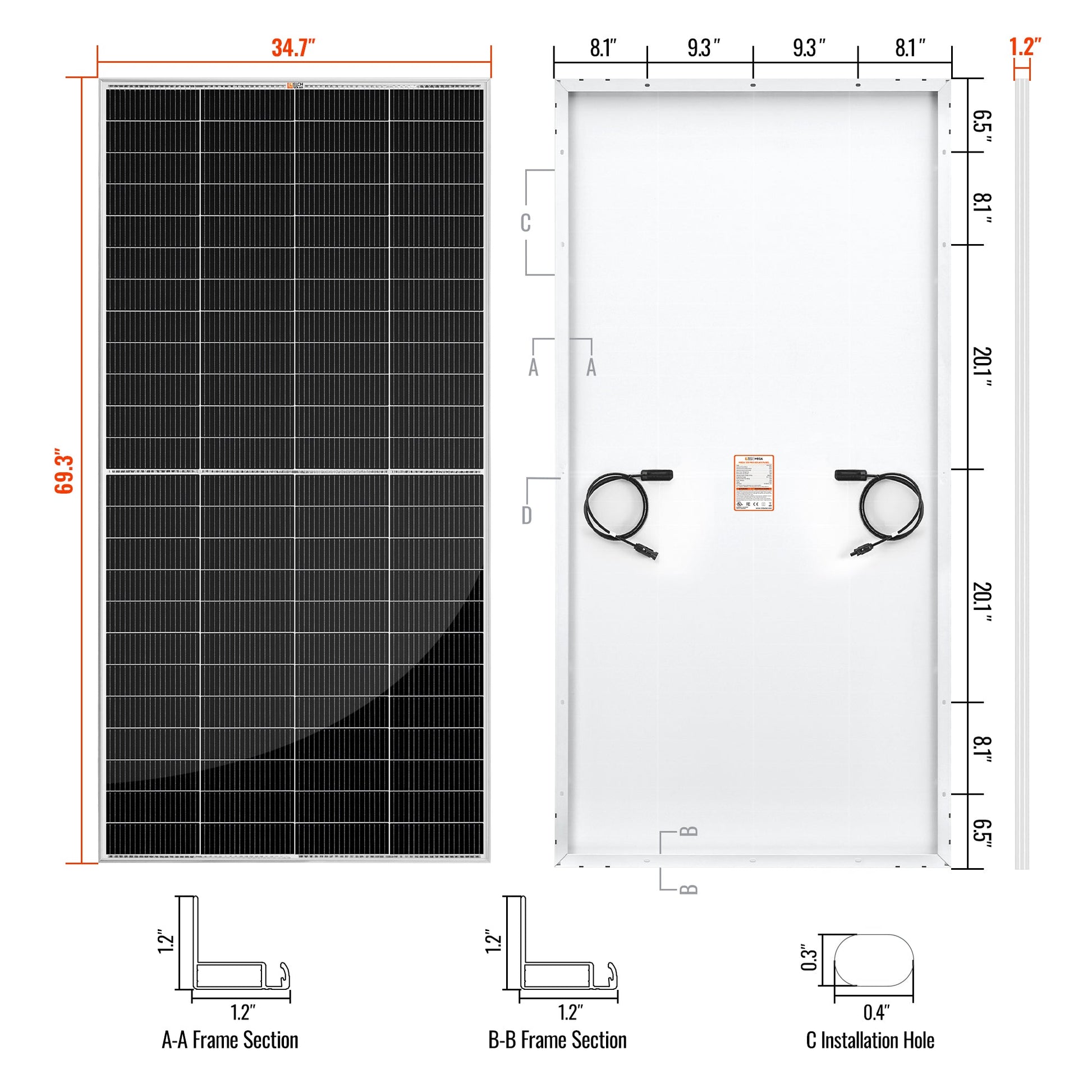

• Dimensions: 69.3 x 34.7 x 1.2 in
• Weight: 35.2 lb

What our Experts Think

Q&A

Maintenance Tips

• Keep panels clean and dust-free; use soft water and a microfiber cloth to maintain peak efficiency.
• Avoid abrasive cleaners, solvents, or pressure washing, which can damage tempered glass and anti-reflective coating.
• Ensure installation remains unshaded throughout the day; even partial shading reduces overall string performance.
• Inspect mounting structure regularly to confirm it is tight, level, and resistant to wind load.
• Check MC4 connectors, junction box, and wiring for loose fittings, corrosion, or heat discoloration.
• Maintain proper airflow behind panels to reduce heat buildup and efficiency loss.
• Monitor system output; sudden drops may indicate soiling, shading, or connection issues rather than panel failure.
• Avoid stepping on or placing heavy loads on panels to prevent micro-cracks in solar cells.
• Clean early morning or late evening to avoid thermal shock from hot panel surfaces.
• Perform an annual inspection of all electrical connections and mounting hardware for long-term reliability.
