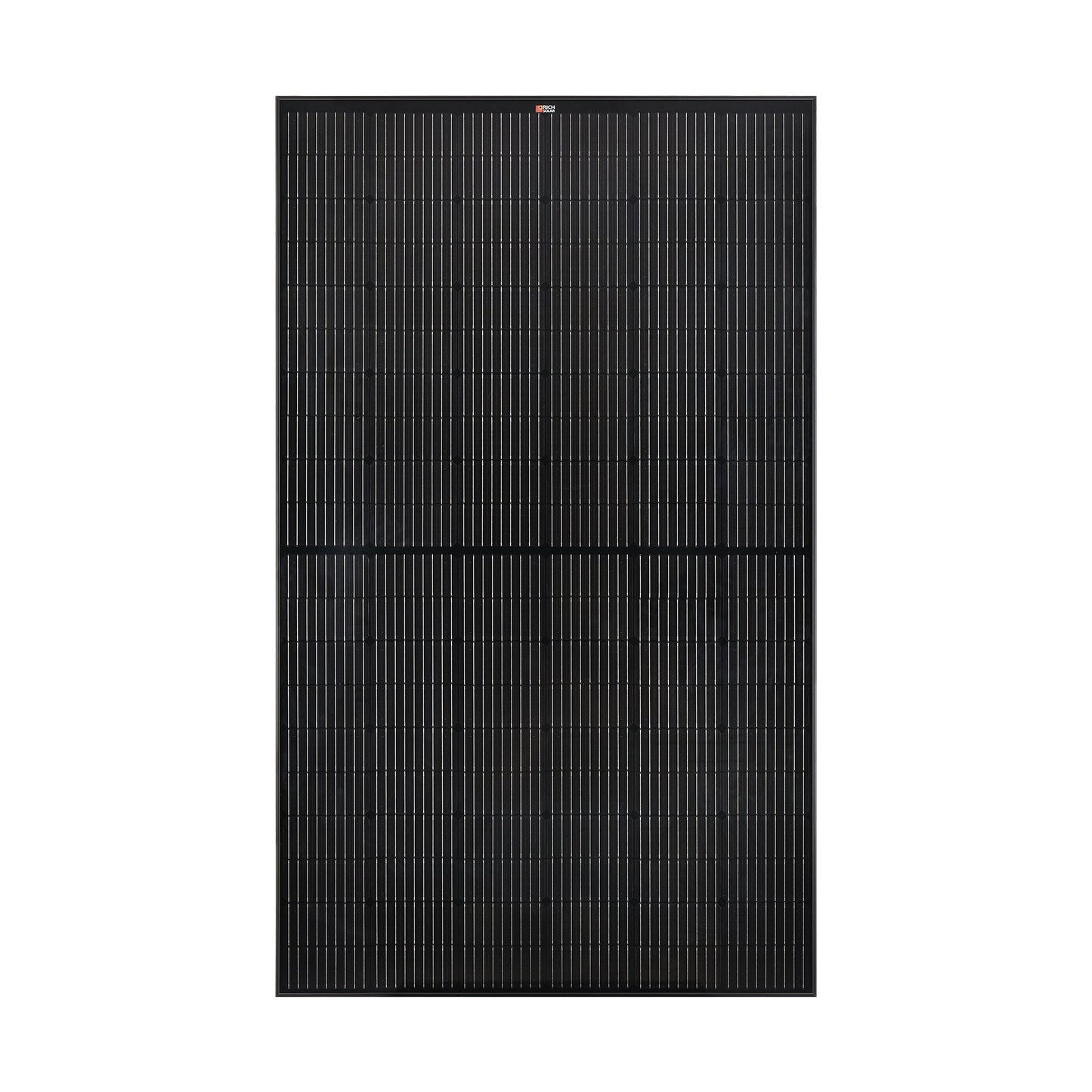

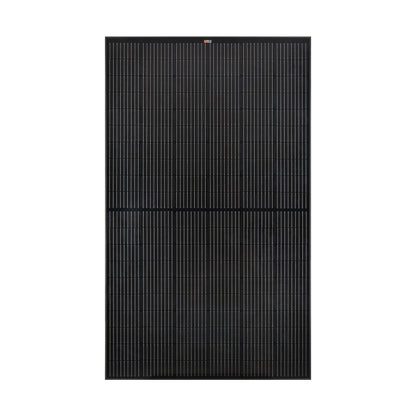

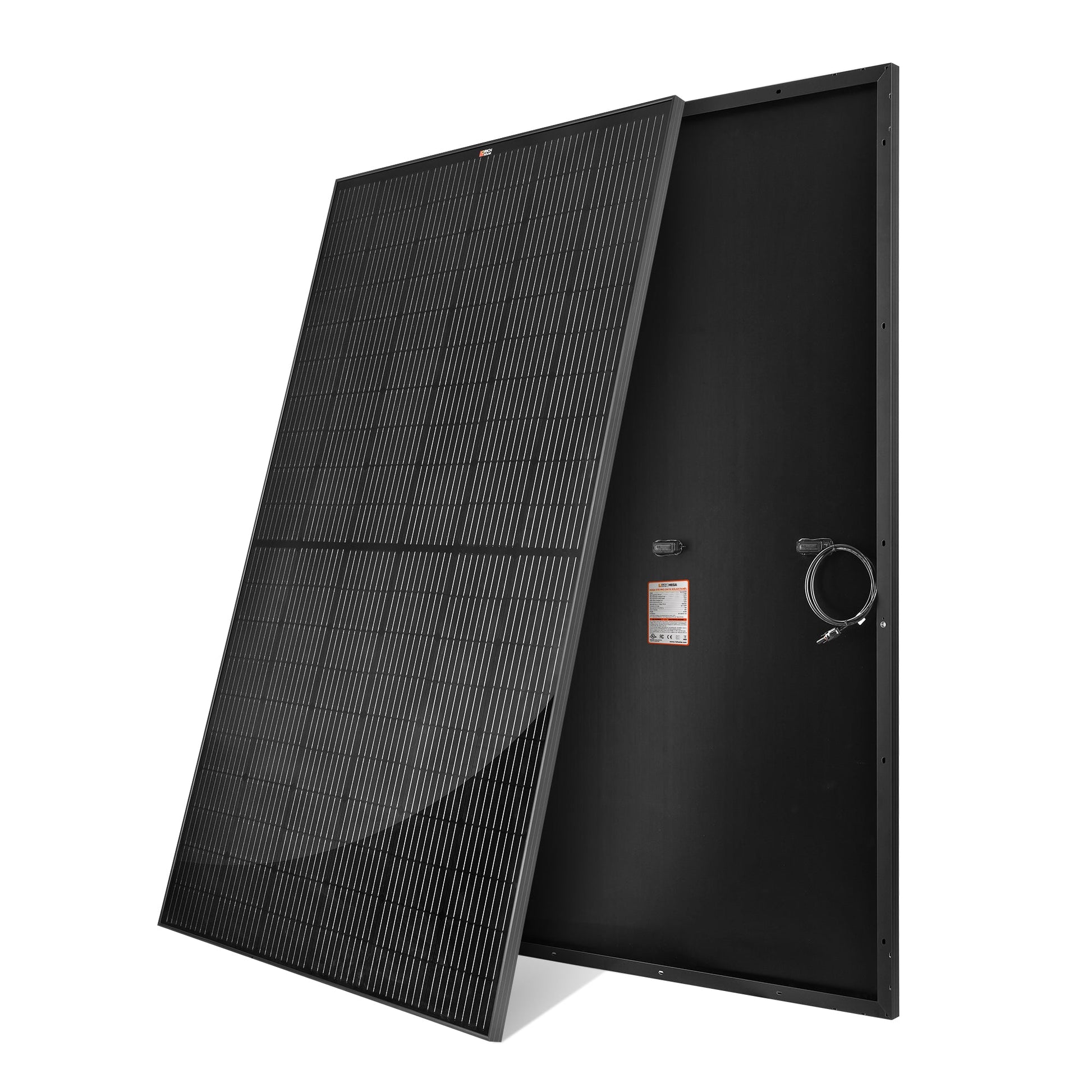

Rich Solar 370 PRO ONYX | 370 Watt Solar Panel | 24V Off-Grid Solar Panel for Residential, Commercial, Agriculture - RS-M370PB-33

Rich Solar 370 PRO ONYX | 370 Watt Solar Panel | 24V Off-Grid Solar Panel for Residential, Commercial, Agriculture  - RS-M370PB-33

For other quantities, contact our sales team at 1-800-831-9889 or sales@richsolar.com.

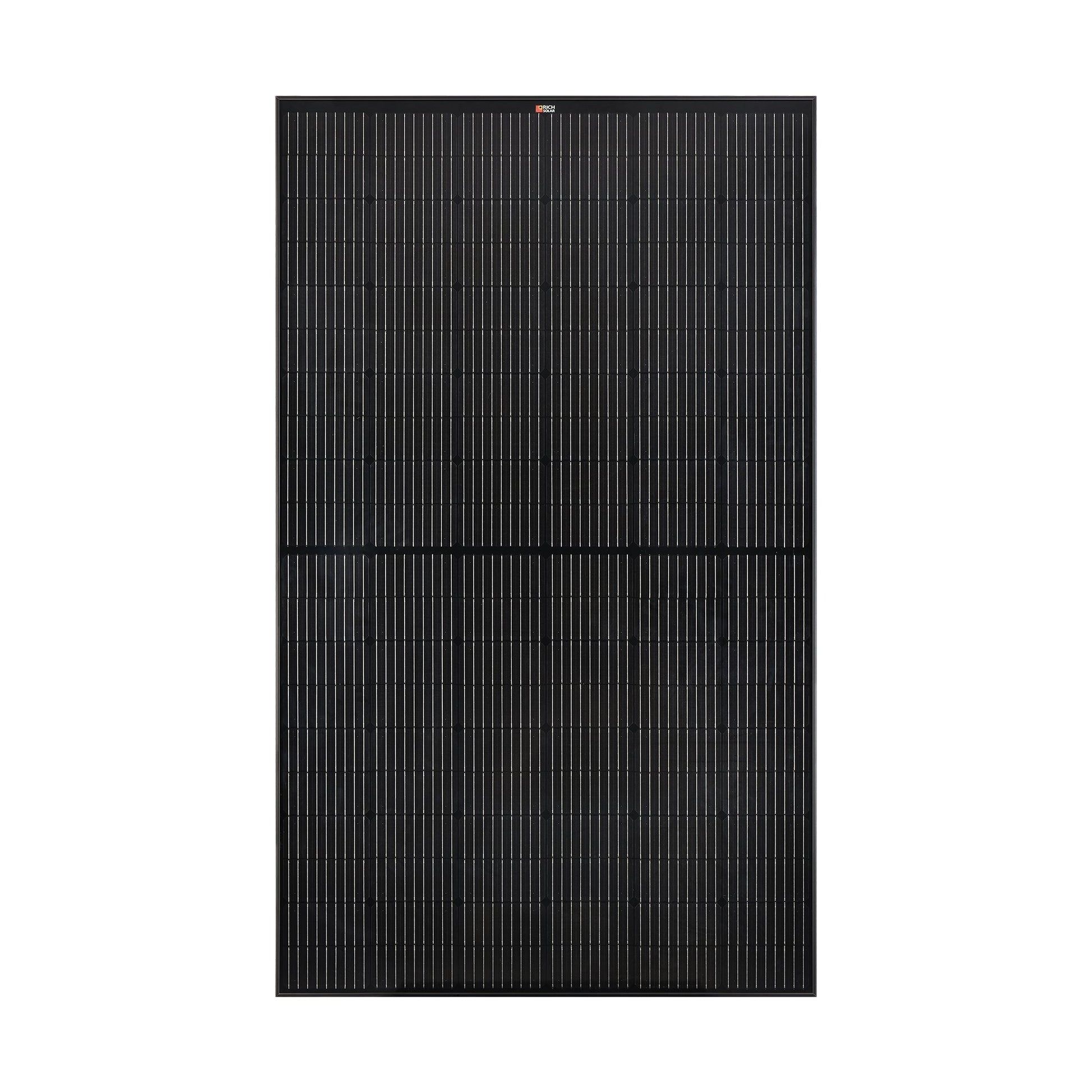

The MEGA 370 PRO ONYX  delivers 370W for 24V system applications, with high output and minimal space and cost, making it ideal for residential, agricultural, and commercial off-grid use.

Features

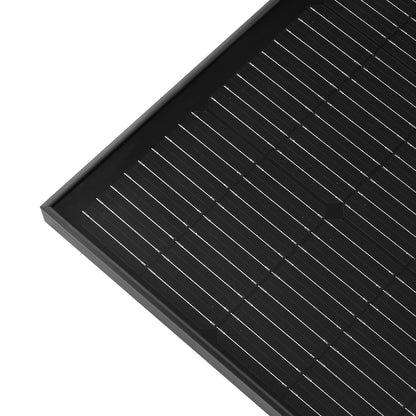

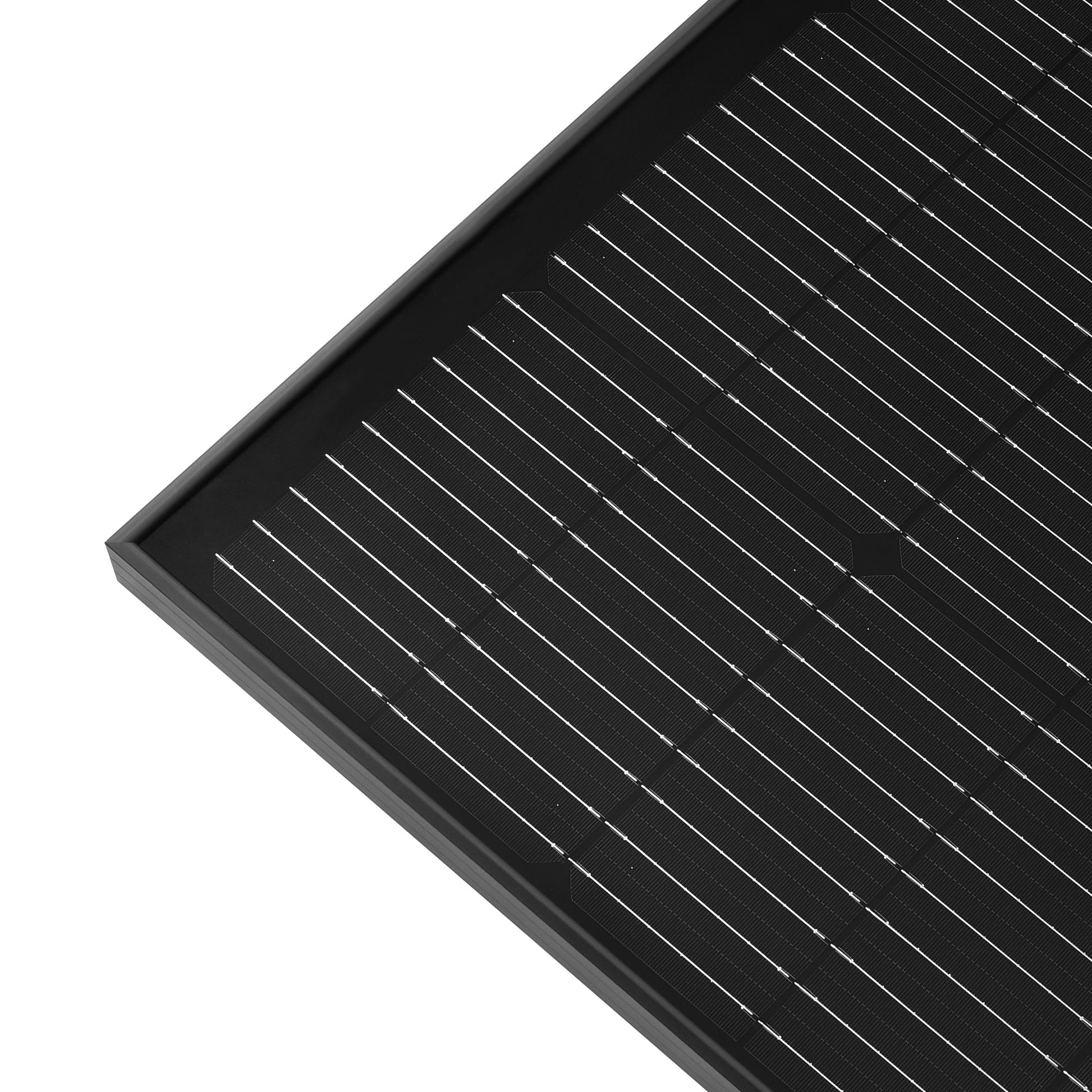

• 9-busbar monocrystalline cells with up to 22.8% efficiency
• 120-cell configuration delivers a reliable 370W output
• 3.2 mm AR-coated tempered glass enhances light transmission and durability
• Excellent low-light performance on cloudy days and at dawn/dusk
• Tested for UV exposure, thermal cycling, humidity freeze, and more
• PID-resistant to minimize power loss and ensure long-term reliability
• Certified to withstand 2400 Pa wind load and 5400 Pa snow load
• Ideal for RVs, truck campers, cabins, and marine applications


Installation

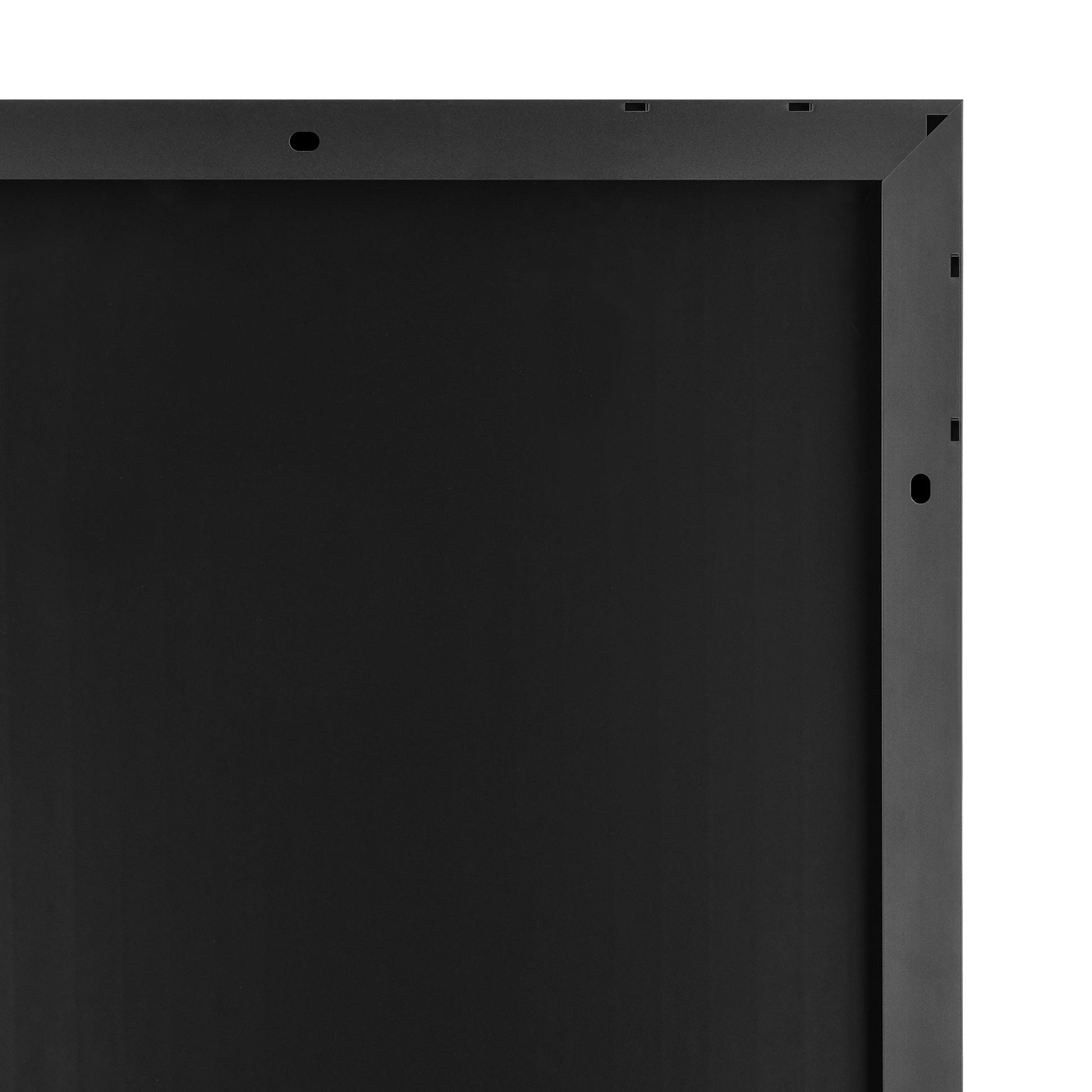

• Durable anodized aluminum frame — lightweight and corrosion-resistant
• 16 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation

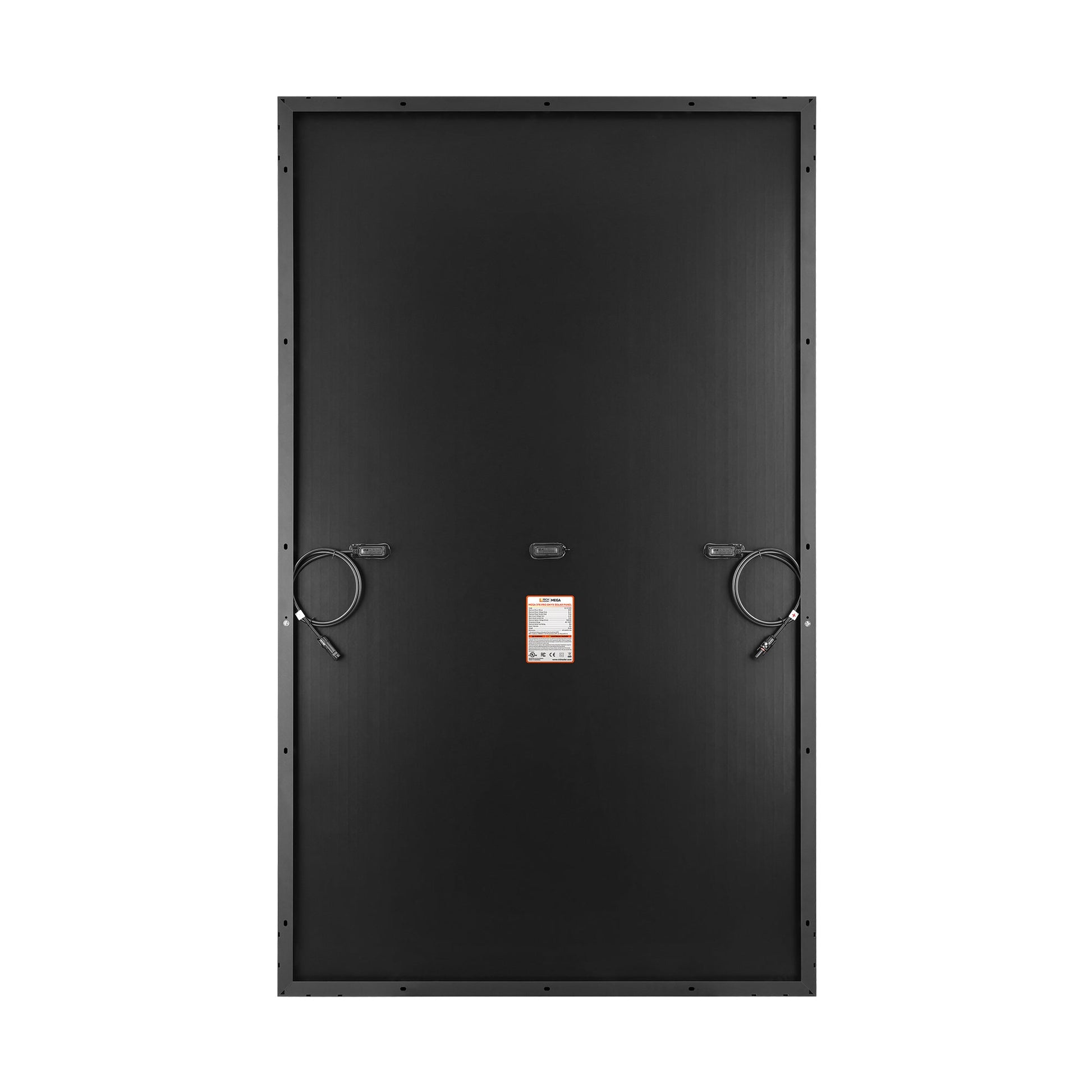

• MC4 connectors with 4 ft pre-attached cables for easy system integration
• Compatible with both grid-tied and off-grid inverters

Specifications

• Maximum Power (Pmax): 370W
• Maximum Power Voltage (Vmp): 35.2V
• Maximum Power Current (Imp): 10.5A
• Open Circuit Voltage (Voc): 41.8V
• Short Circuit Current (Isc): 10.9A
• Maximum System Voltage (Vmax): 1500VDC
• Maximum Series Fuse Rating: 30A
• Weight: 35.2 lb

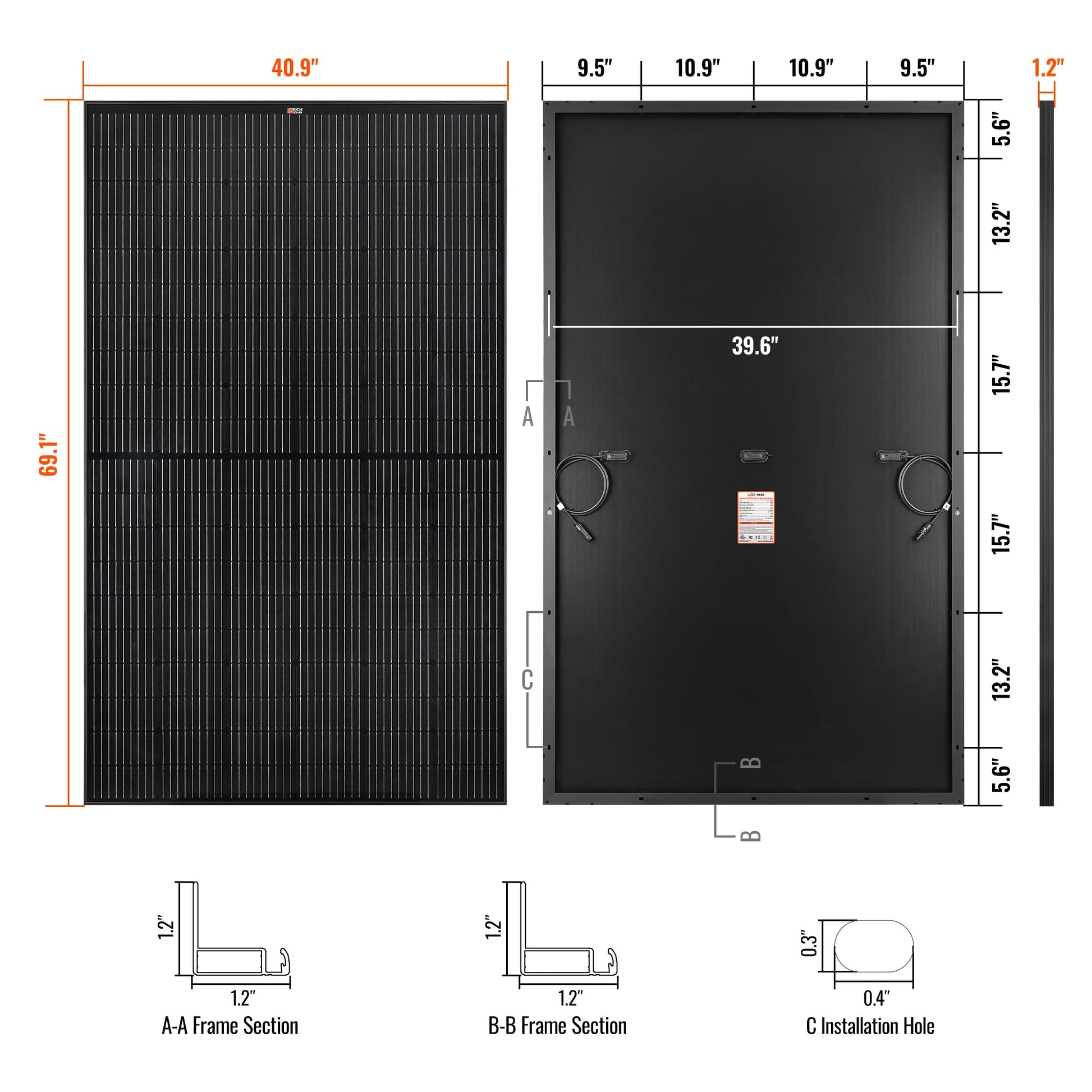

• Dimensions: 69.1 × 40.9 × 1.2 in

What our Experts Think

• Delivers 370W high-output solar performance, ideal for off-grid, hybrid, and large-scale energy systems.
• Designed as a 24V solar panel, improving efficiency and reducing wiring losses in residential and commercial setups.
• Built for residential, agricultural, and commercial applications, making it highly versatile for different energy needs.
• High-efficiency monocrystalline cells provide strong performance even in low-light and variable weather conditions.
• Durable construction ensures long-term reliability in harsh outdoor environments like farms and remote installations.
• Compatible with a wide range of solar inverters, charge controllers, and battery systems.
• Ideal for expanding existing solar arrays or building new off-grid or grid-tied renewable energy systems.
• A strong choice for users seeking a reliable, high-power 24V solar panel for scalable energy production.

Q&A

Q: What is the Rich Solar 370 PRO ONYX (RS-M370PB-33)?
A: It is a high-efficiency 370W monocrystalline 24V off-grid solar panel designed for residential, commercial, agricultural, RV, and cabin solar power systems, offering strong performance and durability for large-scale solar arrays.

Q: How much power does it produce?
A: It delivers a rated maximum output of 370W with up to ~22.8% module efficiency under ideal sunlight conditions.

Q: What are its key electrical specs?
A: It operates at ~35.2V Vmp, 10.5A Imp, with an open-circuit voltage of ~41.8V, optimized for 24V battery systems and MPPT charge controllers.

Q: Is it suitable for off-grid systems?
A: Yes. It is specifically designed for off-grid and hybrid systems, including homes, farms, RVs, and remote installations requiring reliable energy generation.

Q: How durable is the panel?
A: It features tempered anti-reflective glass, PID resistance, and strong wind/snow load ratings, making it suitable for harsh outdoor environments.

Q: What are the installation features?
A: It includes an anodized aluminum frame, pre-drilled mounting holes, and MC4 connectors for fast plug-and-play installation in solar arrays.

Maintenance Tips

• Keep panels clean and dust-free; in dusty climates like Pakistan, clean every 2–4 weeks for optimal output.
• Use only soft water and a microfiber cloth or soft brush—avoid abrasives, detergents, or harsh chemicals that can damage the anti-reflective coating.
• Clean early morning or evening when panels are cool to prevent thermal shock and micro-cracks.
• Ensure panels remain unshaded and debris-free (leaves, bird droppings, dust can significantly reduce output).

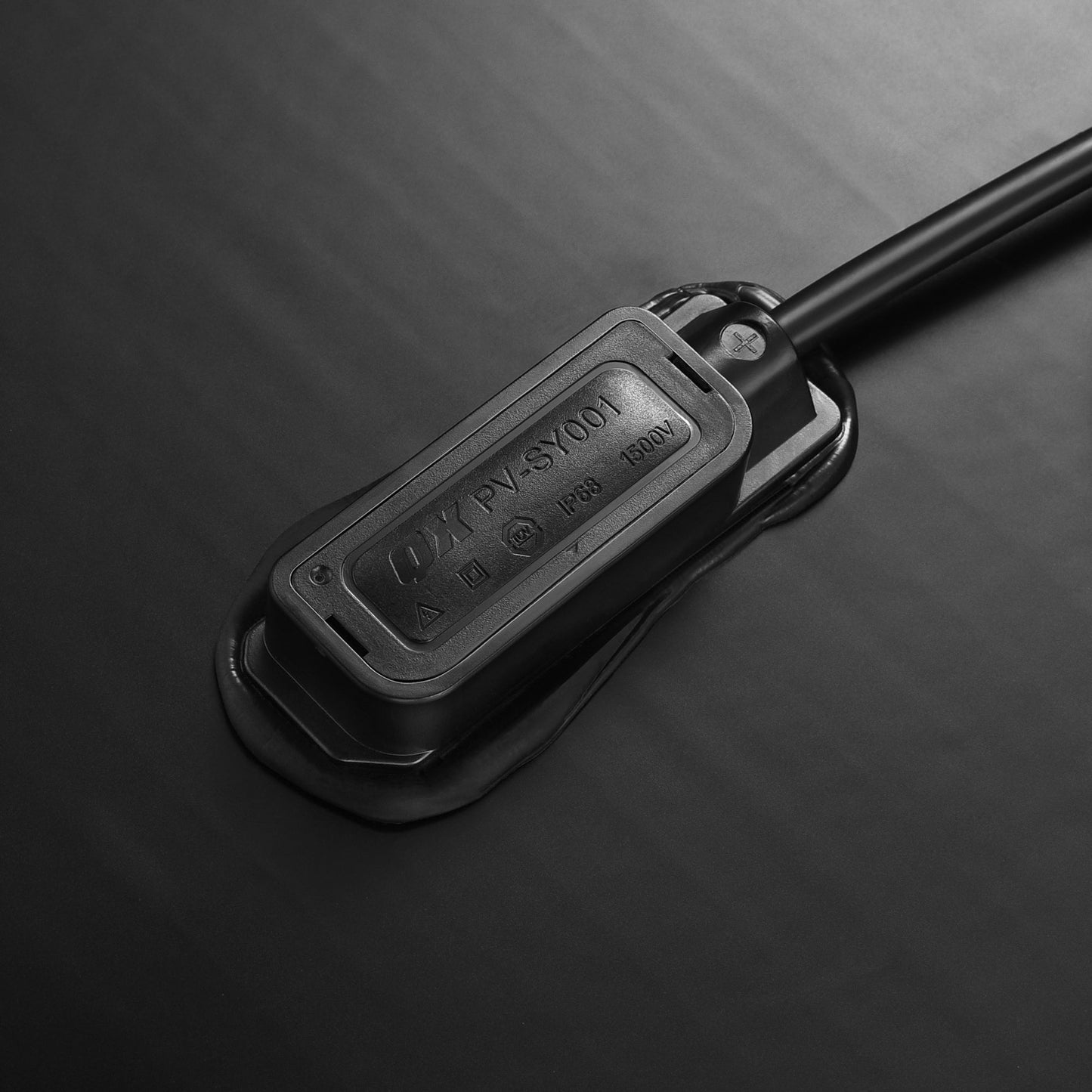

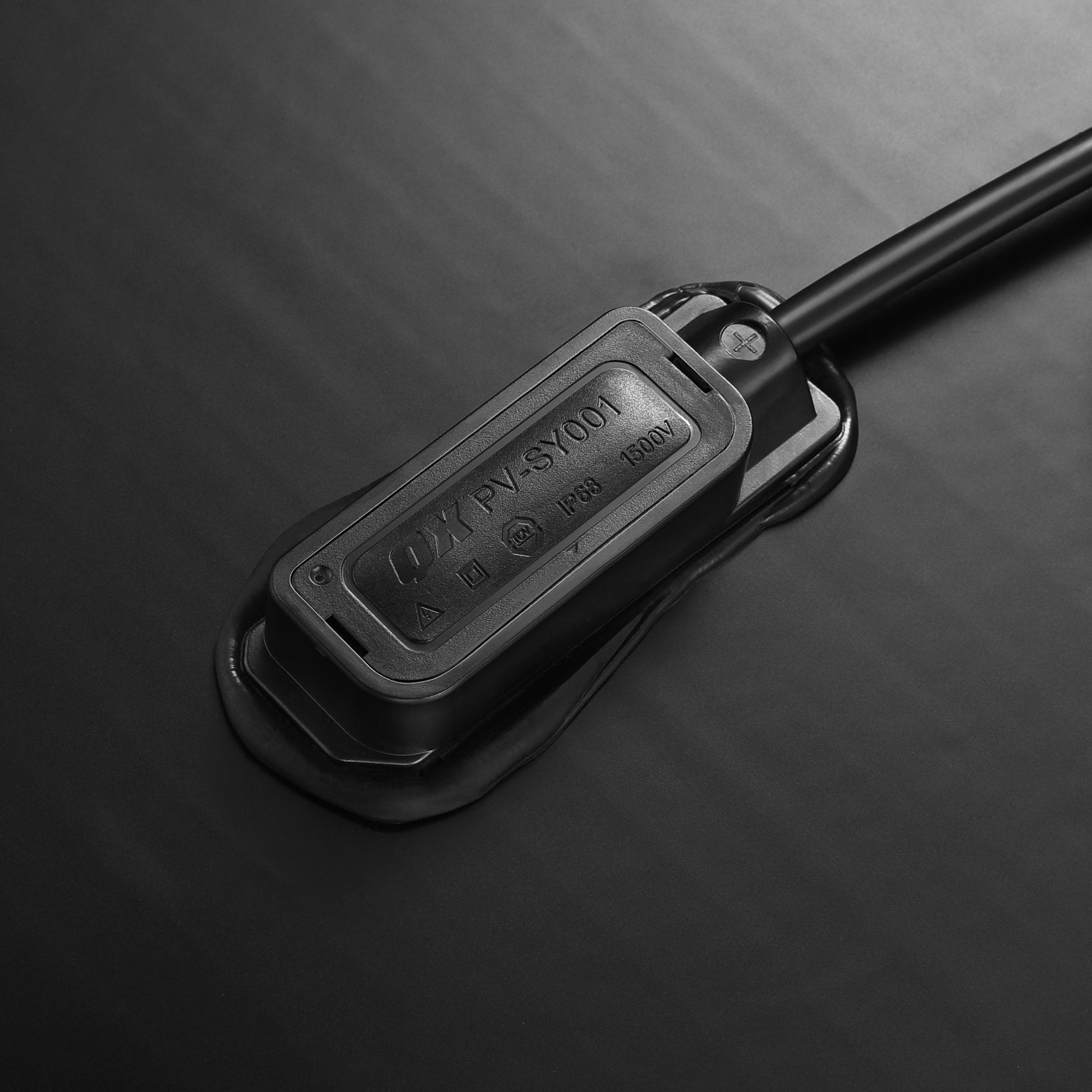

• Inspect MC4 connectors, junction box, and wiring regularly for looseness, corrosion, or heat damage.
• Check mounting structure periodically to ensure firm alignment and resistance to wind load (up to 2400 Pa wind / 5400 Pa snow rating).
• Monitor system output; a sudden drop may indicate soiling, shading, or a faulty panel/string issue.
• Avoid pressure washers—high pressure can damage seals and allow moisture ingress.
• Ensure proper airflow behind panels to prevent overheating and efficiency loss.
