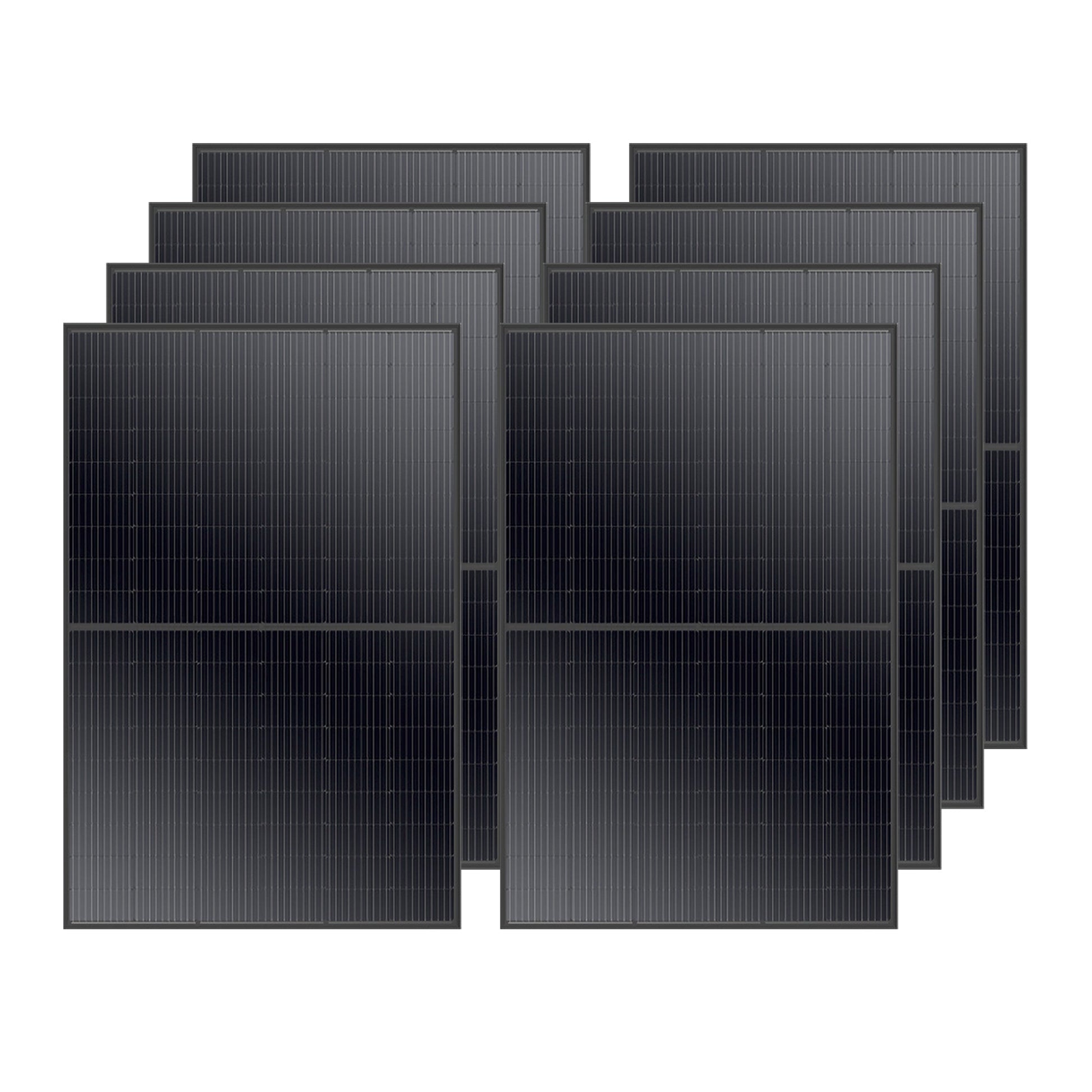

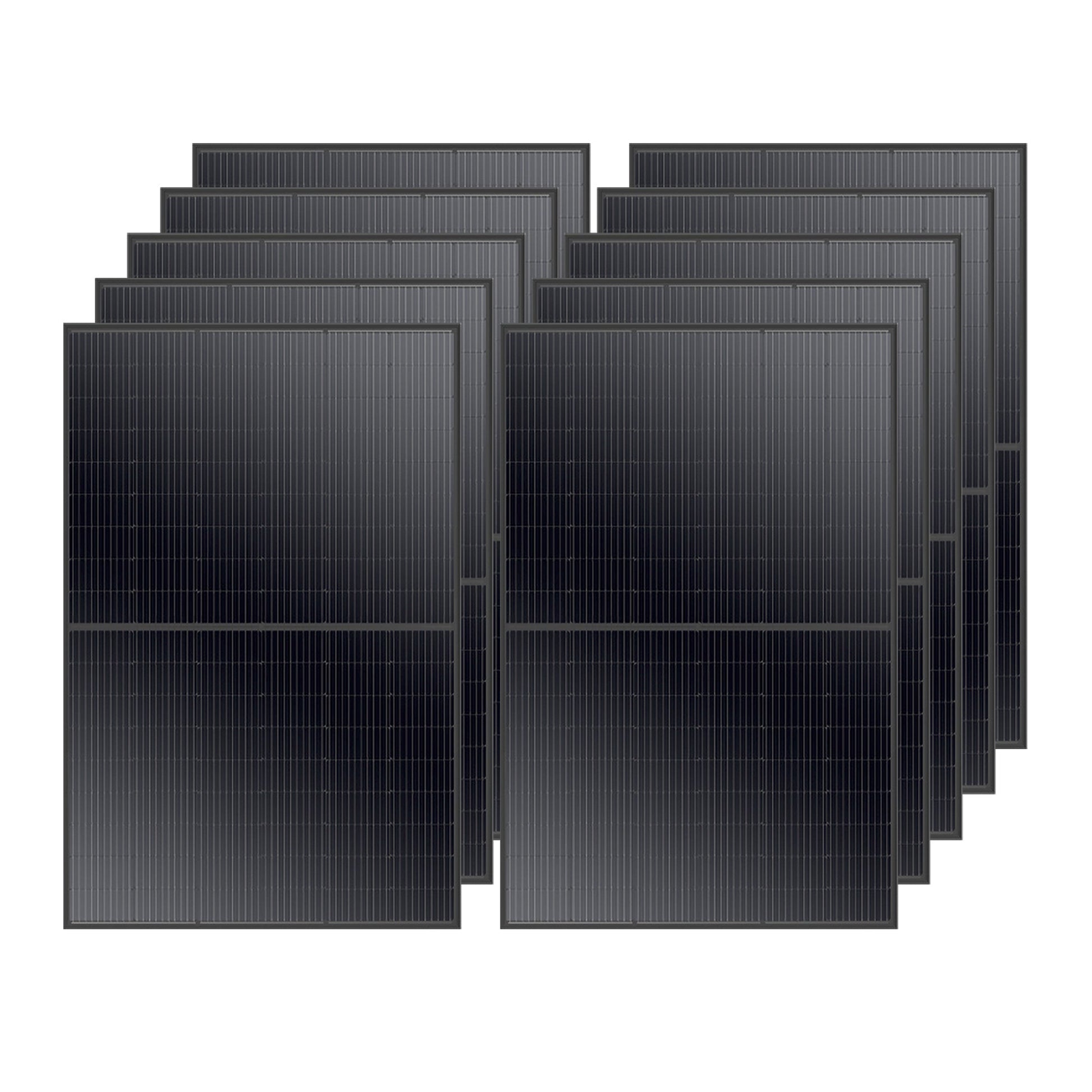

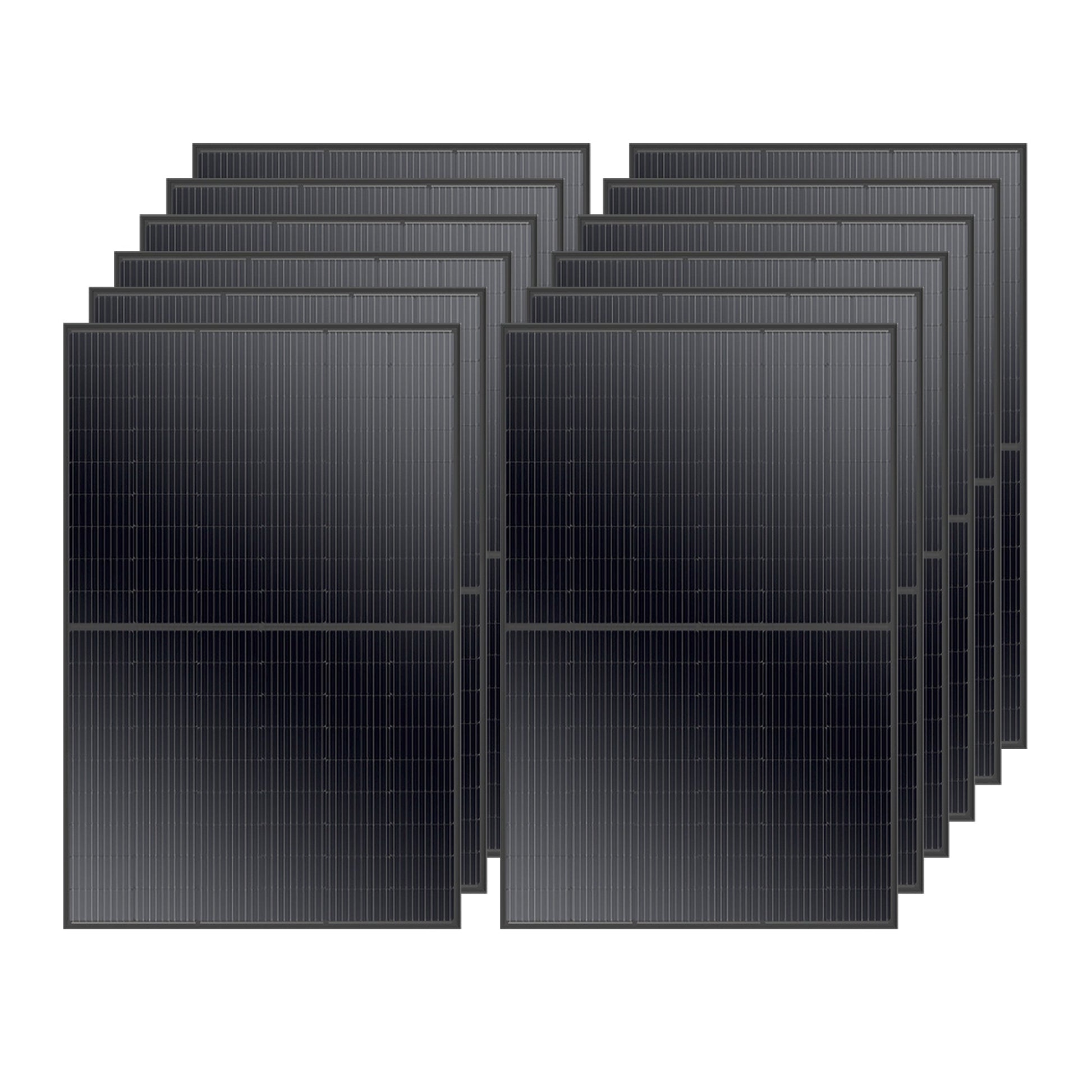

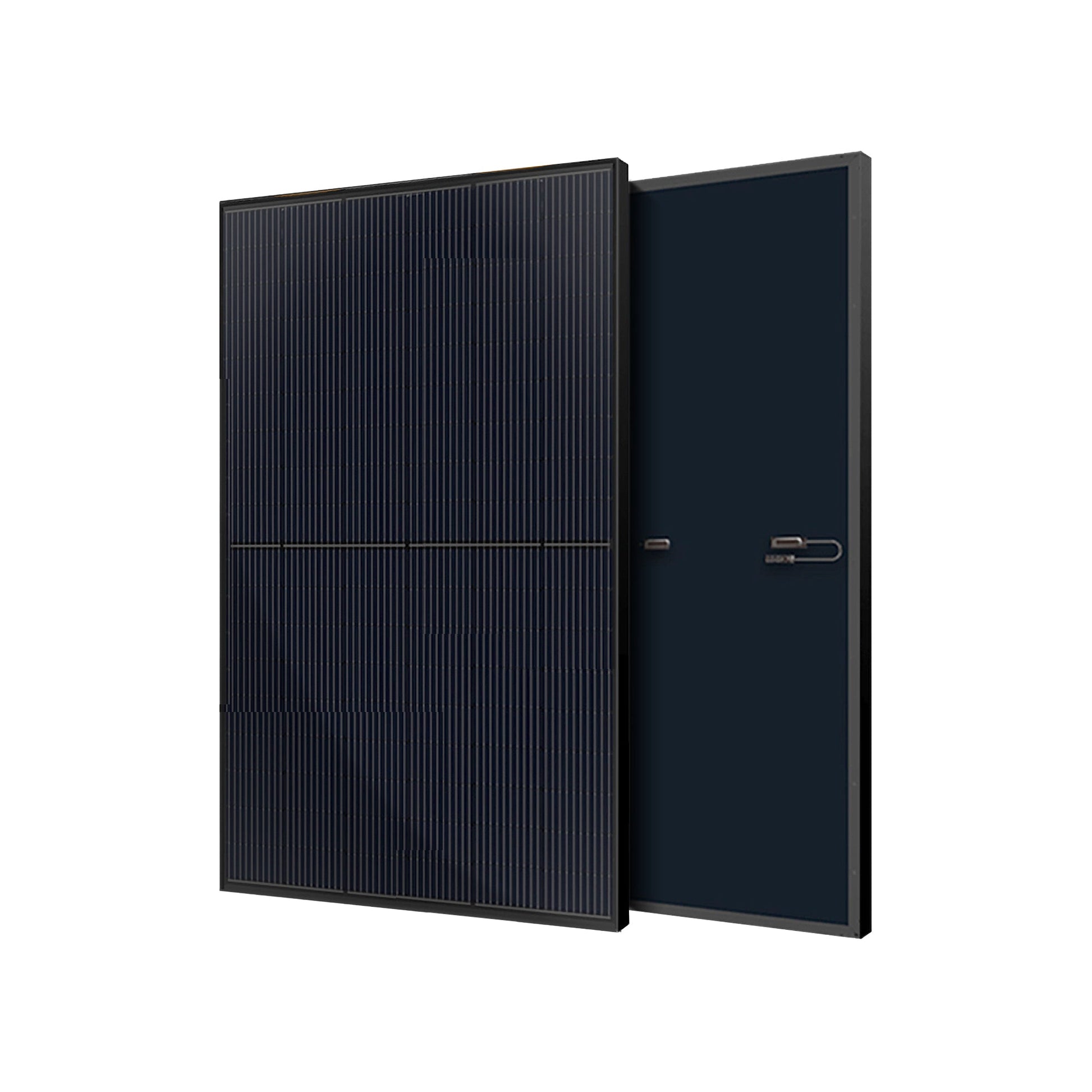

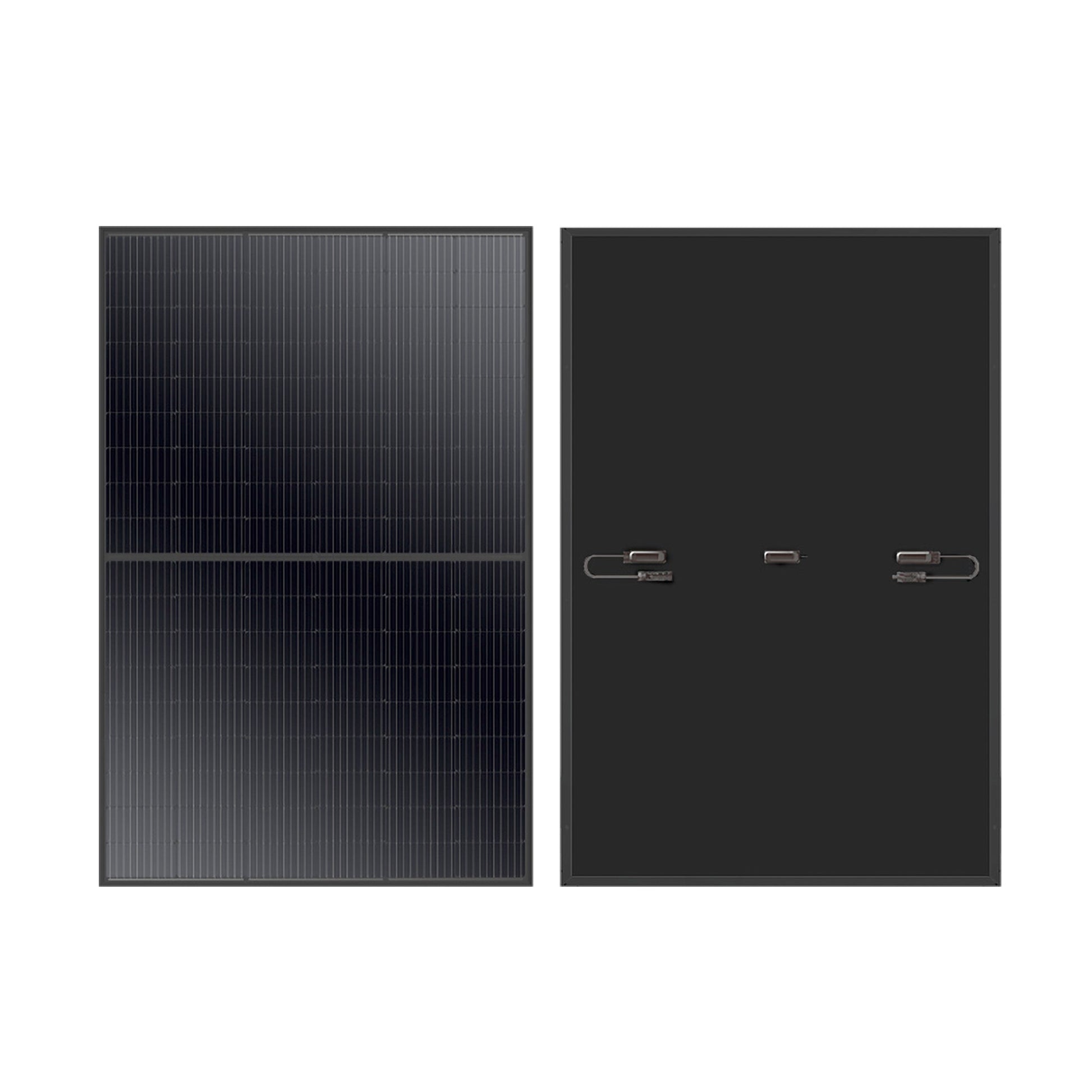

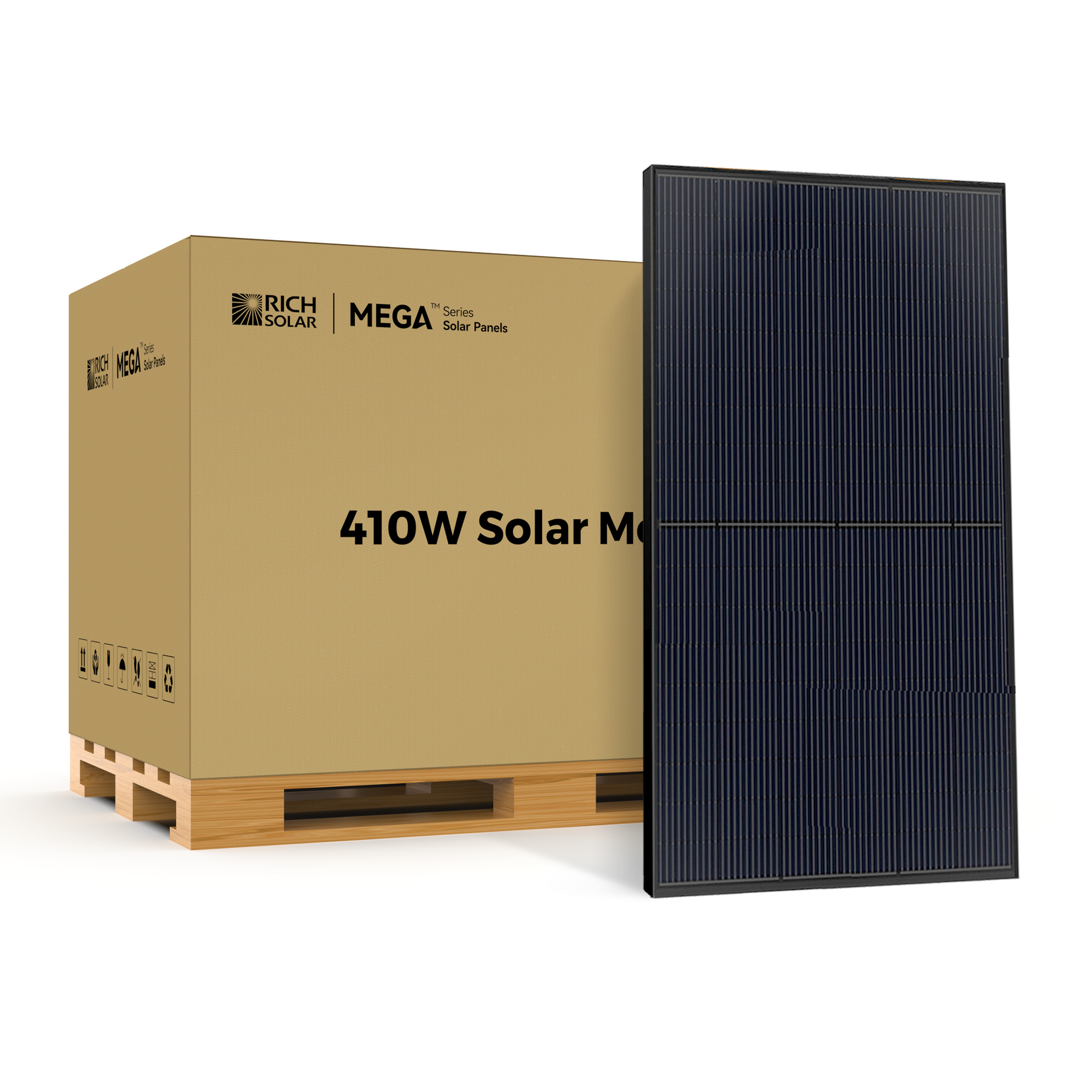

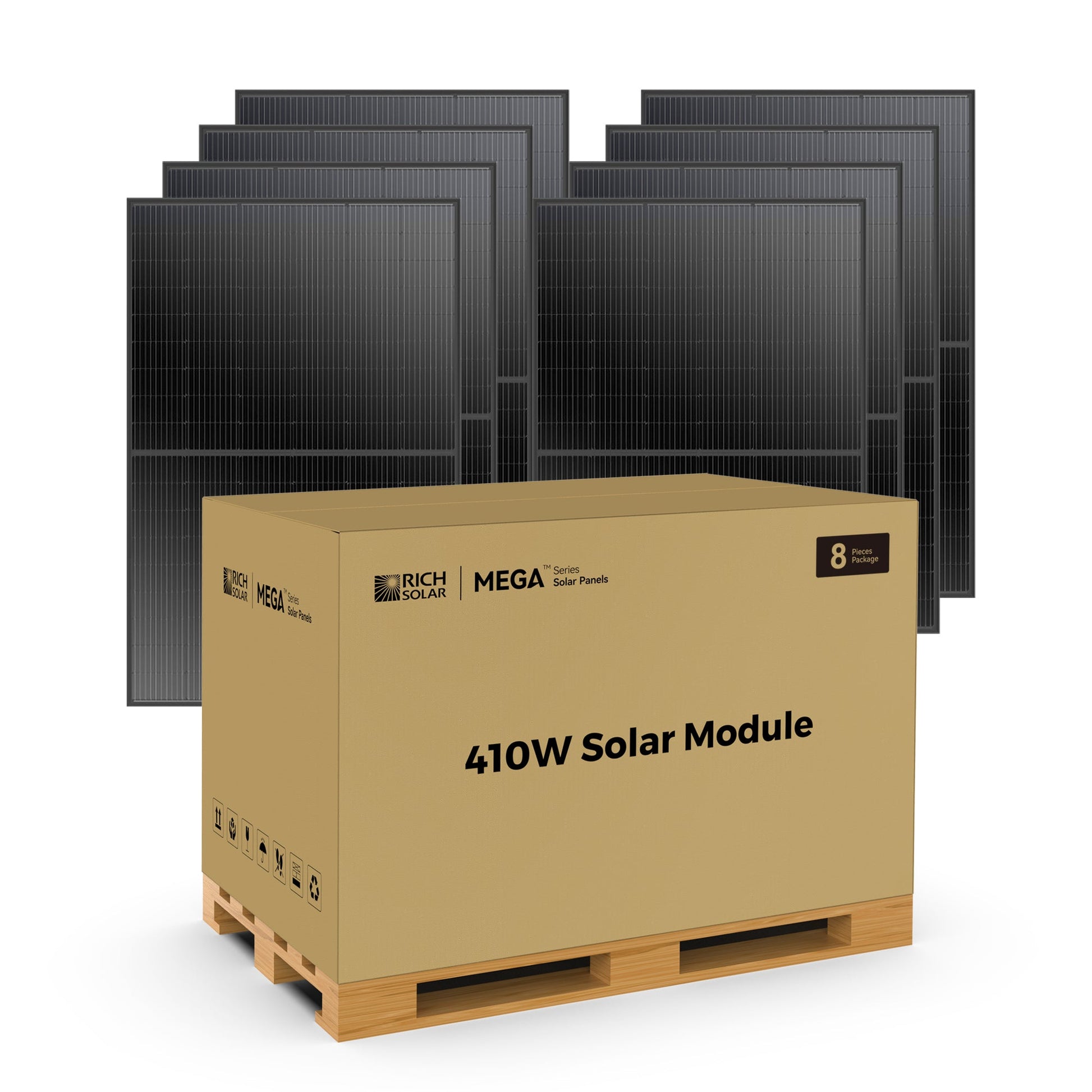

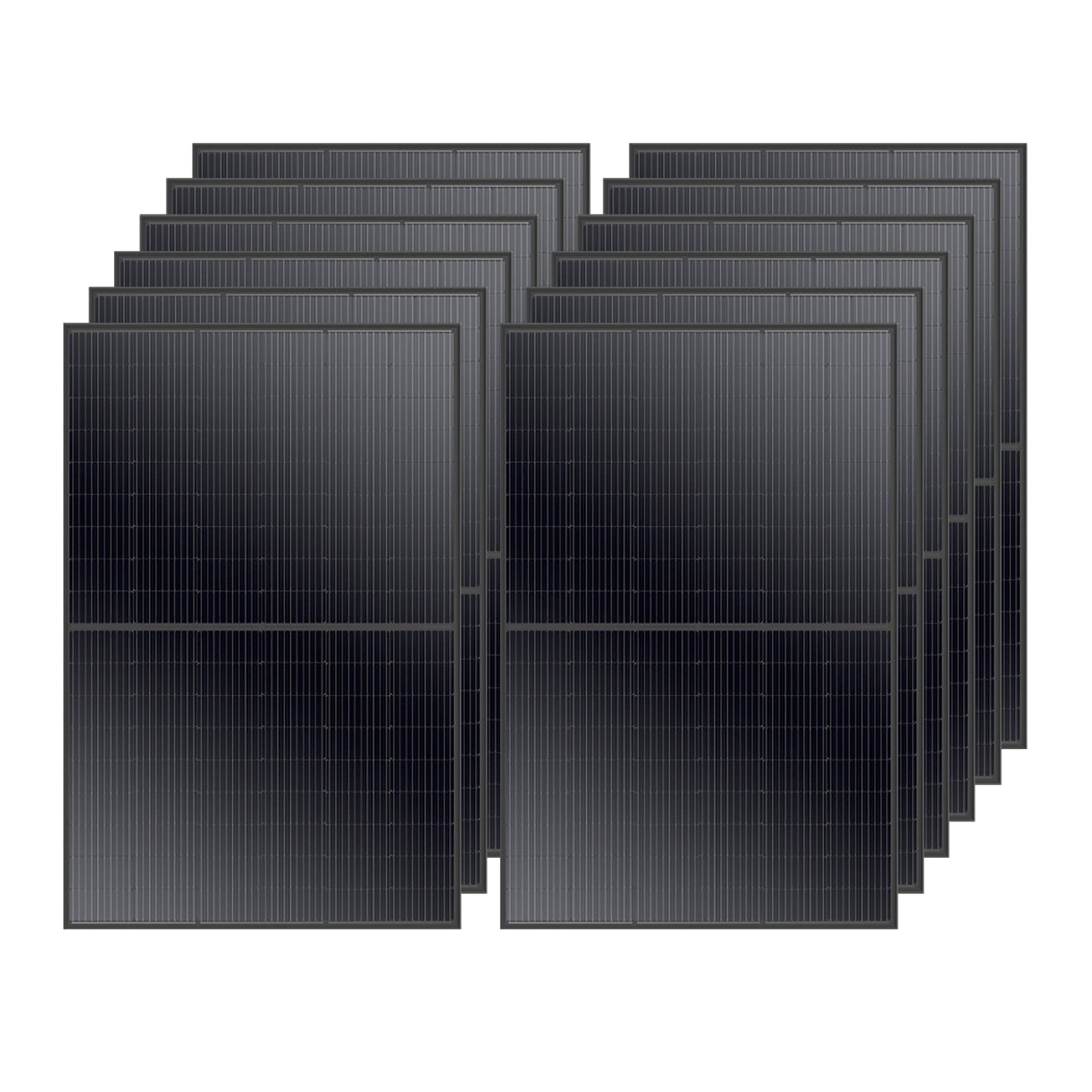

Rich Solar 410 | 410 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture - RS-M410-8

Rich Solar 410 | 410 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture  - RS-M410-8

The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.

Features

• 10-busbar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Built-in Components

• Panel leads (pair): 4 feet each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications

• Maximum Power(Pmax): 410W
• Maximum Power Voltage(Vmp): 31.3V
• Maximum Power Current(Imp): 13.1A
• Open Circuit Voltage(Voc): 37.5V
• Short Circuit Current(Isc): 13.8A
• Maximum System Voltage(Vmax): 1500VDC
• Temperature Range: -40°F ~ 185°F
• Max Series Fuse Rating: 25A
• Weight: 45.2 lb
• Dimensions: 67.8 x 44.7 x 1.2 in

What our Experts Think

• High-Output 410W Solar Performance – Delivers 410 watts per panel, making it a strong choice for residential, commercial, and agricultural systems that need maximum power density per module.
• Advanced Mono PERC Cell Technology – Uses 10-busbar monocrystalline design for improved efficiency and more stable energy production across varying conditions.
• Excellent Low-Light Energy Yield – Maintains strong performance during cloudy weather, mornings, and late afternoons, improving daily generation consistency.
• Durable All-Weather Engineering – Built with tempered anti-reflective glass and anodized aluminum frame, designed to withstand harsh environmental exposure.
• Space-Efficient High Power Output – Around 31.3V Vmp and 13.1A output, enabling fewer panels to achieve larger system capacity.
• Flexible System Integration – Compatible with both grid-tie, hybrid, and off-grid inverter setups, supporting residential rooftops and large-scale installs.

Q&A

Q: What is the Rich Solar 410W Solar Panel (RS-M410-8)?
A: A premium 410W monocrystalline solar panel designed for grid-tie, hybrid, and off-grid systems, used in residential, commercial, and agricultural solar installations.

Q: What is its power output and electrical specs?
A: It delivers 410W max power with a Vmp of ~31.3V and Imp of ~13.1A, optimized for 24V-based solar systems and MPPT charge controllers.

Q: What technology does it use?
A: It uses mono PERC cells with 10-busbar design, improving efficiency, low-light performance, and overall energy harvest throughout the day.

Q: Is it suitable for off-grid systems?
A: Yes. It works in off-grid, hybrid, and grid-tied setups, making it flexible for homes, cabins, farms, and backup power systems.

Q: How durable is it?
A: It features a tempered anti-reflective glass surface, anodized aluminum frame, and weather-resistant construction, built for harsh outdoor conditions like snow, heat, and wind.

Q: What are common use cases?
A: It is commonly used for home solar arrays, commercial rooftops, agricultural pumping systems, and large off-grid battery banks where high output per panel is preferred.

Q: Why choose a 410W panel over smaller panels?
A: It reduces wiring, installation space, and balance-of-system costs while delivering higher energy density, making it more efficient for large solar arrays.

Maintenance Tips

• Clean the tempered glass surface regularly with water and a soft microfiber cloth to remove dust, dirt, and bird droppings for maximum output.
• Avoid abrasive cleaners, chemicals, or pressure washing that can damage the anti-reflective coating.
• Ensure MC4 connectors are fully locked, dry, and corrosion-free to maintain stable energy production.
• Inspect the aluminum frame, junction box, and mounting structure periodically for looseness, rust, or weather-related wear.
• Keep panels free from shading (trees, dust buildup, or nearby structures), as even partial shading reduces efficiency.
• Verify correct tilt and orientation seasonally to maximize solar exposure and energy harvest.
• Check wiring insulation and grounding connections regularly for safety and performance stability.
• After storms or high winds, inspect mounting stability and tighten hardware if needed.
• Avoid stepping on or applying pressure to the panel surface to prevent micro-cracks in solar cells.
• Monitor system performance periodically to detect early drops in output or connection issues.
