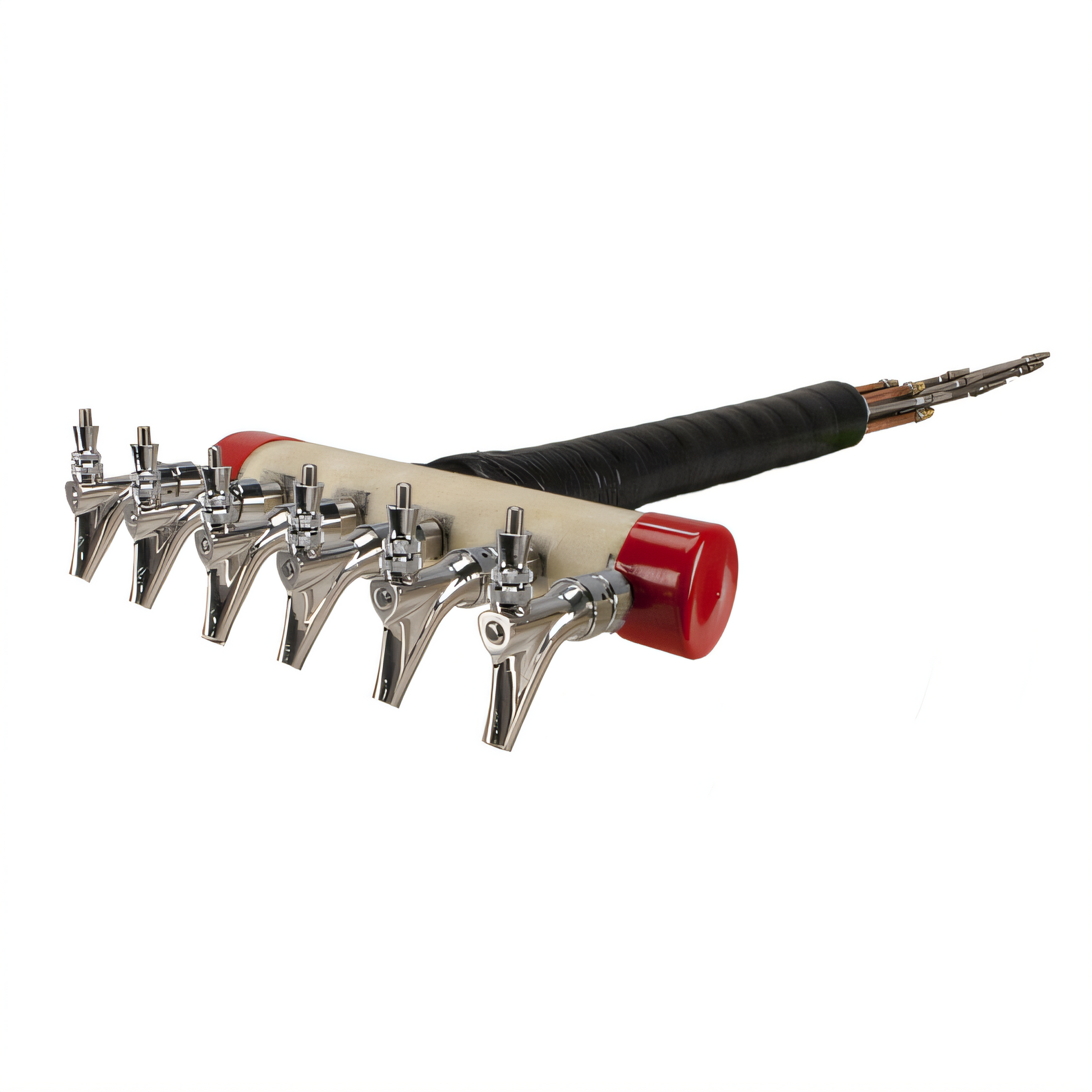

Kool-Rite™ 6-Faucet Insert Module – Long Shanks | 20-1/2" Wide
Build the perfect custom draft tower around NSF-listed Kool-Rite™ technology
Drop this Kool-Rite™ insert into your own column, barrel or sculpture and instantly gain six perfectly chilled, 100 % stainless steel beer lines. The patented Kool-Rite™ cooling block drives glycol right up to each faucet, guaranteeing frosty pours and eliminating warm spots or foamy first pours.
Key Features
- Six (6) 304 stainless steel faucets – all product-contact surfaces are stainless for draft purity
- Patented Kool-Rite™ aluminum cooling block keeps beer cold to the last inch
- 2-5/8" leak-proof stainless steel shanks (long style) spaced 3-1/2" on-center
- 1/4" O.D. stainless product lines with 1/4"–3/8" tapered barbs for easy hookup
- 3/8" O.D. copper glycol coolant lines with 3/8" barbs – ideal for remote glycol power packs
- Compact 20-1/2" width lets you fit the module inside almost any custom tower shape
- Factory-wrapped insulation minimizes condensation inside your enclosure
- NSF certified – trusted performance for commercial bars, taprooms and restaurants
Technical Specifications
| Part # |
1734-L (Long-shank insert module) |
| Total faucets |
6 × 304 stainless steel |
| Overall width |
20-1/2" (520 mm) |
| Shank style / length |
Long, 2-5/8" (leak-proof Kool-Rite™ shanks) |
| Shank spacing (O.C.) |
3-1/2" (88.9 mm) |
| Beer lines |
1/4" O.D. stainless steel, with 1/4"–3/8" tapered barbs |
| Coolant lines |
3/8" O.D. copper glycol lines, with 3/8" barbs |
| Cooling block |
Patented Kool-Rite™ aluminum block (included) |
| Certification |
NSF / ANSI Standard 18 |
Why Choose Kool-Rite™?
- Eliminates flavor carry-over – entire product path is stainless, not chrome-plated brass
- Glycol coolant touches the faucet body, keeping the first pour as cold as the last
- One-piece shank/cooling block design stops hidden leaks inside your tower
- Speeds installation – simply slide the module in, connect hoses and go live
Build Your Tower
Design a column, barrel or sculpted tower that matches your venue’s theme – the Kool-Rite™ insert provides the chilled draft backbone, you provide the creative shell. Add the matching 18" drip tray (DP-322ELD-6-18) for a turnkey six-tap station.
Drip tray and tower enclosure sold separately. Always confirm glycol flow rate and trunk line sizing with your draft technician.
