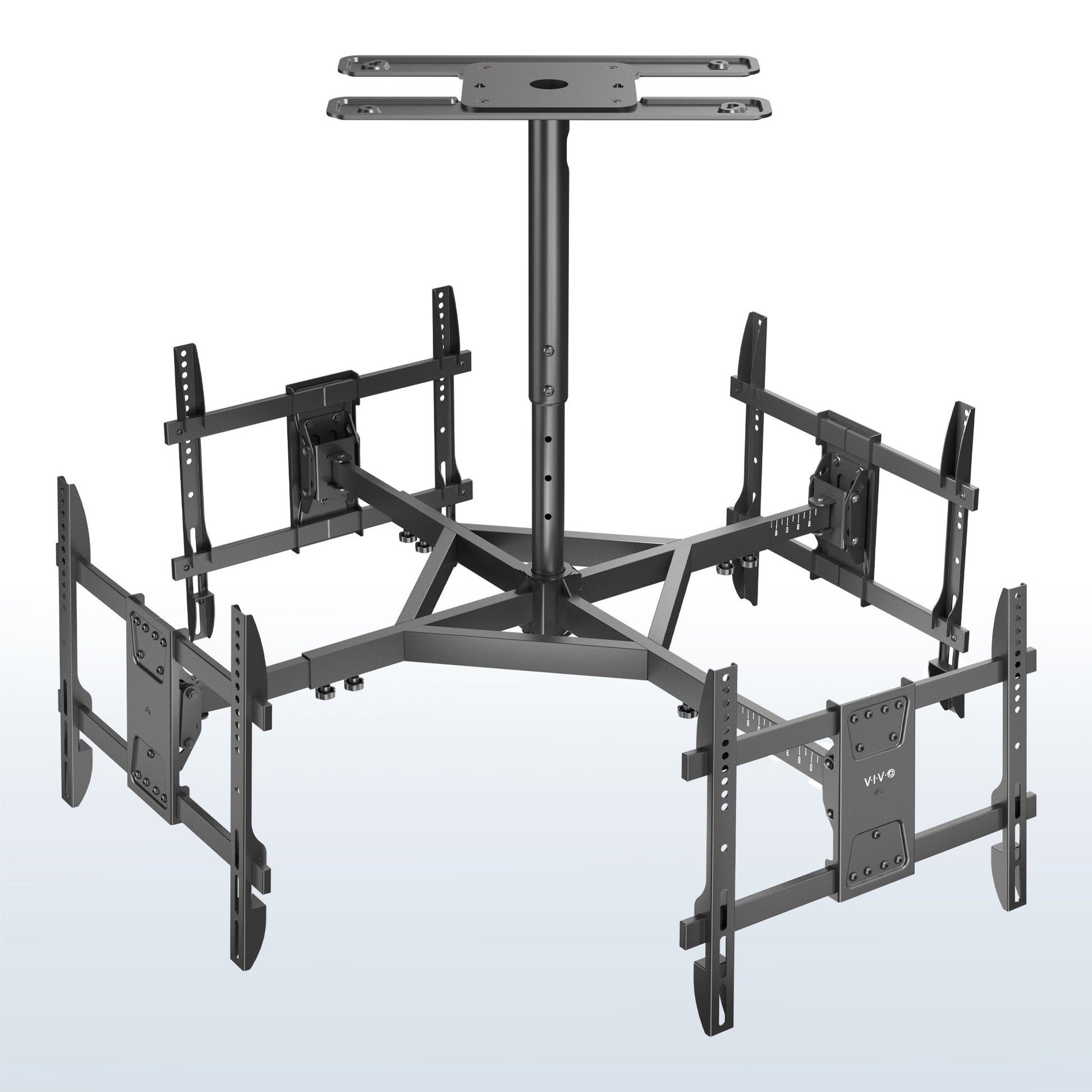

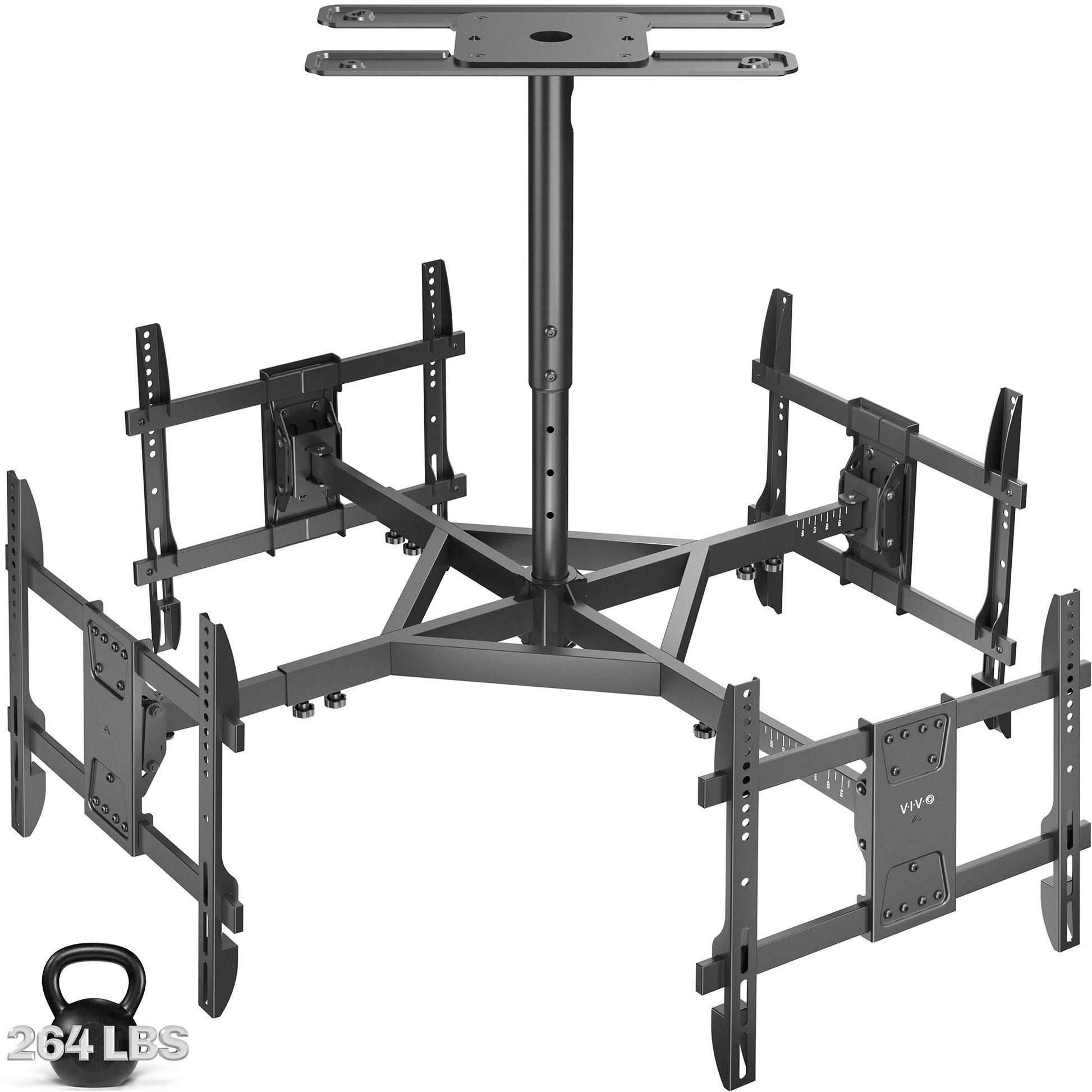

VIVO Hanging Quad TV Ceiling Mount - 32” to 50” Screens - MOUNT-VC450

VIVO Hanging Quad TV Ceiling Mount - 32” to 50” Screens - MOUNT-VC450

What our Experts Think

Q&A

Q: What TV sizes are compatible with this ceiling mount?

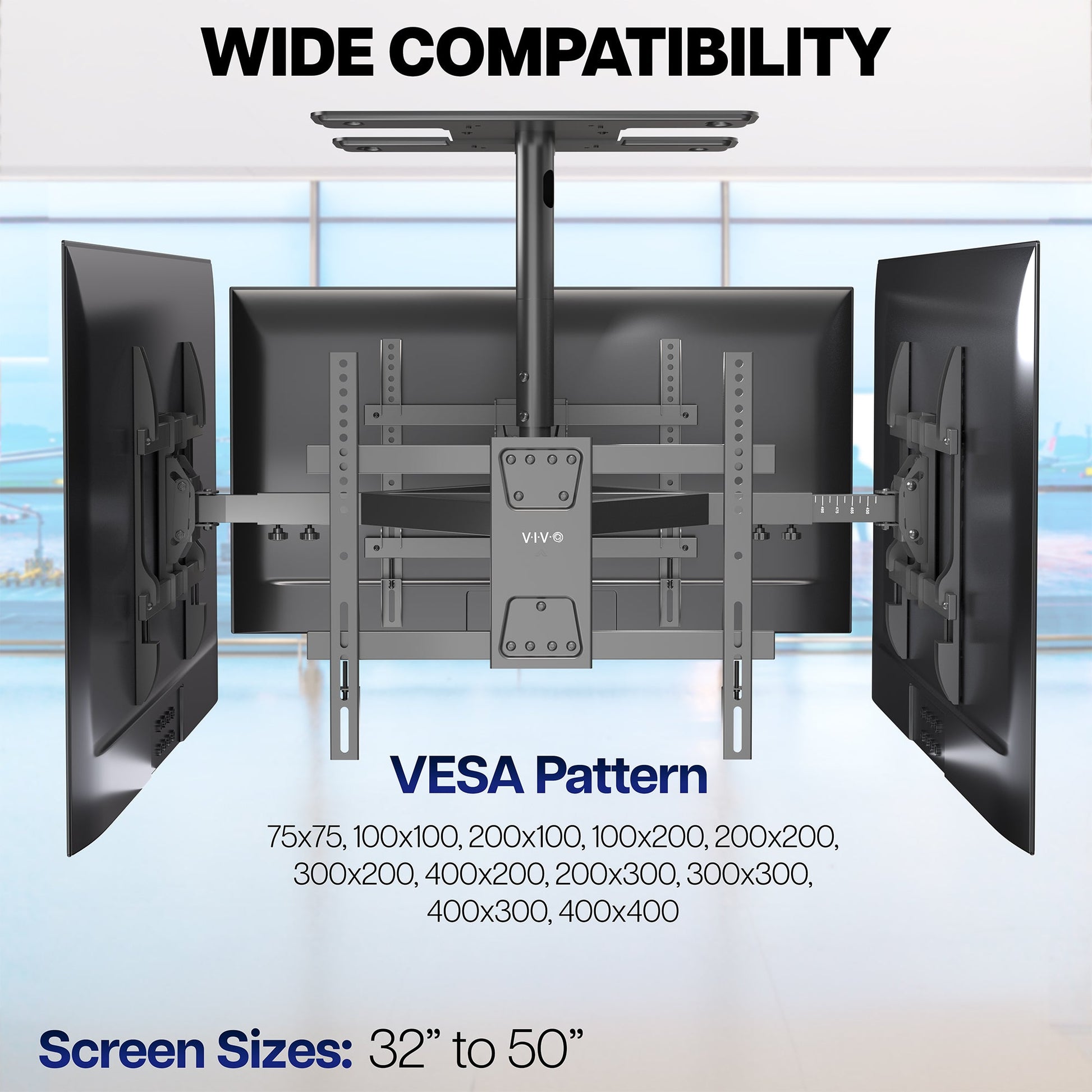

A: It supports four 32" to 50" flat or curved TVs with VESA patterns from 75×75mm to 400×400mm.

Q: How much weight can each mount support?

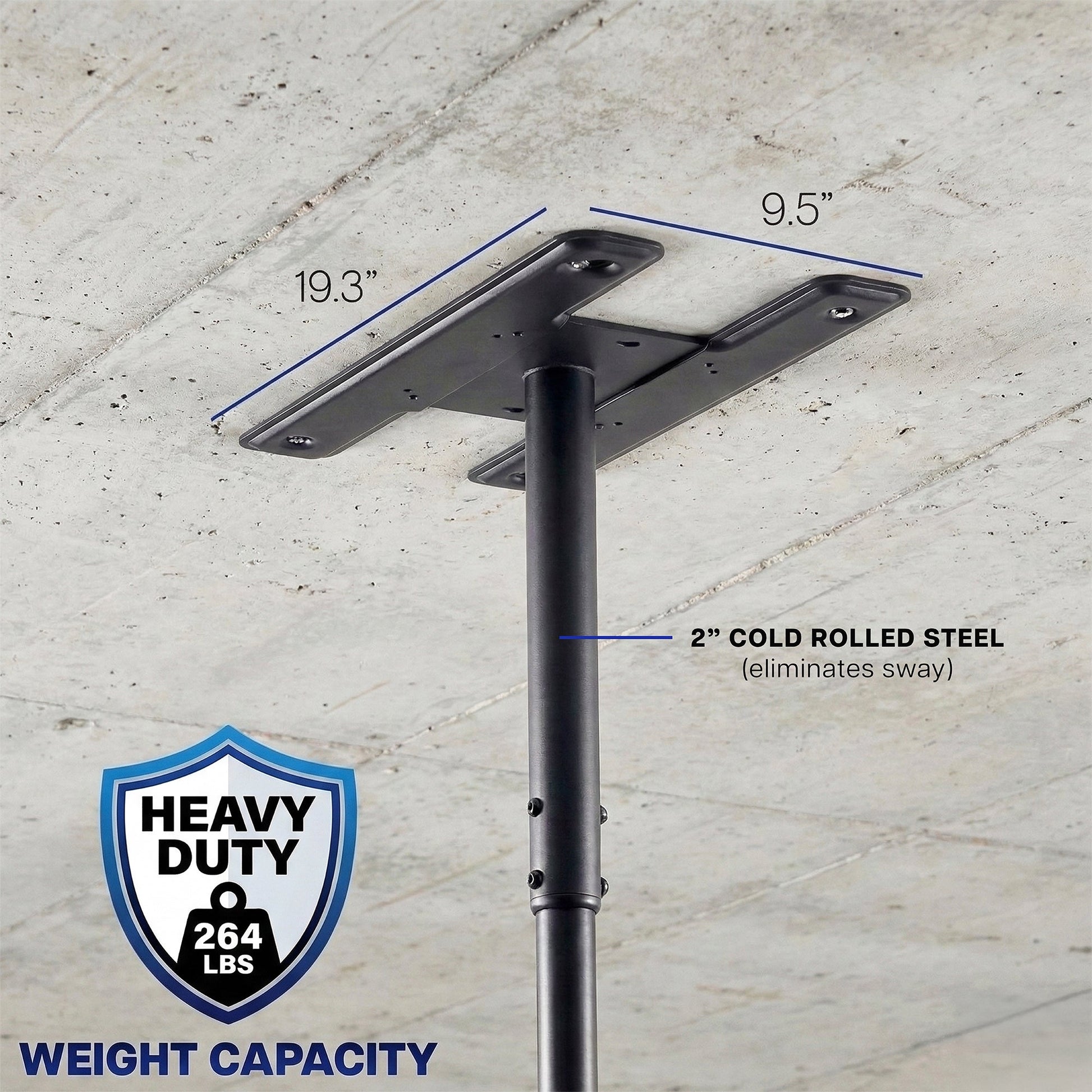

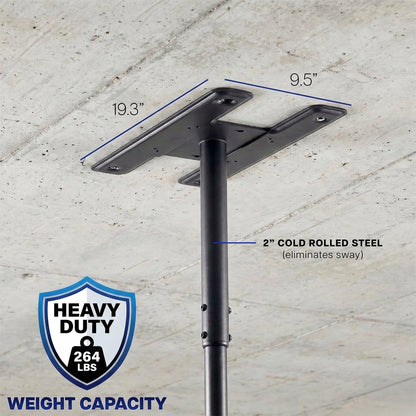

A: Each mount supports up to 66 lbs, for a combined capacity of 264 lbs, making it ideal for commercial digital signage and sports viewing setups.

Q: Can I adjust the height and viewing angles?

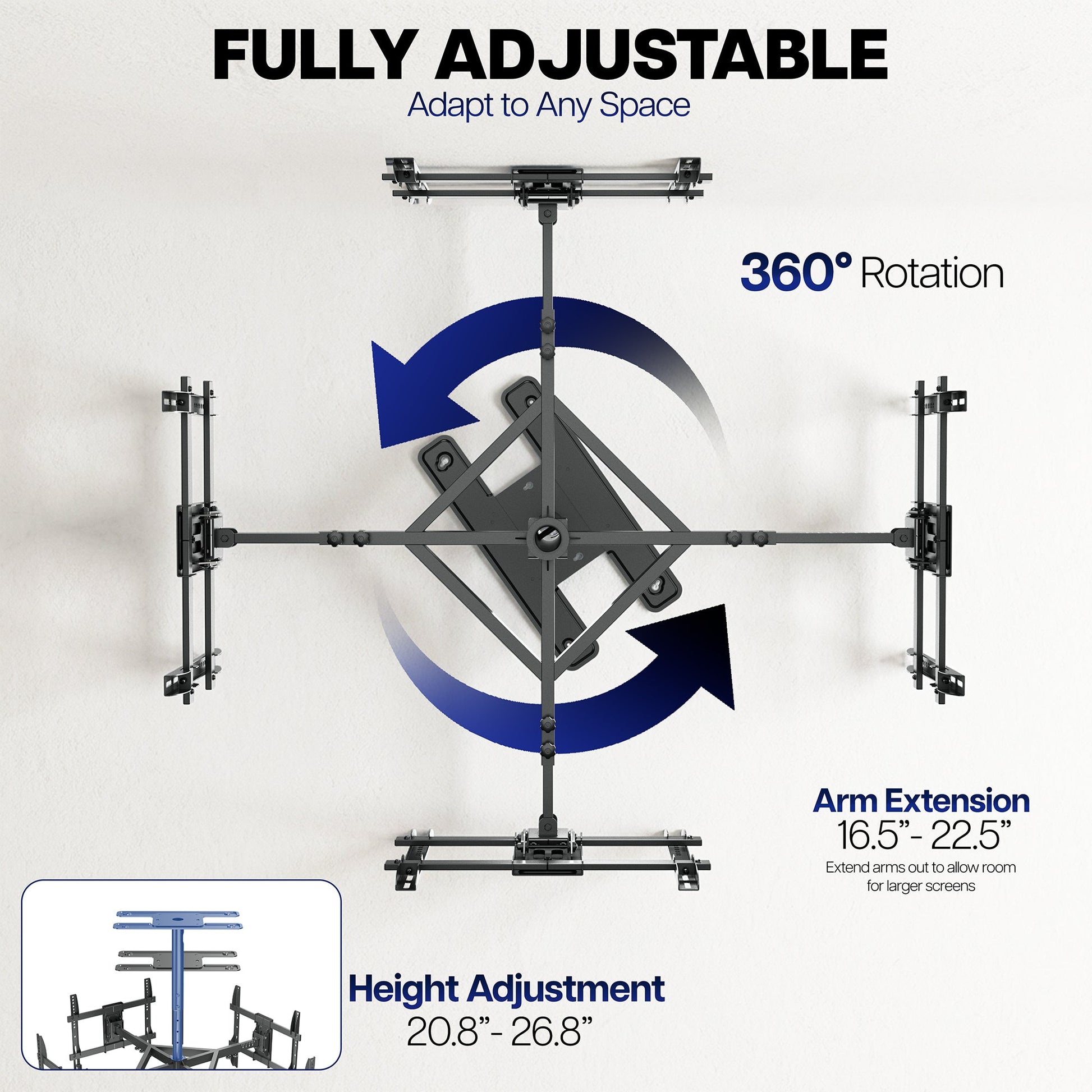

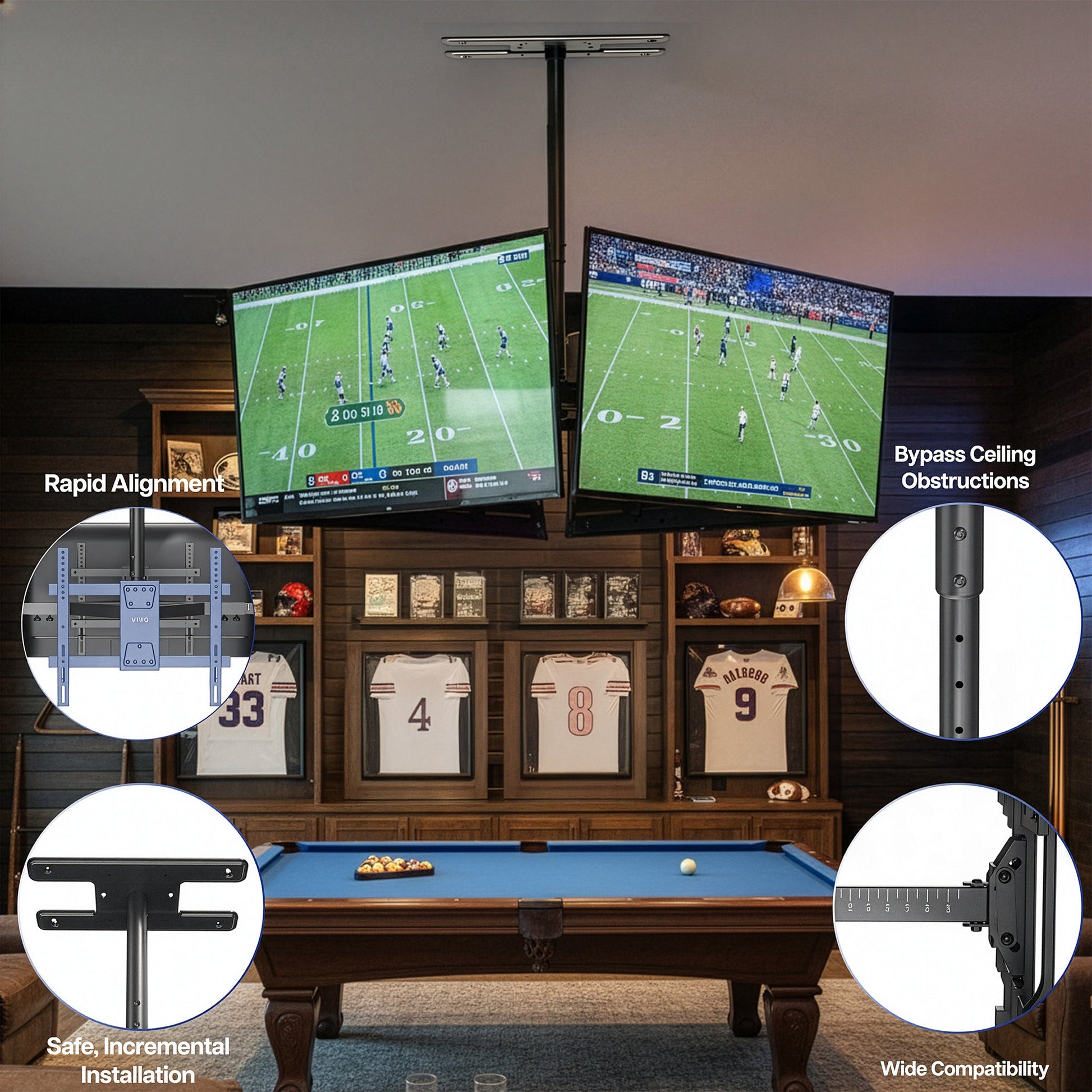

A: Yes. The mount features telescoping height adjustment (20.8"–26.8" to screen center), 180° swivel, +12° to -15.5° tilt, and ±6° screen leveling for optimal viewing.

Q: Can the screens be positioned in different layouts?
A: Yes. The telescoping arms extend from 16.5" to 22.5", allowing the four displays to be arranged in either a square or rectangular configuration.

Q: What ceiling types is it compatible with?
A: The mount includes hardware for installation on wood joists, solid wood, and concrete ceilings.

Q: Where is this mount commonly used?

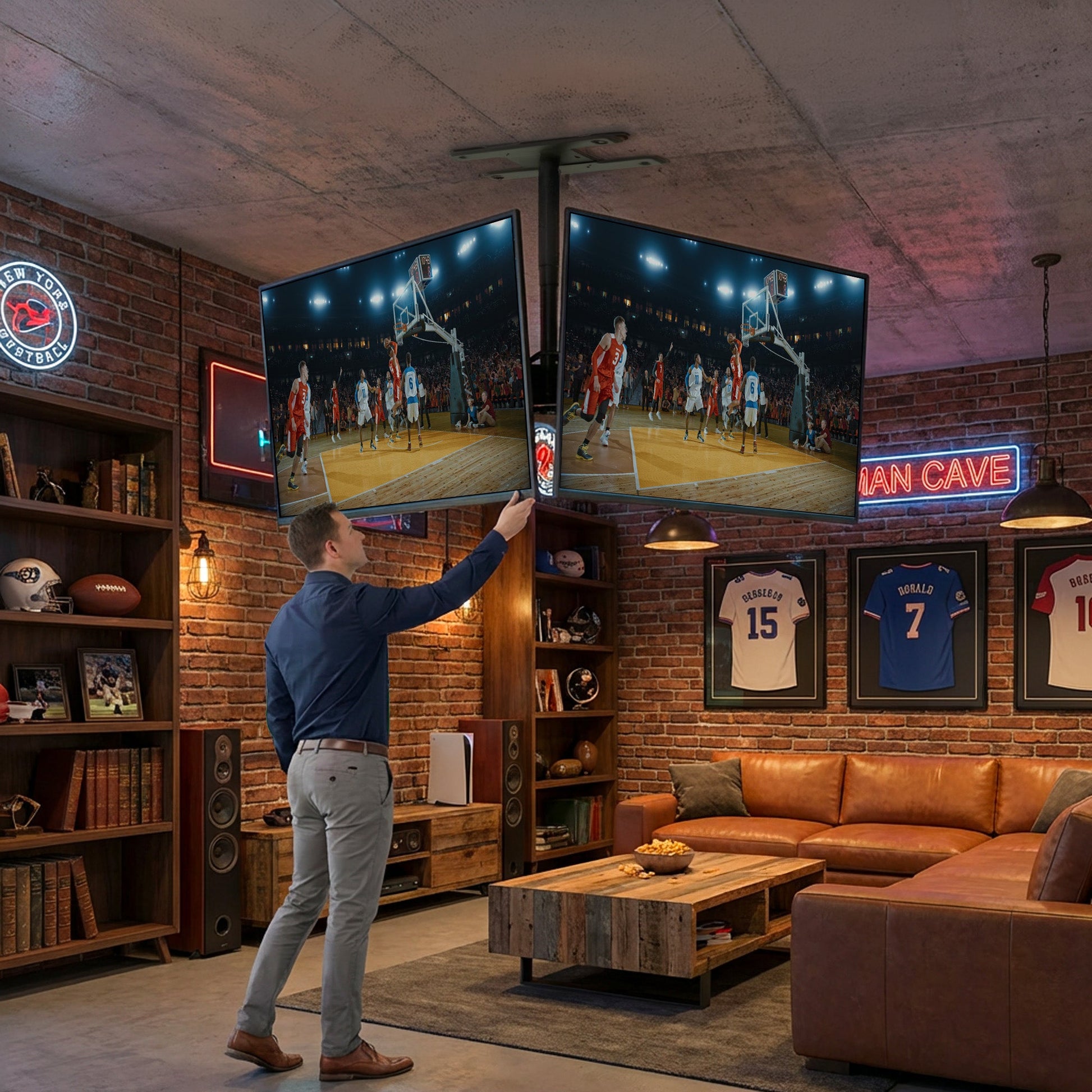

A: It's ideal for sports bars, restaurants, airports, conference centers, retail stores, and digital signage applications where 360° visibility is important.

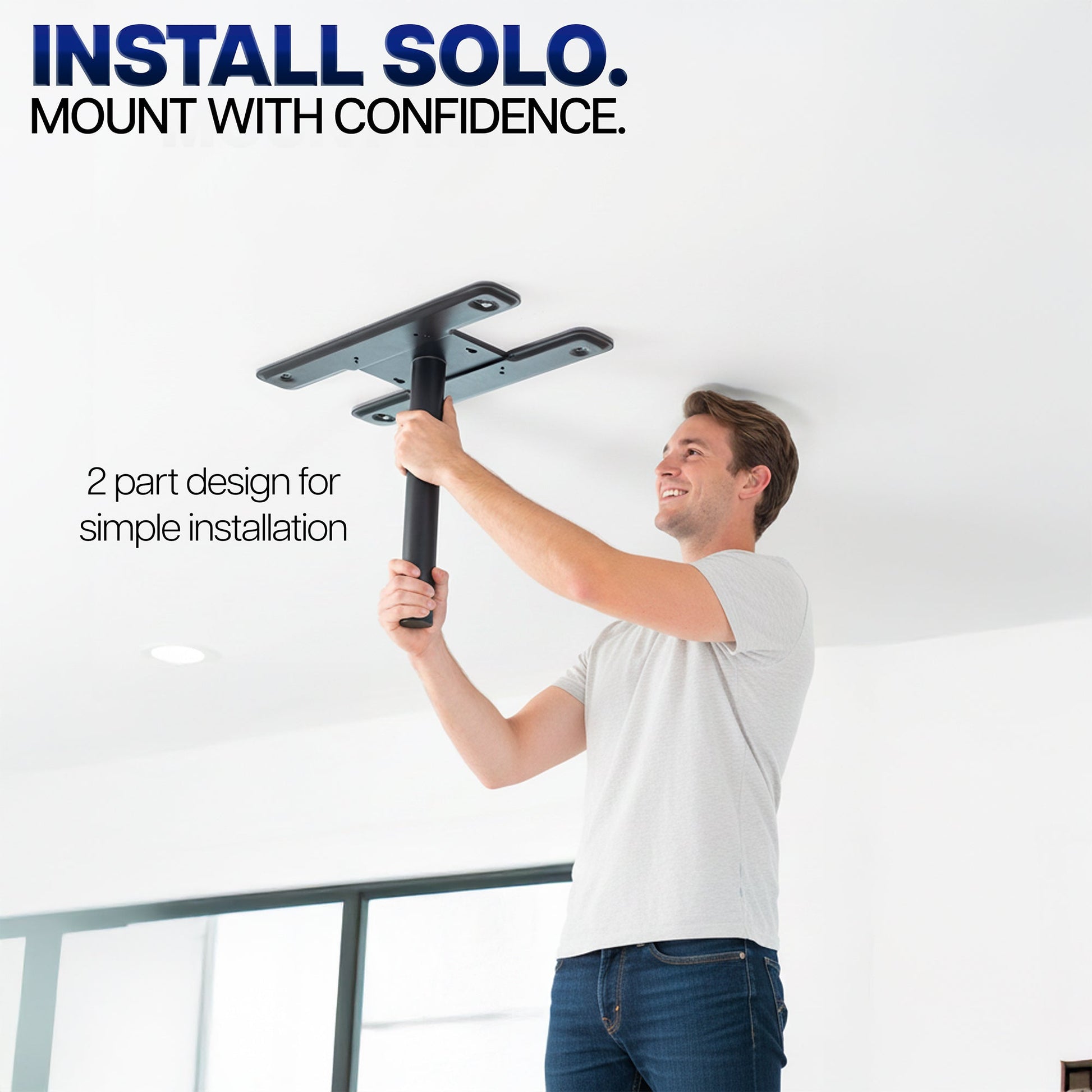

Q: Is assembly required?

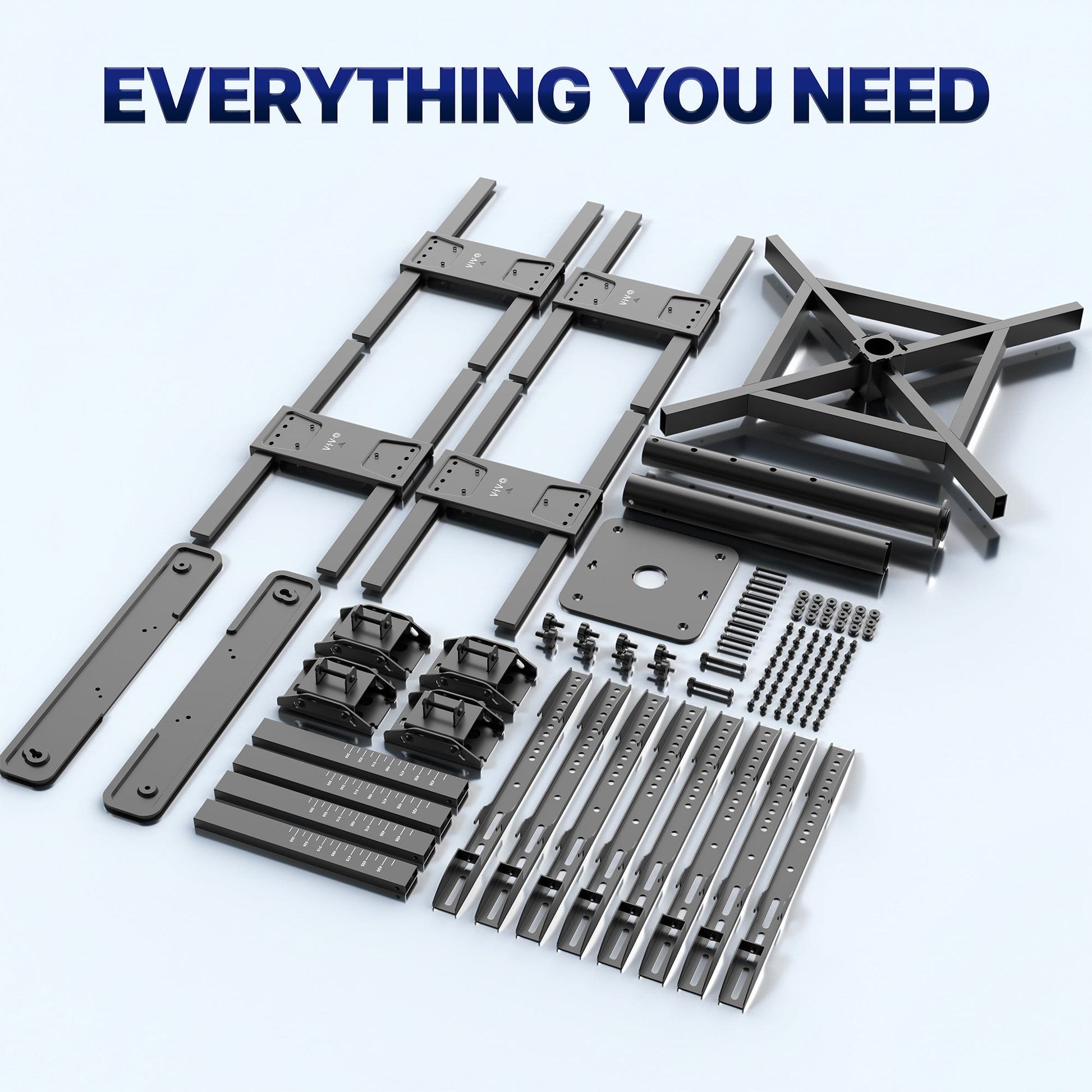

A: Yes. The mount includes all necessary hardware and detailed instructions for straightforward installation.
