Diamond Audio 1-Channel 1000W RMS CLASS D Monoblock Amplifier with 4CH DSP - NEO10001DSP

Diamond Audio 1-Channel 1000W RMS CLASS D Monoblock Amplifier with 4CH DSP - NEO10001DSP

Refined Power Meets Precision Control

The Diamond Audio NEO10001DSP is the definitive solution for audiophiles seeking the perfect balance of raw power and sophisticated tuning. As a high-efficiency Class D Monoblock amplifier , it delivers a robust 1000W RMS at 1Ω , providing the dependable strength needed for high-performance subwoofers while maintaining the pure sonic clarity Diamond Audio is known for.

Advanced Full DSP Integration

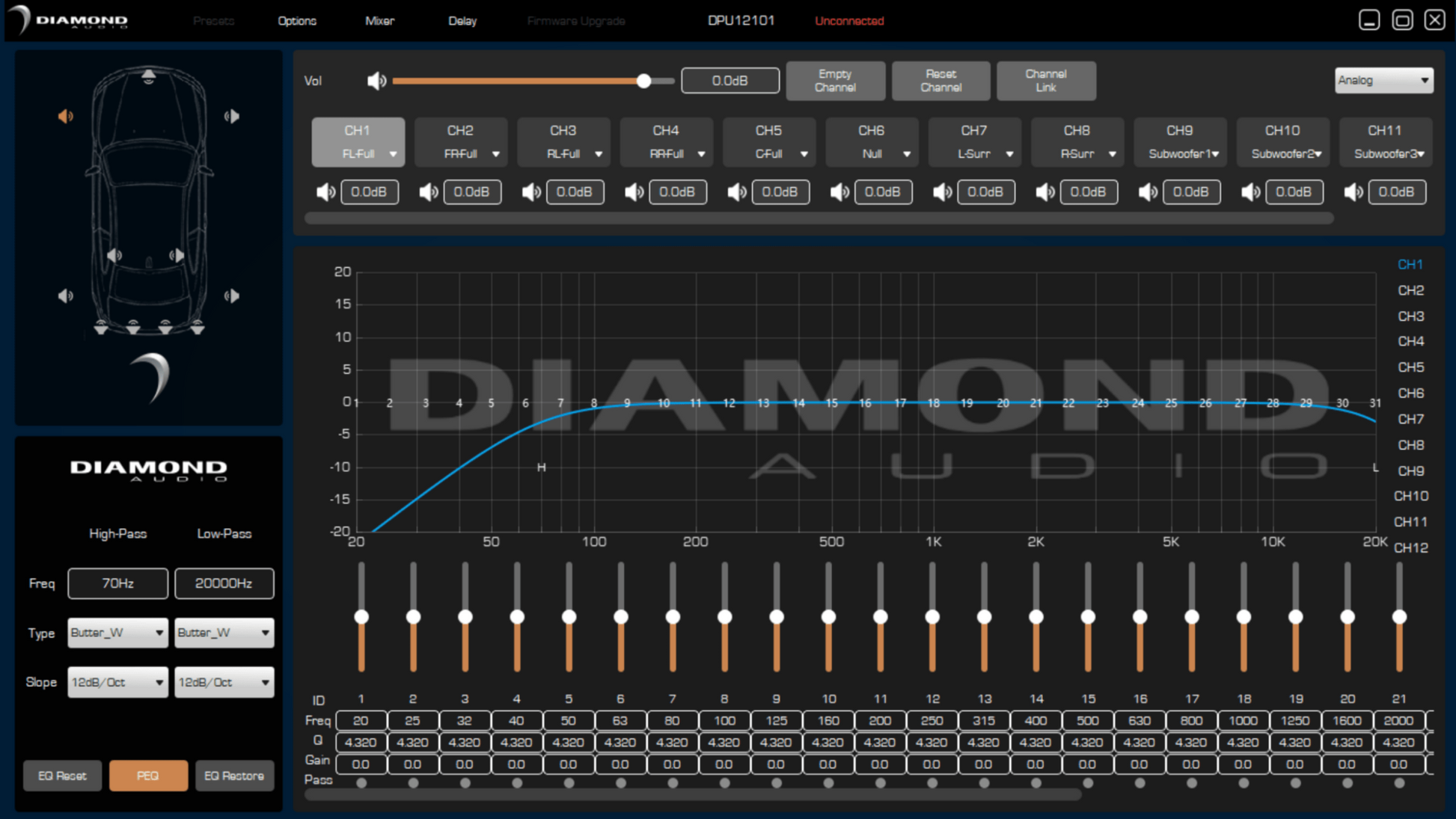

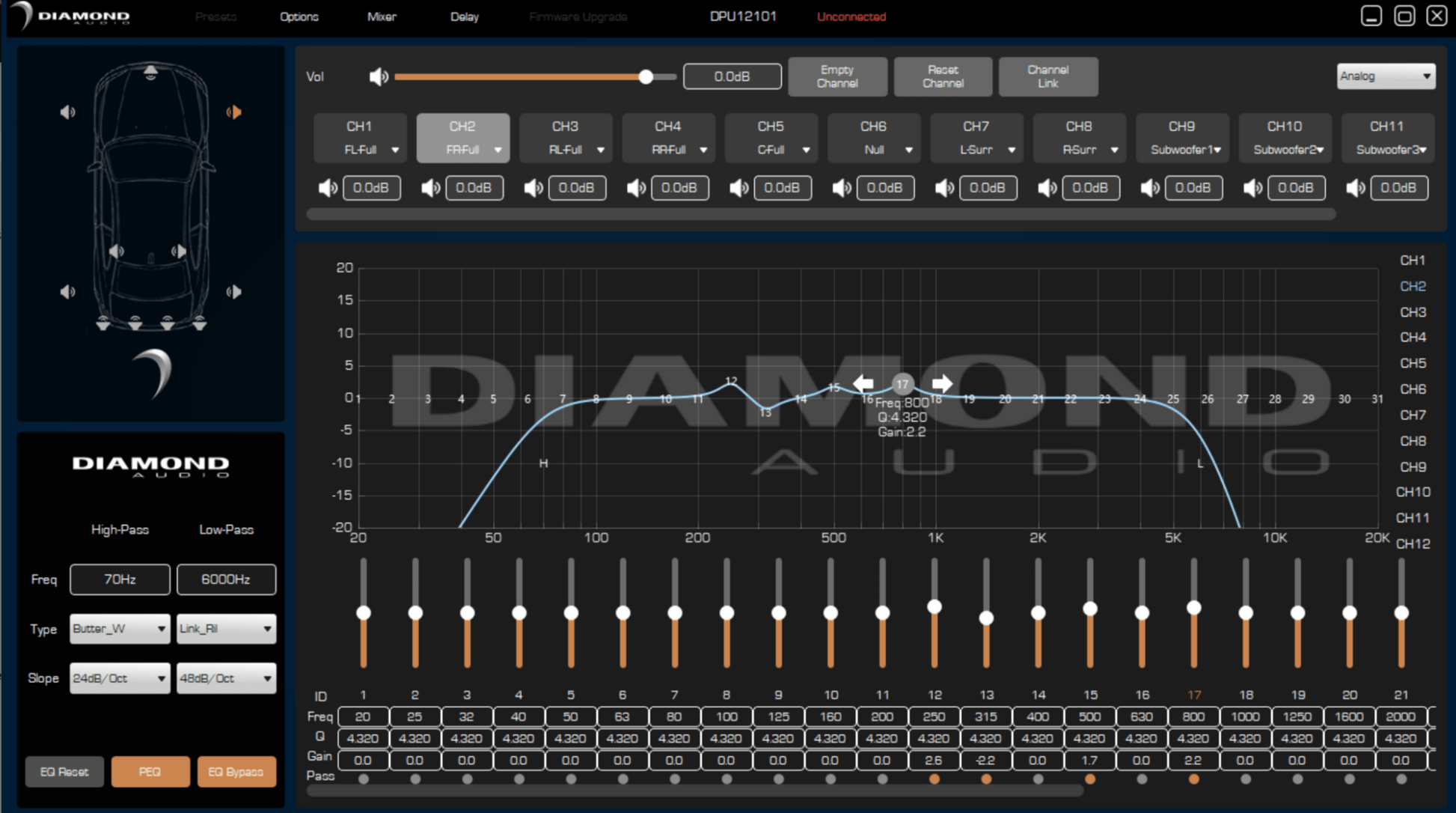

Unlike standard monoblock amplifiers, the NEO10001DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ , precise crossovers, time delay , and channel linking, you have total command over your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to calibrate your system for any acoustic environment.

Seamless OEM & EV Integration

Designed for the modern vehicle landscape, the NEO10001DSP excels in integration with onboard 4CH DSP. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Versatile & Rugged Engineering

Built to perform in diverse environments, the NEO10001DSP features a marine-ready , water-resistant chassis , making it an ideal choice for both high-end car audio and powersports installations . The compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation even in tight spaces.

Features

• Full 4CH DSP integration: 2CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
• Up to 20V signal inputs (High/Low level 20V – 0.4V)
• Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
• EV friendly voltage compatibility (8V – 17V)
• Bluetooth Audio streaming direct to amplifier

• Control via IOS or Android App (coming soon)
• Marine ready, water-resistant chassis

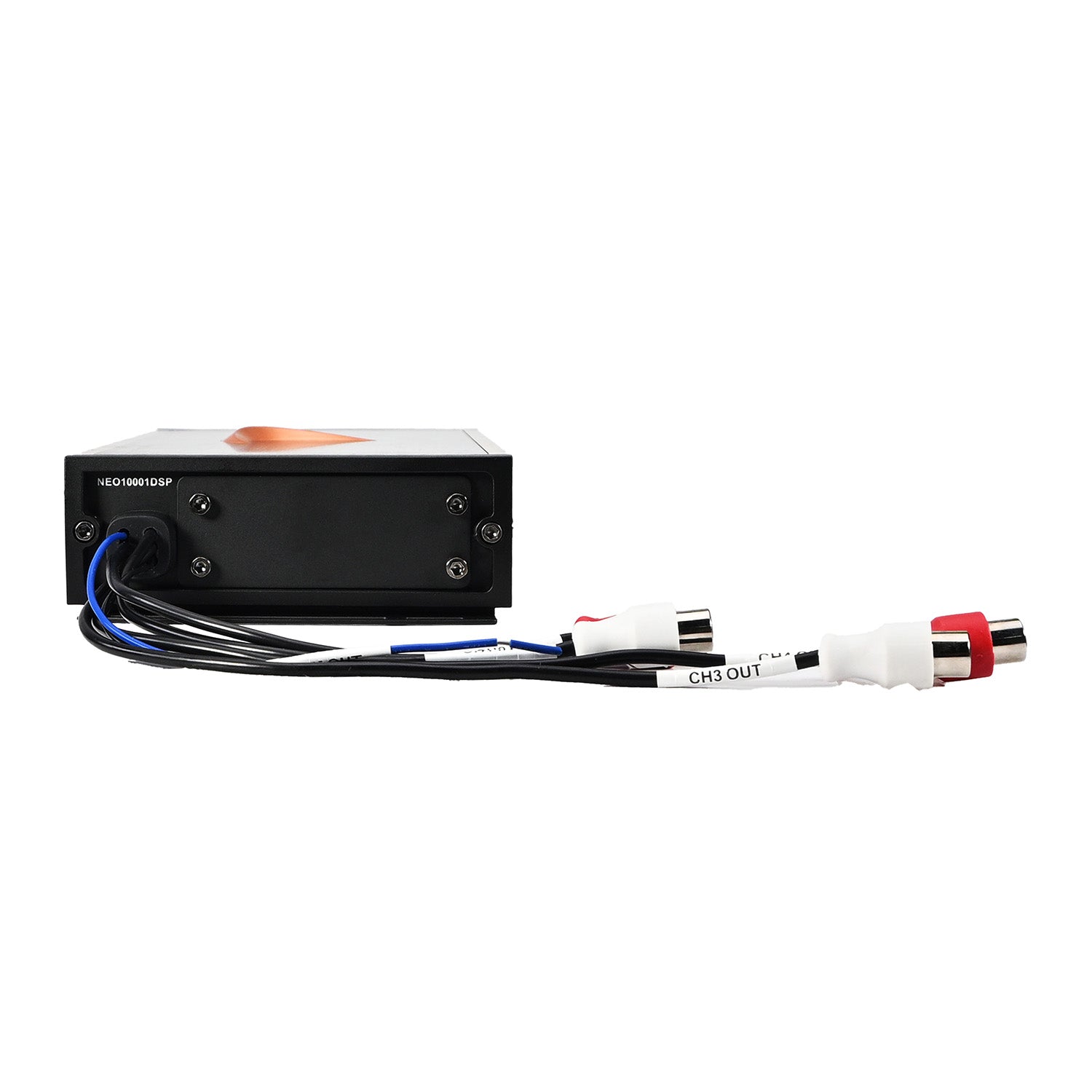

• Staggered RCA connections for clean installations

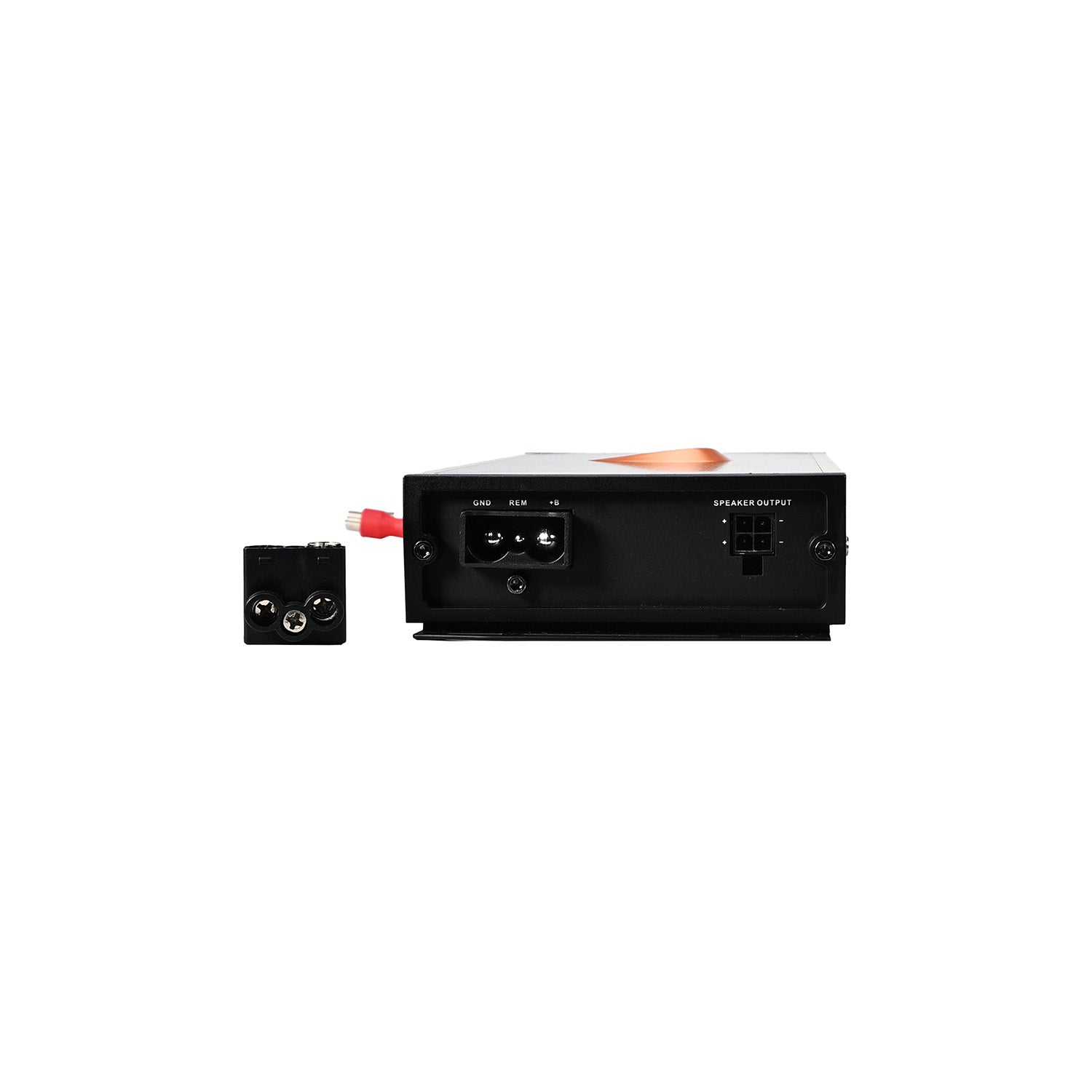

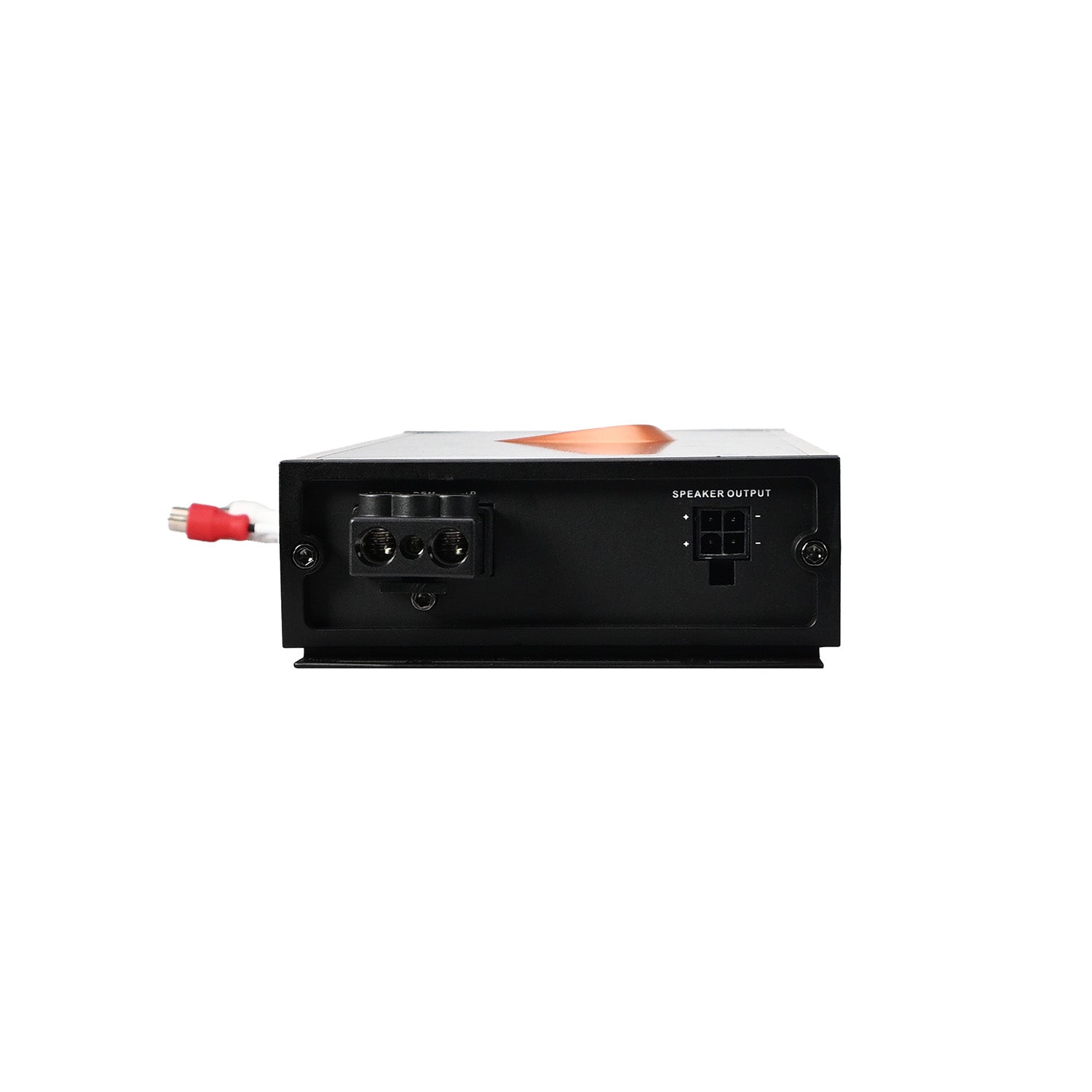

• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)

What our Experts Think

• High-performance monoblock Class D amplifier designed for powerful subwoofer systems and advanced audio builds.
• 1000W RMS output capability delivers deep, impactful bass with strong and controlled low-frequency performance.
• Built-in 4-channel DSP provides advanced tuning options for precise sound adjustment and system optimization.
• Digital signal processing allows detailed control over EQ, crossover settings, and audio response.
• Class D amplifier technology offers high efficiency with reduced heat and improved power management.
• Compact design with premium performance makes it ideal for automotive, marine, and powersports applications.
• Enhances overall system quality by combining powerful amplification with professional-level tuning.
• An excellent choice for enthusiasts seeking louder bass, cleaner output, and complete audio control.


Q&A

Q: What is the Diamond Audio NEO10001DSP designed for?
A: The NEO10001DSP is a 1-channel 1000W RMS Class D monoblock amplifier with built-in 4CH DSP designed for high-performance subwoofer and premium audio system upgrades.

Q: How much power does the NEO10001DSP deliver?
A: It delivers 1000W RMS x 1 at 1Ω, 800W RMS x 1 at 2Ω, and 600W RMS x 1 at 4Ω for powerful bass performance.

Q: What DSP features are included?
A: It includes 31-band parametric EQ, crossover controls, time delay, channel linking, and PC/Android tuning for precise audio adjustment.

Q: Can the NEO10001DSP integrate with factory audio systems?
A: Yes. It supports high-level inputs up to 20V, OEM integration, selectable load resistors, and EV-friendly voltage compatibility for modern vehicles.

Q: Is the NEO10001DSP suitable for marine and powersports use?
A: Yes. It features a water-resistant chassis, compact design, and rugged construction for automotive and outdoor audio applications.

Q: Why choose the Diamond Audio NEO10001DSP?
A: It combines high-output subwoofer power, advanced DSP tuning, compact installation, and premium audio control in one amplifier.

Maintenance Tips

• Clean the amplifier surface with a soft, dry microfiber cloth to prevent dust buildup.
• Keep ventilation areas clear to maintain proper cooling and prevent overheating.
• Inspect power, ground, speaker, RCA, and DSP connections regularly for secure, corrosion-free contact.
• Check fuses and wiring periodically for wear, damage, or loose connections.
• Protect the amplifier from excessive moisture, heat, and direct sunlight.
• Verify DSP settings, gain levels, and crossover adjustments periodically for optimal performance.
